Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

Description

Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

The MHO900 series is RIGOL’s economical oscilloscope. Compact in size, it features a 1,000,000 wfms/s[1] capture rate, max memory depth of 500 Mpts (option), 12-bit high resolution and low noise.

The product supports 16 digital channels. One instrument can analyse both analogue and digital signals to meet embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, Bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

• Resolution and Performance:
  • $12$-bit resolution
  • Max. analogue bandwidth, with analogue channels
  • Max. waveform capture rate: $1,000,000\text{wfms/s}$
  • Real-time sample rate: up to $4\text{GSa/s}$
  • Vertical sensitivity $200\mu \text{V/div}$ to $10\text{V/div}$
• Memory and Analysis:
  • Max. memory depth of $500\text{Mpts}$ (optional)
  • $16$ digital channels, with $200\text{MHz}$ PLA$2216$ logic analyser probe (optional)
  • Supports waveform search and navigation for faster debugging of signal anomalies
  • Supports histogram, digital signal analysis, and other measurements
• Integrated Tools (Optional):
  • Optional $2$-channel, $50\text{MHz}$/$100\text{MHz}$ Function/Arbitrary Waveform Generator (with Bode plot support)
• Display and Interface:
  • $7$” ($1024\times 600$) HD touch screen
  • Digital phosphor display with real-time $256$level intensity grading
  • Standard USB$2.0$ Device & Host, LAN ($100\text{M}$), and HDMI interfaces
• Design and Usability:
  • Novel and delicate industrial design, easy to operate
  • Flex knob brings a user-friendly experience
  • Supports online upgrade of the software version

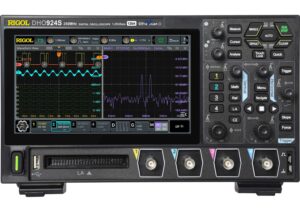

Product Images

N-in-one Integrated Efficient Test Tool

High Performance Rebuilds the Entry-Level Standard

Various Applications
