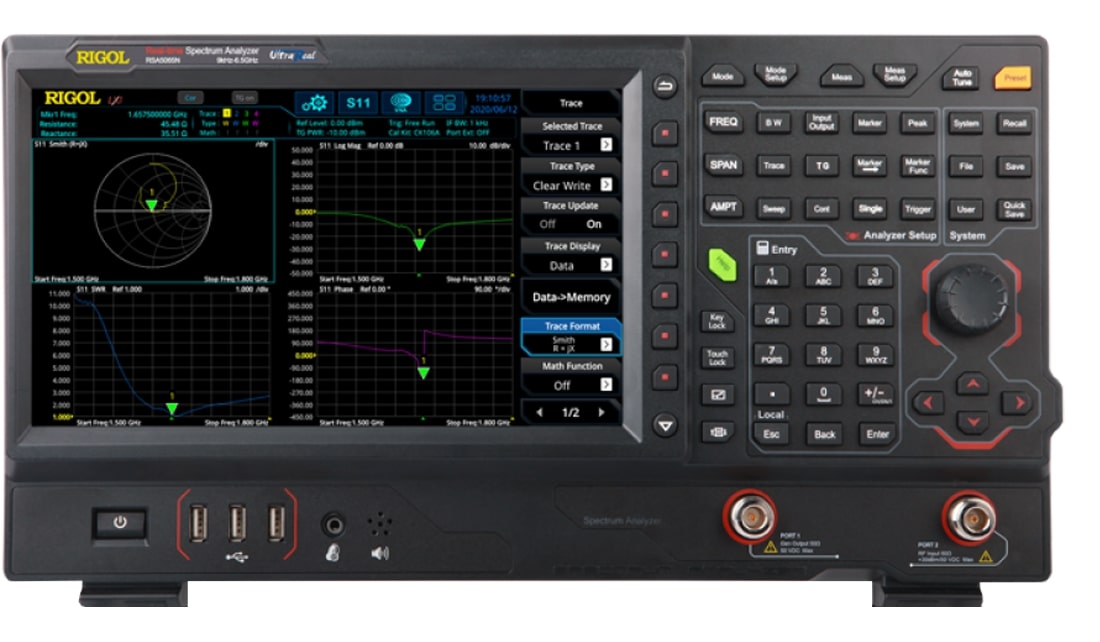

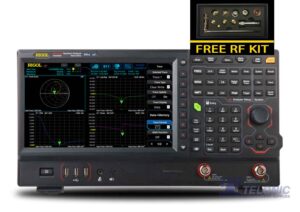

RSA5000N Series Real-Time Spectrum Analysers with VNA & DTF


Frequency Range: 9kHz to 3.2GHz, 6.5GHz | Minimum Resolution Bandwidth: 1Hz | Phase Noise: <-108dBc/Hz

  • Built-in Vector Network Analysis mode
  • Discover Transient Anomalies Through Ultra Real Technology
  • Discover Problems in Design with Vector Analysis
  • Conduction/radiation Pre-testing with Built-in Emi Test Software
  • Signal Triggering and Monitoring Via FMT Template
  • Multiple interfaces to improve the connectivity of the instruments
  • Quickly Complete Operations with a Multi-touch Screen
  • 7 Real-time Display Modes

The new RIGOL Vector Network Analysis mode adds significant capability to our RSA family of Spectrum Analysers. Customers needing to characterise active or passive components, identify signal path errors or tune antennas will benefit from the complete VNA solution. Supports the following:

  • S11 – Reflection Coefficient
  • S21 – Forward Transmission
  • Distance to Fault

Showing all 2 results
