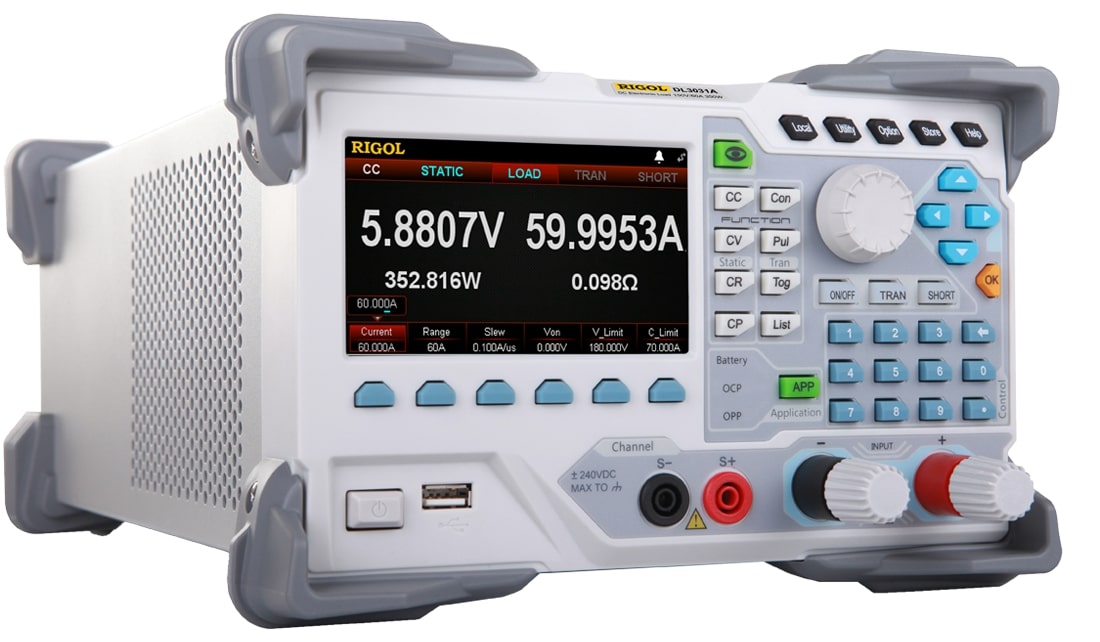

Rigol DL3000 Series DC Electronic Loads
Maximum Voltage: 150V | Maximum Current: 40A / 60A | Total Power: 200W / 350W
- Up to 350 W, 150 V, and 60 A
- Up to 5 A/us Slew Rate
- Up to 30 kHz Dynamic Frequency
- On Display graphing for transient and pulsed load conditions
-
- Built in applications for battery life testing
The DL3000 is a cost-effective programmable DC electronic load with performance specifications that rival any instrument in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes.
| Model | Total Power | Maximum Current | Display | Max. Current Slew Rate | Max. Continuous Mode Frequency | Readback Current Resolution | Digital I/O | Communications Interfaces | Price |
|---|---|---|---|---|---|---|---|---|---|
| DL3021 | 200W | 40A | Limited Colour | 2.5A/μs (std.) 3.0A/μs (opt.) |
15kHz (std.) 30kHz (opt.) |
1mA (std.) 0.1mA (opt.) |
Optional | USB Device, USB Host & RS232 – Standard LAN & GPIB – Optional |
£395.00 |
| DL3021A | 200W | 40A | Full Colour | 3.0A/μs | 30kHz | 0.1mA | Standard | USB Device, USB Host, LAN & RS232 – Standard GPIB – Optional |
£ £547.00 |
| DL3031 | 350W | 60A | Limited Colour | 2.5A/μs (std.) 5.0A/μs (opt.) |
15kHz (std.) 30kHz (opt.) |
1mA (std.) 0.1mA (opt.) |
Optional | USB Device, USB Host & RS232 – Standard LAN & GPIB – Optional |
£864.00 |
| DL3031A | 350W | 60A | Full Colour | 5.0A/μs | 30kHz | 0.1mA | Standard | USB Device, USB Host, LAN & RS232 – Standard GPIB – Optional |
£ £1,030.00 |
