Rigol DL3021 Programmable DC Electronic Load

£395.00 (£474.00 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description


Rigol DL3021 DC Electronic Load

The DL3021 is a Single Input, 150V, 40A, 200W DC Electronic Load. With a user-friendly interface and superb performance specifications, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.

Features:

  • Single input, 150V / 40A, total power up to 200W
  • Dynamic mode: Up to 15kHz (DL3021), Up to 30kHz (DL3021A)
  • Adjustable current rising speed: 0.001A/μs to 2.5A/μs (DL3021), 0.001A/μs to 3A/μs (DL3021A)
  • Minimum readback resolution: (TBS)
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Over-voltage / over-current / over-power / over-temperature / reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Standard communications interfaces: RS232, USB device & USB host, LAN (DL3021A), digital I/O (DL3021A)
  • Supplied with… USB cable, 2x spare fuses, magnetic input terminal shield with screw, UK & European mains leads, quick guide
  • Options include… USB to GPIB module, rack mount kit (single instrument), rack mount kit (two instruments), LAN interface, digital I/O interface, high resolution option, high frequency option, high slew rate option

Product Videos

https://youtube.com/watch?v=Z0W7KhDcxIY%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C RIGOL's DL3000 series Electronic Loads
https://youtube.com/watch?v=eHQdwBt9qBs%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Rigol DL3000 Static Modes
https://youtube.com/watch?v=FDAfM0Dd0Qo%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Rigol DL3000 Transient Modes

Documentation

Datasheets

Electronic Load DL3000 Series

Datasheets


Electronic Load DL3000 Series datasheets




Datasheet

Rigol DL3000 Datasheet



User Guide

Rigol DL3000 User Guide



Specifications

Rigol DL3000 Specifications



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • USB Data Cable

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • UK Power Cord

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

Optional Accessories …

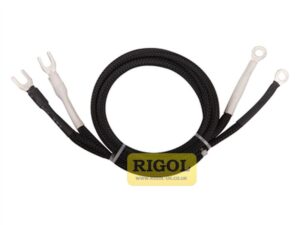

  • Rigol CB-40A-780MM 40A Test Leads
