Description
The Micsig DP20003 is a 100MHz bandwidth, 5.6kVpp, high-voltage differential probe that offers excellent value for money.

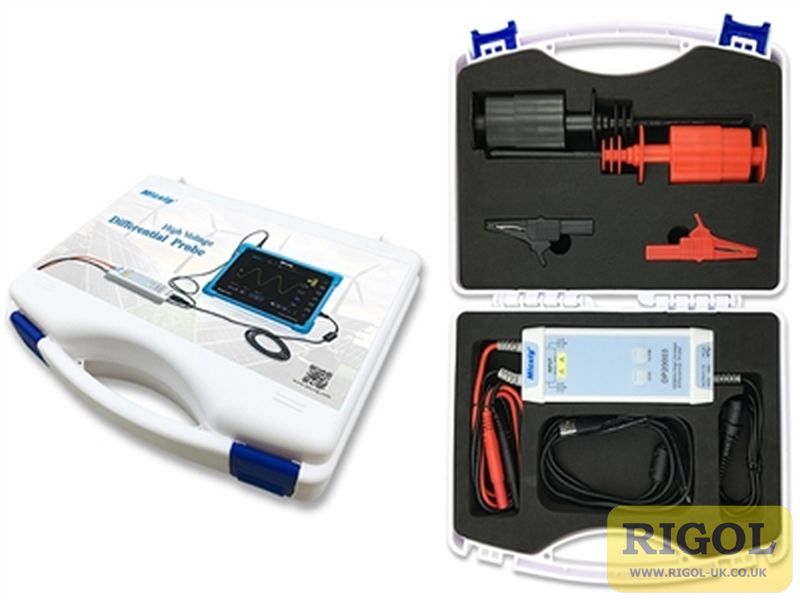

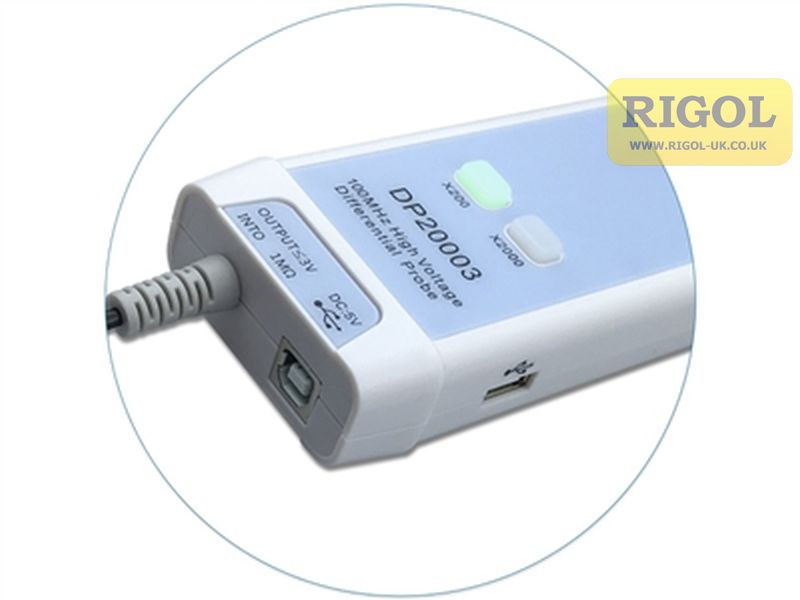

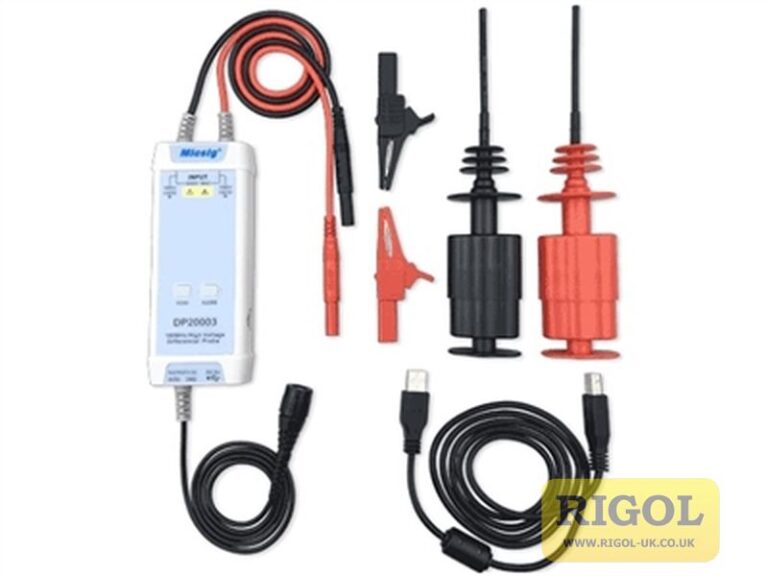

Micsig DP20003 High-Voltage Differential Probe
£198.88 (£238.66 inc VAT)
10 in stock (can be backordered)
Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)
Documentation
| DP20003 Specifications | |
|---|---|
| Model | DP20003 |
| Bandwidth | 100MHz |
| Rise Time | 3.5ns |
| Attenuation | 200X 2000X |
| Gain accuracy | ±2% |
| Maximum Differential Test Voltage (DC+AC PK） | 560V（200X） 5600V（2000X） |
| Maximum input common mode voltage (DC+AC PK） | CAT III 1000V |
| Input referred noise | ≤160mVrms（200X） ≤920 mVrms（2000X） |
| Common Mode Rejection Ratio | ＞80dB（DC） ＞60dB（100KHz） ＞50dB（1MHz） |
| Input Impedance | 50MΩ/1.25pF（differential） 25MΩ/2.5pF（single-ended to ground） |
| Output Voltage | ≤3V |
| Over range Alarm | Button light flashes |
| Power Supply | DC 5V，USB Supply |
| Power | 0.85W |
| Dimension | 14.5cm*6cm*2.7cm |
| Input cable length | Approx 45cm |
| Output cable length | Approx 90cm |
Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
