| Sample Mode |
Real-Time Sample Rate |
| Real-Time Sample Rate |
Analogue channel:
1 GSa/s (single-channel),
500 MSa/s (dual-channel), 250 MSa/s (three/four-channel)
Digital channel:
1 GSa/s (8-channel), 500 MSa/s (16-channel) |
| Peak Detect |
Analogue channel: 4 ns
Digital channel: 4 ns |
| Averaging |
After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512 or 1024. |
| High Resolution |
12 bit (max.) |
| Interpolation |
Sin(x)/x (optional) |
| Minimum Detect Pulse Width |
Digital channel: 10 ns |
| Memory Depth |
Analogue channel:
24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (three/four-channel)
Digital channel:
24 Mpts (8-channel), 12 Mpts (16-channel) |
| Input |
|
| Number of Channels |
DS1XX4Z Plus/1XX4Z-S Plus: 4 analogue channels, 16 digital channels available after upgrade
DS1054Z: 4 analogue channels |
| Input Coupling |
DC, AC or GND |

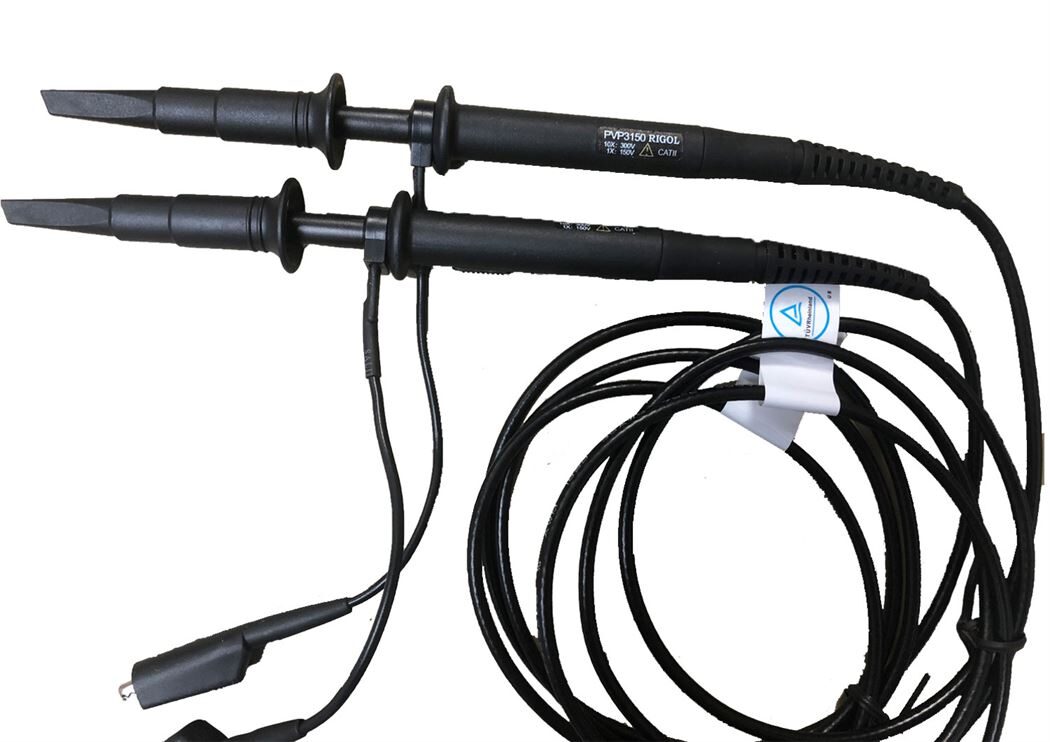

| Input Impedance |
Analogue channel: (1 MΩ±1%) || (15 pF±3 pF)
Digital channel: (100 kΩ±1%) || 8 pF±3 pF) |
| Probe Attenuation Coefficient |
Analogue channel: 0.01X to 1000X, in 1-2-5 step |
| Maximum Input Voltage (1MΩ) |
Analogue channel:
CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk
Digital channel:
CAT I 40 Vrms, transient overvoltage 800 Vpk |
| Horizontal |
|
| Timebase Scale |
5 ns/div to 50 s/div |
| Maximum Record Length |
24 Mpts |
| Timebase Accuracy |
≤ ± 25 ppm |
| Clock Drift |
≤ ± 5 ppm/year |
| Maximum Delay Range |
Negative delay: 1/2 (Memory Depth/Sample Rate)
Positive delay: 1 s to 500 s |
| Timebase Mode |
YT, XY, Roll |
| Number of X-Y’s |
1 |
| Waveform Capture Rate |
30,000 wfms/s (dots display) |
| Zero Offset |
±0.5div*minimum time base scale |
| Vertical |
|
| Bandwidth (-3dB) |
DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
| Single-shot Bandwidth |
DS1104Z Plus/1104Z-S Plus: DC to 100 MHz
DS1074Z Plus/1074Z-S Plus: DC to 70 MHz
DS1054Z: DC to 50 MHz |
| Vertical Resolution |
Analogue channel: 8 bits
Digital channel: 1 bit |
Vertical Scale
(Probe ratio is 1X) |
1 mV/div to 10 V/div |
Offset Range
(Probe ratio is 1X) |
1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V |
| Bandwidth Limit |
20 MHz |
Low Frequency Response
(AC coupling, -3dB) |
≤5 Hz (on BNC) |
| Calculated Rise Time |
DS1104Z Plus/1104Z-S Plus: 3.5 ns
DS1074Z Plus/1074Z-S Plus: 5 ns
DS1054Z: 7 ns |
| DC Gain Accuracy |
<10 mV: ±4% full scale
≥10 mV: ±3% full scale |
| DC Offset Accuracy |
±0.1 div ± 2 mV ± 1% offset |
| Channel to Channel Isolation |
DC to maximum bandwidth: >40 dB |
| Trigger |
|
| Trigger Level Range |
±5 div from the centre of the screen |
| Trigger Mode |
Auto, Normal, Single |
| Holdoff Range |
16 ns to 10 s |
| High Frequency Rejection |
75 kHz |
| Low Frequency Rejection |
75 kHz |
| Trigger Sensitivity |
1.0 div (below 5 mV or noise rejection is enabled)
0.3 div (above 5 mV and noise rejection is disabled) |
| Edge Type |
Rising, Falling, Rising/Falling |
| Pulse Condition |
Positive Pulse Width (greater than, lower than, within specified interval)
Negative Pulse Width (greater than, lower than, within specified interval) |
| Pulse Width |
8 ns to 10 s |
| Pulse Width Condition |
None, >, <, <> |
| Polarity |
Positive, Negative |
| Pulse Width Range |
8 ns to 10 s |
| Windows Type |
Rising, Falling, Rising/Falling |
| Trigger Position |
Enter, Exit, Time |
| Windows Time |
8 ns to 10 s |
| Edge Type |
Rising, Falling |
| Idle Time |
16 ns to 10 s |
| Edge Number |
1 to 65535 |
| Slope Condition |
Positive Slope (greater than, lower than, within specified interval)
Negative Slope (greater than, lower than, within specified interval) |
| Time Setting |
8 ns to 10 s |
| Signal Standard |
NTSC, PAL/SECAM, 480P, 576P |
| Pattern Setting |
H, L, X, Rising, Falling |
| Edge Type |
Rising, Falling |
| Delay Type |
>, <, <>, >< |
| Delay Time |
8 ns to 10 s |
| Edge Type |
Rising, Falling, Rising/Falling |
| TimeOut Value |
16 ns to 10 s |
| Pattern |
H, L, X |
| Trigger Condition |
>, <, <> |
| Duration Time |
8 ns to 10 s |
| Edge Type |
Rising, Falling |
| Data Pattern |
H, L |
| Setup Time |
8 ns to 1 s |
| Hold Time |
8 ns to 1 s |
| Polarity |
Normal, Invert |
| Trigger Condition |
Start, Error, Check Error, Data |
| Baud Rate |
2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps,
921600 bps, 1 Mbps and User |
| Data Bits |
5 bits, 6 bits, 7 bits, 8 bits |
| Trigger Condition |
Start, Restart, Stop, Missing Ack, Address, Data, A&D |
| Address Bits |
7 bits, 8 bits, 10 bits |
| Address Range |
0 to 127, 0 to 255, 0 to 1023 |
| Byte Length |
1 to 5 |
| Trigger Condition |
Timeout, CS |
| Timeout Value |
16 ns to 10 s |
| Data Bits |
4 bit to 32 bit |
| Data Line Setting |
H, L, X |
| Measure |
|
| Cursor |
Manual mode:
Voltage deviation between cursors ( â–³V )
Time deviation between cursors ( â–³T )
Reciprocal of â–³T (Hz) (1/ â–³T )
Track mode:
Voltage and time values of the waveform point
Auto mode:
Allow to display cursors during auto measurement |
| Auto Measurement |
Analogue channel:
Period, Frequency, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle,
Negative Duty Cycle, tVmax, tVmin, Positive Rate, Negative Rate, Delay 1→2 , Delay 1→2 , Phase
1→2 , Phase 1→2 , Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Upper
Value, Middle Value, Lower Value, Average, Vrms, Overshoot, Pre-shoot, Area, Period Area, Period Vrms,
Variance
Digital channel:
Period, Frequency, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle,
Delay 1→2 , Delay 1→2 , Phase 1→2 , Phase 1→2 |
| Number of Measurements |
Display 5 measurements at the same time |
| Measurement Range |
Screen or cursor |
| Measurement Statistic |
Average, Max, Min, Standard Deviation, Number of Measurements |
| Counter |
Hardware 6 bits counter (channels are selectable) |
| Display |
|
| Display Type |
7.0 inch TFT LCD display |
| Display Resolution |
800 horizontal × RGB × 480 vertical pixel |
| Display Colour |
16 million color (24 bit true color) |
| Persistence Time |
Min, 100 ms, 200 ms, 500 ms, 1 s, 5 s, 10 s, Infinite |
| Display Type |
Dots, Vectors |
| I/O |
|
| Standard Ports |
USB Host, USB Device, LAN, AUX Output (TrigOut/PassFail) |
| General Specifications |
|
| Output Voltage |
About 3 V, peak-peak |
| Frequency |
1 kHz |
| Power Voltage |
100 V to 240 V, 45 Hz to 440 Hz |
| Power |
Maximum 50 W |
| Fuse |
2 A, T degree, 250 V |
| Temperature Range |
Operating: 0℃ to +50℃
Non-operating: -40℃ to +70℃ |
| Cooling Method |
Fan cooling |
| Humidity Range |
0℃ to +30℃ : ≤95℃ relative humidity,
+30℃ to +40℃ : ≤75℃ relative humidity,
+40℃ to +50℃ : ≤45℃ relative humidity |
| Altitude |
Operating: under 3,000 meters,
Non-operating: under 15,000 meters |
| Dimensions |
Width × Height × Depth = 313.1 mm × 160.8 mm × 122.4 mm |
| Weight |
Without package 3.2 kg ± 0.2 kg,
With package 3.8 kg ± 0.5 kg |
| Calibration Interval |
The recommended calibration interval is 18 months. |
Rigol DS1000Z Datasheet
