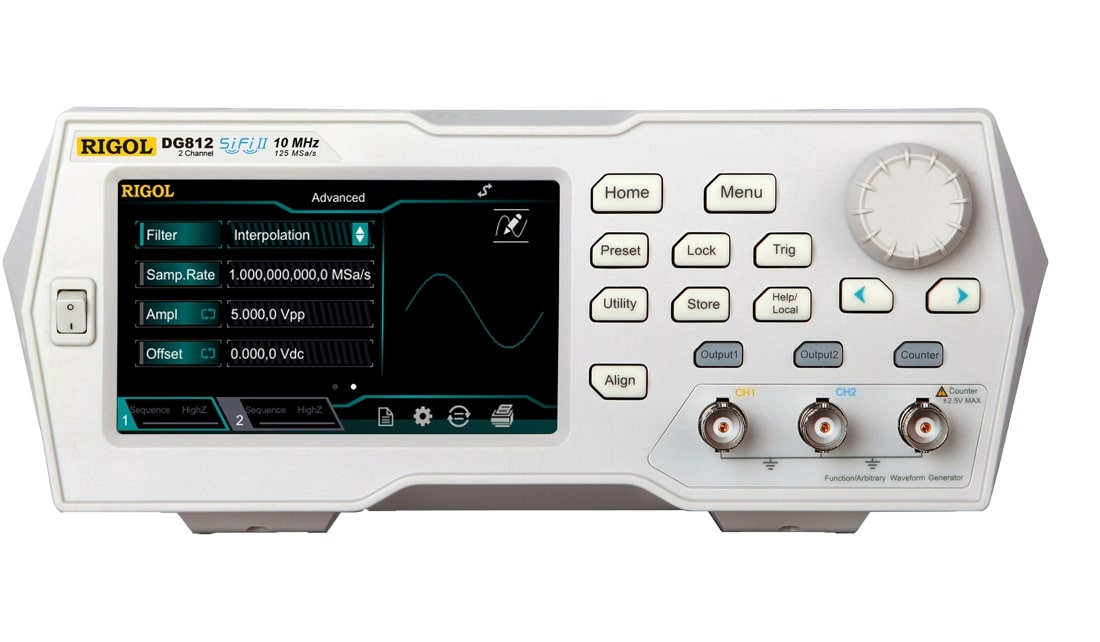

Rigol DG800 Series Waveform Generators
Max. Output Frequency: 10MHz, 25MHz, 35MHz | Sample Rate: 125MSa/s | Accuracy: ±1ppm
- 4.3 Inch Touch Screen
- 16Bit Vertical Resolution
- Signal Jitter As Low As 200ps
- SiFi II Technology
- Support Multiple Signal Outputs
- Arb Sequencing
- Fanless Silent Operation
- Harmonic Generator
- 200 MHz Hardware Counter
The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2Mpts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.
| Model | Channels | Maximum Frequency | Sample Rate | Accuracy | Built-In Waveforms | Modulation | Connections | Price |
|---|---|---|---|---|---|---|---|---|

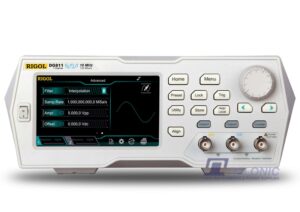

| DG811 | 1 | 10MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£179.00 |

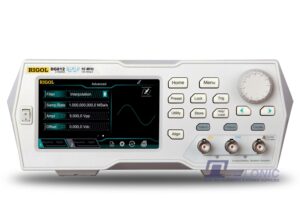

| DG812 | 2 | 10MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£197.00 |
| DG821 | 1 | 25MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£206.00 |
| DG822 | 2 | 25MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£224.00 |
| DG831 | 1 | 35MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£269.00 |
| DG832 | 2 | 35MHz | 125MSa/s | ±1ppm | 7-off Basic, 3-off Advanced, 160-off Arbitrary |
AM, FM, PM, ASK, FSK, PSK and PWM | USB Device & Host (std.) USB-LAN (opt.) |
£278.00 |
