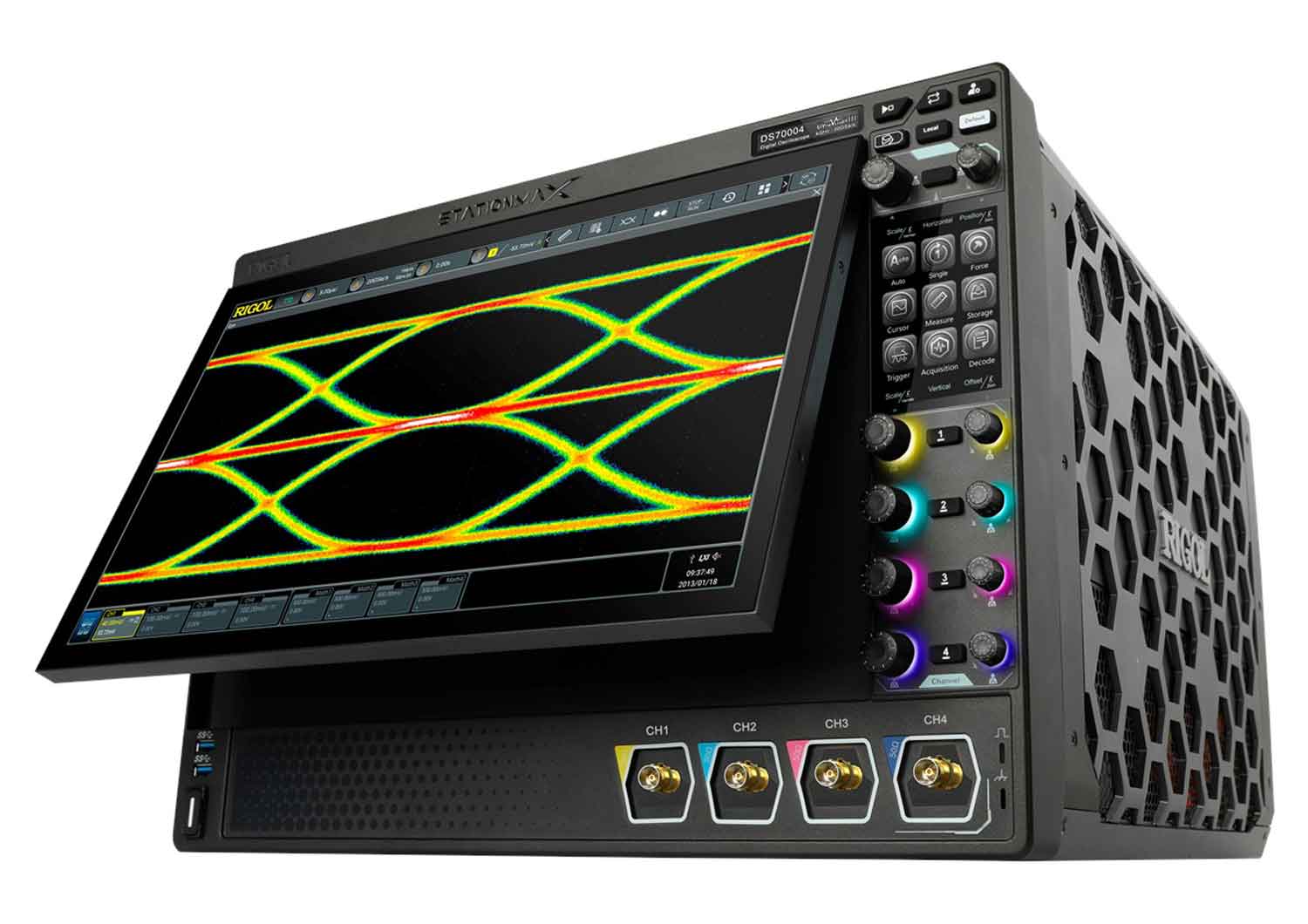

Rigol DS70504 Digital Oscilloscope, 5GHz Bandwidth, up to 16 bit

£22,681.00 (£27,217.20 inc. VAT)

Available on back-order

SKU: DS70504 Category: Brand:

Description


Rigol DS70504 Digital Oscilloscope

The new DS70000 Series is available in 3 GHz or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology to create RIGOL’s most powerful test and measurement instrument ever.

Features
  • 5-in-1 workstation: High-end oscilloscope, voltmeter, frequency counter/totalizer, real-time spectrum analyser (option RTSA), protocol analyser (option).
  • 4 analogue input channels.
  • Bandwidth 3 GHz or 5 GHz.
  • Sample rate up to 20 GS/s.
  • Dimensions: 7 U (full rack size).
  • Two touch displays:Tilting, capacitive 15.6″/39.6 cm colour touchscreen display (main display, for multiple measurement windows).3.5″/8.9 cm touchscreen display for device settings and control.
  • Memory depth 500 Mpts, option up to 2 GPts.
  • The vertical resolution can be selected between 8-bit and 16-bit, ideal for measuring very small signal components.
  • Waveform capture rate up to 1 Mio Wfms/s.
  • Various versatile display, math and trigger features (e.g. zone trigger).
  • Interfaces: USB 3.0 host/device, LAN/Ethernet (remote control or via web control/browser), optional USB-to-GPIB (adaptor) as well as USB mouse support; additional HDMI, TRIG OUT, 10-MHz-IN/OUT, AUX OUT.

Product Images

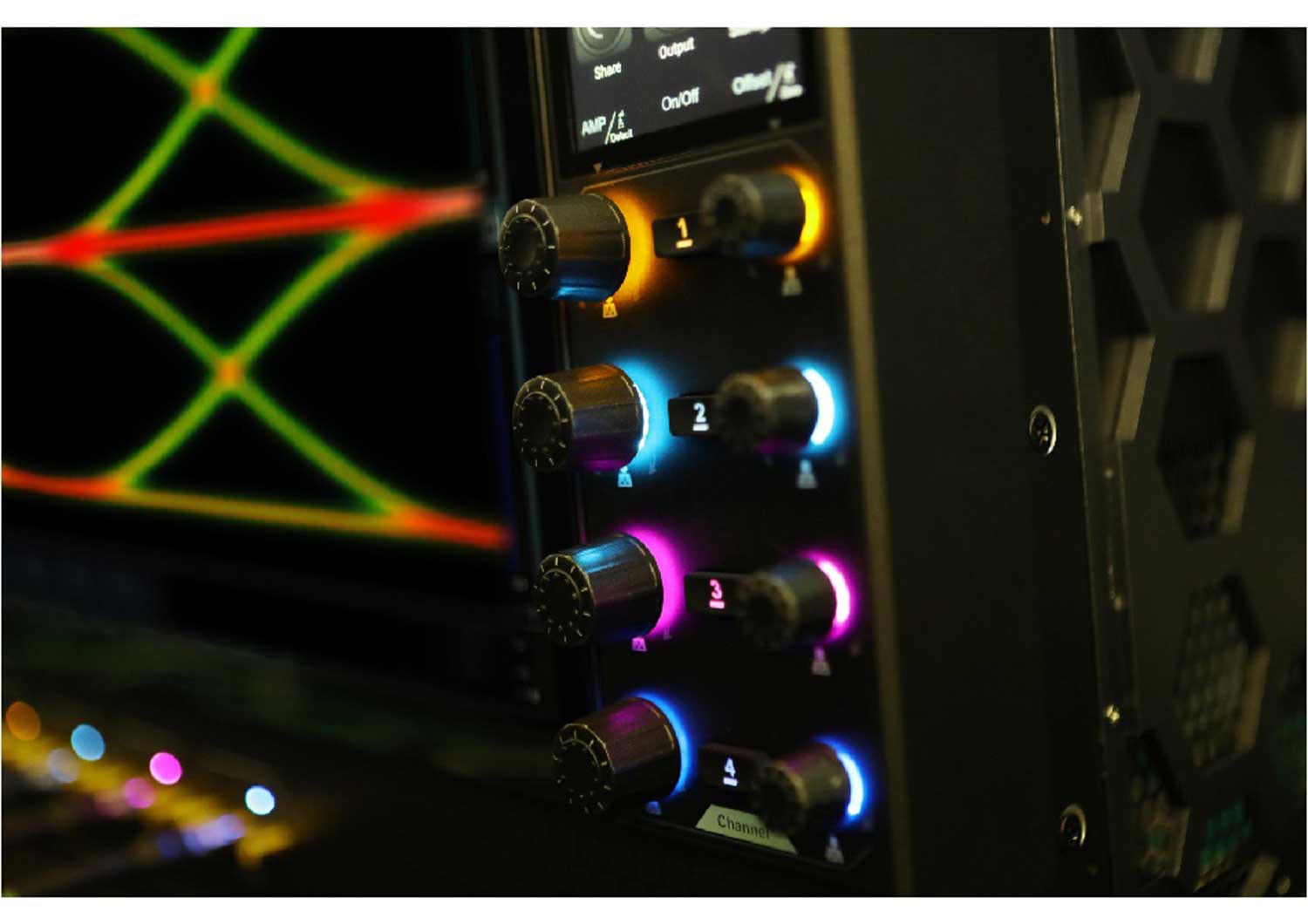

Photoelectric encoder

The photoelectric encoder operating knob guarantees more than 100.000 times of pressing operation and 1 million times of rotation operation, greatly improving the service life of the knob. With photoelectric encoders, you no longer have to worry about wear, ensuring reliable operation throughout the life of the instrument.

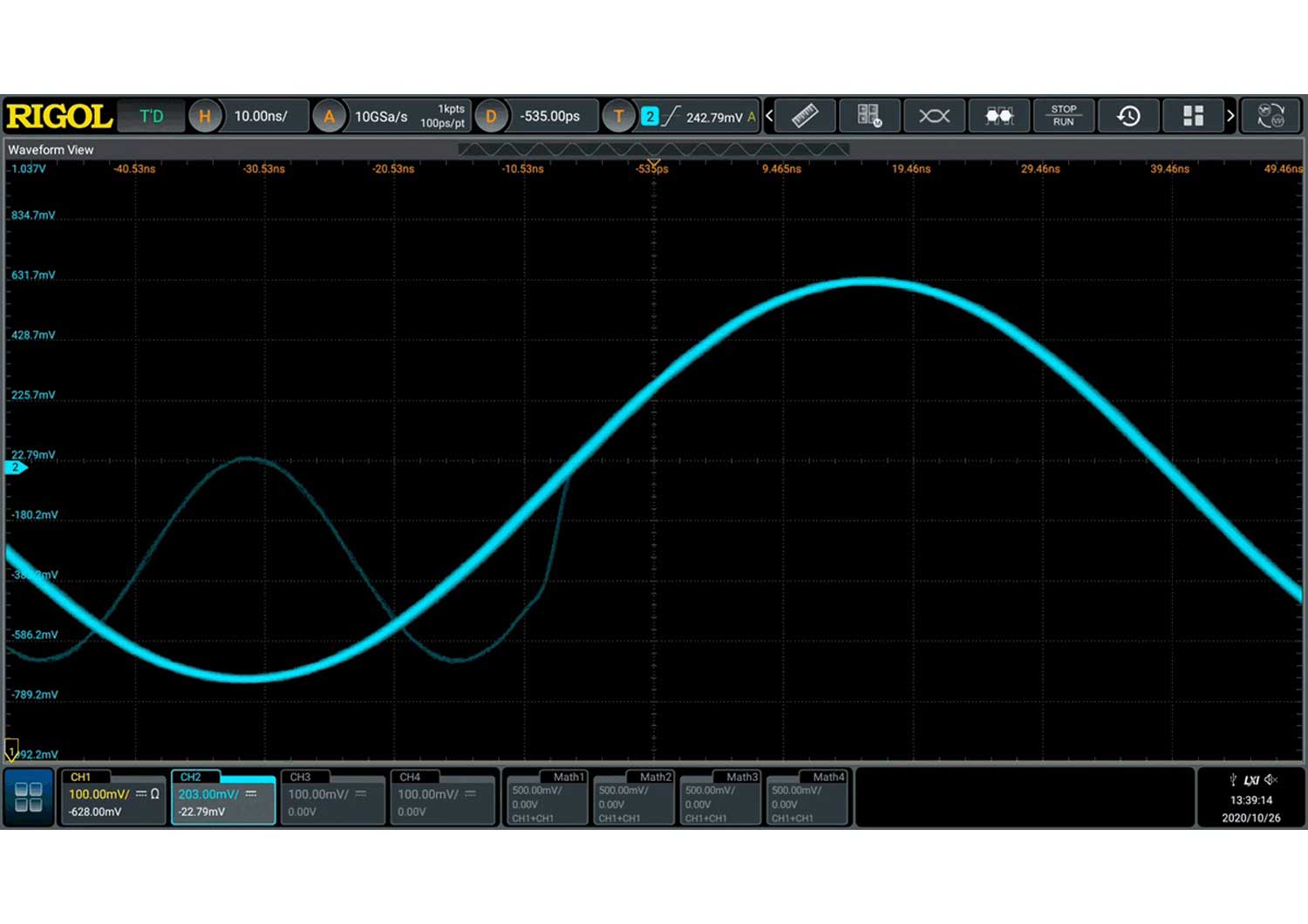

Up to 1.000.000 wfm/s waveform update rate

RIGOL's brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to 1.000.000 wfm/s.

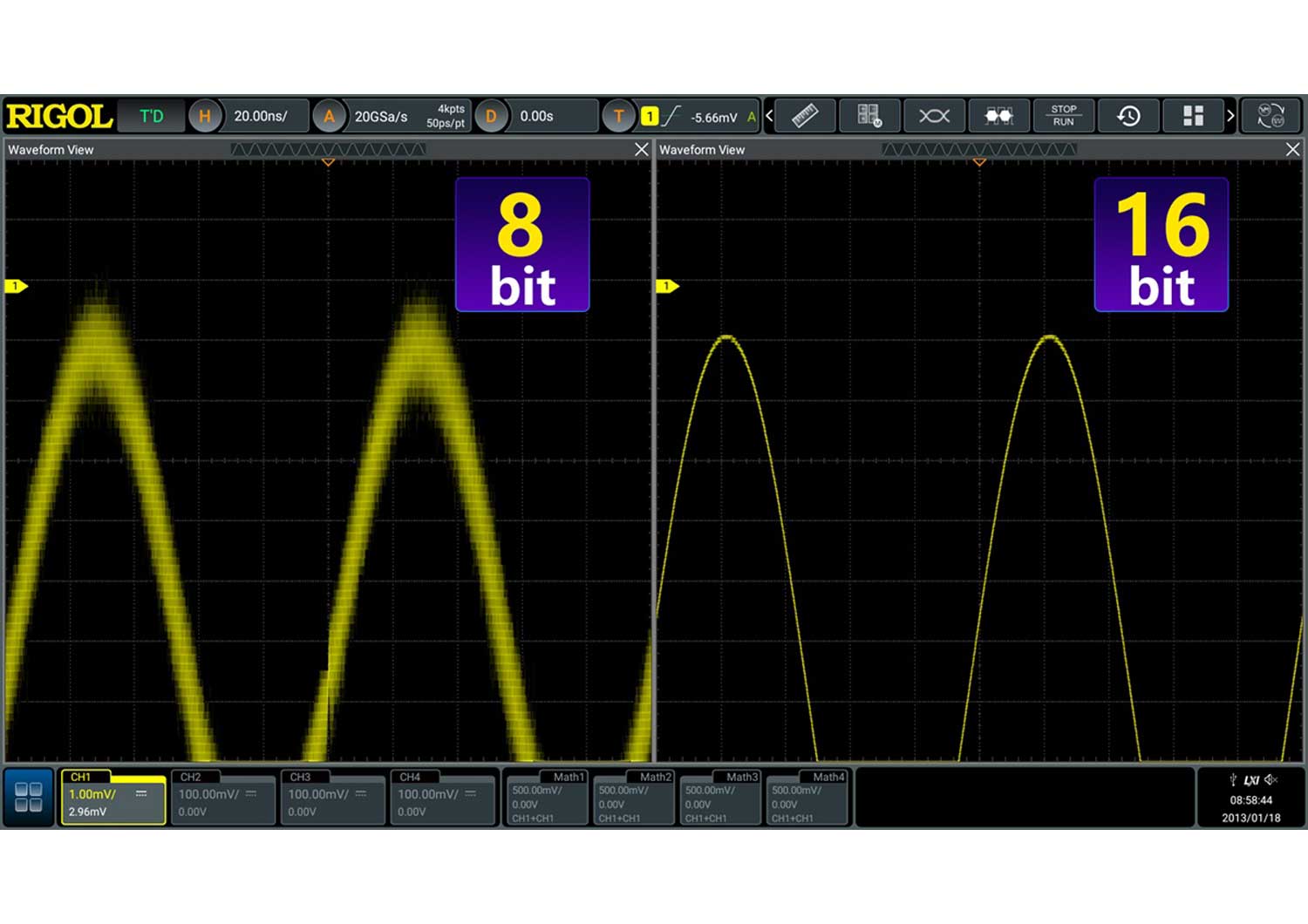

High resolution up to 16 bits

The new high resolution capability allows users to set the desired number of bits (up to 16) for the measurement and then reports the available bandwidth. This removes signal noise that can obscure important test results

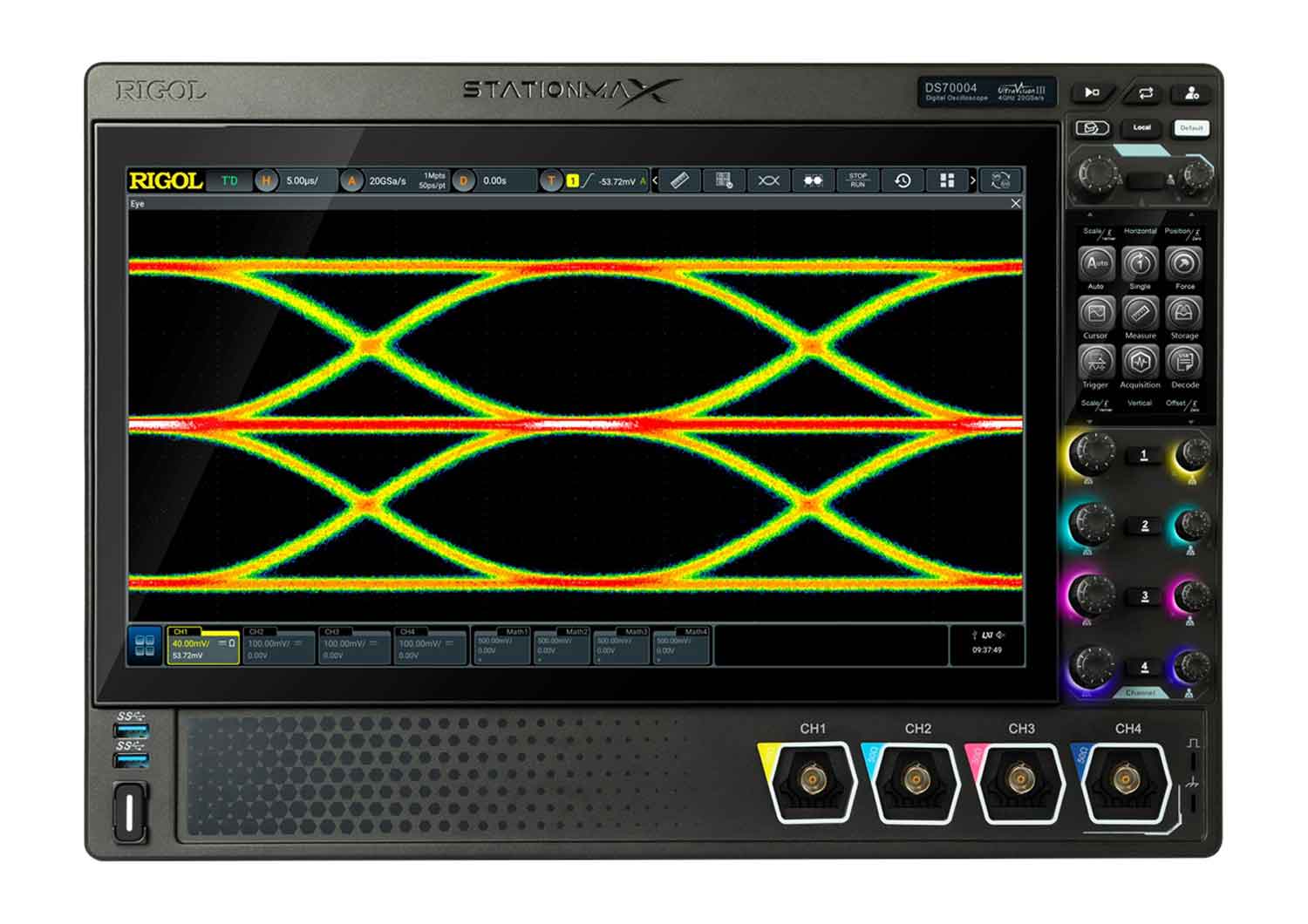

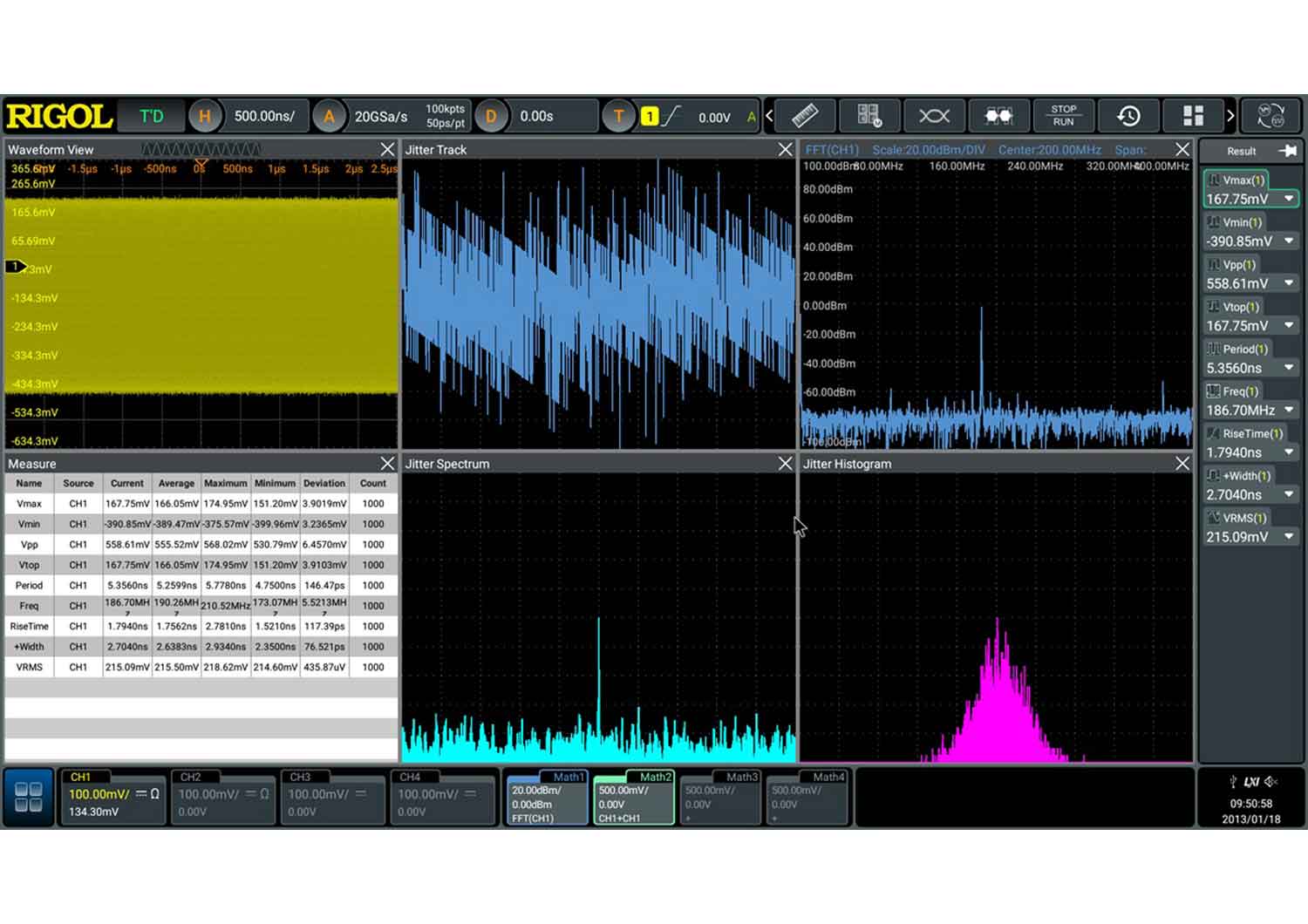

Multi-window-support

The main display is a 39.6 cm (15.6") capacitive high-definition touch screen with one button electric tilt. Multi-pane windowing supports a variety of simultaneous analysis tools, making it easier to view signals, measurements, and results. Meanwhile, the secondary 8.89 cm (3,5") touch screen separates menus and functions from signals and analysis with a customized function and shortcut menu.

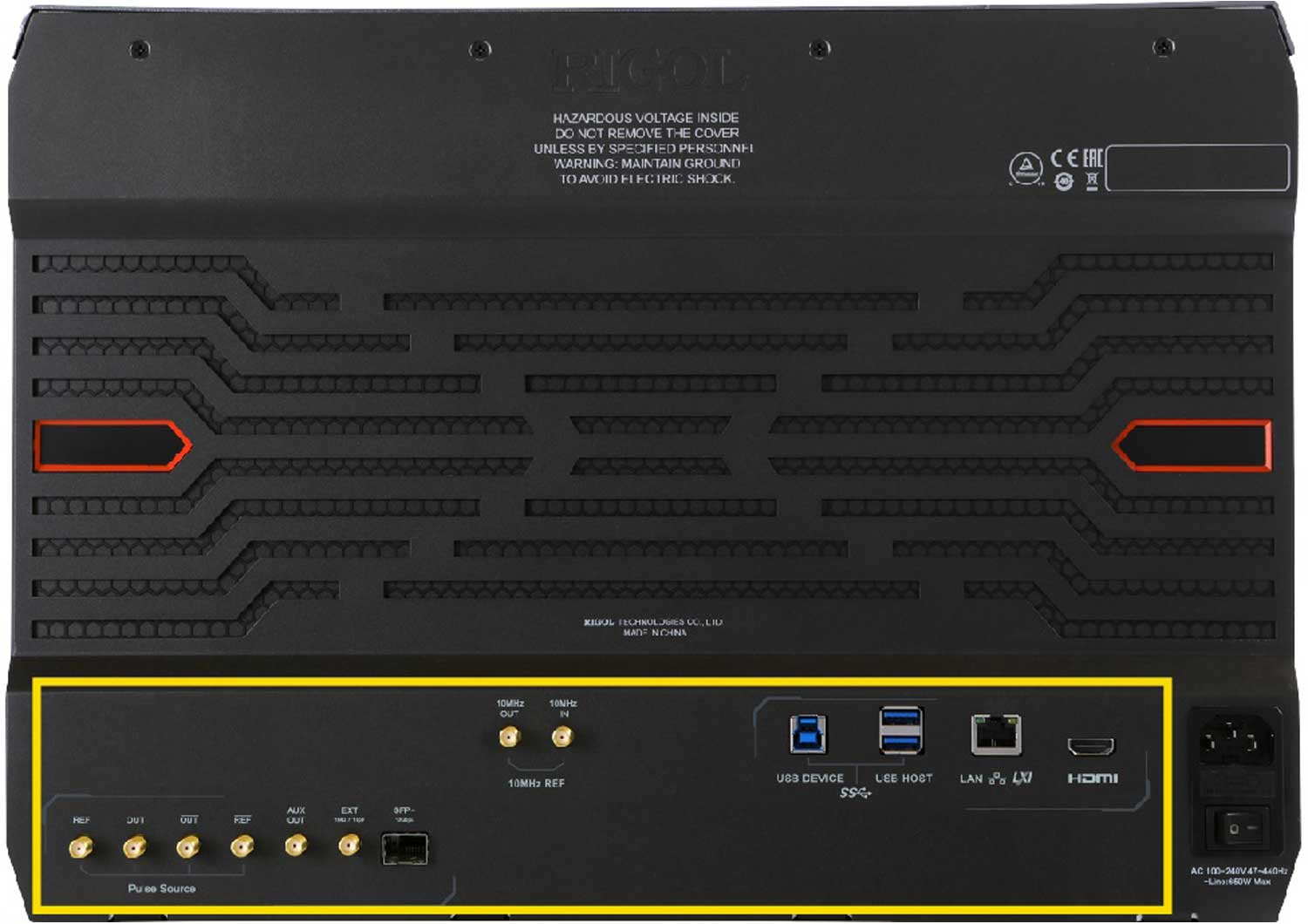

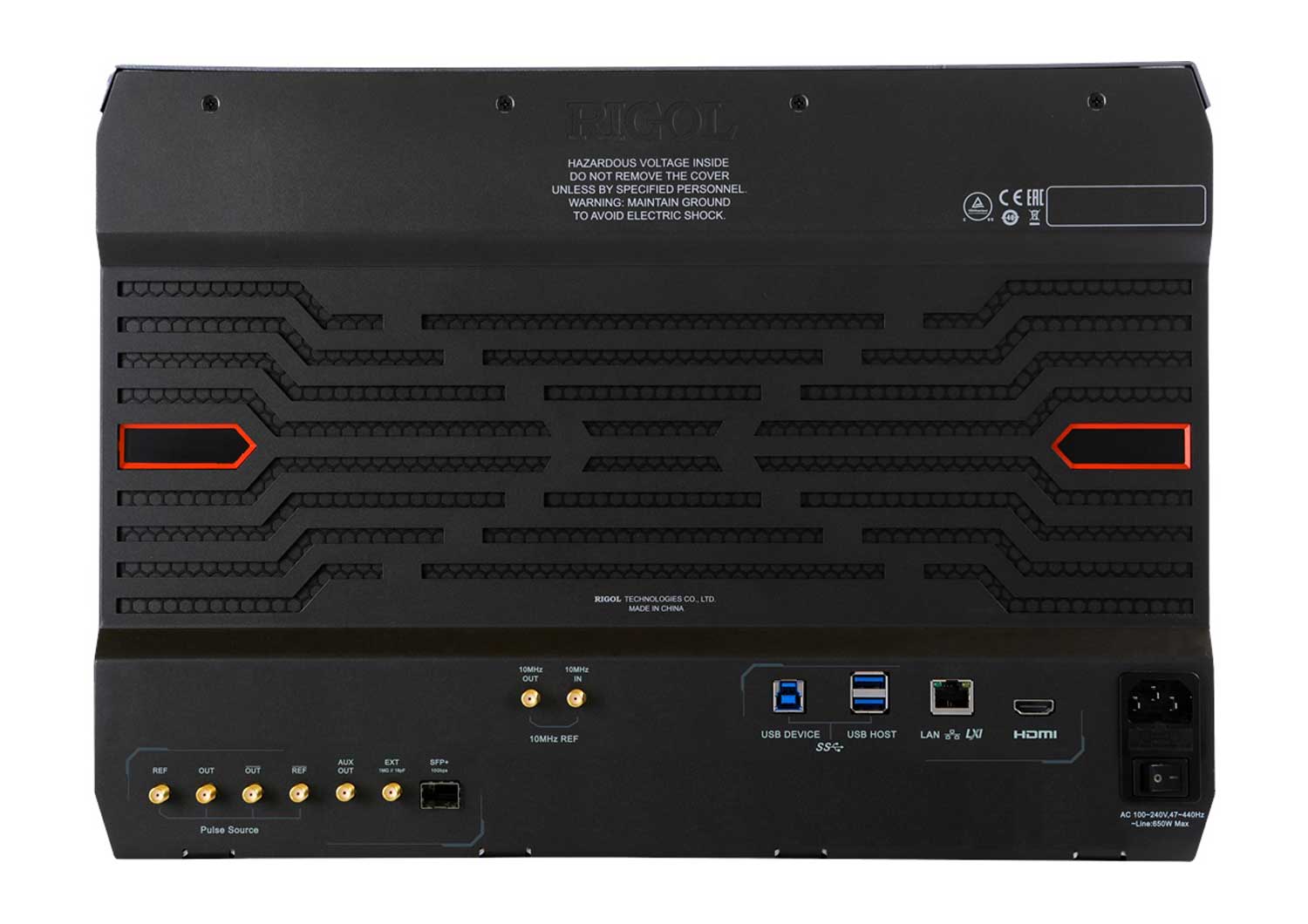

Multiple external interfaces

The Rigol DS70504 provides a variety of external interfaces that improve usability and data access including USB 3.0 Host and Device, LAN (LXI), HDMI, AUX OUT, 10 MHz IN, 10 MHz Out and GPIB (option) via the USB-GPIB adaptor. For remote control over LAN, the DS70000 includes complete web control with web-based screen recording, a SCPI command interface, and ftp access to files stored on the instrument. The HDMI outputs supports use of an external monitor or video display.

Documentation

ModelDS70504DS70304
Analogue Bandwidth (50 Ω, -3 dB)5 GHz3 GHz
Analogue Bandwidth (1 MΩ, -3 dB)500 MHz
Calculated Rising Time under 50 Ω (Half-channel 10%-90%, typical)≤108 ps≤130 ps
No. of Input Channels4 analogue channel inputs
1 EXT channel input
Sampling ModeReal-time sampling
Max. Sample Rate of Analogue ChannelHalf-channel: 20 GSa/s
Full-channel: 10 GSa/s
Max. Memory DepthStandard: 500 Mpts
Option: 2 Gpts (half-channel), 1 Gpts (full-channel)
Max. Waveform Capture Rate>1,000,000 wfms/s
Vertical Resolution 8-16 bits (selectable)
Hardware Real-time Waveform Recording and Playing Max. 2,000,000 frames (half-channel)
Peak Detection Captures 200 ps glitches
LCD Size and TypeMain display: 15.6” capacitive multi-touch screen with one-button electronic tilt
Secondary display: 3.5” capacitive multi-touch screen with
user-defined shortcut key menu, supporting quickresponsive touch operation with vibration
Display ResolutionMain display: 1920×1080; Secondary display: 480×320
