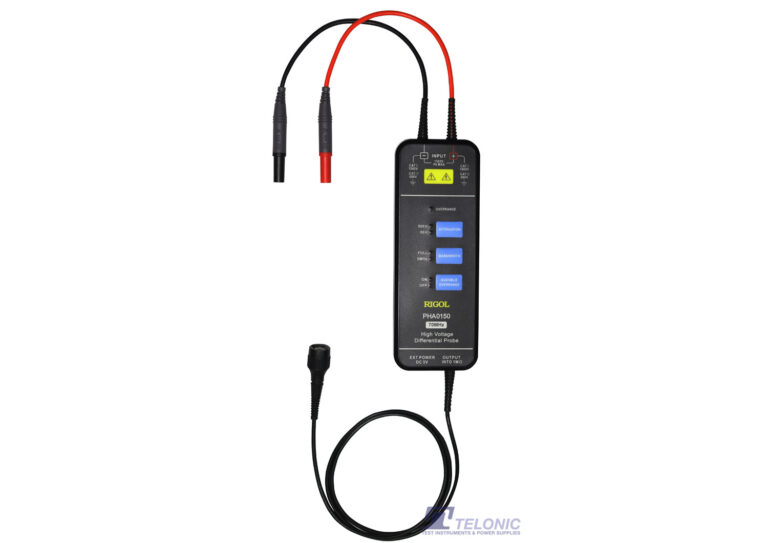

Rigol PHA0150 High Voltage Differential Probe

£684.00 (£820.80 inc VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee

Description


Features:

  • Bandwidth: 70MHz (-3 dB)
  • Rise Time: ≤5ns
  • Accuracy: ±2%
  • Range (Attenuation): 50X/500X
  • Maximum Measurable Differential Voltage (DC + peak AC): 50X: ±150V, 500X: ±1500V
  • Common Mode Voltage (DC + peak AC): ±1500V
  • Maximum Input Voltage-to-Earth (Vrms): 600V CAT III, 1000V CAT II
  • Input Impedance: Between each input and ground; 5MΩ±1%. Between differential inputs; 10MΩ±1%
  • Input Capacitance: Between each input and ground; <4pF. Between differential inputs; <2pF
  • CMRR: DC; >80dB. 100kHz; >60dB. 1MHz; >50dB. 3.2MHz; >30dB. 50MHz; >26dB.
  • Input Referred Noise (Vrms): 50X; <50mV. 500X; <300mV.
  • Delay: 21ns
  • Bandwidth Limit (5MHz): ≥-3dB@5MHz
  • Output Impedance: 50Ω

Documentation
