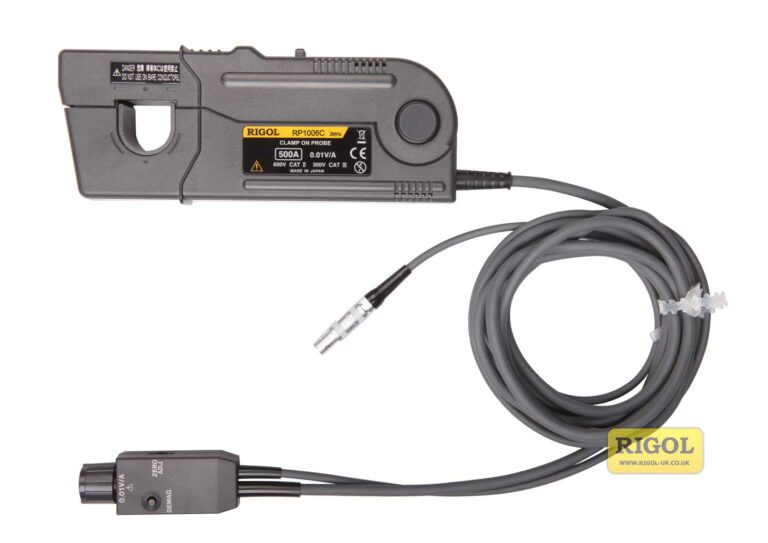

This device can be directly connected to a BNC input connector of a waveform measuring instrument, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.
- Maximum Current: 500A
- Bandwidth: 2MHz
- Current Conversion Ratio: 0.01V/A
- Precision: ±1.0%rdg±500mA
- Noise: ≤25mArms
- The measuring line diameter: 20mm
This device must be used with the Rigol RP1000P Current Probe Power Supply.
