Rigol DM3058E 5½ Digit Digital Multimeter

(10 customer reviews)

Original price was: £341.00.Current price is: £306.00. (£367.20 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

Rigol DM3058E Digital Multimeter

The Rigol DM3058E is a 5½ digit, multifunctional DMM designed for high-precision measurements. It possesses a combination of basic measurement functions, maths functions and a sensor measurement function. The 256 x 64 lattice high resolution monochrome LCD display, clear keyboard layout and built-in help facility make the DM3058E simple to use. Remote operation is possible via a choice of communications interfaces.

Features:

  • 5½ digit resolution
  • Three measurement speeds – 2.5 readings/s, 20 readings/s, 123 readings/s

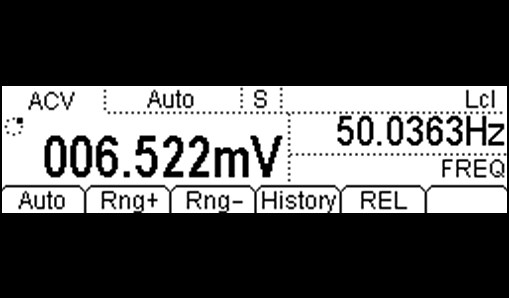

  • Double display function – Displays 2 measurements at once
  • DCV, DCI, ACV, ACI
  • Resistance (2 or 4 wire), capacitance, frequency, continuity and diode test
  • Sensor measurement function – Built-in thermocouple compensation

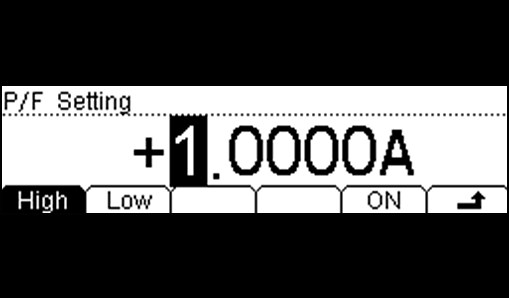

  • Various maths operations – Max, min, average, P/F, dBm, dB, relative measurement, standard deviation & histogram
  • Internal memory stores up to 10-off configurations
  • Supports the storage of configuration and data via USB flash device

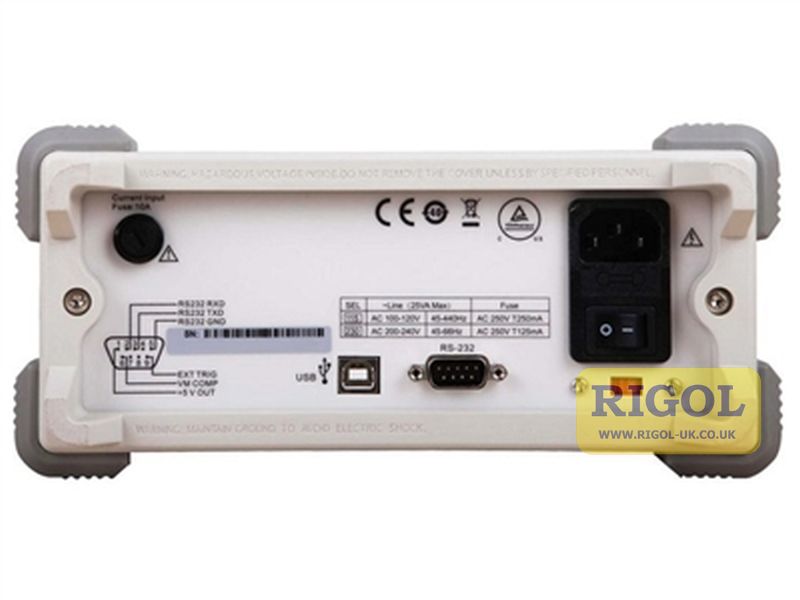

  • Supports USB and RS-232
  • DM3058 supports LAN and GPIB also (not DM3058E)
  • Built-in Help system

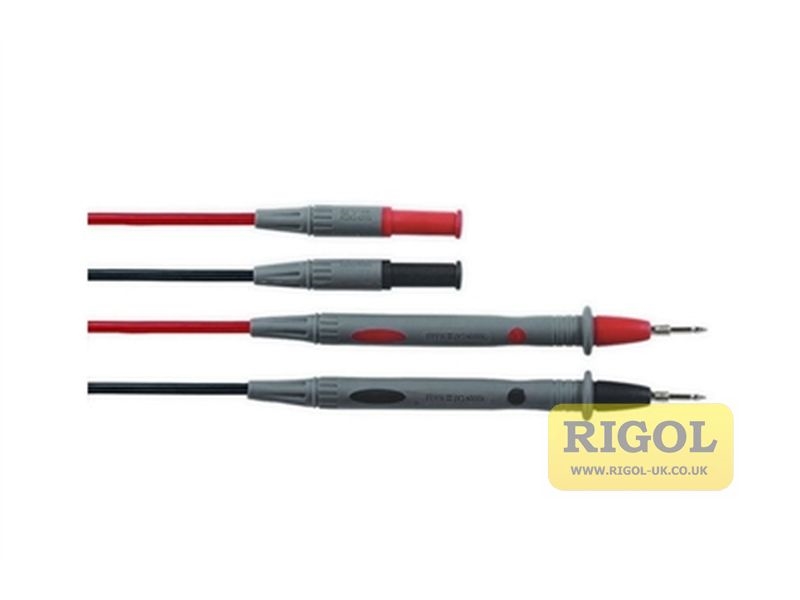

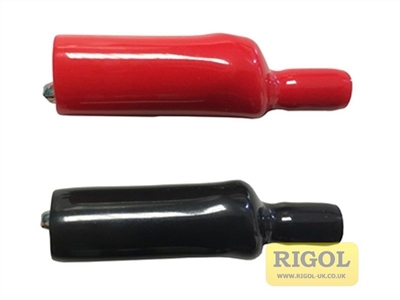

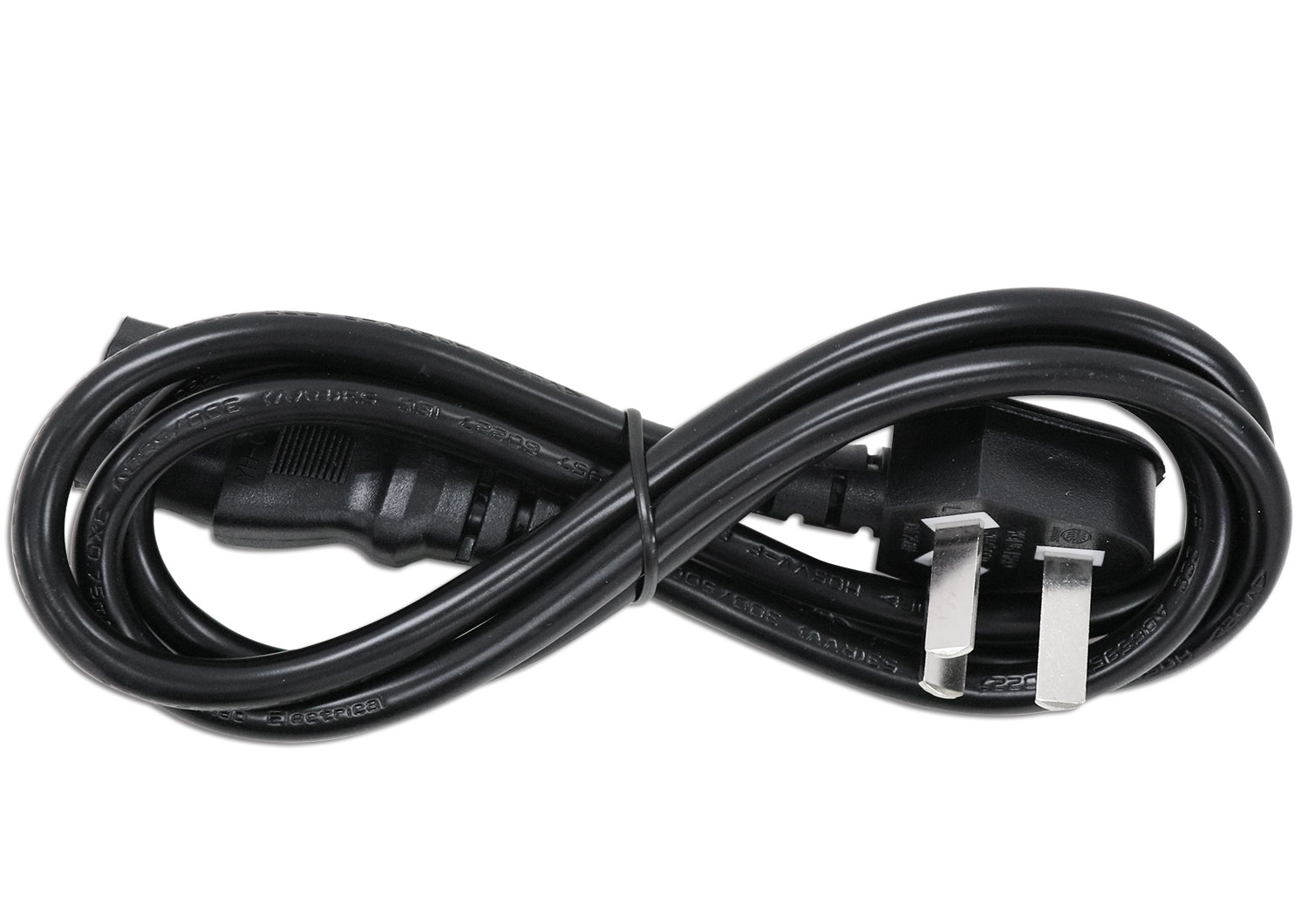

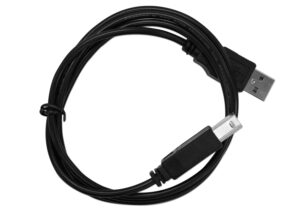

  • Supplied with… Two test leads, two alligator clips, four spare fuses, USB cable, UK & European mains leads, quick guide

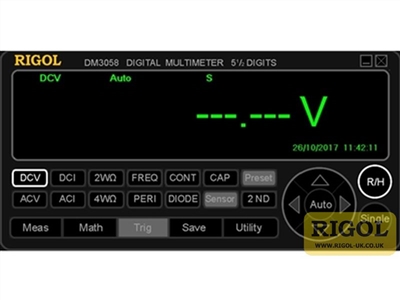

  • Optional UltraView PC software… Remote control via a virtual front panel plus various data monitor, record & analysis functions

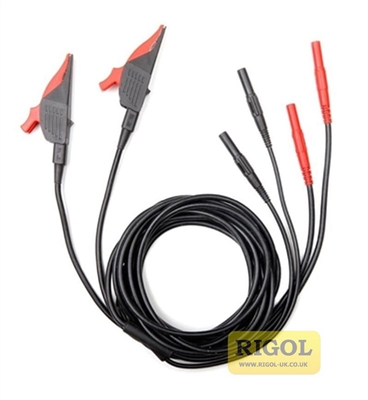

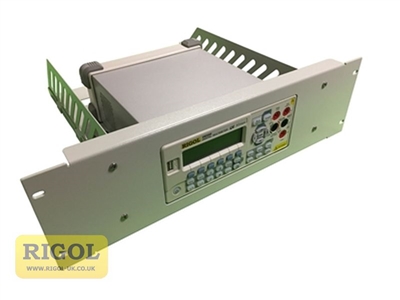

  • Other options include… Rack mount kit, Kelvin test clips, RCL 17025 Calibration

Product Videos

Documentation

DC Characteristics

Function Range Test Current or Burden Voltage 1 Year 23°C ± 5°C Temperature Coefficient
0°C to 18°C
28°C to 50°C
DC Voltage 200.000mV 0.015 + 0.004 0.0015 + 0.0005
2.00000V 0.015 + 0.003 0.0010 + 0.0005
20.0000V 0.015 + 0.004 0.0020 + 0.0005
200.000V 0.015 + 0.003 0.0015 + 0.0005
1000.00V 0.015 + 0.003 0.0015 + 0.0005
DC Current 200.000μA <8mV 0.055 + 0.005 0.003 + 0.001
2.00000mA <80mV 0.055 + 0.005 0.002 + 0.001
20.0000mA <0.05V 0.095 + 0.020 0.008 + 0.001
200.000mA <0.5V 0.070 + 0.008 0.005 + 0.001
2.00000A <0.1V 0.170 + 0.020 0.013 + 0.001
10.0000A <0.3V 0.250 + 0.010 0.008 + 0.001
Resistance 200.000Ω 1mA 0.030 + 0.005 0.003 + 0.0006
2.00000kΩ 1mA 0.020 + 0.003 0.003 + 0.0005
20.0000kΩ 100μA 0.020 + 0.003 0.003 + 0.0005
200.000kΩ 10μA 0.020 + 0.003 0.003 + 0.0005
2.00000MΩ 1μA 0.040 + 0.004 0.004 + 0.0005
10.0000MΩ 200nA 0.250 + 0.003 0.010 + 0.0005
100.000MΩ 200nA / 10MΩ 1.750 + 0.004 0.200 + 0.0005
Diode Test 2.0000V 1mA 0.05 + 0.01 0.005 + 0.0005
Continuity Test 2000Ω 1mA 0.05 + 0.01 0.005 + 0.0005

AC Characteristics

Function Range Test Current or Burden Voltage 1 Year 23°C ± 5°C Temperature Coefficient
0°C to 18°C
28°C to 50°C
True RMS AC Voltage 200.000mV 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05
0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
2.00000V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05
0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
20.0000V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05
0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
200.000V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05
0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
750.000V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50kHz
50kHz – 100kHz
1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05
0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
True RMS AC Current 20.0000mA 20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz
1.5 + 0.10
0.5 + 0.10
2.5+ 0.20
0.015 + 0.015
0.015 + 0.006
0.015 + 0.006
200.000mA 20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz
1.5 + 0.10
0.3 + 0.10
2.5+ 0.20
0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
2.00000A 20Hz – 45Hz
45Hz – 2kHz
2kHz – 10kHz
1.5 + 0.20
0.5 + 0.20
2.5+ 0.20
0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
10.0000A 20Hz – 45Hz
45Hz – 2kHz
2kHz – 5kHz
1.5 + 0.15
0.5 + 0.15
2.5+ 0.20
0.015 + 0.005
0.015 + 0.005
0.015 + 0.005

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

10 reviews for Rigol DM3058E 5½ Digit Digital Multimeter

  1. Chris S

    Excellent bench meter
    Accurate Measurements
    Well built
    Supplied probes are useable
    Perfect service from telonic!

    We are very pleased with this and its accuracy is identical to our keysight models that cost 5x as much!

    Although the probes that come with it are pretty good, silicone wire and nice points on the tips, we did change these for the fluke tp220/tl224 setup as in our opinion they are the best and this meter deserves it! Supplied probes and screw on alligator clips were perfectly useable and have been added to a field kit so they get some use!

    I personally was shocked to see that after tuning out the resistance of the leads, it measured 2.000ohms on our 2 ohm calibrated test load (we took photos but cant see a way to upload them). We only have 1 other meter that measures to the same number dp that regularly does that.

    Very impressive piece of kit and the price just makes it a no brainer. We are currently buying other rigol kit to test due to the experience with this.

  2. Darren H

    I have Fluke/Keysight multimeter experience and these DM3058 are fantastic at relatively low cost also the build quality is exceptional. One nice feature which appeals to me is the DM3058 is a 240000 count , i.e., not 120000, this is great for calibrating 4..20mA instruments as in a single range.
    Telonic give a very good service.

  3. Andrew G

    Rigol DM3058E multimeter
    This is an excellent instrument and the service from rigol-uk was faultless. Shipping was very fast, everything that should have been in the box was, and rigol-uk had checked that it was. Super!

  4. Bill

    Easy to use and exceptional value for money.
    fast delivery from Telonic

  5. Steven P

    Purchase one of these with my Micsig scope, very pleased with both items.

  6. Stephanie F

    Very happy
    An excellent piece of equipment at a very reasonable price.
    I would recommend Rigol / Telonic strongly.

  7. John S

    Purchased the DM3058E a few months ago, have been very please, nice quality unit at an attractive price.

  8. Chris

    Great service and products
    Bench DMM arrived as promised next day. Works well and accuracy is as described. Very happy with the companies attention to detail in checking the instrument before despatch. I have purchased other test gear before and have done so again because of the service provided.

  9. Stuart

    Rigol DM3058E
    Sent very quick but no cal cert inside. Anyway works as expected.

  10. John M

    RIGOL DM3058E DMM multimeter good UK stock service
    Can I just commend Telonic Ltd [www.RIGOL-uk.co.uk] on their pre-sales inspection? I had expected, and wouldn’t have been at all disappointed, if you’d just fired it up to check it worked and sent it on its way, so to see an inspection checklist, and an electrical safety check gave me a warm glow! Top marks! – John Midgley.

    Telonic comment: Thanks for your kind review on the Rigol DM3058E Multimeter.

Only logged in customers who have purchased this product may leave a review.

You may also like…

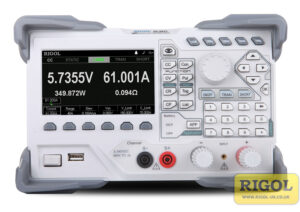

  • Rigol DL3021 Programmable DC Electronic Load
