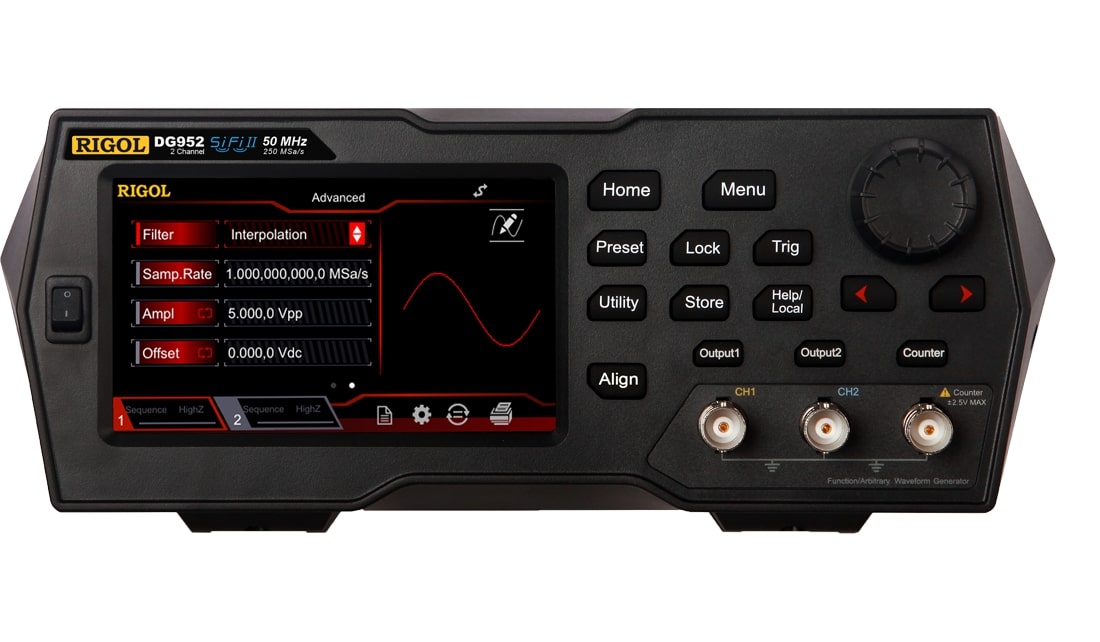

Rigol DG900 Series Waveform Generators

Max. Output Frequency: 50MHz, 70MHz, 100MHz | Sample Rate: 250MSa/s | Accuracy: ±1ppm

  • 4.3 Inch Touch Screen
  • 16Bit Vertical Resolution
  • Signal Jitter As Low As 200ps
  • SiFi II Technology
  • Support Multiple Signal Outputs
  • Fanless Silent Operation
  • Harmonic Generator
  • Arb Sequencing

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG900 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16Mpts the DG900 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market. The intuitive touchscreen control and compact fanless design make it the perfect choice for your desk, bench, or lab.

Model Channels Maximum Frequency Sample Rate Accuracy Built-In Waveforms Modulation Connections Price
DG952 2 50MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.) USB-LAN (opt.) £450.00
DG972 2 70MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.)
USB-LAN (opt.)
£630.00
DG992 2 100MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.)
USB-LAN (opt.)
£810.00
Model Channels Maximum Frequency Sample Rate Accuracy Built-In Waveforms Modulation Connections Price
DG952 2 50MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.) USB-LAN (opt.) £450.00
DG972 2 70MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.)
USB-LAN (opt.)
£630.00
DG992 2 100MHz 250MSa/s ±1ppm 7-off Basic, 3-off Advanced,
160-off Arbitrary
AM, FM, PM, ASK, FSK, PSK and PWM USB Host & Device (std.)
USB-LAN (opt.)
£810.00
