Rigol DSA700 Series Spectrum Analysers

Frequency Range: 100kHz to 500MHz/1GHz| Minimum Resolution Bandwidth: 100Hz | Phase Noise: <-80dBc/Hz

  • Down to 10Hz Minimum Resolution Bandwidth (RBW)
  • EMI PreCompliance Measurements (Option)
  • Excellent Noise Floor Reduction for Weak Signal Testing
  • ASK/FSK Signal Capture with Fast Capture

Rigol’s DSA700 series spectrum analyser makes radio, IoT, and educational/hobbyist measurements more accessible than ever with value analysers designed for lower frequency RF test. The DSA700 shares the popular mechanical package of the DSA800 series analyser with a focus on measurements below 1 GHz. The spectrum analyser offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA700 also distinguishes between signals with a frequency difference as little as 100 Hz. The DSA700 has the capability to monitor FSK signals with the 2FSK-DSA option. A complete spectrum analyser for your low frequency signals and systems at an unprecedented price.

Model Frequency Range Minimum Resolution Bandwidth (RBW) Maximum CW RF Power SSB Phase Noise (@10kHz offset) DANL, Preamplifier Off
(typ. 1MHz – 500MHz)
DANL, Preamplifier ON
(typ. 1MHz – 500MHz)
Preamplifier Tracking Generator EMI Filter & Quasi-Peak Detector Price

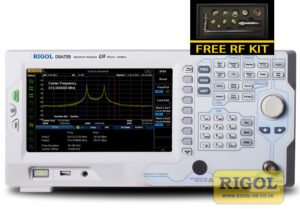

DSA705 100kHz – 500MHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional £560.00

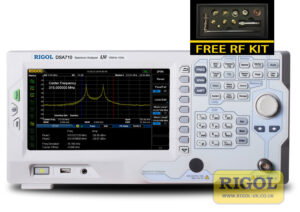

DSA710 100kHz – 1GHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional £793.00
Model Frequency Range Minimum Resolution Bandwidth (RBW) Maximum CW RF Power SSB Phase Noise (@10kHz offset) DANL, Preamplifier Off
(typ. 1MHz – 500MHz)
DANL, Preamplifier ON
(typ. 1MHz – 500MHz)
Preamplifier Tracking Generator EMI Filter & Quasi-Peak Detector Price
DSA705 100kHz – 500MHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional £560.00
DSA710 100kHz – 1GHz 100Hz 20dBm (100mW) <-80dBc/Hz <-135dBm/Hz <-155dBm/Hz Standard Not Available Optional £793.00
