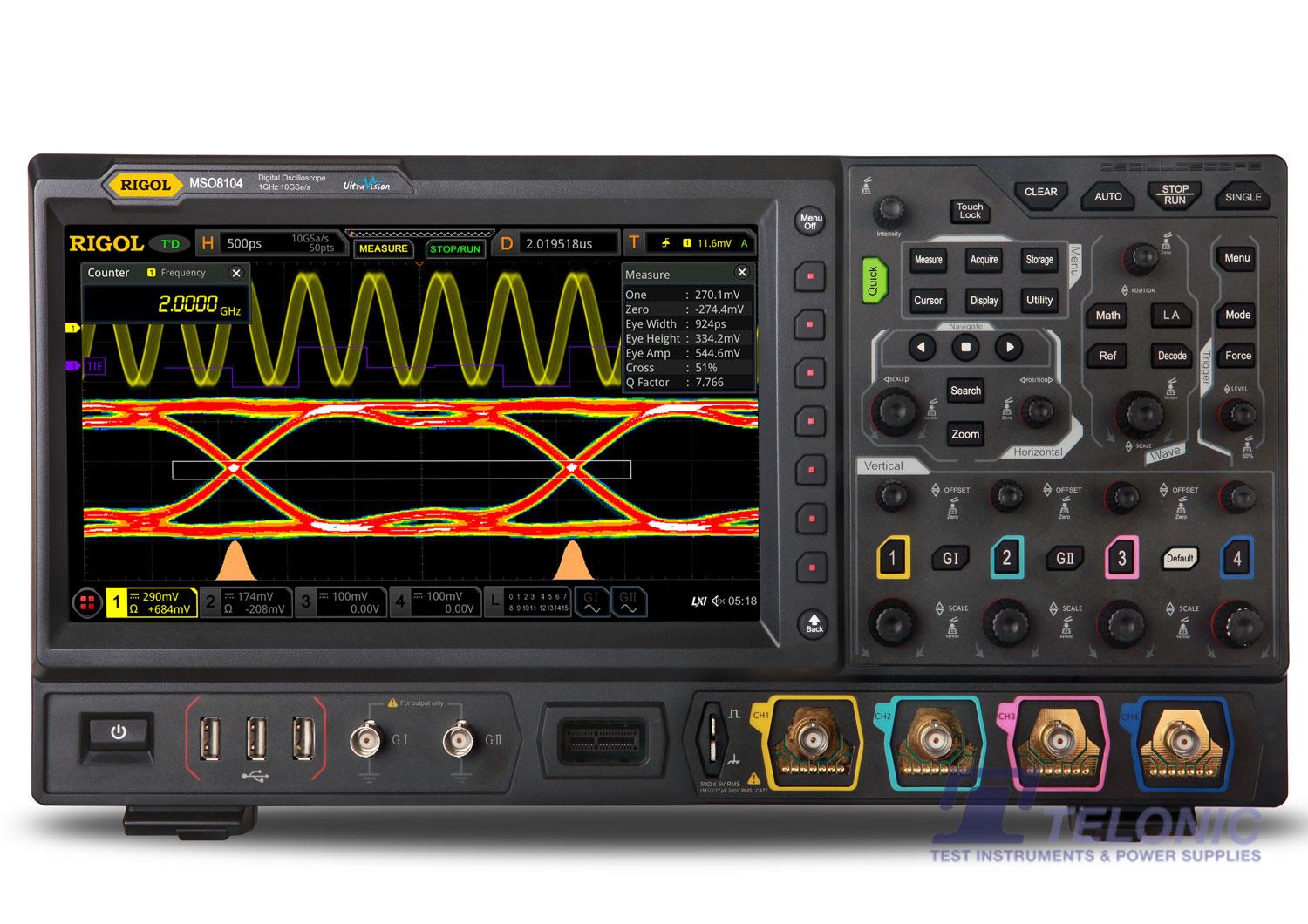

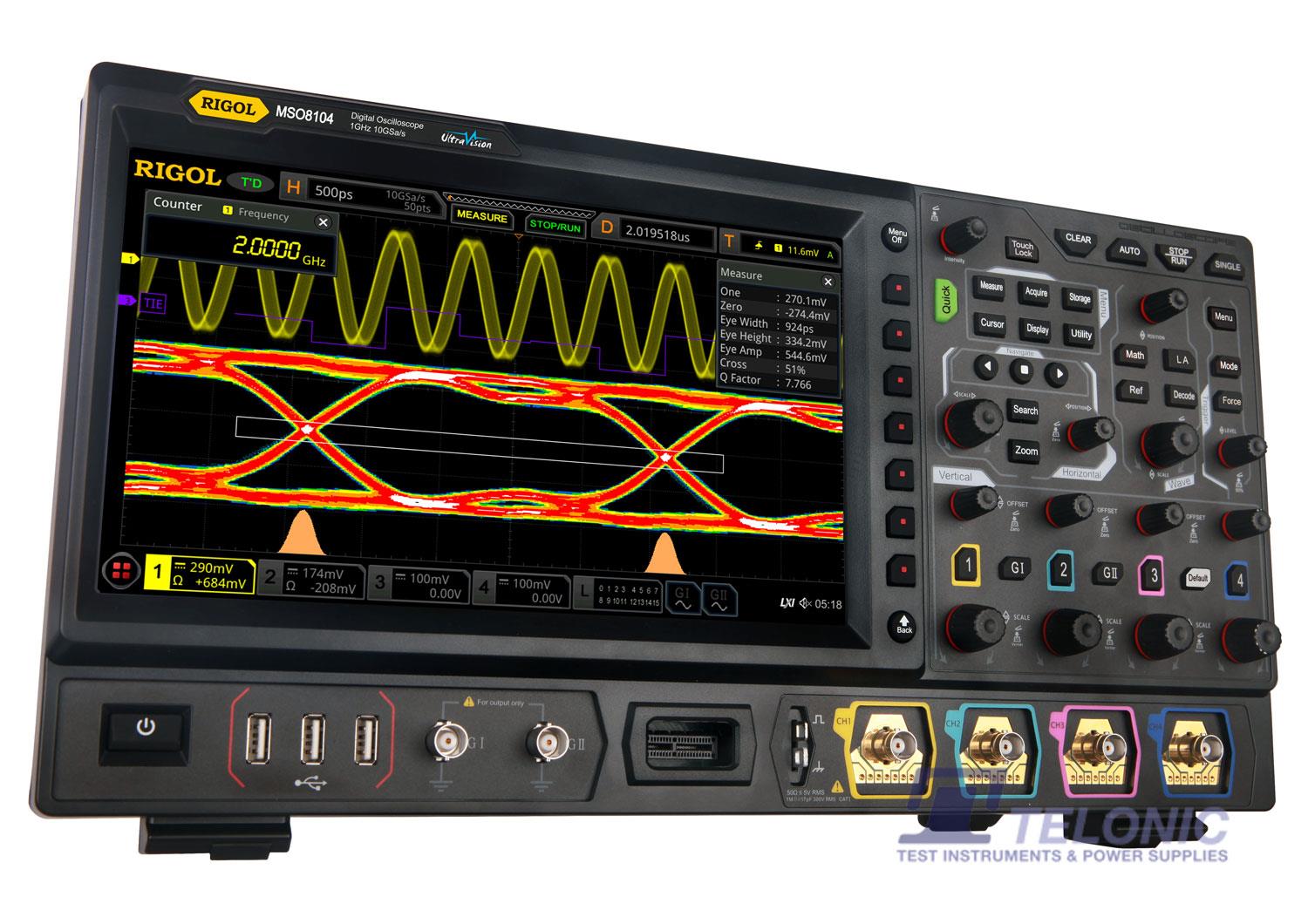

Rigol MSO8074A 4CH, 750MHz, 10GSa/s Mixed Signal Oscilloscope

£6868.00 (£8241.60 inc VAT)

SKU: MSO8074A Category:


Rigol MSO8064 Mixed Signal Oscilloscope

The MSO8064A 4CH, 750MHz, 10GSa/s Mixed Signal Oscilloscope adopts RIGOL’s self-developed chipset “Phoenix”, which can gain the data acquisition capability of up to 10GSa/s sample rate, realising the high integration of all the function modules required for the analogue front-end (AFE), and greatly improving the consistency and reliability of the digital oscilloscope. The innovative UltraVision II technical platform is equipped with higher waveform capture rate, full digital trigger technology, and full memory hardware measurement technology. The MSO8000 series digital oscilloscope also integrates multiple instrument modules, such as MSO, arbitrary waveform generator, digital voltmeter, 6-digit counter and totaliser, and protocol analyser, offering extraordinary user experience at an unprecedented price point.


  • Analogue bandwidth: 600MHz (Single-Channel and Half-Channel modes)
  • 4 analogue channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
  • Up to 10GSa/s real-time sample rate

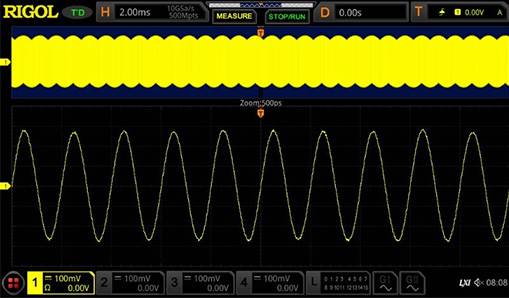

  • Up to 500Mpts memory depth (Standard)
  • High waveform capture rate (Over 600,000 waveforms per second)

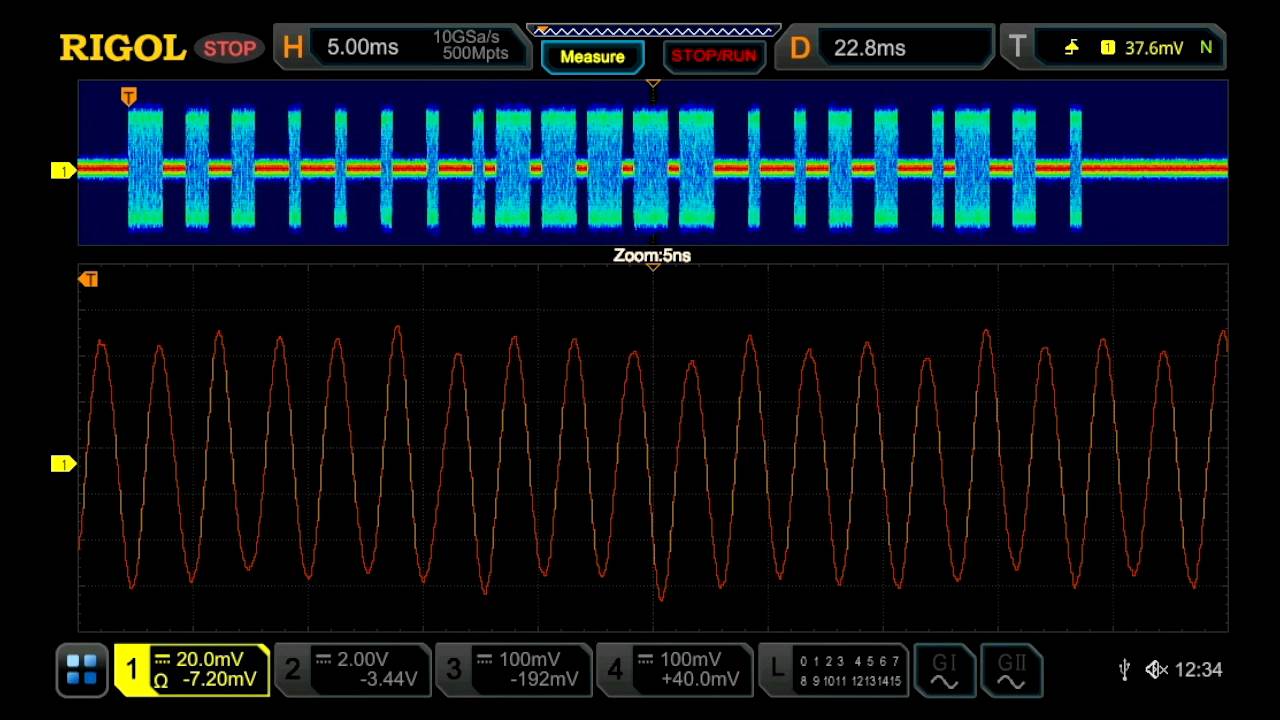

  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyser, Spectrum analyser, arbitrary waveform generator (option), digital voltmeter, 6-digit frequency counter and totaliser, and protocol analyser (option)

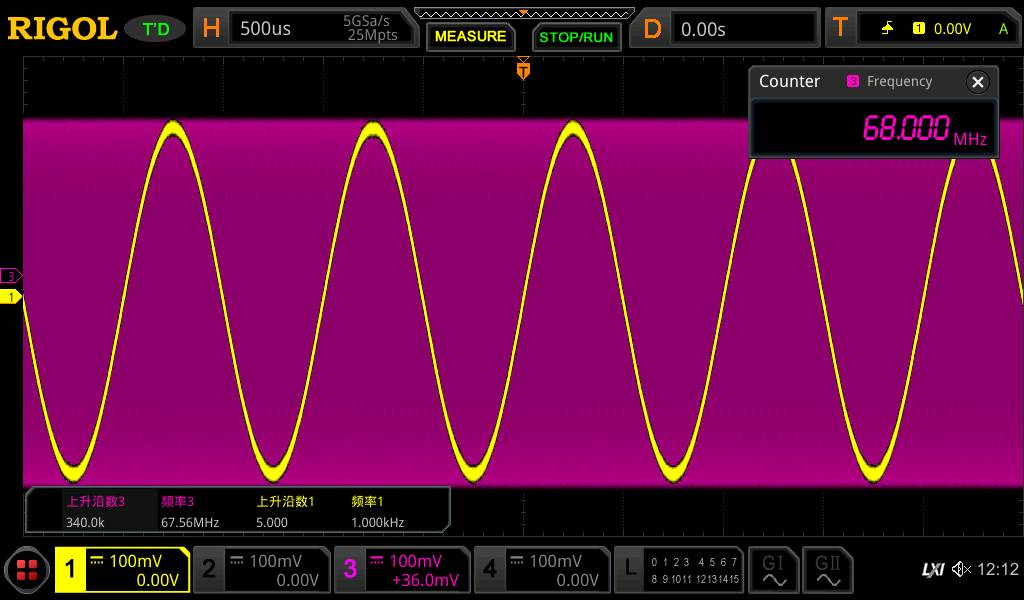

  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis, and peak search function
  • Waveform histogram analysis (standard)

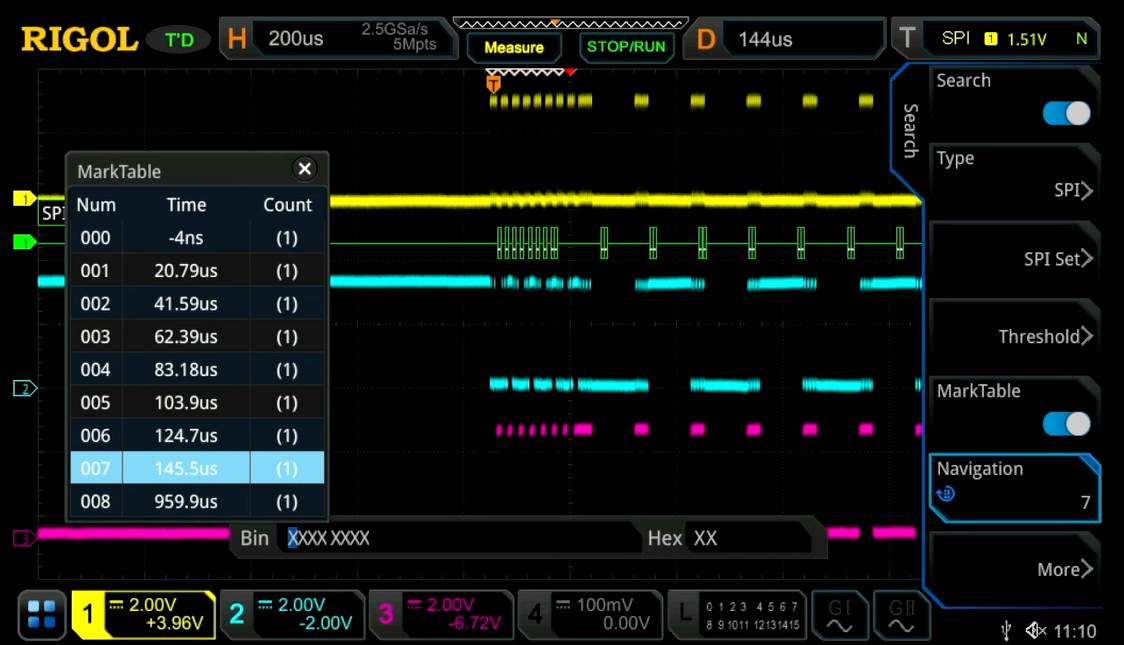

  • Independent search, navigation keys, and event table

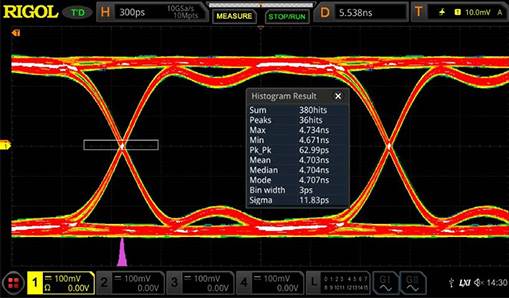

  • Real-time eye diagram and jitter analysis software (option)

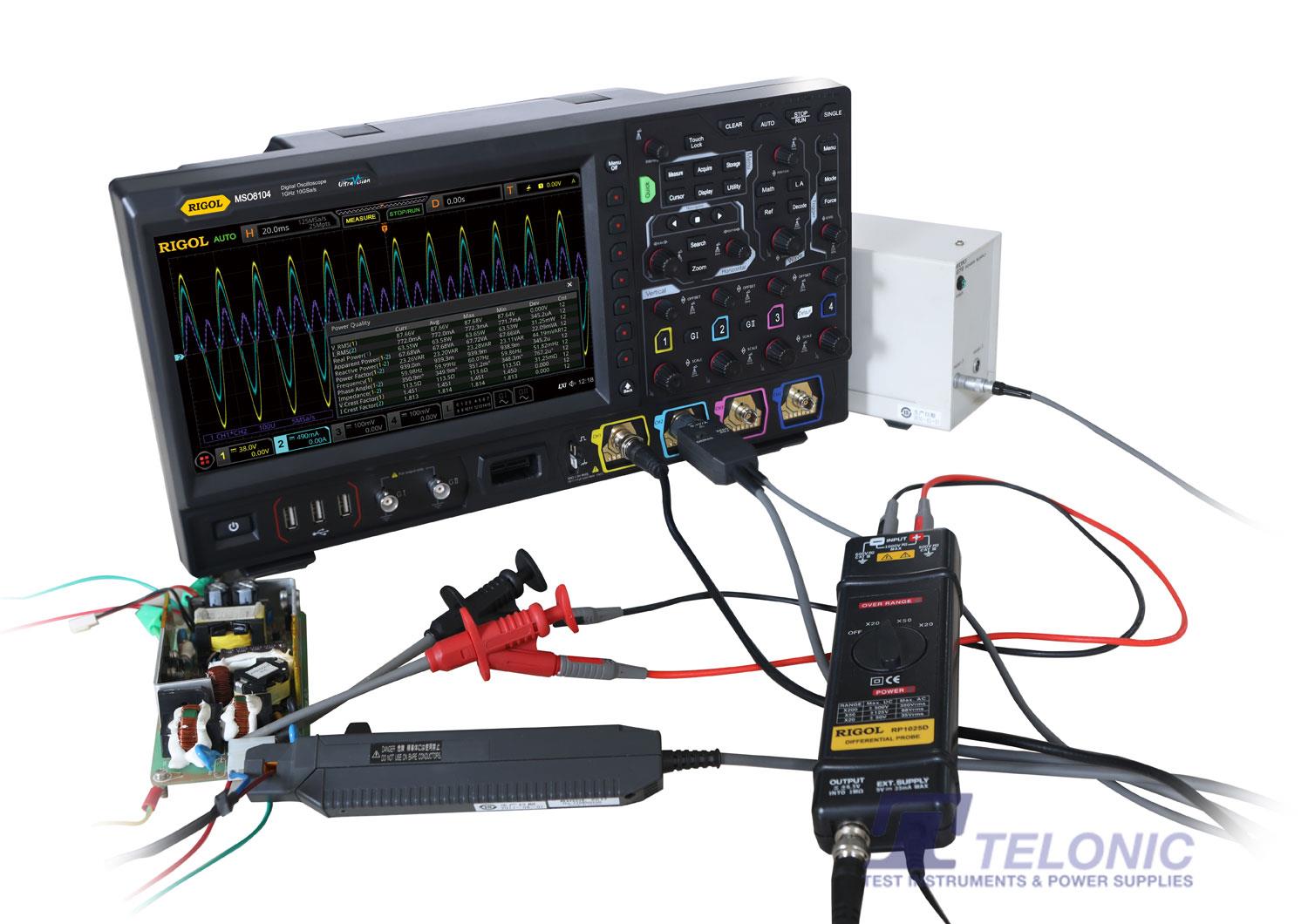

  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation
  • 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Sophisticated and convenient industrial design, easy to operate

Rigol MSO8000 Oscilloscope Comparison Table

Model Channels Bandwidth Max Sample Rate Memory Waveform Refresh Rate
MSO8064 4 Analogue, 16 Digital 600MHz 10GSa/s 500Mpts (std) 1,000,000wfm/s
MSO8104 4 Analogue, 16 Digital 1GHz 10GSa/s 500Mpts (std) 1,000,000wfm/s
MSO8204 4 Analogue, 16 Digital 2GHz 10GSa/s 500Mpts (std) 1,000,000wfm/s

Product Videos


General Specifications
Analogue Bandwidth (50 Ω, -3 dB) MSO8064: 600MHz
MSO8104: 1GHz
MSO8204: 2GHz
Analogue Bandwidth (1 MΩ, -3 dB) 500 MHz
Calculated Rising Time under 50 Ω
(single-channel mode, 10%-90%, typical)
MSO8064: ≤583 ps
MSO8104: ≤350 ps
MSO8204: ≤175 ps
No. of Input/Output Channels 4 input analogue channels
1 input EXT channel

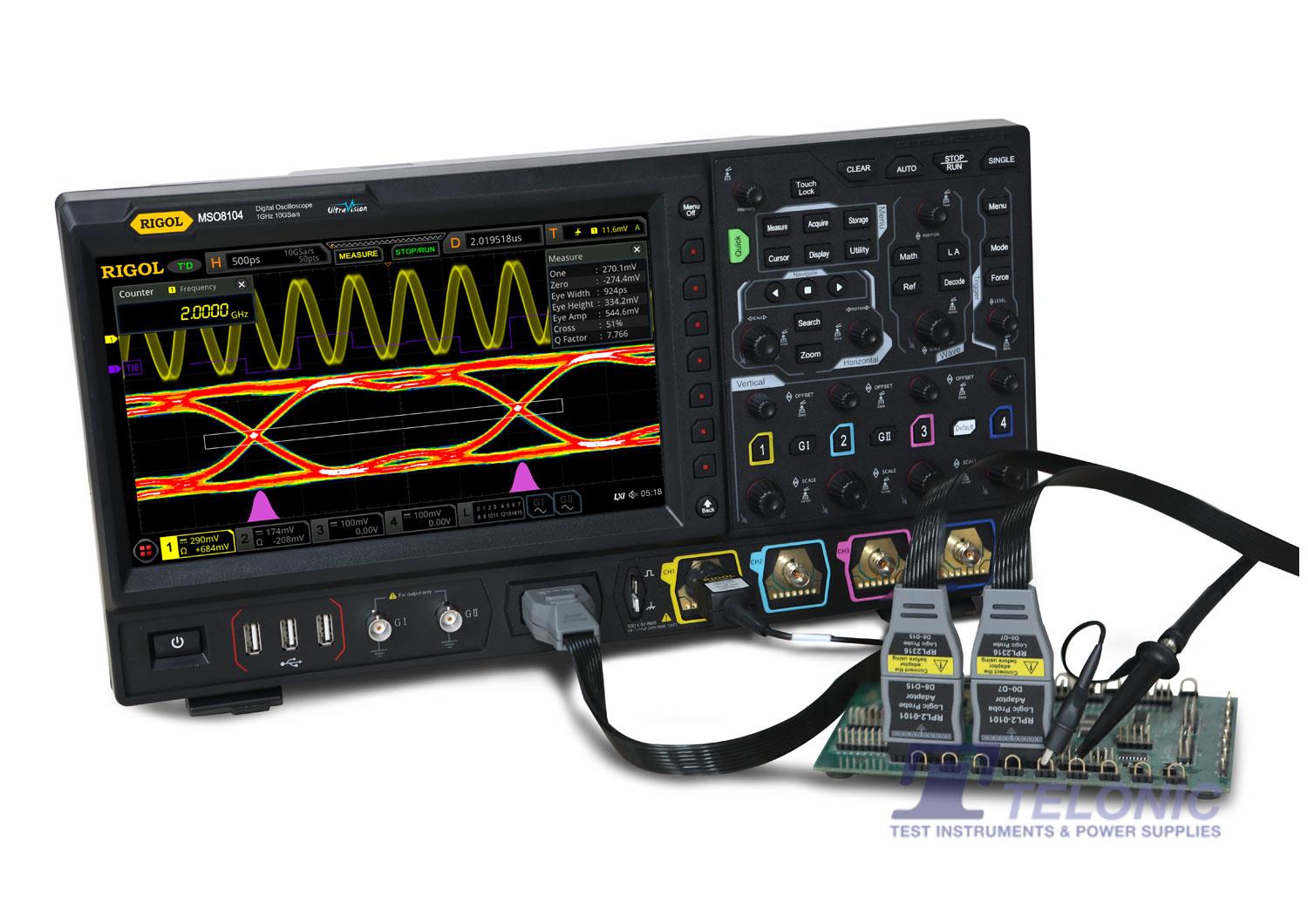

16 input digital channels (required to purchase the RPL2316 logic analyser probe)
dual-channel arbitrary waveform generator output (required to purchase the MSO8000-AWG option)
Sampling Mode real-time sampling
Max. Sample Rate of Analog Channel 10 GSa/s (single-channel), 5 GSa/s (half-channel), 2.5 GSa/s (all channels)
Note: When all the channels are enabled, the sample rate is 2.5 GSa/s, and the analogue bandwidth can reach up to 1 GHz.
Max. Memory Depth analogue channel: 500 Mpts (single-channel), 250 Mpts (half-channel), 125 Mpts (all channels)
digital channel: 62.5 Mpts (all channels)
Max. Waveform Capture Rate ≥600,000 wfms/s
Hardware real-time waveform recording and playing ≥450,000 wfms (single-channel)
Peak Detection capture 400 ps glitches
LCD Size and Type 10.1-inch capacitive multi-touch screen/gesture enabled operation
Display Resolution 1024 × 600
Vertical System Analogue Channel
Input Coupling DC or AC
Input Impedance 1 MΩ ± 1%, 50 Ω ± 1%
Input Capacitance 19 pF ± 3 pF
Probe Attenuation Coefficient 0.0001X, 0.0002X, 0.0005X, 0.001X, 0.002X, 0.005X, 0.01X, 0.02X, 0.05X, 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, and 50000X
Probe Recognition auto-recognised RIGOL probe
Maximum Input Voltage 1 MΩ CAT I 300 Vrms, 400 Vpk, Transient Overvoltage 1600 Vpk
50 Ω 5 Vrms
Vertical Resolution 8 bits
Vertical Sensitivity Range 1 MΩ 1 mV/div ~ 10 V/div
50 Ω 1 mV/div ~ 1 V/div
Offset Range 1 MΩ: ± 1 V ( 1 mV/div ~ 50 mV/div ) ± 30 V ( 51 mV/div ~ 260 mV/div ) ± 100 V ( 265 mV/div ~ 10 V/div )
50Ω: ±1 V ( 1 mV/div ~ 100 mV/div ) ±4 V ( 102 mV/div ~ 1 V/div )
Dynamic Range ±5 div (8 bits)
Bandwidth Limit (Typical) 1 MΩ: 20 MHz, 250 MHz; selectable for each channel
50 Ω: 20MHz
DC Gain Accuracy ± 2% of full scale
DC Offset Accuracy ≤200 mV/div (±0.1 div±2 mV±1.5% of offset value)
>200 mV/div (±0.1 div±2 mV±1.0% of offset value)
Channel-to-Channel Isolation ≥ 100:1 (DC to 1 GHz), ≥ 30:1 (> 1 GHz to the rated bandwidth)
ESD Tolerance ±8 kV (on input BNCs)
Vertical System Digital Channel
Number of Channels 16 input channels (D0 ~ D15) (D0 ~ D7, D8 ~ D15)
Threshold Range ±20.0 V, in 10 mV step
Threshold Accuracy ±(100 mV + 3% of the threshold setting)
Threshold Selection TTL(1.4 V), CMOS5.0(2.5 V), CMOS3.3(1.65 V), CMOS2.5(1.25 V), CMOS1.8(0.9 V), ECL(-1.3 V), PECL(3.7 V), LVDS(1.2 V), and 0.0V
User (adjustable threshold for 8 channels in a group)
Max. Input Voltage ± 40 V peak CAT I; transient overvoltage 800 Vpk
Max. Input Dynamic Range ±10 V + threshold
Minimum Voltage Swing 500 mVpp
Input Impedance about 101 kΩ
Probe Load ≈8 pF
Vertical Resolution 1 bit
Horizontal System Analogue Channel
Range of Time Base 600MHz: 500 ps/div~1 ks/div
1GHz: 500 ps/div~1 ks/div
2GHz: 200 ps/div~1 ks/div
support fine adjustment
Time Base Resolution 2 ps
Time Base Accuracy ±1 ppm ± 2 ppm/year
Time Base Delay Range before triggering ≥1/2 screen width
after triggering 1 s to 100 div
Time Interval (△T) Measurement ±(1 sample interval) ± (2 ppm×readout) ± 50 ps
Inter-channel Offset Correction Range ±100 ns
Horizontal Mode YT: Default
XY: X = Channel 1, Y = Channel 2
SCAN: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL: Time base ≥200 ms/div, available to enter or exit the ROLL mode[5] by rotating the Horizontal SCALE knob
Horizontal System Digital Channel
Min. Detectable Pulse Width 3.2ns
Maximum Input Frequency 500 MHz (accurately copied as the sine wave of the maximum frequency of the logic square wave; input amplitude is the minimum swing; the shortest ground cable is required for the logic probe)
Inter-channel Time Delay 1 ns (typical), 2 ns (maximum)
Trigger System
Trigger Source Analogue channel (1 ~ 4), Digital channel (D0 ~ D15), EXT TRIG, and AC Line
Trigger Mode Auto, Normal, Single
Trigger Coupling DC: DC coupling trigger
AC: AC coupling trigger
High Frequency Rejection: High frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Low Frequency Rejection: Low frequency rejection, cut-off frequency ~ 75 kHz (internal only)
Noise Rejection increase delay for the trigger circuit (internal only), On/Off
Holdoff Range 8 ns to 10 s
Trigger Bandwidth Internal: analogue bandwidth of the oscilloscope
External: 200 MHz
Trigger Sensitivity (Internal) 1 div, <10 mV/div
0.6 div, 10 mV/div ~ 19.8 mV/div
0.4 div, 20 mV/div ~ 49.5 mV/div
0.35 div, ≥50 mV/div
When the noise rejection is enabled, the trigger sensitivity is reduced half
Trigger Sensitivity (External) 200 mVpp, DC ~ 100 MHz
500 mVpp, 100 MHz ~ 200 MHz
Trigger Level Range Internal: ± 5 div from the center of the screen
External: ± 8 V
AC Line: fixed 50%


Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
