Digital Multimeters / Data Acquisition Systems
Reading Resolution: 5 ½, 6 ½ Models | DC Voltage Accuracy: 35ppm, 150ppm | Noise Floor: 5uV, 8uV
- True 5 ½ or 6 ½ digit resolution
- Up to >8,000 Readings per second
- GPIB, USB, RS-232, and LXI-C (Ethernet) Connectivity
- SCPI Command Compatibility
- Available datalogging and sensor connectivity

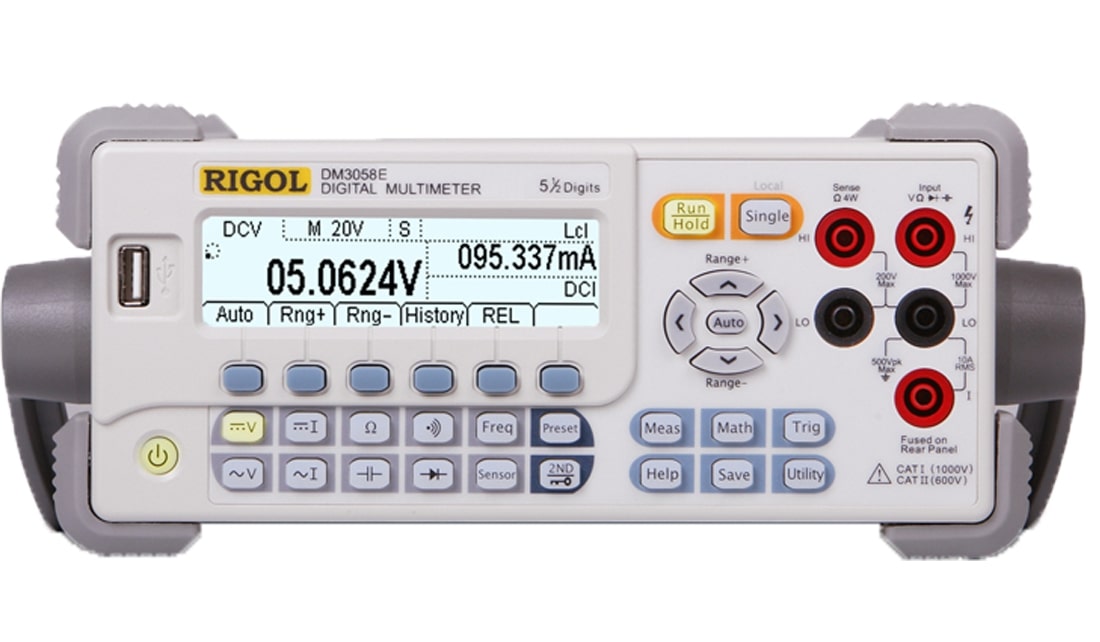

The DM3000 Series DMMs give reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3000 can fit any DMM application with speed, accuracy, reliability, and efficiency well beyond its price.
| Model | Display | DC Voltage Accuracy | Measurement Speeds (readings/s) | Single Trigger Samples | Internal Measurement Memory | Dual Display Mode | Maths Functions & Statistics | Pass/Fail Test | Connectivity | Price |
|---|---|---|---|---|---|---|---|---|---|---|

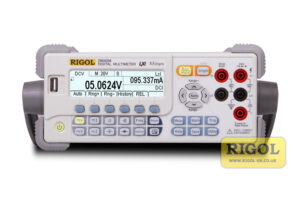

| DM3058 | 5½ Digit | 150ppm | 2.5, 20, 123 | 1 to 2,000 | 10 x 2,000 | Standard | Standard | Standard | USB, RS232, GPIB, LAN | £ £512.00 |
| DM3058E | 5½ Digit | 150ppm | 2.5, 20, 123 | 1 to 2,000 | 10 x 2,000 | Standard | Standard | Standard | USB, RS232 | £ £359.00 |

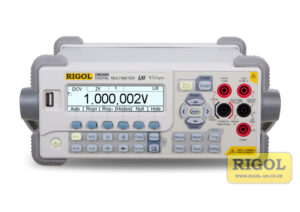

| DM3068 | 6½ Digit | 35ppm | 0.5, 5, 25, 50, 250, 833, 2500 & 10000 | 1 to 50,000 | 10 x 5,000 | Standard | Standard | Standard | USB, RS232, GPIB, LAN | £ £630.00 |
