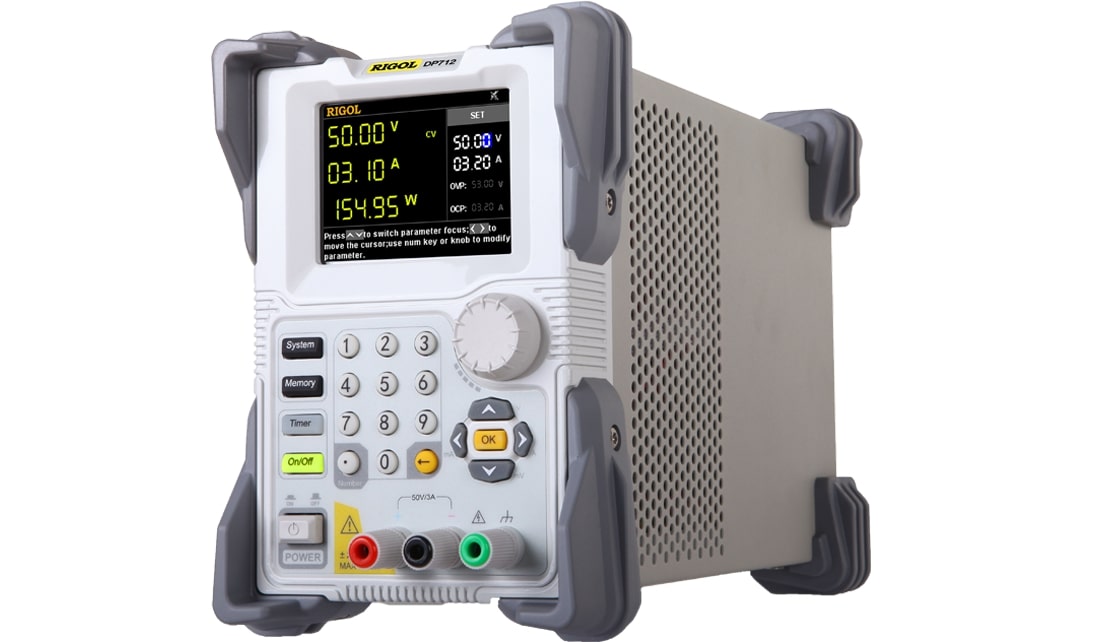

Rigol DP700 Series DC Power Supplies

Voltage: 0-30V, 0-50V | Current: 3A, 5A | Power: Up to 150W

  • Single output, 30 or 50 V/5 A , total power up to 150 W
  • Low ripple and noise: <500 μVrms/3 mVpp; <2 mArms
  • Load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA
  • Transient response time: <50 μs 1 mV/1 mA resolution (optional)
  • External trigger function supported enables synchronous output for multiple devices (optional)
  • Timing option supports sweeps with minimum 10 ms dwell time
  • 3.5-inch TFT-LCD

RIGOL’s DP700 Series power supply is an affordable, programmable linear DC power supply for benchtop applications. With quality performance specifications, reliable output, and a small footprint, the DP700 Series provides incredible benchtop value. The DP700s also support options including timing output, trigger function, and high resolution.

ModelNumber Of OutputsVoltage Range (Max. Current)Sense TerminalsHigh Resolution OutputTimer FunctionsTrigger FunctionsOnline Monitoring & AnalysisConnectivityPrice

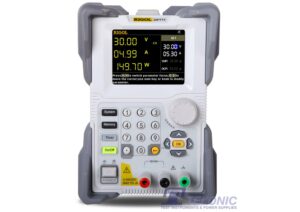

DP71110 to 30V (5A)NoOptionalOptionalOptionalRS232 – Standard, See DP800 series for USB, LAN & GPIB£266.00

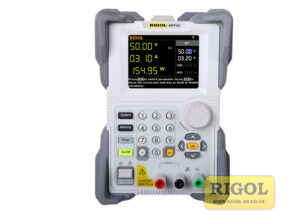

DP71210 to 50V (3A)NoOptionalOptionalOptionalRS232 – Standard, See DP800 series for USB, LAN & GPIB£266.00

Showing all 2 results
