Rigol DSA800 Series Spectrum Analysers

Limited time offer, Over 40% off the price of the Rigol Pre Compliance Bundle!

Bundle consists of: 1-off Rigol EMI-DSA800 EMI filter and quasi-peak detector licence, 1-off Rigol NFP-3 near field probe set, and 1-off Rigol S1210 EMI pre-compliance PC software licence

Frequency Range: 9kHz to 1.5GHz/3.2GHz/7.5GHz| Minimum Resolution Bandwidth: 10Hz | Phase Noise: <-80/90/98dBc/Hz

  • 10Hz Resolution Bandwidth
  • DANL: -161 Dbm with Optional Preamp
  • EMI Pre-compliance Measurement
  • Tracking Source and VSWR Function
  • UltraSpectrum Software

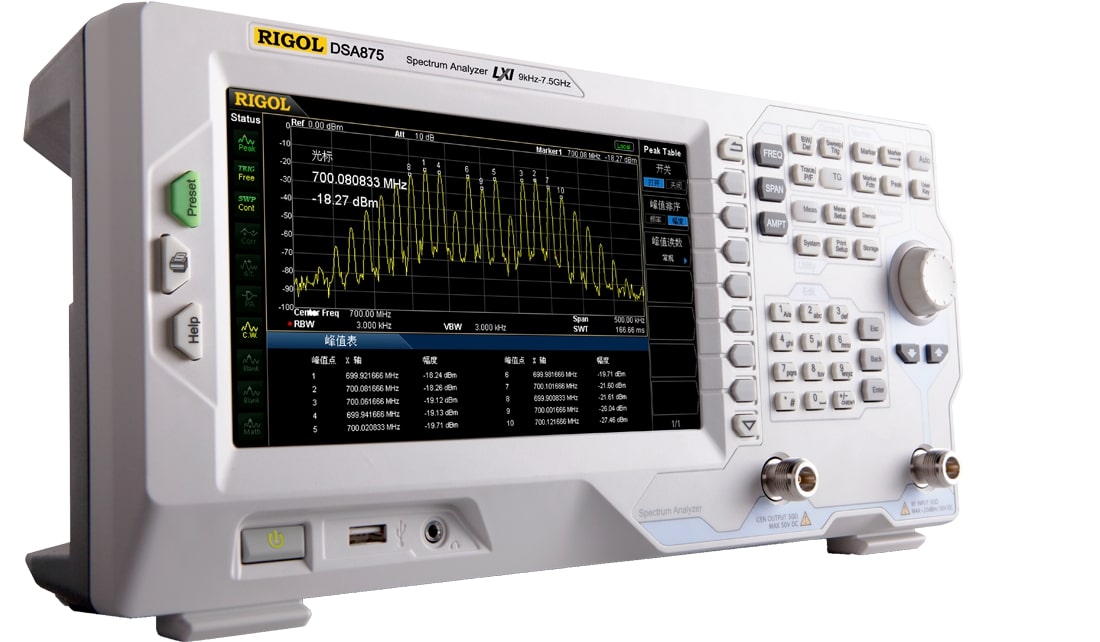

Rigol’s DSA800 Series spectrum analysers redefine the product category by setting new standards for performance and price. The DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyser offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 distinguishes between signals with a frequency difference as little as 10 Hz. The DSA832, DSA832E, and DSA875 have a DANL (displayed average noise level) down to -161 dBm (typical). In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, VSWR measurement package, and tracking generator (“-TG” version) for all of these models. A Preamplifier is standard on all models in the family.

ModelFrequency RangeMinimum Resolution Bandwidth (RBW)Maximum CW RF PowerSSB Phase Noise (@10kHz offset)DANL, Preamplifier Off
(typ. 5MHz – 1.5GHz)
DANL, Preamplifier ON
(typ. 5MHz – 1.5GHz)
PreamplifierTracking GeneratorEMI Filter & Quasi-Peak DetectorPrice
DSA8159kHz – 1.5GHz10Hz20dBm (100mW)<-80dBc/Hz<-135dBm/Hz<-155dBm/HzStandardNoOptional£986.00
DSA815-TG9kHz – 1.5GHz10Hz20dBm (100mW)<-80dBc/Hz<-135dBm/Hz<-155dBm/HzStandardYesOptional£1,077.00
DSA8329kHz – 3.2GHz10Hz20dBm (100mW)<-98dBc/Hz<-144dBm/Hz<-161dBm/HzStandardNoOptional£2,689.00
DSA832-TG9kHz – 3.2GHz10Hz20dBm (100mW)<-98dBc/Hz<-144dBm/Hz<-161dBm/HzStandardYesOptional£2,878.00
DSA832E9kHz – 3.2GHz10Hz20dBm (100mW)<-90dBc/Hz<-140dBm/Hz<-158dBm/HzStandardNoOptional£1,671.00
DSA832E-TG9kHz – 3.2GHz10Hz20dBm (100mW)<-90dBc/Hz<-140dBm/Hz<-158dBm/HzStandardYesOptional£2,158.00
DSA8759kHz – 7.5GHz10Hz20dBm (100mW)<-98dBc/Hz<-144dBm/Hz<-161dBm/HzStandardNoOptional£5,041.00
DSA875-TG9kHz – 7.5GHz10Hz20dBm (100mW)<-98dBc/Hz<-144dBm/Hz<-161dBm/HzStandardYesOptional£5,851.00

Showing all 9 results
