Rigol MSO5074 70MHz, 4CH Digital Oscilloscope

£781.00 (£937.20 inc VAT)

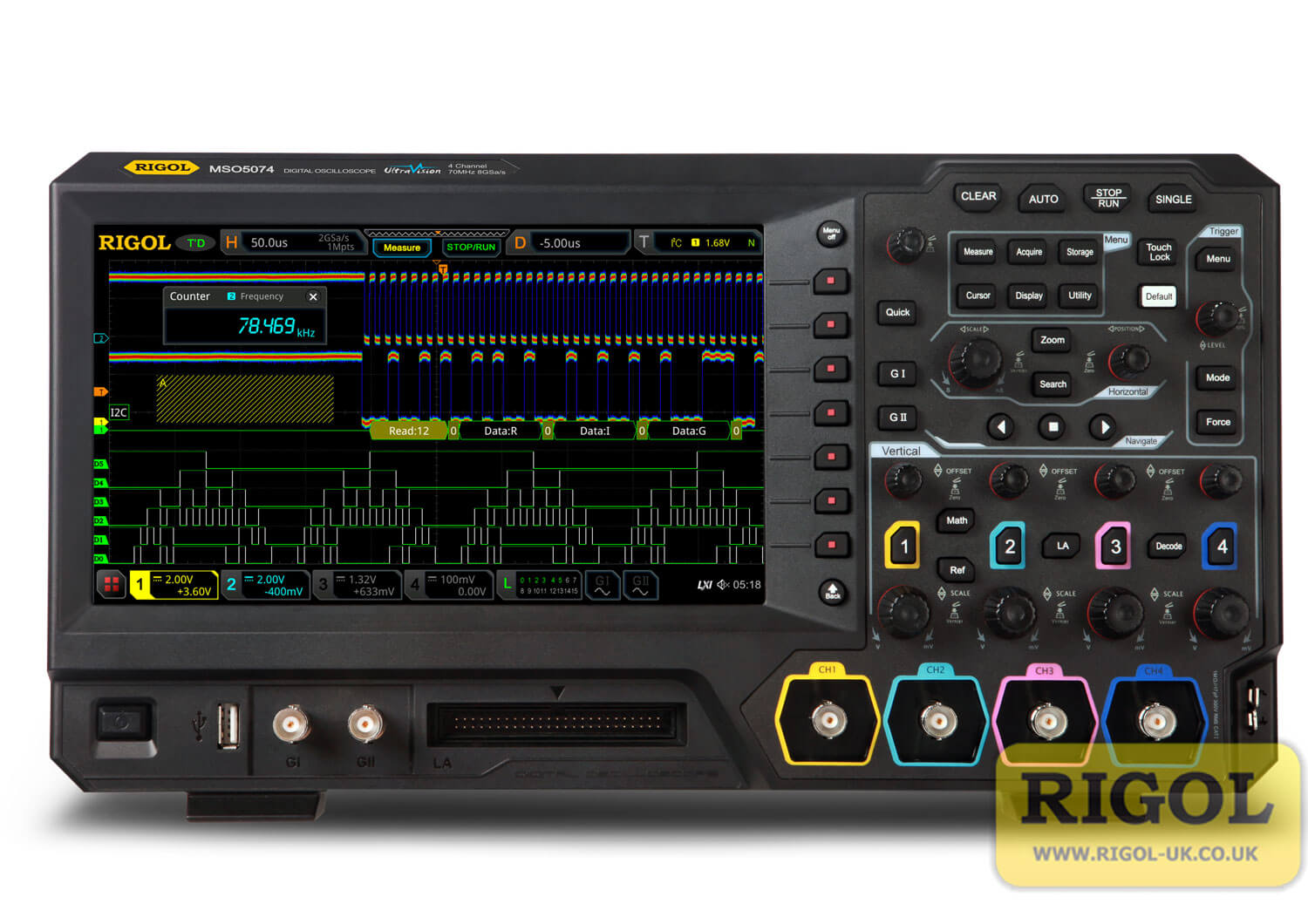

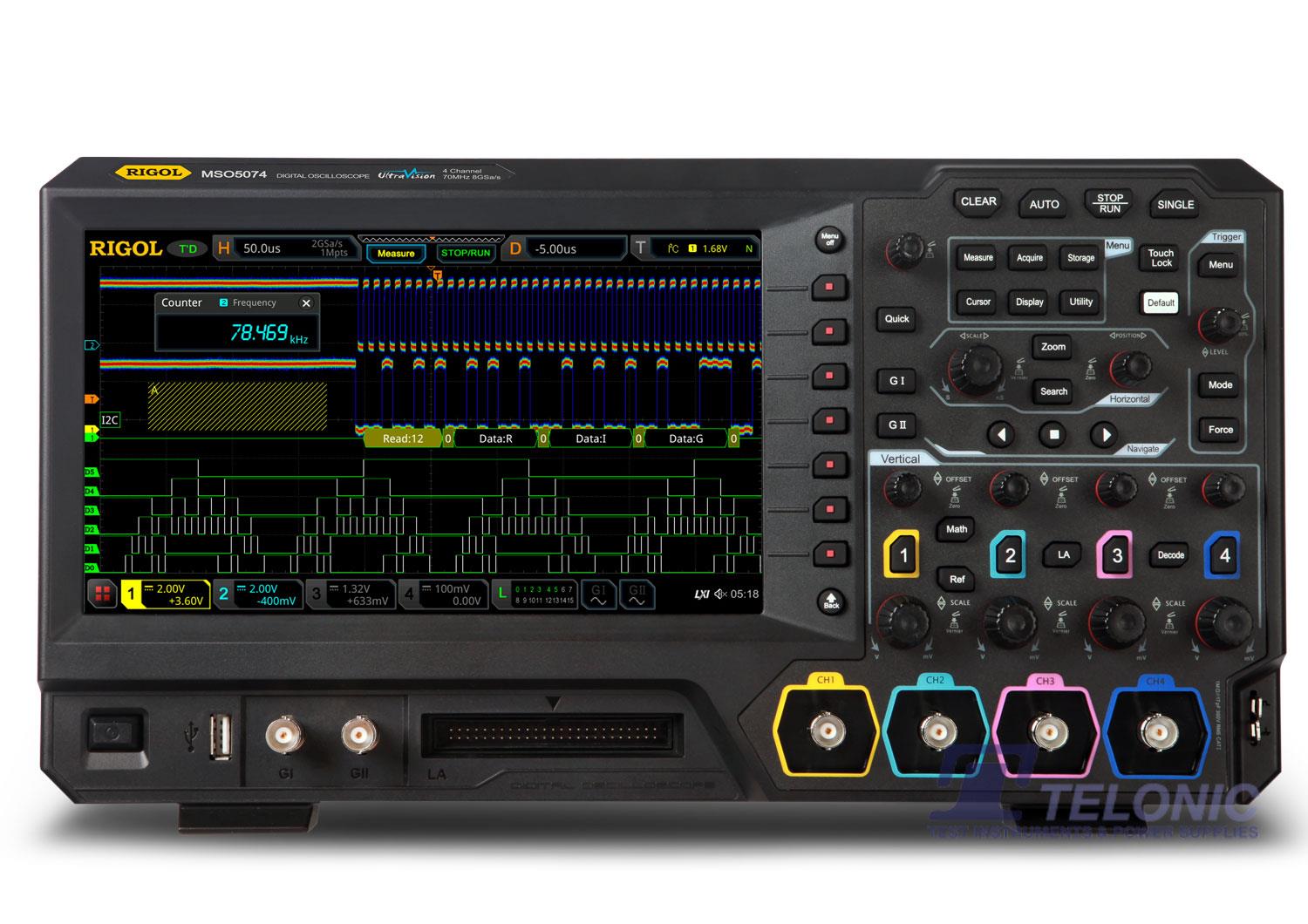

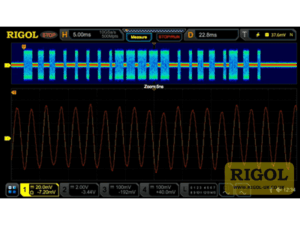

Rigol MSO5074 Digital Oscilloscope

The MSO5074 is a 70MHz, 4CH high-performance Digital Oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.


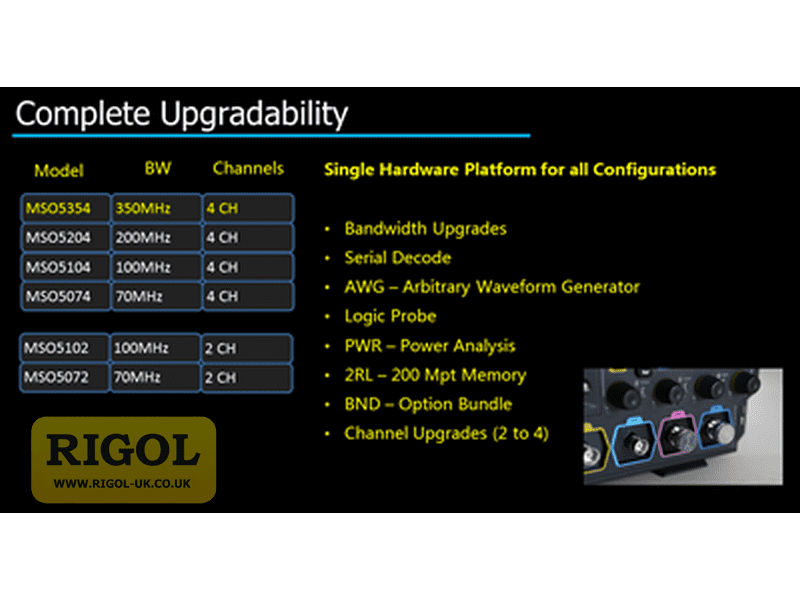

  • Analogue bandwidth: 70 MHz; bandwidth upgrade option supported

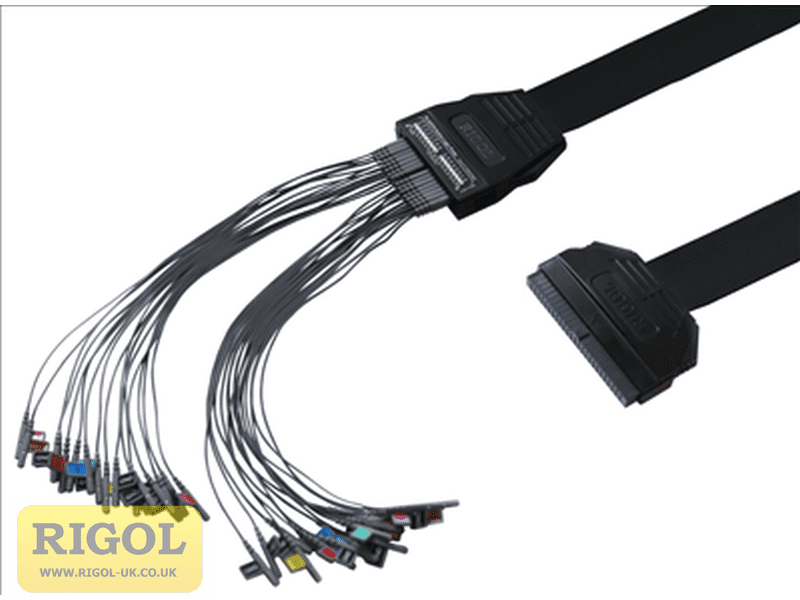

  • 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)
  • Up to 8 GSa/s real-time sample rate

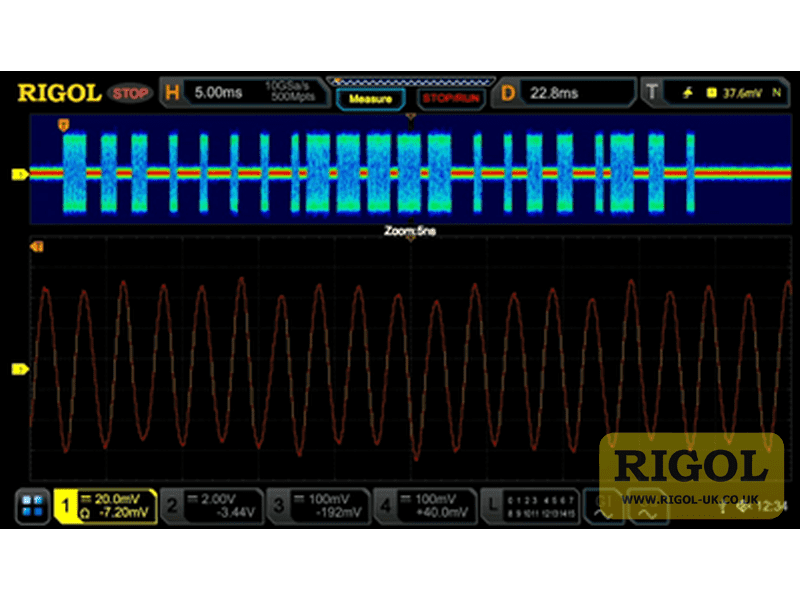

  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfms/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

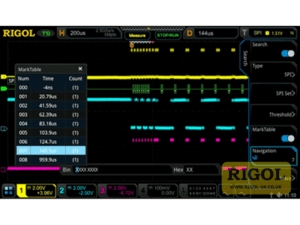

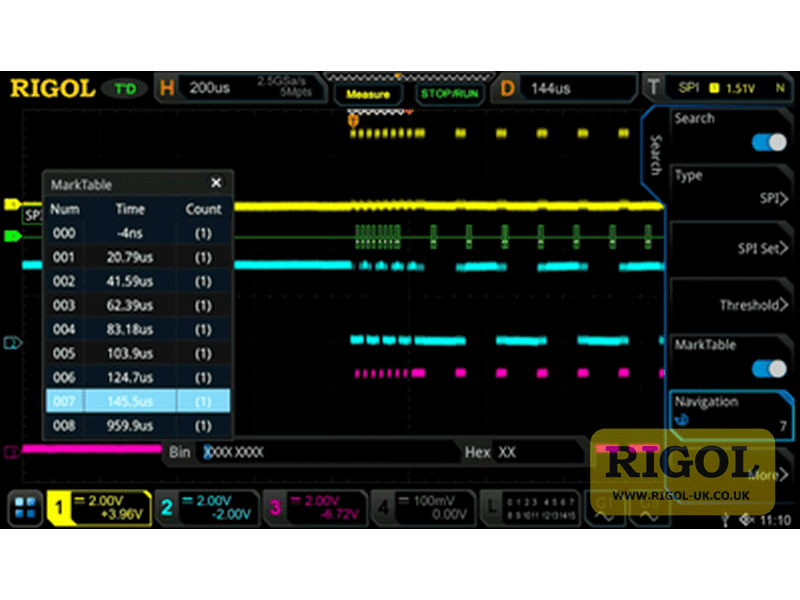

  • Independent search, navigation keys, and event table

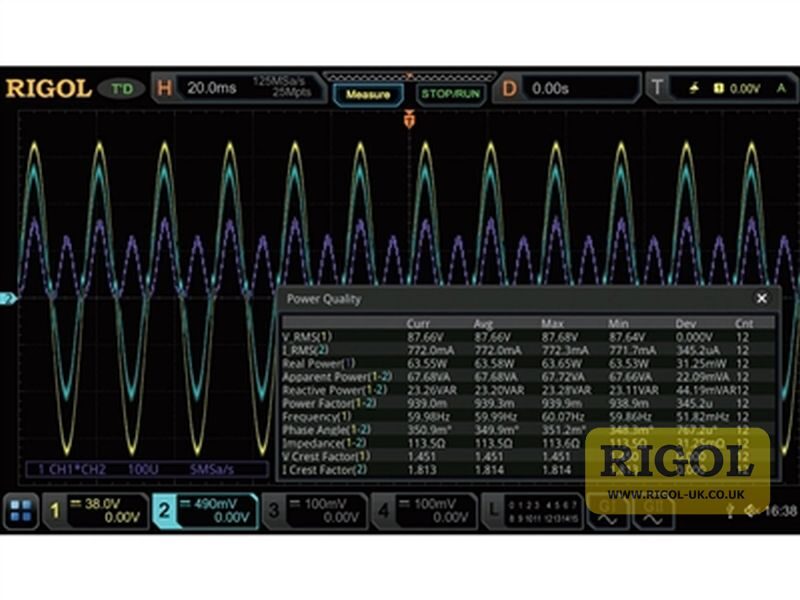

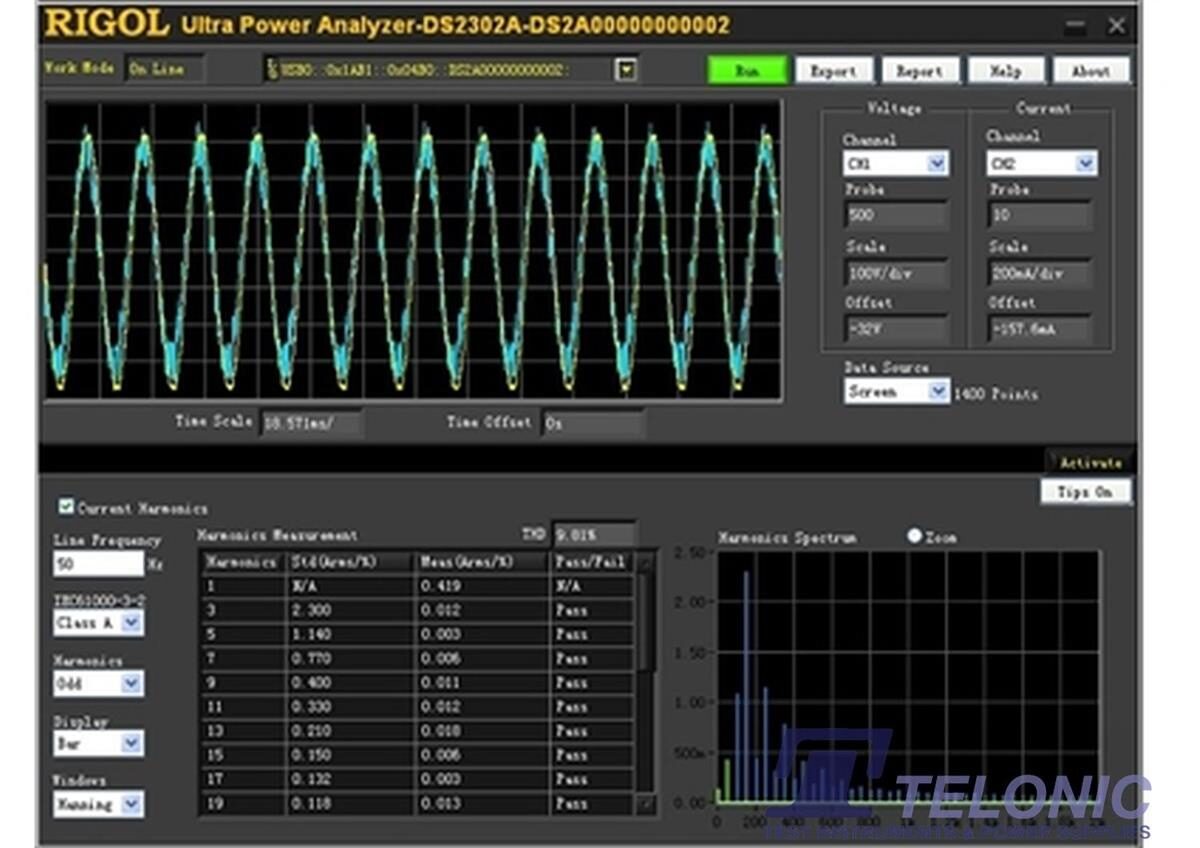

  • Built-in advanced power analysis software (option)

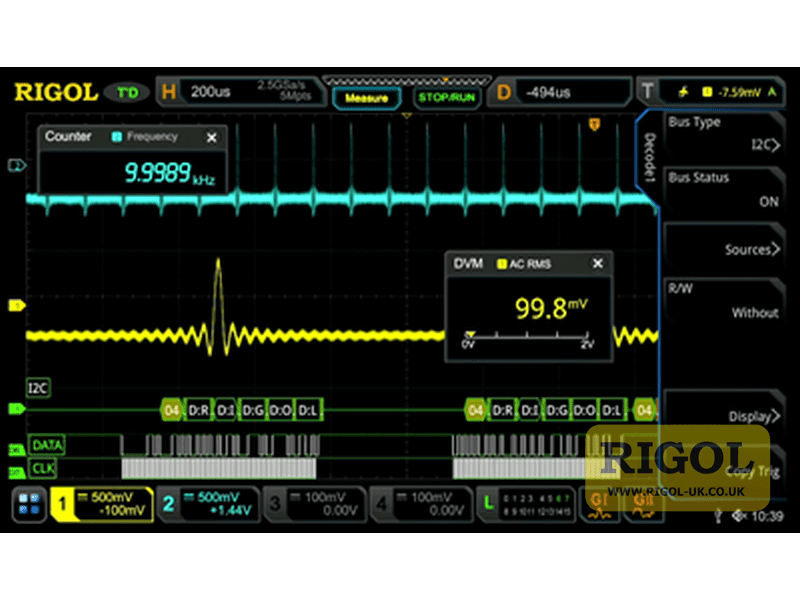

  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analszer, a spectrum
  • analyser, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totaliser, and a protocol analyser
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with coluor persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate

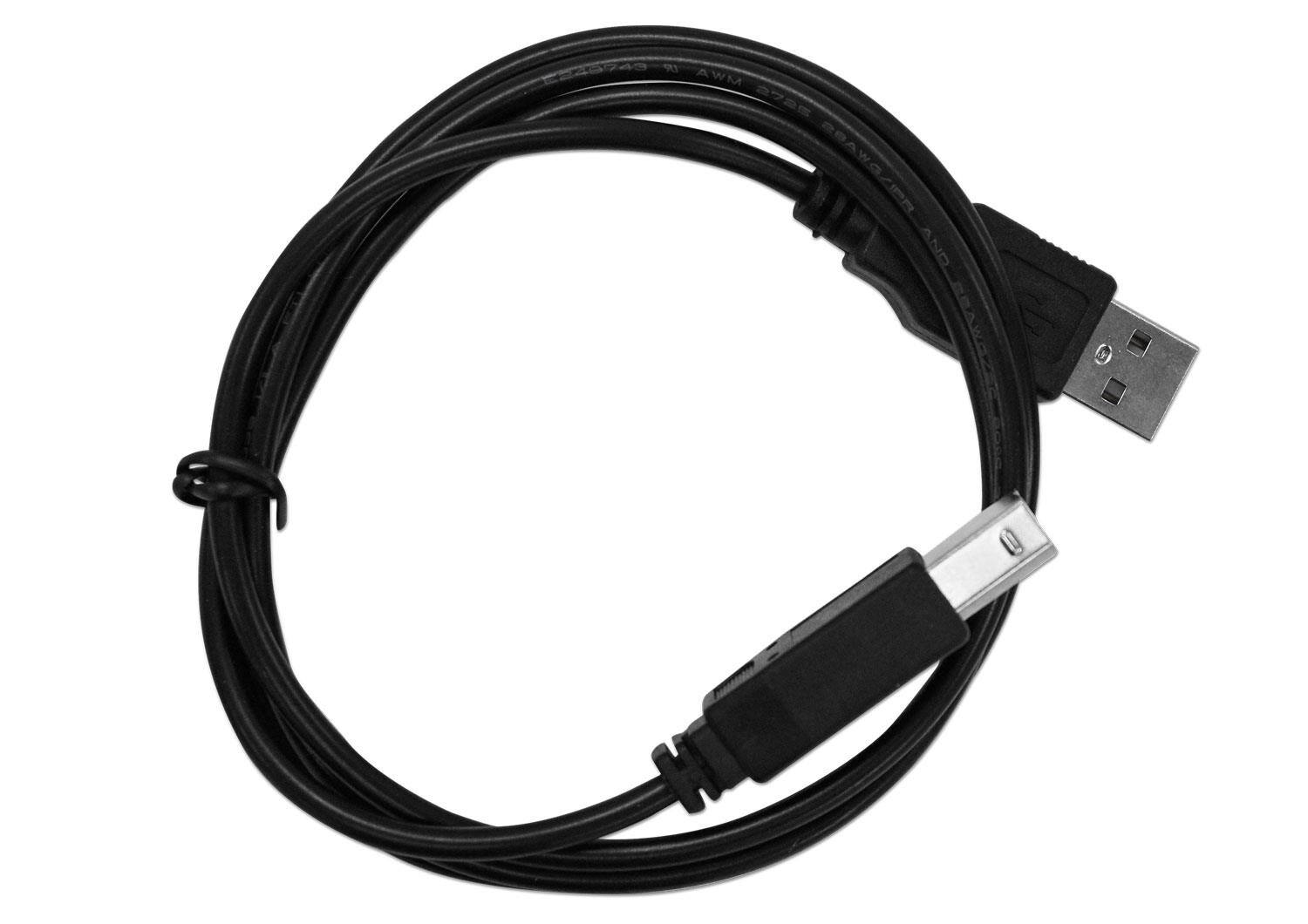

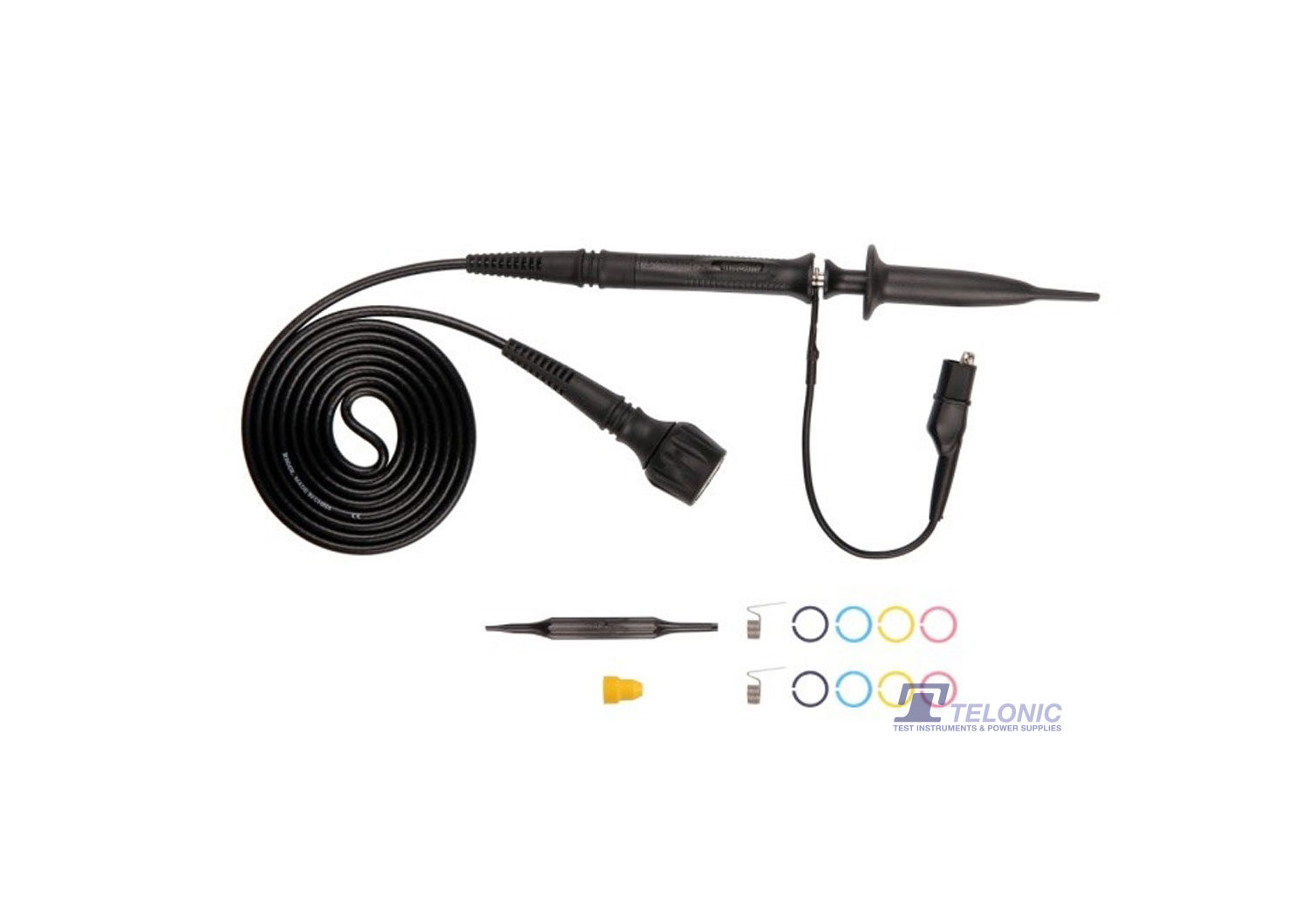

  • Supplied with… 4-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide

Product Videos


Vertical System Analogue Channel
Input Coupling DC, AC or GND
Input Impedance 1 MΩ±1%
Input Capacitance 17 pF ± 3 pF
Probe Attenuation Coefficient 0.0001X, 0.0002X, 0.0005X, 0.001X, 0.002X, 0.005X, 0.01X, 0.02X, 0.05X, 0.1X, 0.2X, 0.5X, 1X, 2X, 5X,
10X, 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, and 50000X
Maximum Input Voltage CAT I 300 Vrms, 400 Vpk, Transient Overvoltage 1600 Vpk
Vertical Resolution 8 bits
Vertical Sensitivity Range 500 μV/div~10 V/div
Offset Range ±1 V (500 μV/div~50 mV/div)
±30 V (51 mV/div~260 mV/div)
±100 V (265 mV/div~10 V/div)
Dynamic Range ±5 div (8 bits)
Bandwidth Limit (Typical) 20 MHz, 100 MHz, 200 MHz; selectable for each channe
DC Gain Accuracy ± 3% of full scale
DC Offset Accuracy <200 mV/div (±0.1 div±2 mV±1.5% of offset value) >200 mV/div (±0.1 div±2 mV±1.0% of offset value)
Channel-to-Channel Isolation 40 dB, from DC to maximum rated bandwidth of each model
ESD Tolerance ±8 kV (on input BNCs)
Vertical System Digital Channel
Number of Channels 16 input channels (D0~D15)
(D0~D7, D8~D15)
Threshold Range ±15.0 V, in 10 mV step
Threshold Accuracy ±(100 mV + 3% of the threshold setting)
Threshold Selection TTL(1.4 V), COMS5.0(2.5 V), COMS3.3(1.65 V), COMS2.5(1.25 V), COMS1.8(0.9 V), ECL(-1.3 V),
PECL(3.7 V), LVDS(1.2 V), 0.0 V
User (adjustable threshold for 8 channels in a group)
Max. Input Voltage ± 40 V peak CAT I; transient overvoltage 800 Vpk
Max. Input Dynamic Range ±10 V + threshold
Minimum Voltage Swing 500 mVpp
Input Impedance About 101 kΩ
Probe Load ≈8 pF
Vertical Resolution 1 bit
Horizontal System Analogue Channel
Time Base Resolution 10 ps
Time Base Accuracy ±10 ppm ± 10 ppm/year
Time Base Delay Range before triggering: ≥1/2 screen width
after triggering: 1 s or 100 div, whichever is greater
Time Interval (△T)
±(1 sample interval) ± (2 ppm×readout)±50 ps
Inter-channel Offset Correction Range ±100 ns
Horizontal Mode YT: Default
XY X = Channel 1, Y = Channel 2
SCAN: Time base ≥200 ms/div, available to enter or exit the SCAN mode by rotating the Horizontal SCALE knob
ROLL: Time base ≥200 ms/div, available to enter or exit the ROLL mode by rotating the Horizontal SCALE knob
(enable the auto ROLL mode at first)
Horizontal System Digital Channel
Min. Detectable Pulse Width 5ns
Maximum Input Frequency 200 MHz (accurately copied as the sine wave of the maximum frequency of the logic square wave;
input amplitude is the minimum swing; the shortest the ground cable is required for the logic probe)
Inter-channel Time Delay 2 ns (typical), 5 ns (maximum)
Trigger System
Trigger Source Analogue channel (1~4), digital channel (D0~D15), AC Line
Trigger Mode Auto, Normal, Single
Trigger Coupling DC: DC coupling trigger
AC: AC coupling trigger
High Frequency Rejection: High frequency rejection, cut-off frequency~55 kHz (internal only)
Low Frequency Rejection: Low frequency rejection, cut-off frequency~55 kHz (internal only)
Noise Rejection Increase delay for the trigger circuit (internal only), On/Off
Holdoff Range 8 ns to 10 s
Trigger Bandwidth Analogue bandwidth
Trigger Sensitivity 1 div or 5 mVpp, whichever is larger, <10mV/div
0.5 div, ≥10mV/div
Enable the noise rejection, with trigger sensitivity reducing half
Trigger Level
Internal: ± 5 div from the center of the screen
AC Line Fixed 50%
General Specifications
Power Voltage 100 V-240 V, 45 Hz-440 Hz
Power Max. 75 W (connect to various interfaces, USB)
Fuse 4 A, T degree, 250 V
Temperature Range Operating 0℃~+50℃
Non-operating -30℃~+70℃
Humidity Range Operating:
Below +30℃: ≤90% RH (without condensation)
+30℃ to +40℃, ≤75% RH (without condensation)
+40℃ to +50℃, ≤45% RH (without condensation)Non-operating Below 65℃: ≤90% RH (without condensation)
Altitude Operating Below 3,000
Non-operating Below 15,000
LCD 9-inch capacitive multi-touch screen/gesture enabled operation
Resolution 1024×600 (Screen Region)
Graticule (10 vertical divisions) x (8 horizontal divisions)
Persistence Off, Infinite, variable persistence (100 ms to 10 s)
Brightness 256 intensity levels (LCD,HDMI)


Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

You may also like…

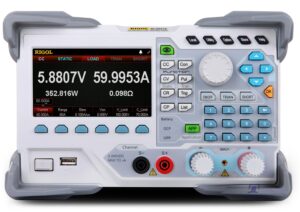

  • Rigol DL3021A Programmable DC Electronic Load
