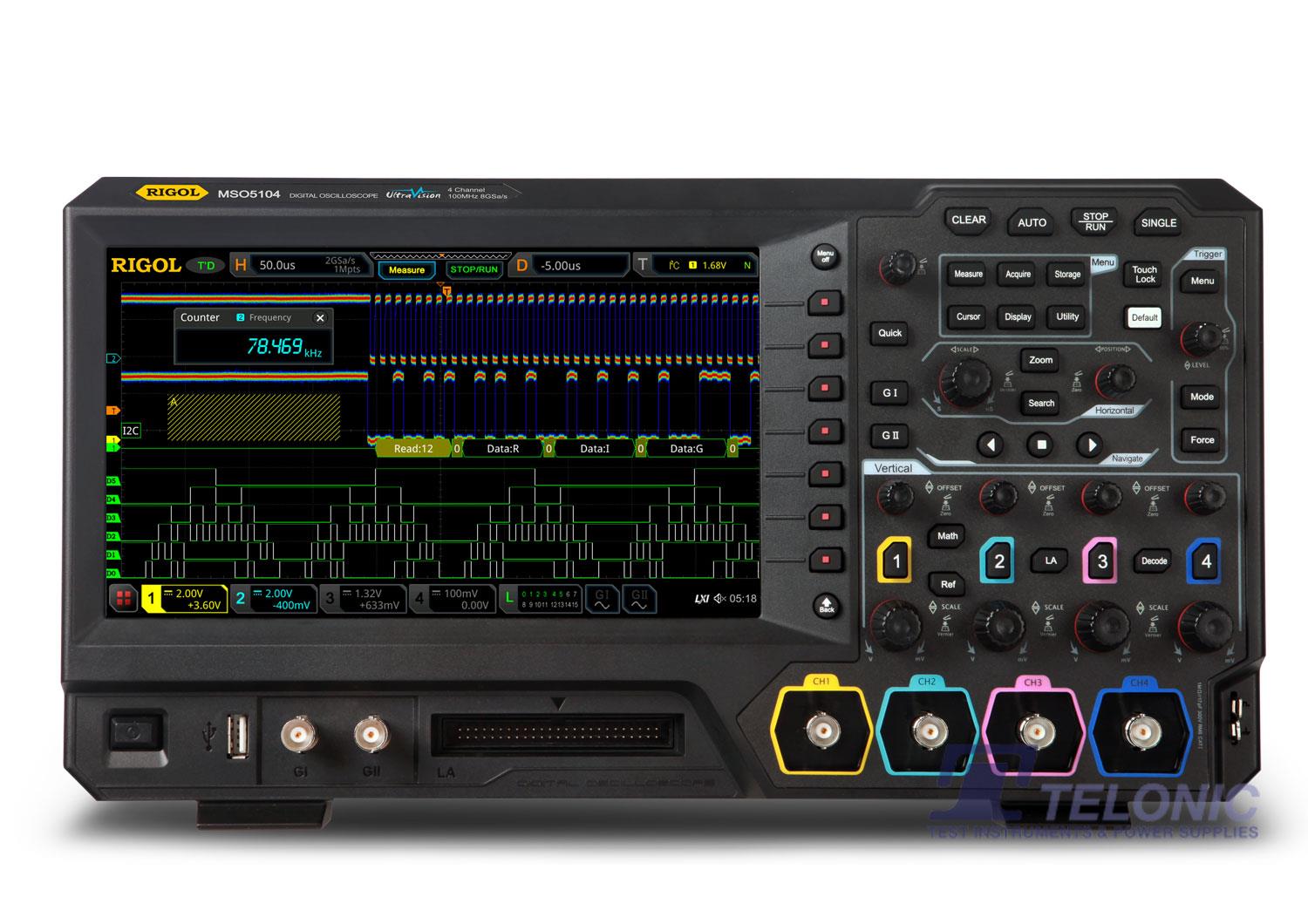

Rigol MSO5104 100MHz Digital Oscilloscope

£994.88 (£1193.86 inc VAT)

FREE Software Options Bundle! (£544.00 Value)

Only 2 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: MSO5104 Categories: ,

Description

Free Software Options Bundle (£544.00 Value)

Purchase any MSO5000 Series Oscilloscope and receive a Software Options Bundle! (MSO5000-BND)

Offer Valid Until 30/9/2020

MSO5000 series of digital oscilloscope’s is a high-performance oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.

Features:

  • Analogue bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade option supported
  • 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)
  • Up to 8 GSa/s real-time sample rate
  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfms/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
  • Built-in advanced power analysis software (option)

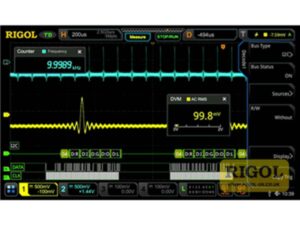

  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totaliser, and a protocol analyser
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate
  • Supplied with… 4-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide
RIGOL's MSO5000 Series Digital Oscilloscope
Intro of the MSO5000 Logic Analyser
Performing Protocol Analysis with the MSO5000

Documentation

Datasheets

Digital Oscilloscope MSO5000 Series

Datasheets


Digital Oscilloscope MSO5000 Series datasheets
