Rigol RSA5032N 3.2GHz Real-Time Spectrum Analyser with VNA & DTF

£7049.00 (£8458.80 inc VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

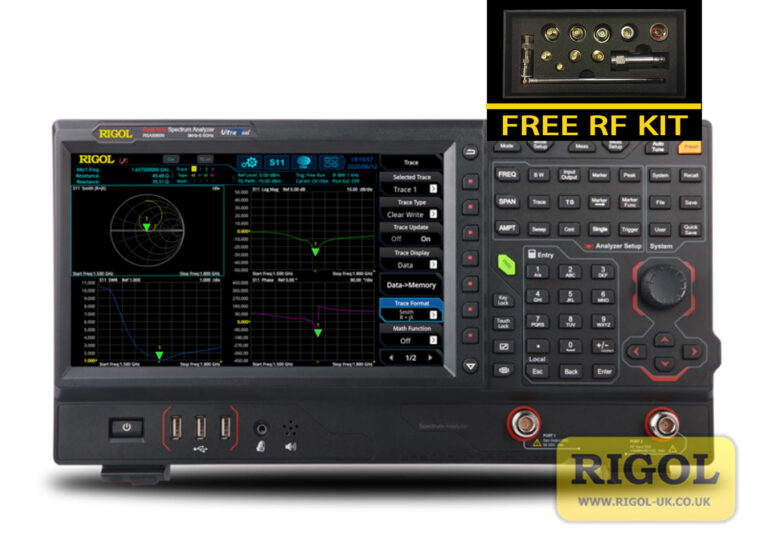

Free Shipping Free RK Kit Price Match Guarantee

Description

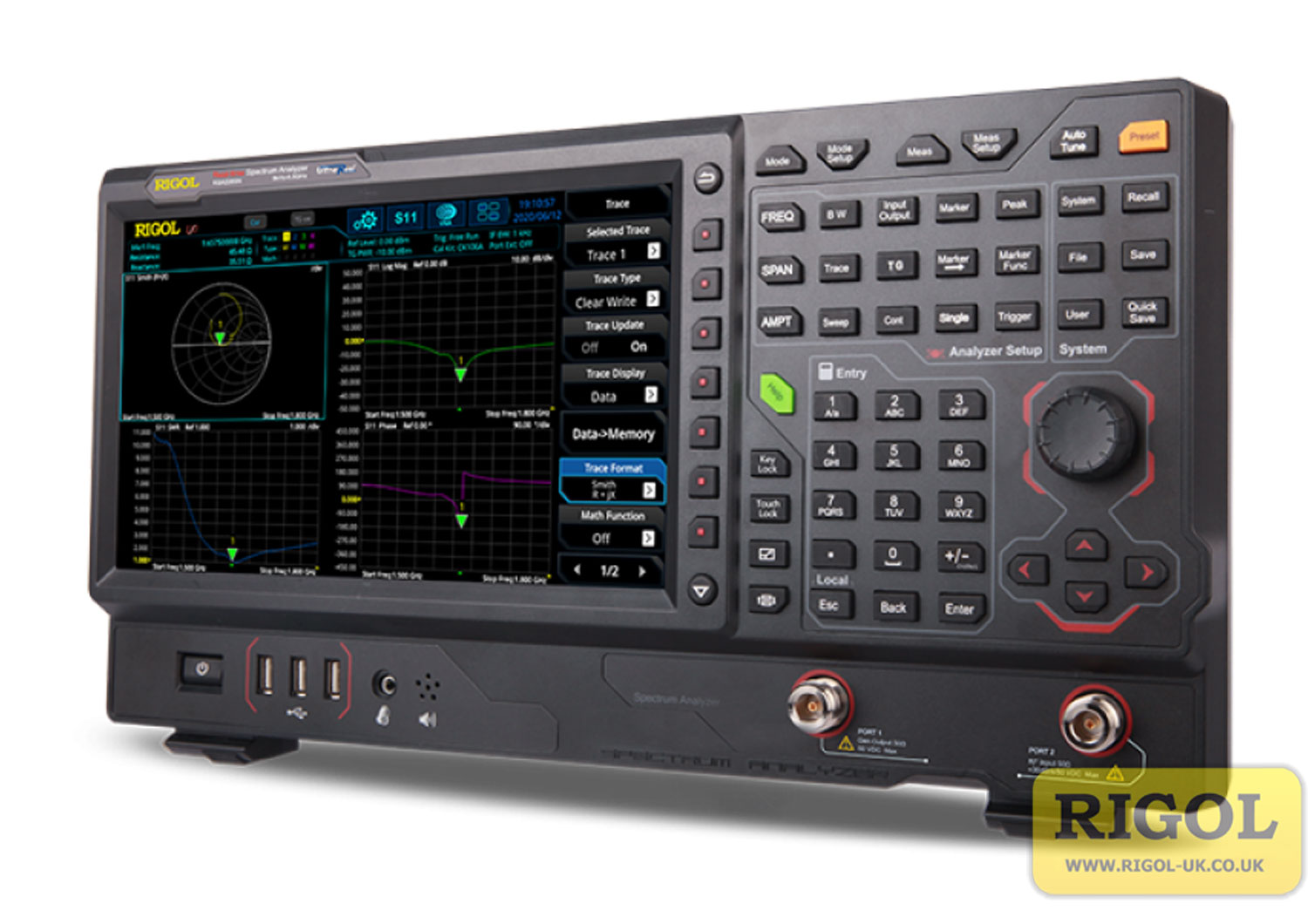

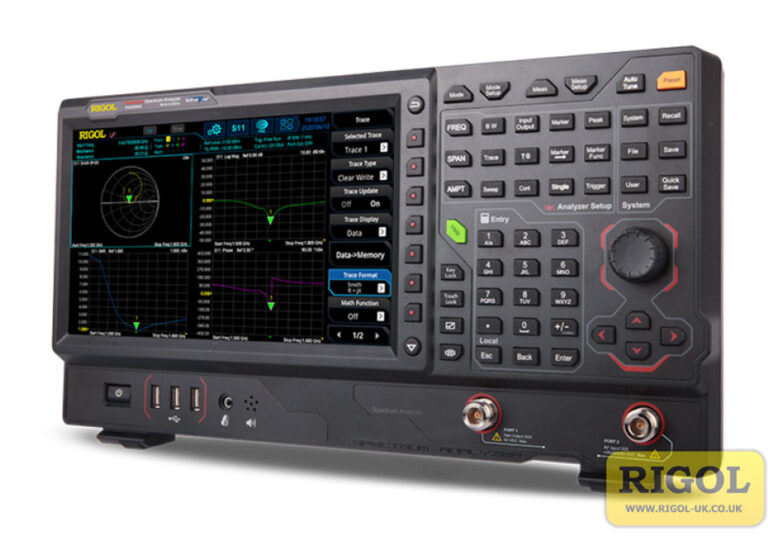

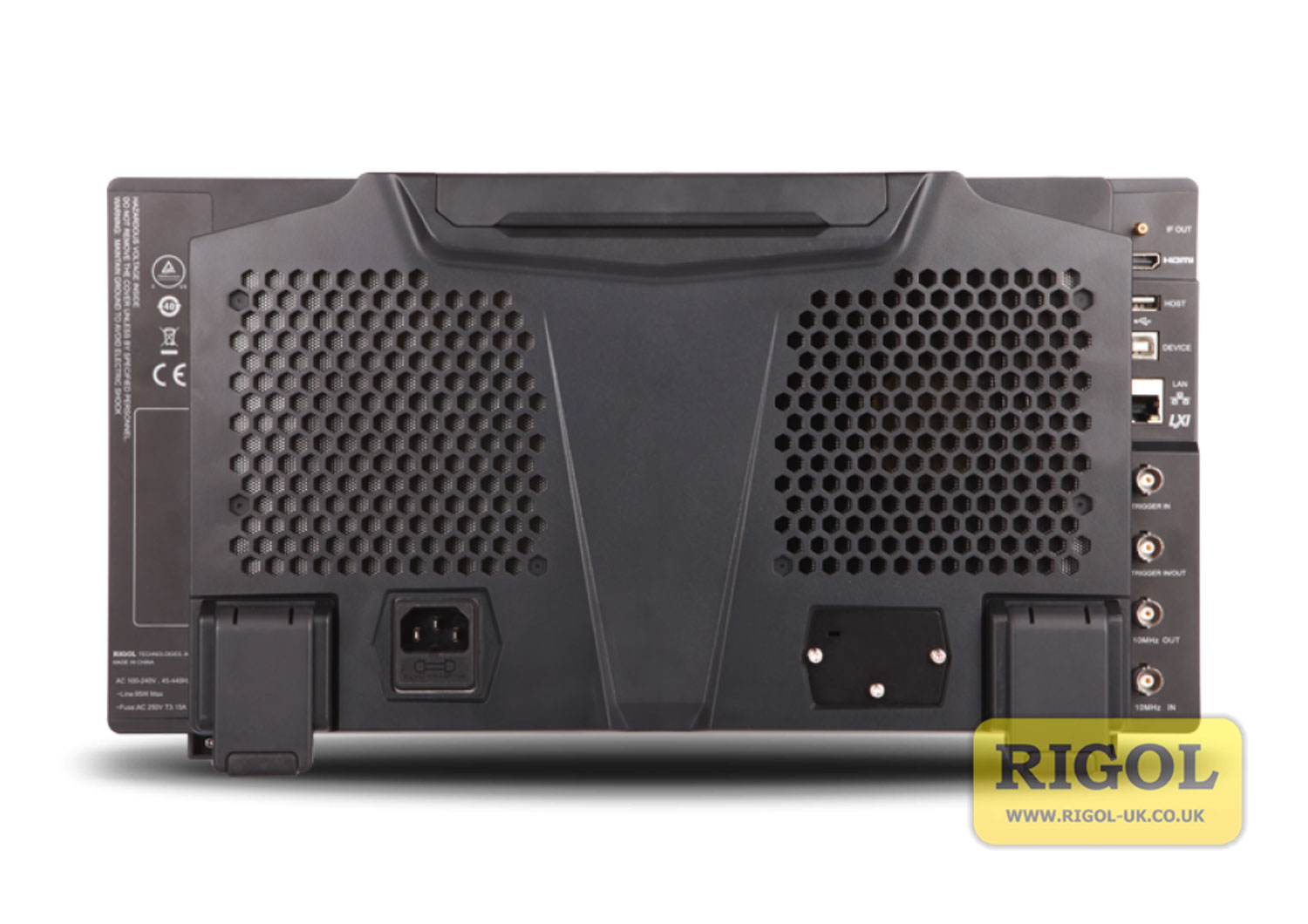

Rigol RSA5032N Real-Time Spectrum Analyser

The RIGOL RSA5032N is a real time spectrum analyser with frequency range from 9kHz to 3.2GHz. It includes the tracking generator and the VNA functionality to perform S11, S21 and Distance to Fault (DTF) measurements.

Features:
  • Spectrum analysis from 9kHz to 3.2GHz
  • DANL: <-165 dBm (typical)
  • Phase noise: <-108 dBc/Hz (typical)
  • Level measurement uncertainty: <0.8 dB
  • Min. RBW 1 Hz
  • Up to 40 MHz real-time analysis bandwidth
  • 7.45 µsec 100% POI (at 40MHz)
  • Advanced measurement functions
  • VSA measurement application (option)
  • EMI measurement application (option)
  • NEW VNA measurement application (standard)

Documentation

Measurement Mode
Frequency Range RSA5032/-TG/N: 9kHz to 3.2GHz
RSA5065/-TG/N: 9kHz to 6.5GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration
accuracy]
Initial Calibration
Accuracy
Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature
Stability
0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency
Marker Frequency Resolution span/(number of sweep points – 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Range Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points – 1)
Carrier Offset <-95 dBc/Hz (typical)
10 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
100 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
1 MHz <-115 dBc/Hz, <-117 dBc/Hz (typical)
Amplitude
Range fc ≥ 10 MHz
DANL to +30 dBm
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
CW RF Power +33 dBm (2 W)
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
General Specifications
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1”
Colour 24-bit colour
Power
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Environment
Temperature Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃
Humidity 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH
Altitude Operating Height: below 3,048 m (10,000 feet)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
