Rigol RSA5065N 6.5GHz Real-Time Spectrum Analyser + VNA

£8099.00 (£9718.80 inc VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free RK Kit Price Match Guarantee
Request QuoteRemove from Quote
Request Quote
SKU: RSA5065N Category:

Description

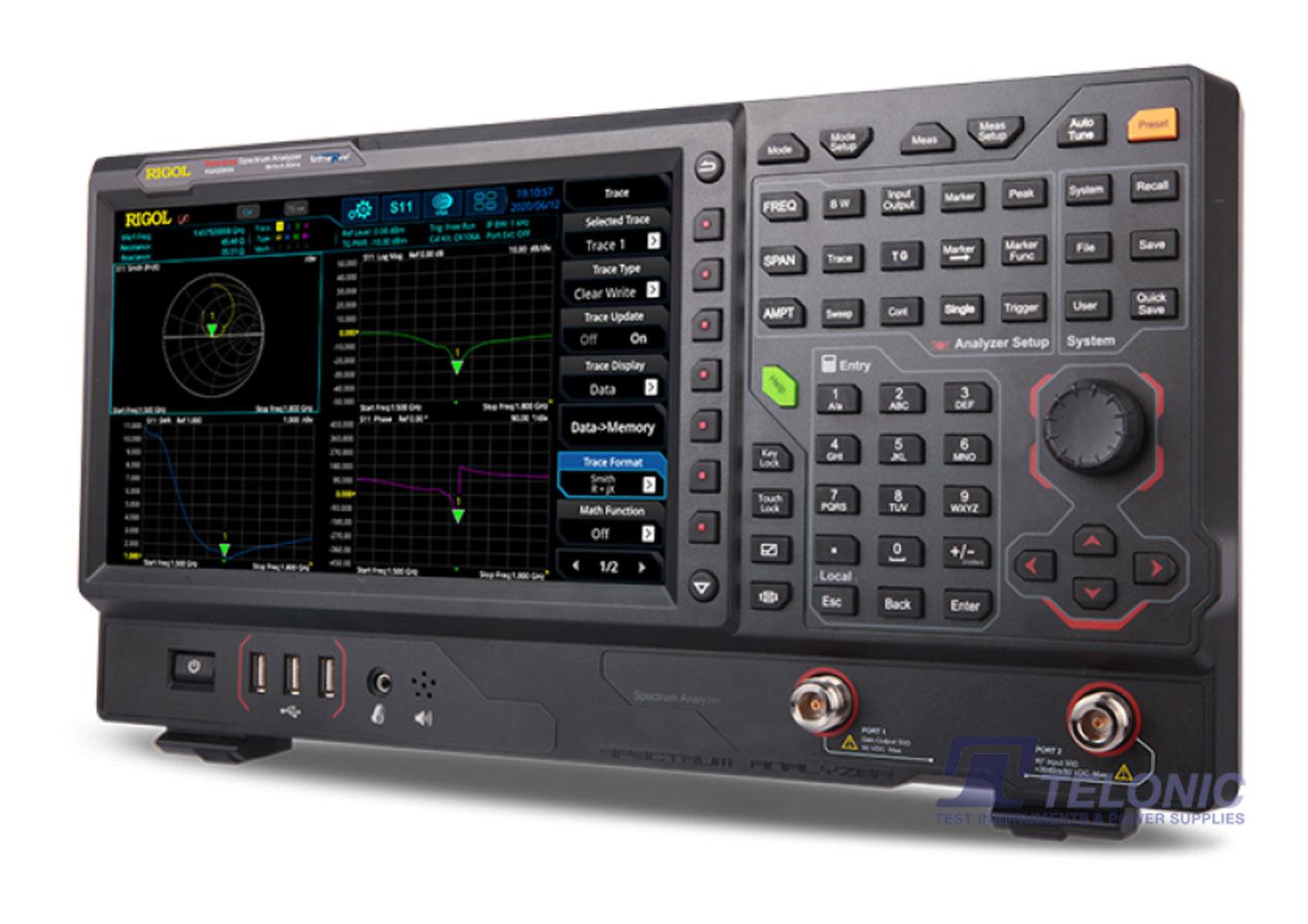

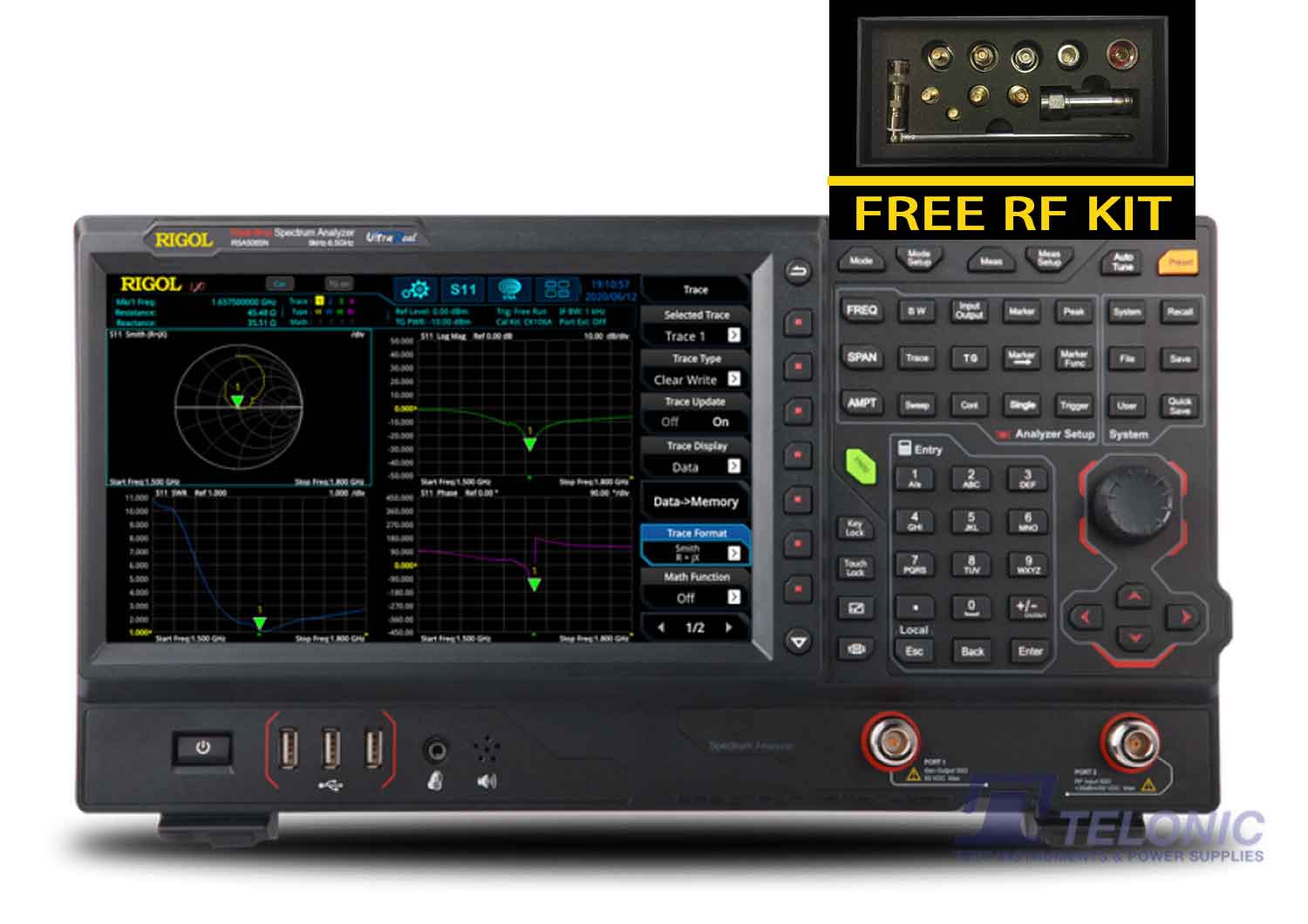

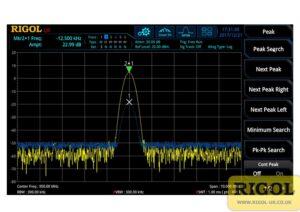

Rigol RSA5065N Real-Time Spectrum Analyser with Vector Network Analyser

The RIGOL RSA5065N is a real time spectrum analyser with frequency range from 9kHz to 6.5GHz. It includes the tracking generator and the VNA functionality to perform S11, S21 and Distance to Fault (DTF) measurements.

Features:

  • Spectrum analysis from 9kHz to 6.5GHz
  • DANL: <-165 dBm (typical)
  • Phase noise: <-108 dBc/Hz (typical)
  • Level measurement uncertainty: <0.8 dB
  • Min. RBW 1 Hz

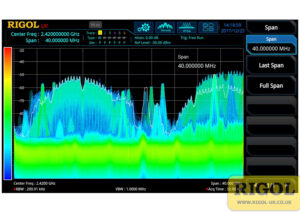

  • Up to 40 MHz real-time analysis bandwidth
  • 7.45 µsec 100% POI (at 40MHz)

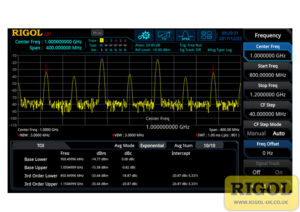

  • Advanced measurement functions
  • VSA measurement application (option)

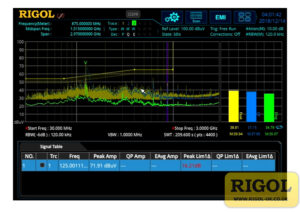

  • EMI measurement application (option)
  • NEW VNA measurement application (standard)

Rigol RSA5000N Real-Time Spectrum Analyser Comparison Table

Model Frequency Range Real-Time Bandwidth Minimum Resolution Bandwidth (RBW) Maximum CW RF Power SSB Phase Noise (@10kHz Offset) Displayed Average Noise Level (DANL)
RSA5032N 9kHz – 3.2GHz 40MHz 1Hz +33 dBm (2 W) <-108dBc/Hz <-165 dBm (typical)
RSA5065N 9kHz – 6.5GHz 40MHz 1Hz +33 dBm (2 W) <-108dBc/Hz <-165 dBm (typical)

Documentation

Datasheet

Rigol RSA5000 Datasheet



User Guide

Rigol RSA5000 User Guide



EMI Mode Getting Started

Rigol RSA EMI Mode Getting Started



Application Notes

Using probes with a Spectrum Analyser

Measuring Cable Loss with a Spectrum Analyser

EMC Precompliance: Near Field Probes

EMC Precompliance: Conducted Emission Testing

TX1000 Transmitter Education Testing Application Note

EMC Precompliance Testing

How to measure an amplifier using a DSA-815-TG?

How to measure a filter using a DSA-815-TG Spectrum Analyzer

FM signal transmission and demodulation demo

IoT Antenna Debugging

Keyless Entry System ASK/FSK Analysis

Real-Time vs. Swept Spectrum Analysers

VNA Measurements Application Note

RIGOL´s new Solution for EMI pre-compliance tests



Measurement Mode
Frequency Range RSA5032/-TG/N: 9kHz to 3.2GHz
RSA5065/-TG/N: 9kHz to 6.5GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration
accuracy]
Initial Calibration
Accuracy		 Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature
Stability		 0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency
Marker Frequency Resolution span/(number of sweep points – 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Range Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points – 1)
Carrier Offset <-95 dBc/Hz (typical)
10 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
100 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
1 MHz <-115 dBc/Hz, <-117 dBc/Hz (typical)
Amplitude
Range fc ≥ 10 MHz
DANL to +30 dBm
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
CW RF Power +33 dBm (2 W)
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W

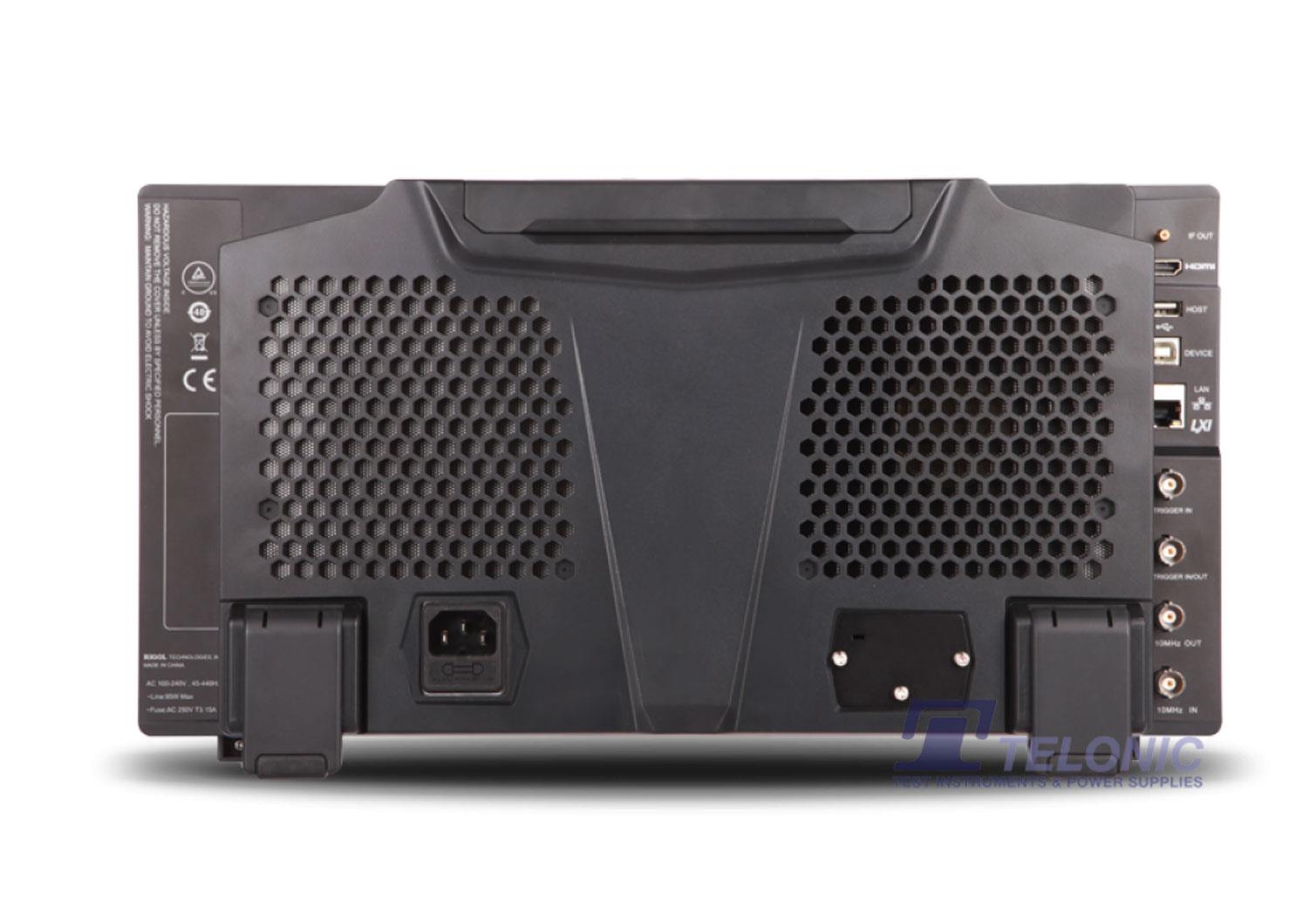

General Specifications
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1”
Colour 24-bit colour
Power
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Environment
Temperature Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃
Humidity 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH
Altitude Operating Height: below 3,048 m (10,000 feet)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

  • Rigol RSA5032N 3.2GHz Real-Time Spectrum Analyser with VNA & DTF

    £7,049.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Free RK Kit Price Match Guarantee
    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

Mandatory Accessories …

Optional Accessories …

  • Tekbox TBMA3 250MHz to 1.3GHz LOG Periodic Measurement Antenna

    £1,172.95

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Price Match Guarantee
    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol VB1032 VSWR Bridge (1MHz to 3.2GHz) including VSWR Software

    £500.00

    2 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • TEKBOX TBCAAS1 Coaxial Adapter & Attenuator Set

    £73.50

    50 in stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol S1210 EMI Pre-Compliance Test PC Software Licence

    £424.73

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol DSA Utility Kit

    £590.00

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Price Match Guarantee
    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol RSA5000-B40 40MHz Real-Time Analysis Bandwidth Licence

    £1,167.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Tekbox TBMA4 CISPR16 1GHz to 8GHz Double Ridged Horn Antenna

    £646.53

    2 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Free Shipping Price Match Guarantee
    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol Ultra Spectrum PC Software Licence

    £176.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

  • Rigol OCXO-C08 High Stability Reference Oscillator Module

    £626.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Add to basket
    Add to QuoteRemove from Quote
    Add to Quote

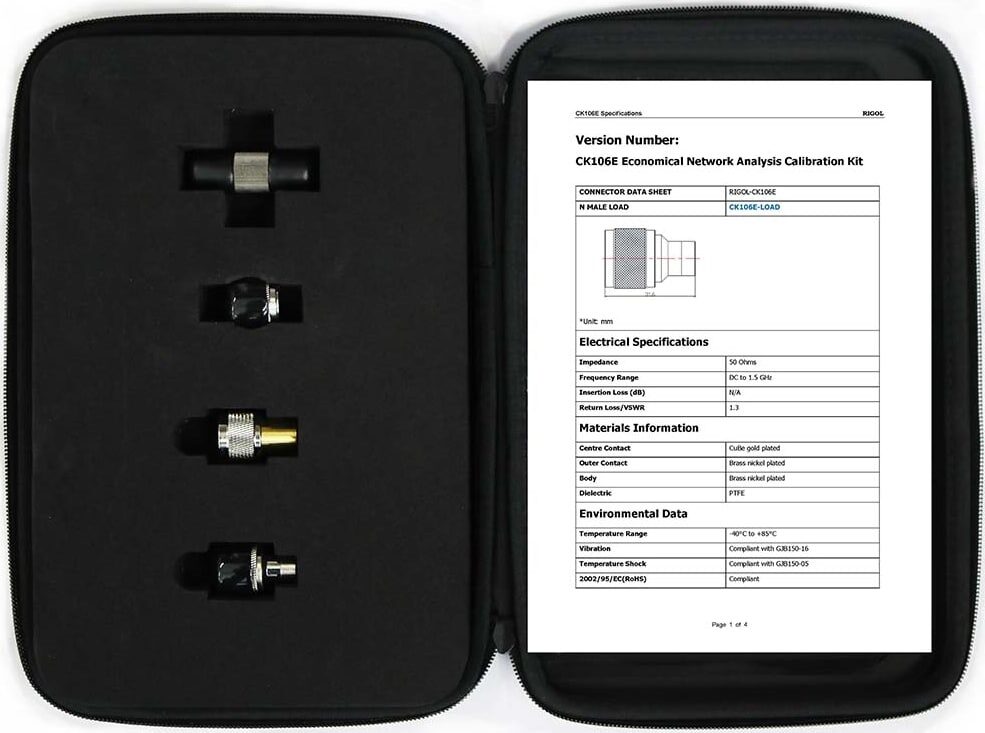

  • Rigol CK106E Vector Network Analysis Calibration Kit
