| Measurement Mode | |
|---|
| Frequency Range | RSA3015E/RSA3015E-TG: 9 kHz to 1.5GHz
RSA3030E/RSA3030E-TG: 9 kHz to 3GHz |
| Reference Frequency | 10 MHz |
| Accuracy | ±[(time since last calibration × aging rate) + temperature stability + calibration
accuracy] |
Initial Calibration
Accuracy | Standard <1 ppm
Option OCXO-C08 <0.1 ppm |
Temperature
Stability | 0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm |
| Aging Rate | Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year |
| Frequency | |
|---|
| Marker Frequency Resolution | span/(number of sweep points – 1) |
| Marker Frequency Uncertainty | ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution) |
| Resolution | 1 Hz |
| Uncertainty | ±(marker frequency readout × reference frequency accuracy + counter resolution) |
| Range | Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency |
| Resolution | 2 Hz |
| Uncertainty | ±span/(number of sweep points – 1) |

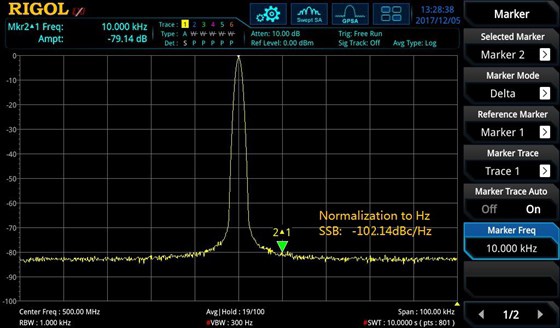

| Carrier Offset | 1 kHz <-90 dBc/Hz (typical)
10 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
100 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
1 MHz <-110 dBc/Hz, <-112 dBc/Hz (typical) |

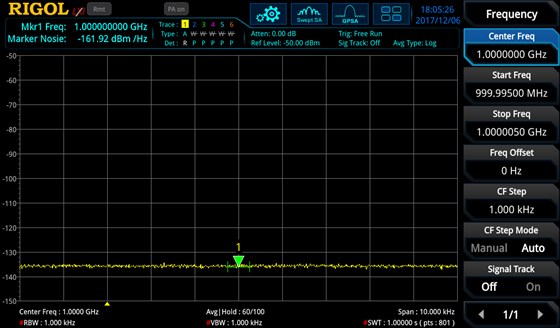

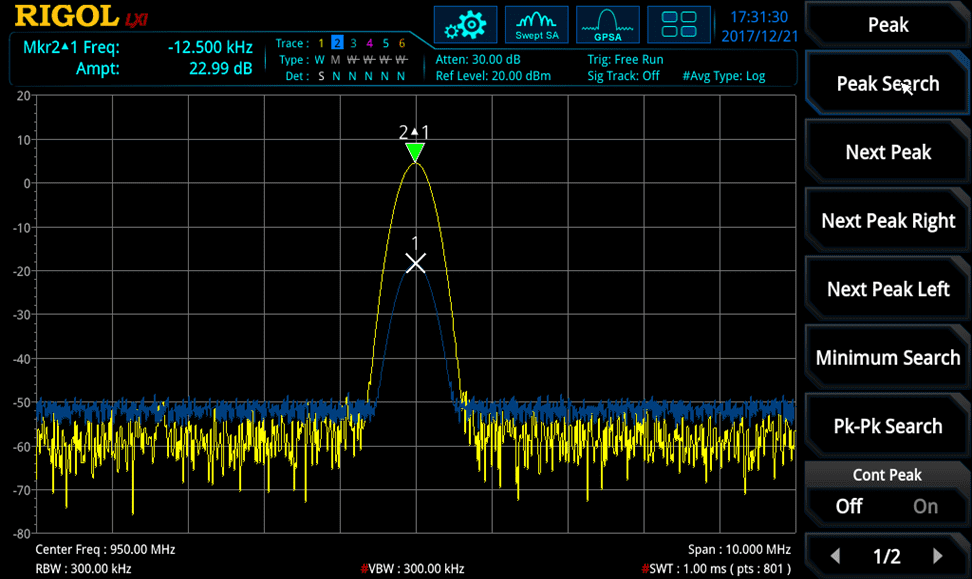

| Amplitude | |
|---|
| Range | fc ≥ 10 MHz
DANL to +30 dBm |
| DC Voltage | 50 V |
| CW RF Power | +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on. |
| CW RF Power | +33 dBm (2 W) |
| Logarithmic Scale | 1 dB to 200 dB |
| Linear Scale | 0 to reference level |
| Number of Display Points | 801 |
| Number of Traces | 6 |
| Trace Detector | normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC) |

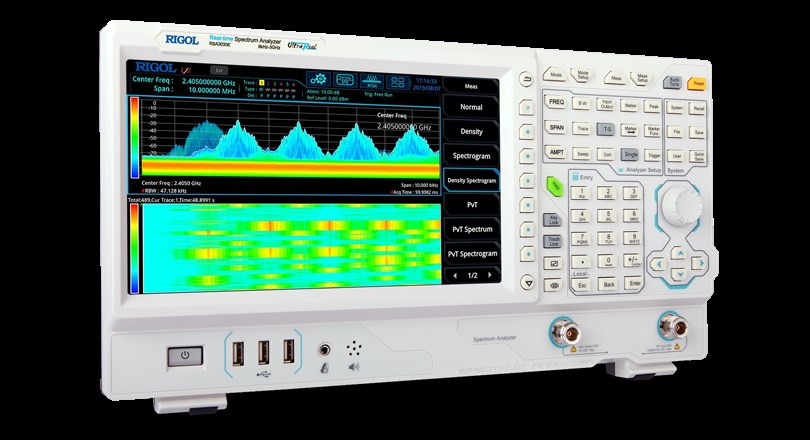

| Trace Function | clear write, max hold, min hold, average, view, blank |
| Scale Unit | dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W |
| General Specifications | |
|---|
| Display | |
| Type | capacitive multi-touch screen |
| Resolution | 1024 × 600 pixels |
| Size | 10.1” |
| Colour | 24-bit colour |
| Power | |
| Input Voltage Range, AC | 100 V to 240 V (nominal) |
| AC Frequency | 45 Hz to 440 Hz |
| Power Consumption | 55 W (typical), max. 90 W with all options |
| Environment | |
| Temperature | Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃ |
| Humidity | 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH |
| Altitude | Operating Height: below 3,048 m (10,000 feet) |
Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
