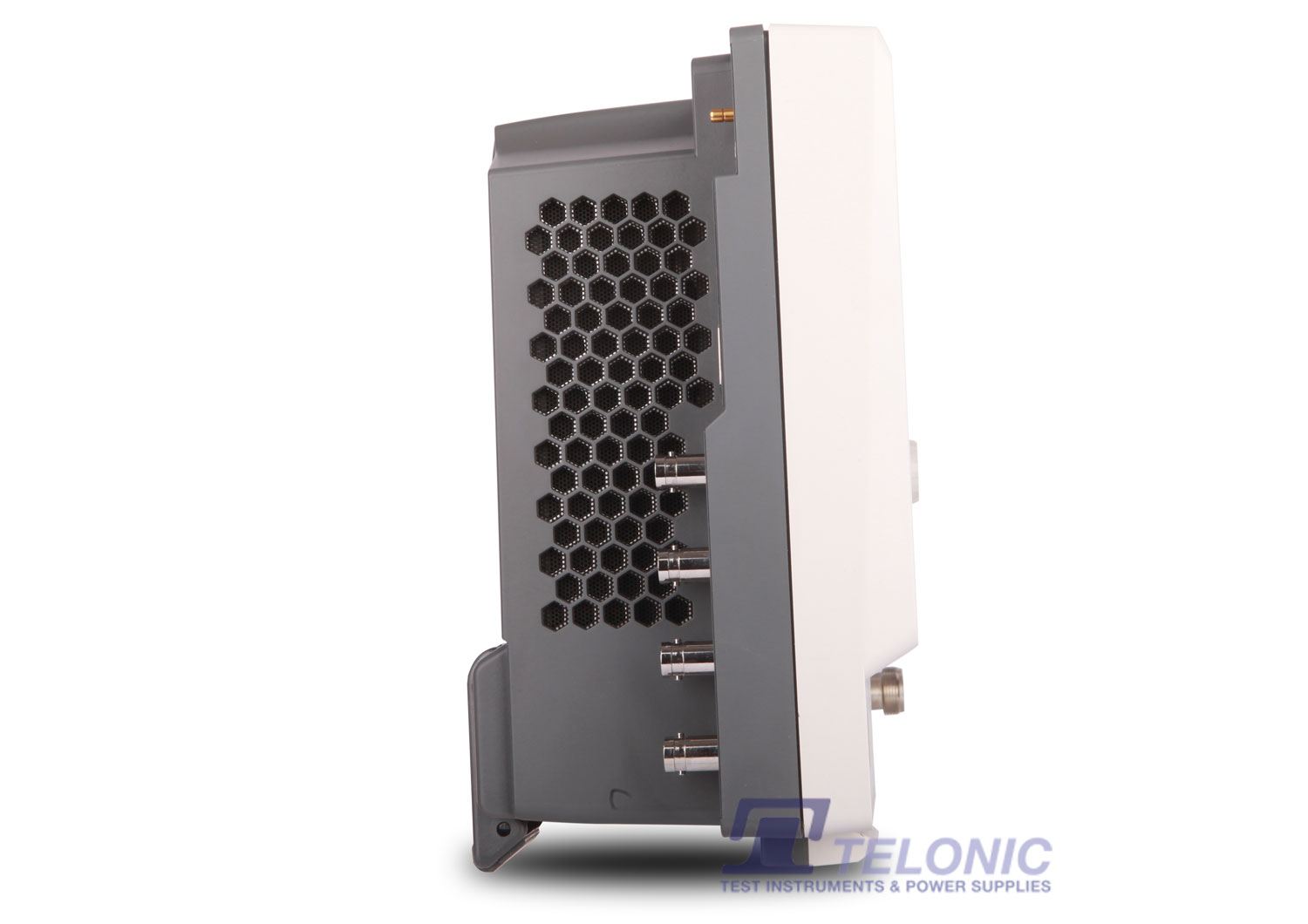

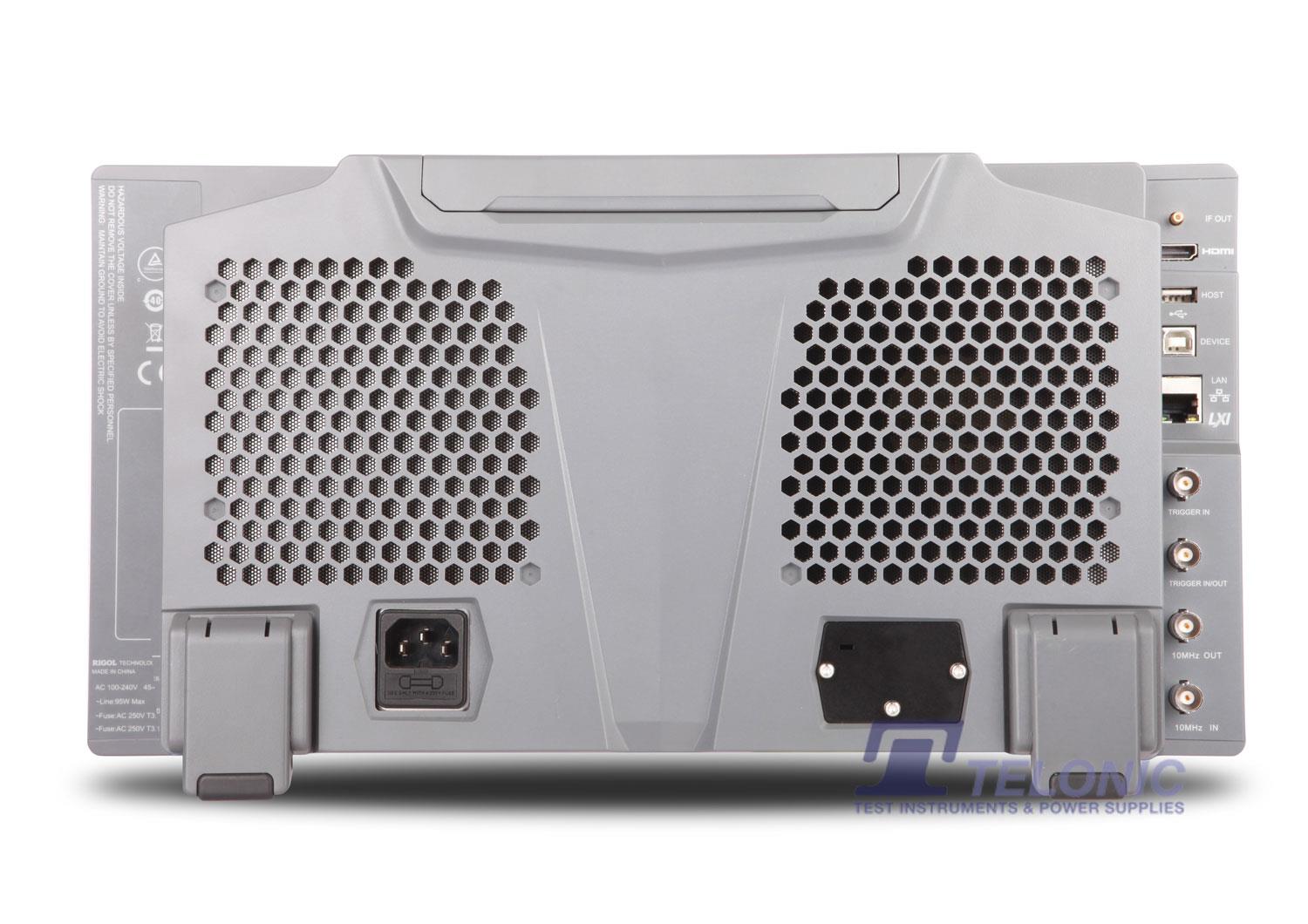

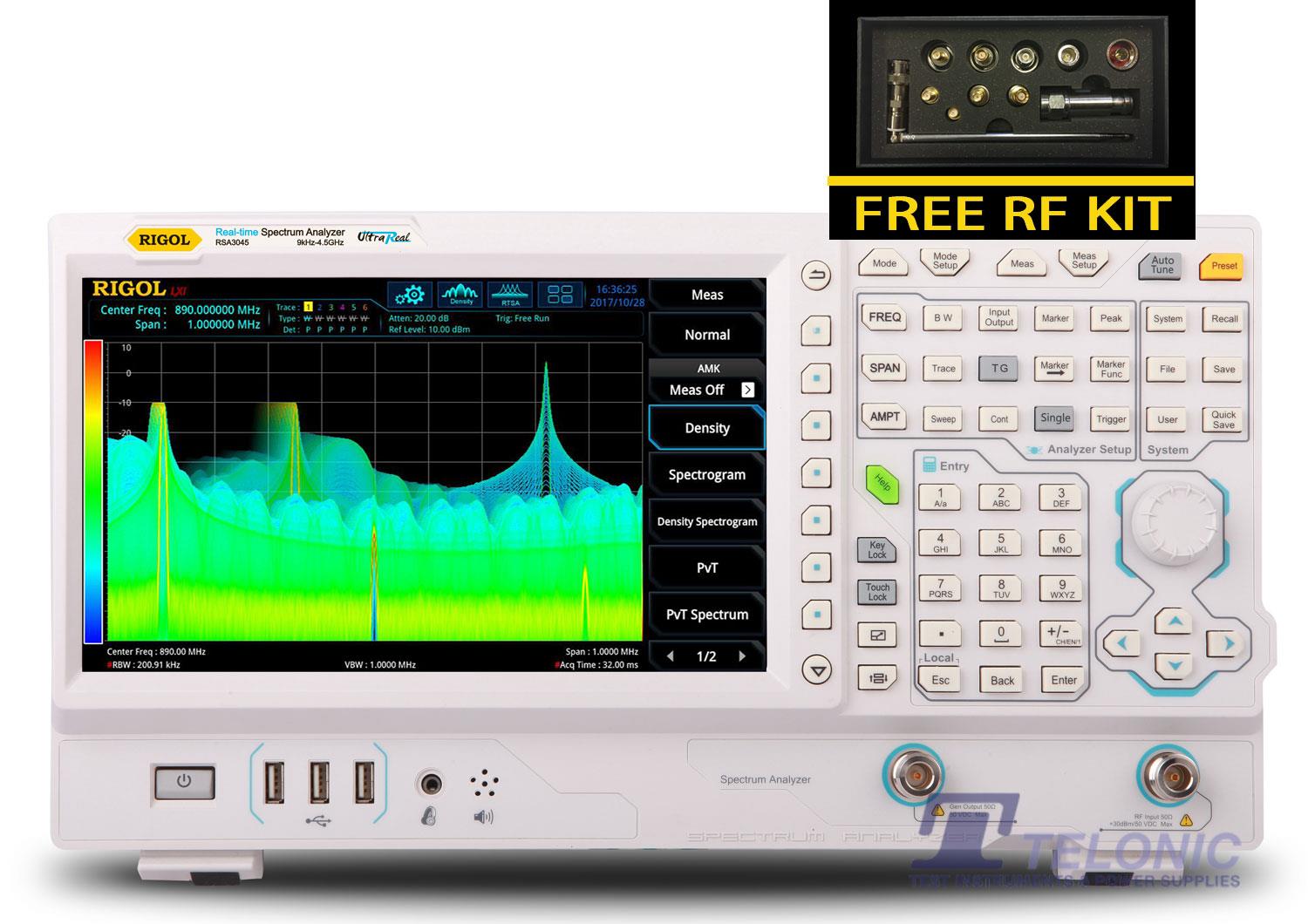

Rigol RSA3015E-TG 1.5GHz Real-Time Spectrum Analyser

(1 customer review)

£1621.00 (£1945.20 inc VAT)

Description

Rigol RSA3015E-TG Real-Time Spectrum Analyser

The RSA3015E-TG is a 9kHz to 1.5GHz Real-Time Spectrum Analyser. The RSA3000E/TG Series is Rigol’s new low cost version of the already popular RSA3000 Series. All RSA3000E/TG Real-time Spectrum analysers provide up to 10MHz real-time analysis bandwidth, Phase Noise of <-102dBc/Hz (typical) and Min. RBW 1Hz. In addition, the analysers feature Various Advanced Measurement Function, Multiple measurement modes and Level Measurement Uncertainty of <1.0dB.

Features:

  • Frequency: Up to 1.5GHz
  • Displayed Average Noise Level (DANL): <-161dBm (typical) (With Optional Pre-Amp On)
  • Phase Noise: <-102dBc/Hz (typical)
  • Level Measurement Uncertainty: <1.0dB
  • 1.5GHz Tracking Generator
  • Min. RBW 1Hz
  • Up to 10MHz real-time analysis bandwidth
  • Multiple measurement modes
  • Various advanced measurement functions
  • EMI measurement application (option)
  • Multiple trigger modes and trigger masks
  • Density, spectrogram, and other display modes
  • PC Software Options
  • 10.1″ Capacitive multi-touch screen; supporting touch gestures
  • USB, LAN, HDMI and other communication and display interfaces

Documentation

Measurement Mode
Frequency Range RSA3015E/RSA3015E-TG: 9 kHz to 1.5GHz
RSA3030E/RSA3030E-TG: 9 kHz to 3GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration
accuracy]
Initial Calibration
Accuracy
Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature
Stability
0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency
Marker Frequency Resolution span/(number of sweep points – 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Range Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points – 1)
Carrier Offset 1 kHz <-90 dBc/Hz (typical)
10 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
100 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
1 MHz <-110 dBc/Hz, <-112 dBc/Hz (typical)
Amplitude
Range fc ≥ 10 MHz
DANL to +30 dBm
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
CW RF Power +33 dBm (2 W)
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
General Specifications
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1”
Colour 24-bit colour
Power
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Environment
Temperature Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃
Humidity 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH
Altitude Operating Height: below 3,048 m (10,000 feet)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

1 review for Rigol RSA3015E-TG 1.5GHz Real-Time Spectrum Analyser

  1. martin-5924 (verified owner)

    This spectrum analyser is perfect for my needs. This is my first real time SA, and I couldn’t be happier with it, the real time mode is really handy for finding those intermittent signals. The display is nice, clear and large. The touch screen is a nice feature, you can either use the touch screen or the hardware buttons to get into any of the functions of the SA, even entering frequencies, it is pretty well implemented. Mine came with the license for EMC functions which I loaded in and will be using for pre-compliance testing.
