TEKBOX TBWA2/40dB 40dB Wideband Amplifier

£224.27 (£269.12 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBWA2-40DB Categories: ,

Description

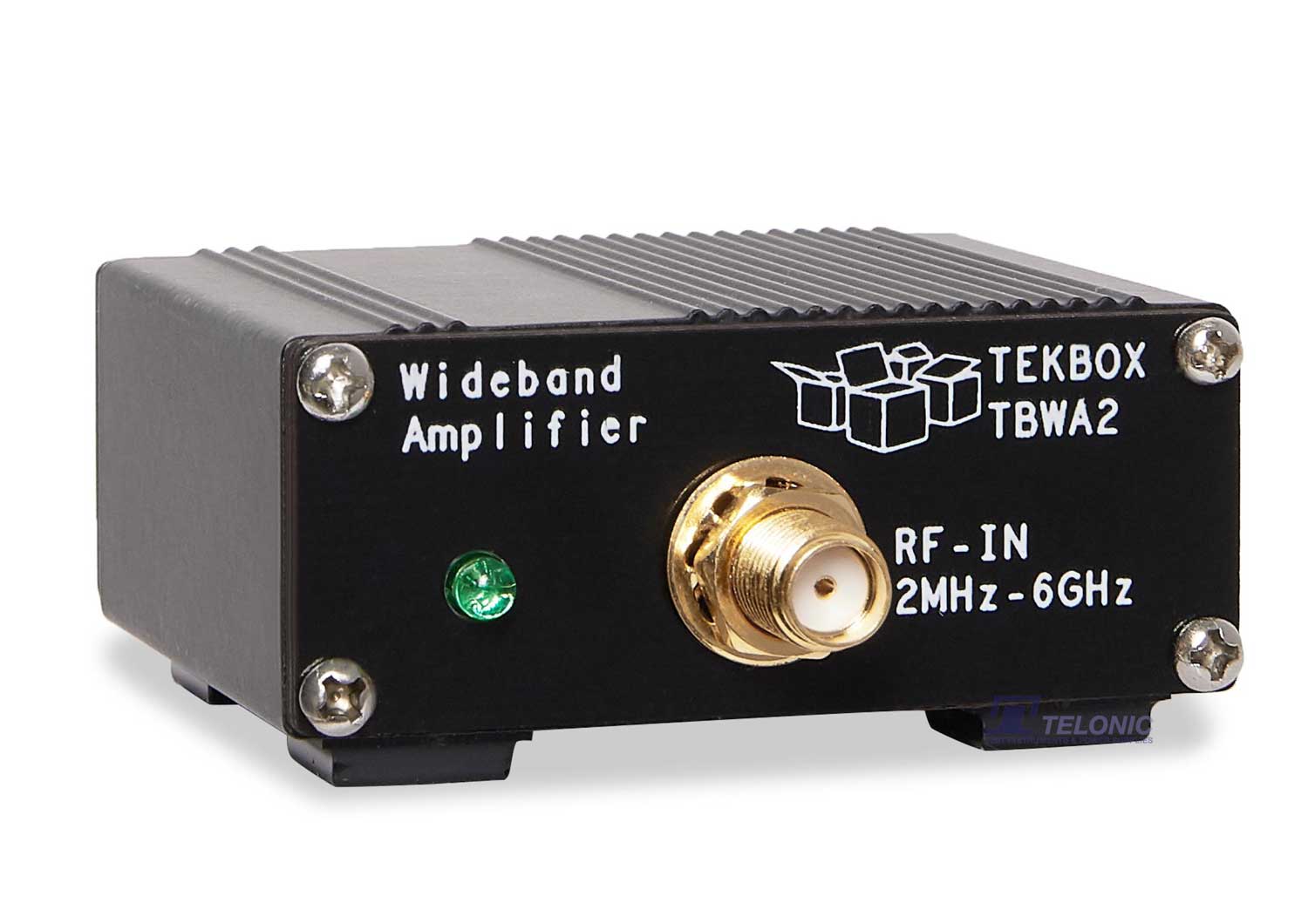

TEKBOX TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz they are ideal to boost the signals picked up by EMC near-field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.

Specifications:

  • Input: 50Ω, SMA

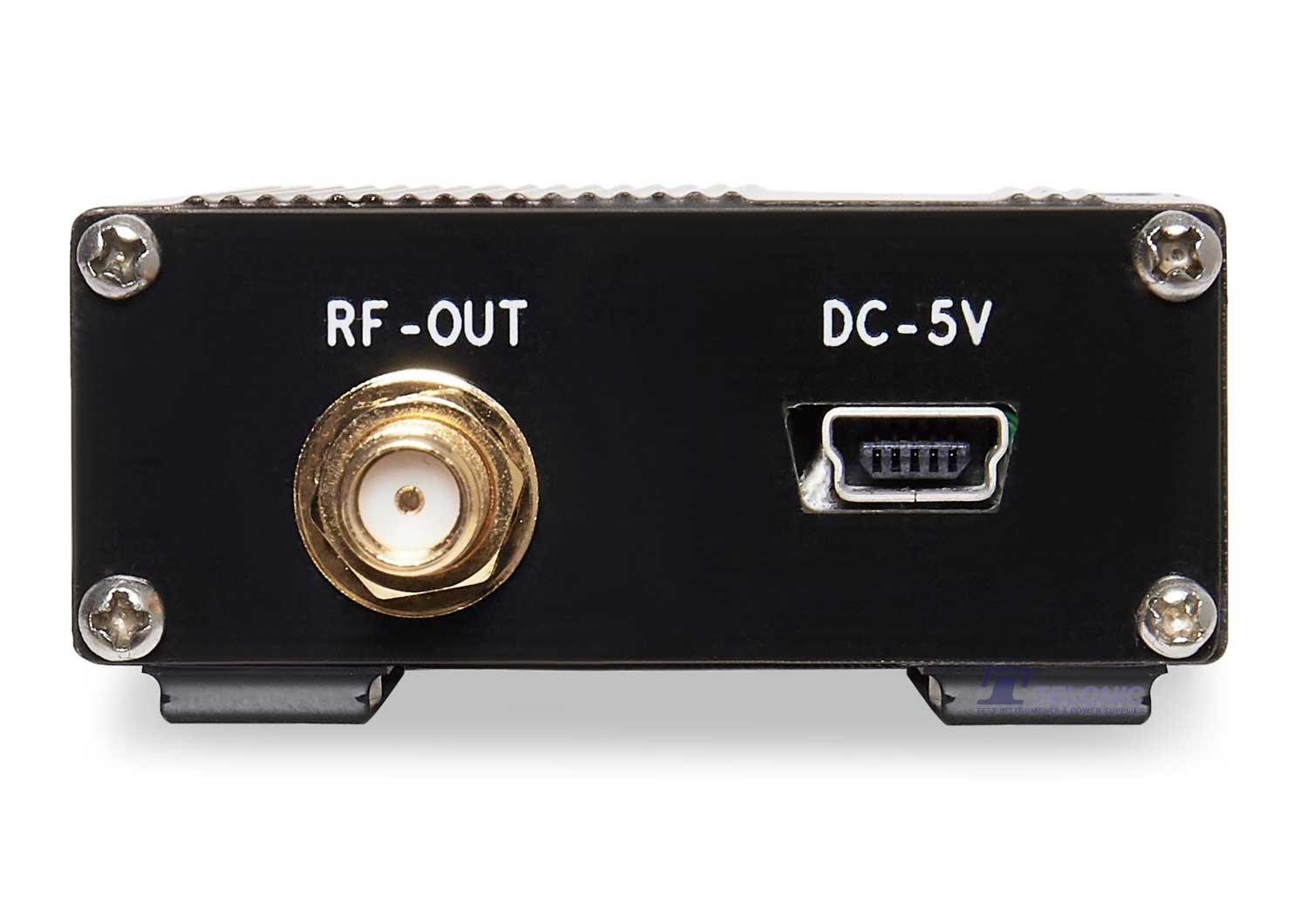

  • Output: 50Ω, SMA
  • Nominal Supply Voltage: 5V (@ 210mA typ., mini-USB-B connector)
  • Maximum Supply Voltage: 5.5V
  • Maximum Input Power: -10dBm
  • 1dB Output Compression Point: 20dBm @ 2GHz
  • Reverse Isolation, S12: 40dB, 100MHz < f < 6GHz
  • Noise Figure: 5dB @ 2GHz

The following items are included:

  • 1-off RF amplifier module
  • 1-off RF cable – N(m) to SMA(m)
  • 1-off RF cable – SMA(m) to SMA(m)
  • 1-off RF adapter – N(m) to SMA(f)
  • 1-off USB lead – type-A to mini-B
  • 1-off measurement plot
Specifications
Input50 Ohm, SMA
Output50 Ohm, SMA
Nominal supply Voltage4.5 – 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage5.5V
Maximum input power-10dBm
1dB output compression point @ 2 GHz+20dBm
Reverse isolation S120.1 …6GHz: 40dB
Noise Figure5 dB
Gain
1MHz10MHz100MHz500MHz1GHz2GHz3GHz4.5GHz6GHz
30 dB40.2 dB40.2 dB40 dB39.5 dB37.6 dB36.4 dB34.6 dB34.7 dB
