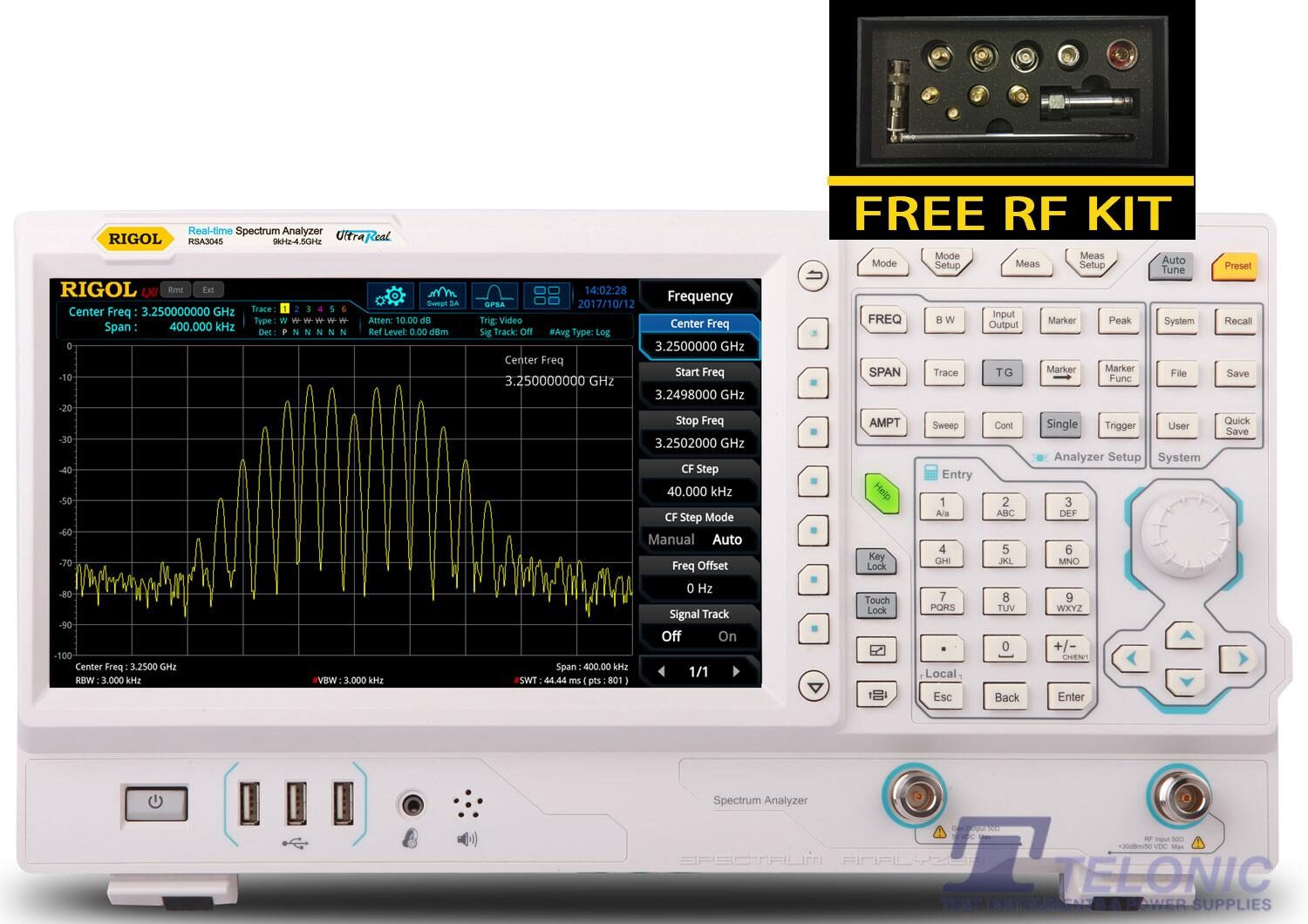

Rigol RSA3030E-TG 3.0GHz Real-Time Spectrum Analyser

£2955.00 (£3546.00 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Free RK Kit Price Match Guarantee


Rigol RSA3030E-TG Real-Time Spectrum Analyser

The RSA3030E-TG is a 9kHz to 3GHz Real-Time Spectrum Analyser. The RSA3000E/TG Series is Rigol’s new low cost version of the already popular RSA3000 Series. All RSA3000E/TG Real-time Spectrum analysers provide up to 10MHz real-time analysis bandwidth, Phase Noise of <-102dBc/Hz (typical) and Min. RBW 1Hz. In addition, the analysers feature Various Advanced Measurement Function, Multiple measurement modes and Level Measurement Uncertainty of <1.0dB.


  • Frequency: Up to 3GHz
  • Displayed Average Noise Level (DANL): <-161dBm (typical) (With Optional Pre-Amp On)
  • Phase Noise: <-102dBc/Hz (typical)
  • Level Measurement Uncertainty: <1.0dB
  • 3GHz Tracking Generator
  • Min. RBW 1Hz
  • Up to 10MHz real-time analysis bandwidth
  • Multiple measurement modes
  • Various advanced measurement functions
  • EMI measurement application (option)
  • Multiple trigger modes and trigger masks
  • Density, spectrogram, and other display modes
  • PC Software Options
  • 10.1″ Capacitive multi-touch screen; supporting touch gestures
  • USB, LAN, HDMI and other communication and display interfaces


Measurement Mode
Frequency Range RSA3015E/RSA3015E-TG: 9 kHz to 1.5GHz
RSA3030E/RSA3030E-TG: 9 kHz to 3GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration
Initial Calibration
Standard <1 ppm
Option OCXO-C08 <0.1 ppm
0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Marker Frequency Resolution span/(number of sweep points – 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Range Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points – 1)
Carrier Offset 1 kHz <-90 dBc/Hz (typical)
10 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
100 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
1 MHz <-110 dBc/Hz, <-112 dBc/Hz (typical)
Range fc ≥ 10 MHz
DANL to +30 dBm
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
CW RF Power +33 dBm (2 W)
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
General Specifications
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1”
Colour 24-bit colour
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Temperature Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃
Humidity 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH
Altitude Operating Height: below 3,048 m (10,000 feet)


Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
