Rigol DS1102E 100MHz Digital Oscilloscope

(19 customer reviews)

£317.00 (£380.40 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee

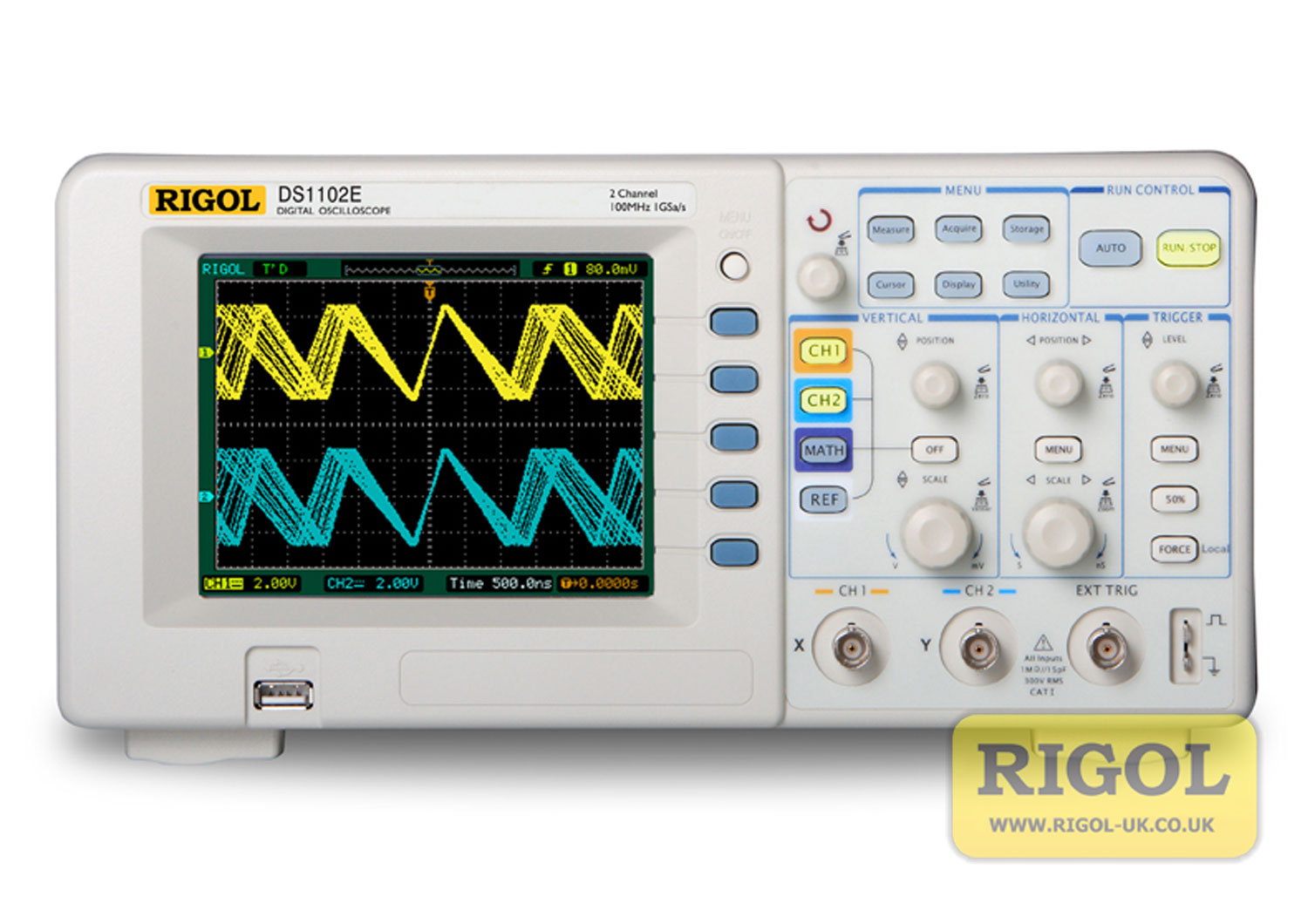

Rigol DS1102E Digital Oscilloscope
The Rigol DS1102E, 100MHz, 1GSa/s, 2-channel digital oscilloscope offers excellent value for money. It’s features include; a memory depth of 1Mpts, versatile trigger functions, maths functions including the FFT and digital filters, record and replay, roll mode, alternate trigger mode and pass / fail test. Several options are available – Please refer to the “Optional Accessories” tab above.

This Rigol oscilloscope is also available with a built-in logic analyser (DS1102D).


  • 100MHz bandwidth, 2 channels
  • 1GSa/s real time sample rate
  • Memory depth up to 1Mpts

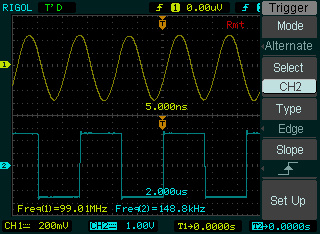

  • Versatile trigger functions
  • 5.7″ QVGA (320 x 240) display

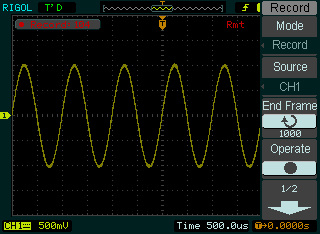

  • Waveform record and replay function
  • Built-in FFT and digital filters

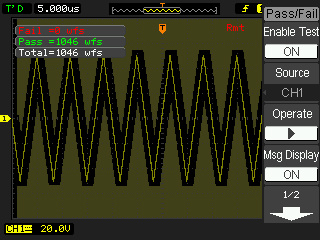

  • Pass/fail test
  • PictBridge support
  • Connectivity: USB Host & Device, RS232
  • Supplied with… 2-off passive probes (150MHz), USB cable, UK & European mains leads, quick guide
  • Options include… USB-GPIB module, soft carry bag, Telonic Standard Calibration, RCL 17025 Calibration


Sampling Modes Real-Time
Sampling Rate 1GSa/s, 200MSa/s
Averages N time acquisitions, all channels simultaneously, N is selectable from 2, 4, 8, 16, 32, 64, 128 and 256.
Input Coupling DC, AC, GND
Input Impedance 1MΩ± 2%, in parallel with 15pF± 3pF
Probe Attenuation Factors 1X, 5X, 10X, 50X, 100X, 500X,1000X
Maximum Input Voltage 400V (DC+AC Peak, 1MΩ input impedance)
40V (DC+AC Peak)
Time Delay Between Channel (typical) 500ps
Sample Rate Range Real-Time: 13.65Sa/s-1GSa/s
Equivalent: 13.65Sa/s-25GSa/s
Waveform Interpolation Sin(x)/x
Scan Speed Range 2ns/div~50s/div, DS1102X
5ns/div~50s/div, DS1052X
1-2-5 Sequence
Sample Rate and Delay Time ± 50ppm (over any 1ms time interval)
Delta Time Measurement Accuracy (Full Bandwidth) Single-shot: ± (1 sample interval + 50ppm × reading + 0.6 ns)
>16 averages: ± (1sample interval + 50ppm × reading + 0.4 ns)
A/D Converter 8-bit resolution, each channel samples simultaneously[2]
Volts/div Range 2mV/div~10V/div at input BNC
Maximum Input Analog channel maximum input voltage
CAT I 300Vrms, 1000Vpk;instantaneous voltage 1000Vpk CAT II 100Vrms,1000Vpk
RP2200 10:1:CAT II 300Vrms RP3200 10:1:CAT II 300Vrms RP3300 10:1:CAT II 300Vrms
Offset Range ± 40V(200mV-10V), ± 2V(2mV-100mV)
Analogue Bandwidth 100MHz (DS1102D,DS1102E)
50MHz (DS1052D, DS1052E)
Single-shot Bandwidth 80MHz (DS1102D, DS1102E)
50MHz (DS1052D, DS1052E)
Selectable Analog Bandwidth Limit (typical) 20MHz
Lower Frequency Limit (AC –3dB) ≤5Hz (at input BNC)
Rise Time at BNC, typical <3.5ns, <7ns,
On (100M, 50M) respectively
DC Gain Accuracy 2mV/div-5mV/div:
± 4% (Sample or Average acquisition mode) 10mV/div-10V/div:
± 3% (Sample or Average acquisition mode)
DC Measurement Accuracy, Average Acquisition Mode Average of ≥16 Waveforms with vertical position at zero: ± (DC Gain Accuracy× reading+0.1div+1mV)
Average of ≥16 Waveforms with vertical position not at zero: ±[DC Gain Accuracy× (reading+vertical position)+(1% of vertical position) + 0.2div]
Add 2mV for settings from 2mV/div to 200 mV/div
Delta Volts Measurement Accuracy (Average Acquisition Mode) Delta Volts between any two averages of 16 waveforms acquired under same setup and ambient
conditions: ± (DC Gain Accuracy× reading + 0.05 div)

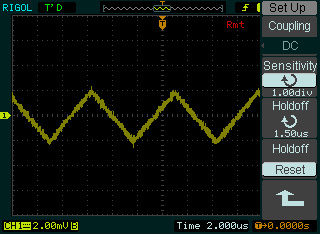

Trigger Sensitivity 0.1div~1.0div (adjustable)
Trigger Level Range Internal: ± 5 divisions from center of screen
External: ± 1.2V
Trigger Level Accuracy (typical) applicable for the signal of rising and falling time ≥20ns Internal: ± (0.3div × V/div)(± 4 divisions from center of screen)
External: ± (6% of setting + 200 mV)
Trigger Offset Normal mode: pre-trigger (262144/ sampling rate), delayed trigger 1s
Slow Scan mode: pre-trigger 6div, delayed trigger 6div
Trigger Holdoff range 100ns~1.5s
Set Level to 50% (Typical) Input signal frequency ≥50Hz
Edge trigger slope Rising, Falling, Rising + Falling
Trigger condition (>, <, =) Positive pulse, (>, <, =) negative pulse
Pulse Width range 20ns ~10s
Video standard & line frequency Support standard NTSC, PAL and SECAM broadcast systems. Line number range: 1~525 (NTSC) and 1~625 (PAL/SECAM)
Trigger condition (>, <, =) Positive slope, (>, <, =) negative slope
Time setting 20ns~10s
Trigger on CH1 Edge, Pulse, Video, Slope
Trigger on CH2 Edge, Pulse, Video, Slope
Trigger mode D0~D15 select H, L, X, ,
Trigger Type D0~D15 select H, L, X
Qualifier >, <, =
Time setup 20ns~10s
Cursor Manual mode:
Voltage difference between cursors (∆V) Time difference between cursors (∆T) Reciprocal of ∆T in Hertz (1/∆T)Track: Voltage value for Y-axis waveform Time value for X-axis waveformAuto: Cursors are visible for Automatic Measurement
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1→2 , Delay1→2
Display Type 5.7 in. (145 mm) diagonal TFT Liquid Crystal Display
Display Resolution 320 horizontal × RGB× 234 vertical pixels
Display Colour 64K color
Display Contrast (typical) 150:1
Backlight Brightness (typical) 300 nit
Standard Ports USB Host, USB Device, LAN, AUX Output (TrigOut/PassFail)
General Specifications
Supply Voltage 100 ~ 240 VACRMS, 45~440Hz, CAT II
Power Consumption Less than 50W
Fuse 2A, T rating, 250 V
Ambient Temperature Operating 10℃~ 40℃, Non-operating -20℃~ +60℃
Cooling Method Fan force air flow
Humidity +35℃ or below: ≤90% relative humidity, +35℃~ +40℃: ≤60% relative humidity
Altitude Operating 3,000 m or below, Non-operating 15,000 m or below
Size W: 303mm,  H: 154mm, D: 133mm
Weight Without Package: 2.4kg, Packaged: 3.8 kg
Calibration Interval The recommended calibration interval is one year


Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
