Rigol MSO7054 500MHz, 4CH Mixed Signal Oscilloscope

£5134.00 (£6160.80 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability


Free Software Options Bundle (£1,441.00 Value)
Purchase any MSO7000 Series Oscilloscope and get Protocol Analysis, Waveform Generator and Power Analysis Licences for FREE! (MSO7000-BND)
Offer Valid Until 30/9/2021

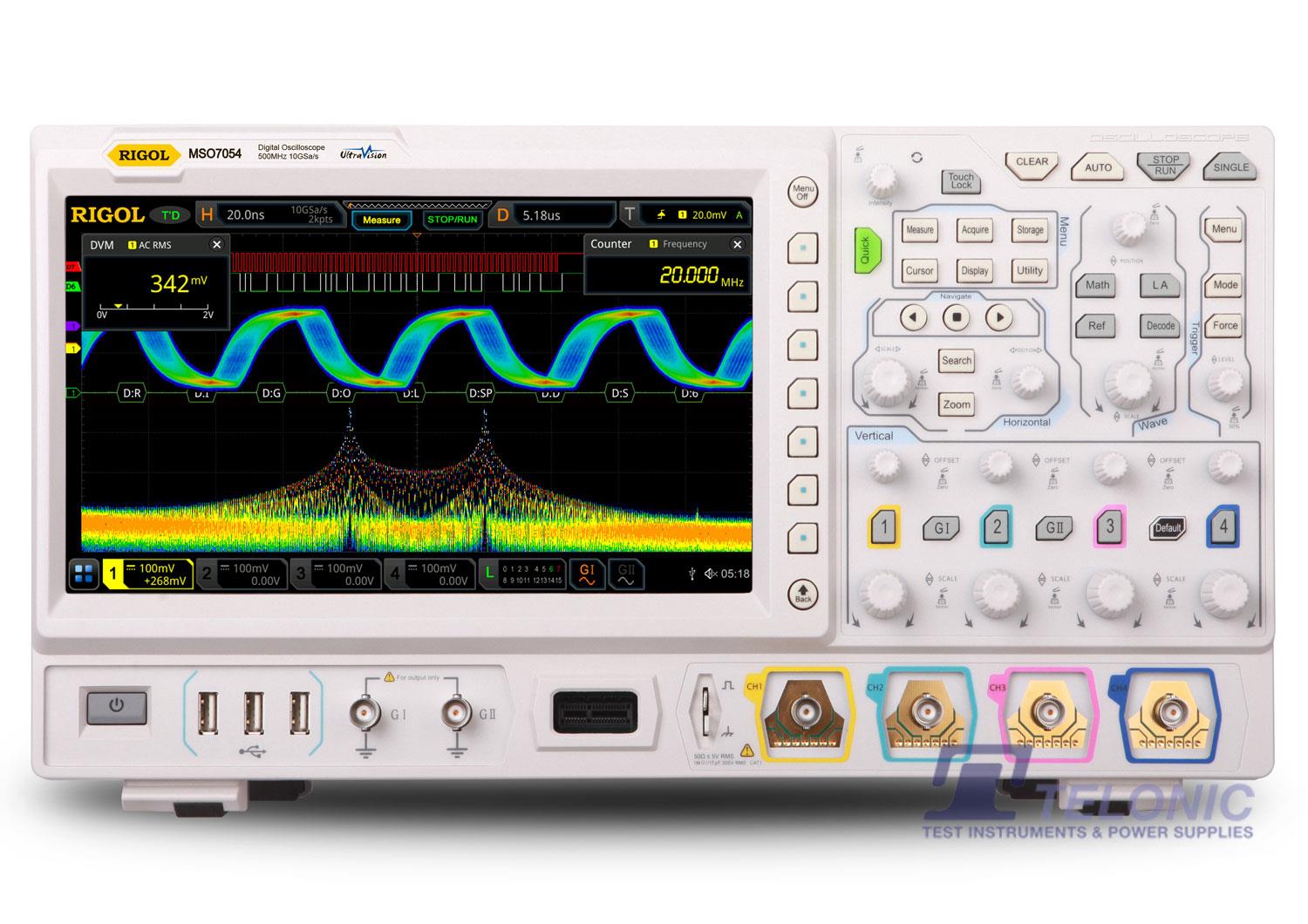

Rigol MSO7054 Digital Oscilloscope

The MSO7054 is a 500MHz, 4CH multifunctional, high-performance, Digital Oscilloscope based upon Rigol’s new UltraVision II technology. Integrating up to 6-off independent instruments into one, the MSO/DS7000 series offers a high sample rate / bandwidth ratio, high memory depth, clear touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production, quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.


  • 500MHz bandwidth (bandwidth upgrade options available)

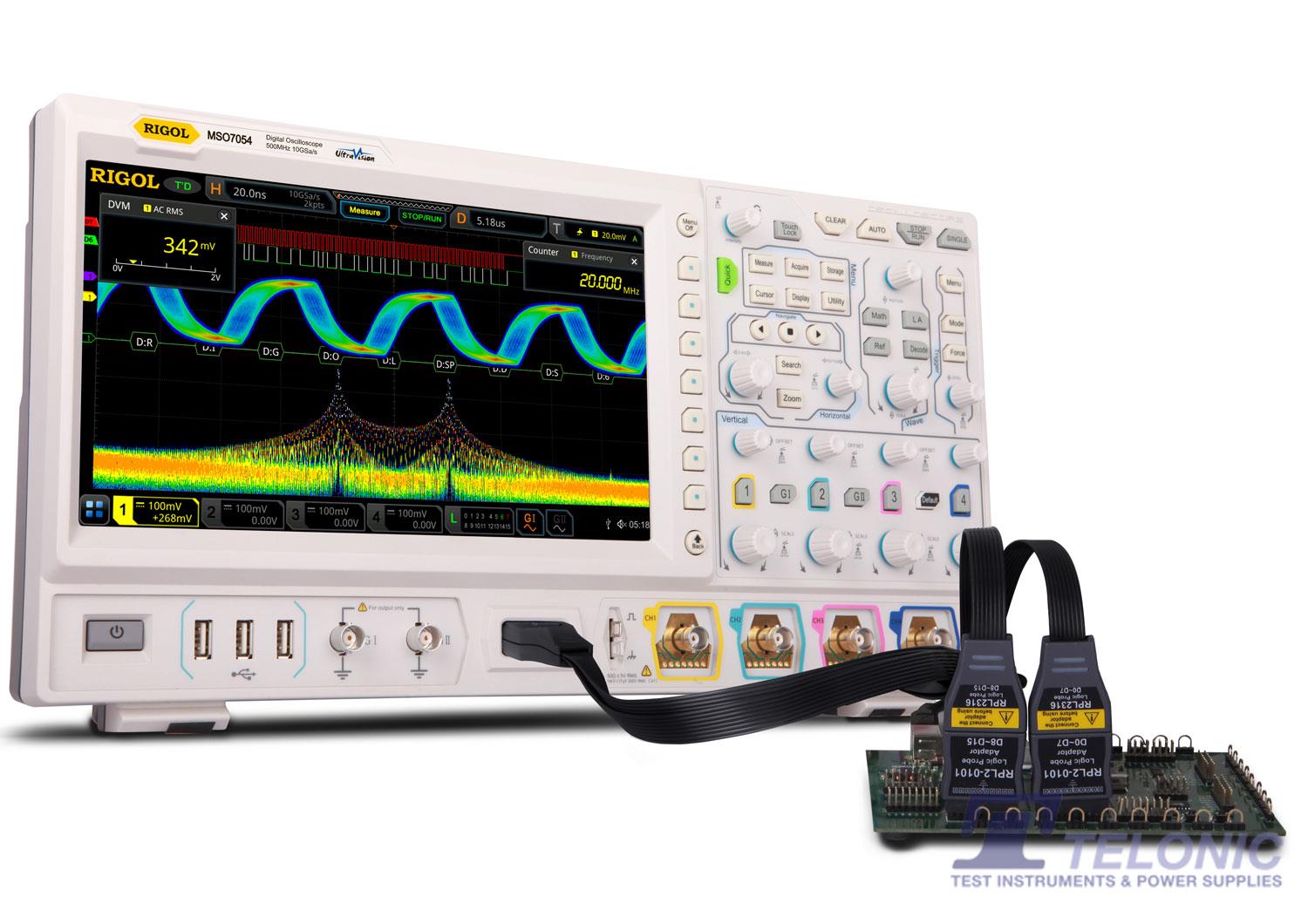

  • 4 analogue channels, 1 EXT channel and 16 digital channels
  • Up to 10GSa/s real-time sample rate
  • Up to 500Mpts memory depth (optional)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates up to 6 independent instruments into 1: Digital oscilloscope, 16-channel logic analyser, arbitrary waveform generator (optional), digital voltmeter, 6-digit frequency counter & totalizer and protocol analyser
  • A variety of serial protocol triggers and decodes
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis and peak search function
  • Waveform histogram analysis (standard)
  • Independent search, navigation keys and event table
  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation
  • 10.1″ capacitive multi-touch screen, 256-level intensity grading display, with colour persistence
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate
  • Supplied with… 4-off passive probes (500MHz), 1-off logic analyser probe set, USB cable, UK & European mains leads, front panel cover, quick guide
  • Options include… Bandwidth upgrades, memory upgrades, 25MHz dual-channel arbitrary waveform generator, built-in power analysis, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

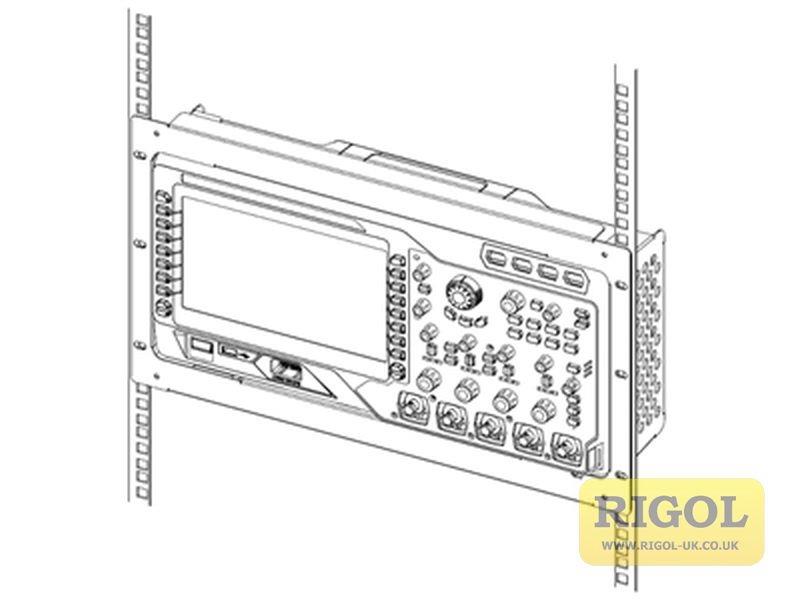

  • Optional accessories include… High-voltage probes, high-voltage differential probes, current probes, rack mount kit
