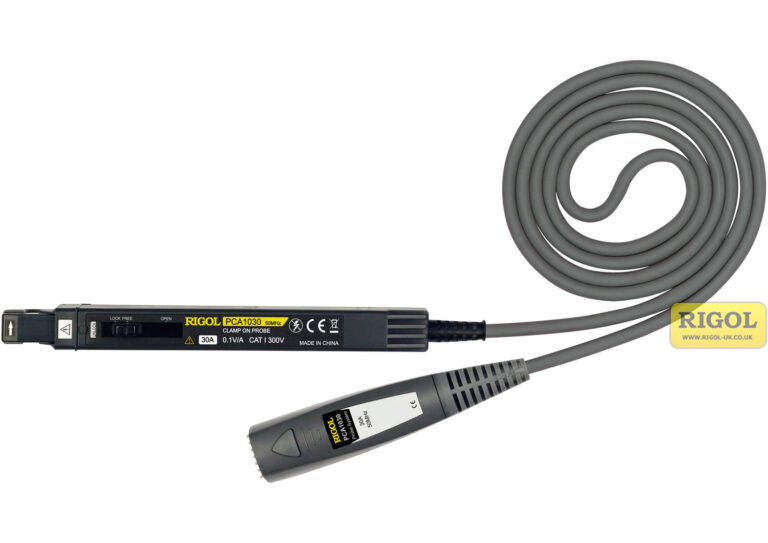

Rigol PCA1030 Current Probe

£4082.00 (£4898.40 inc VAT)

SKU: PCA1030 Categories: ,

Description


Features:

  • Bandwidth: DC to 50MHz (-3 dB)
  • Rise Time: ≤7ns
  • Maximum Continuous Input Range: 30Arms
  • Maximum Peak Current Value: Non-Continuous 50A peak
  • Gain: 0.1V/A
  • Amplitude Accuracy: ±1.0%rdg ±1mV,  ≤30Arms, ±2.0%rdg, ≤50A peak
  • Noise: ≤2.5 mArms (for 20MHz band waveform measurement instrument)
  • Maximum Rated Power: 8.5VA
  • Location for use: Indoor, altitude up to 2000m, pollution degree 2
  • Effect of External Magnetic Fields: ≤20mA (DC and 60Hz, Magnetic field of 400A/m)
  • Diameter of Conductor Available for Measurement: 5mm
  • Conductor Available for Measurement: Insulated Conductor
  • Guaranteed Accuracy Period: 1 year (opening/closing up to 10,000 times)
  • Cable Length: Approx. 1.5m
  • External Dimension: Sensor; approx. 175Wx18Hx40D (mm) (excluding protrusions), Terminator; approx. 27Hx55Wx18D (mm)
  • Weight: approx. 230g

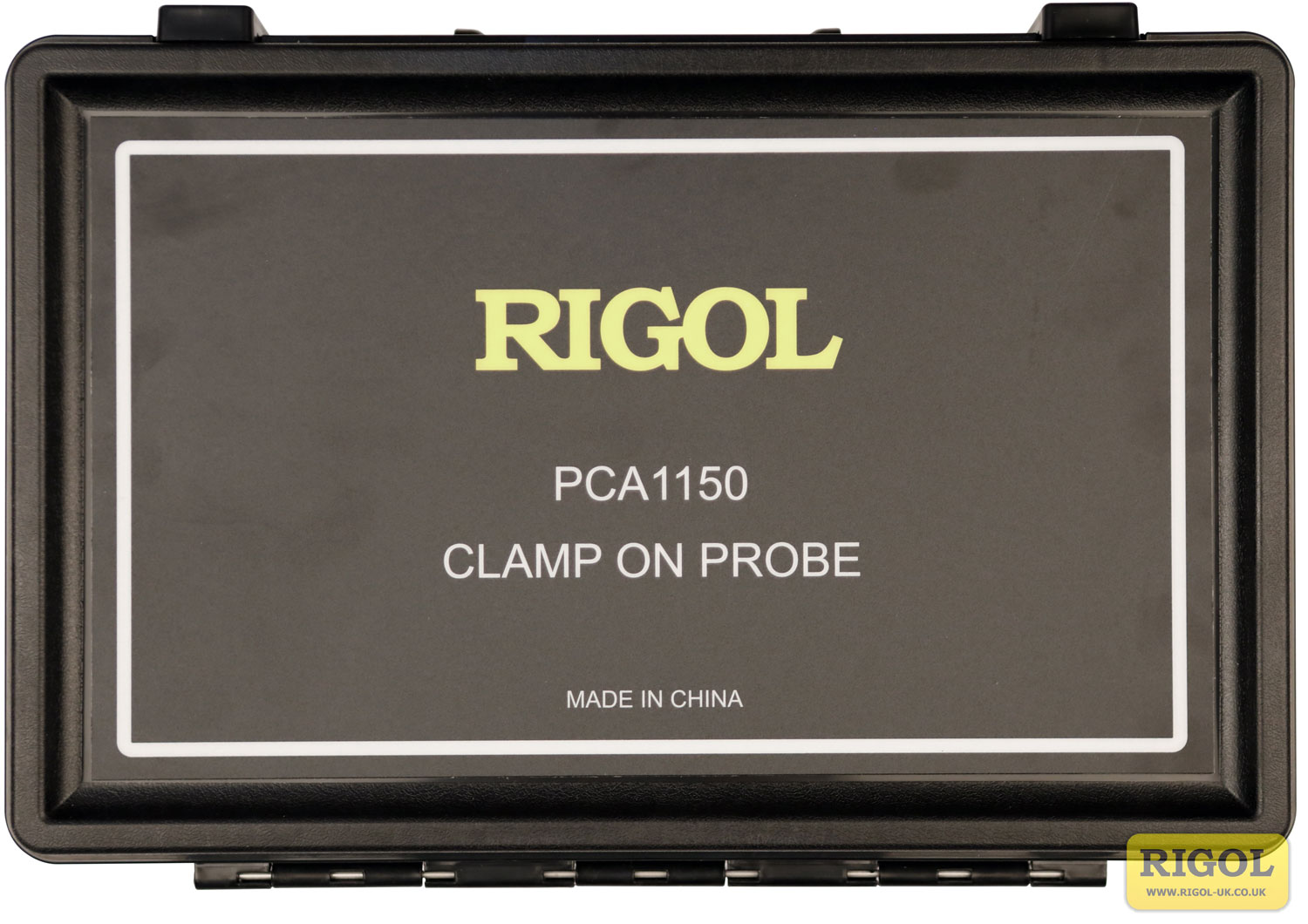

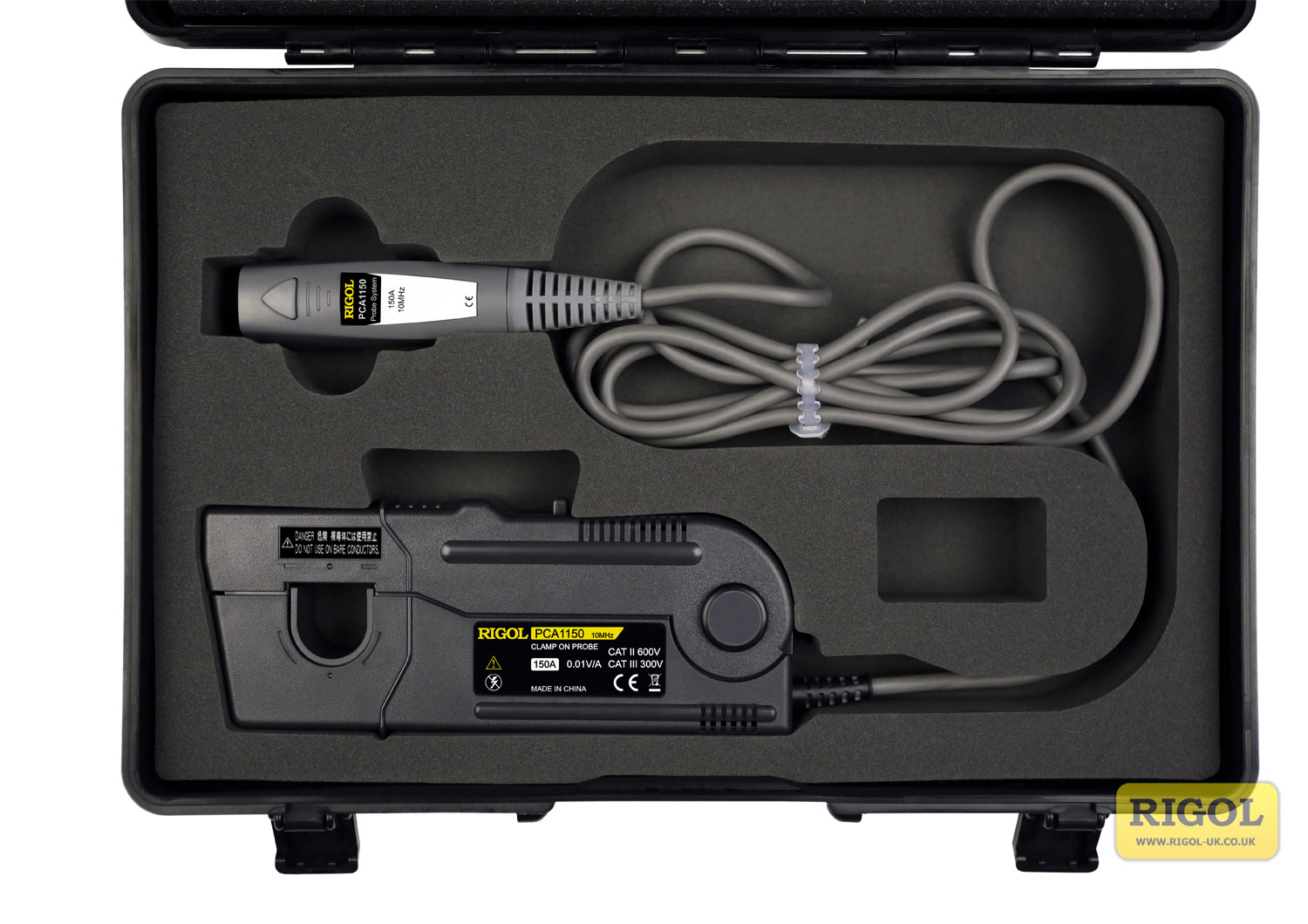

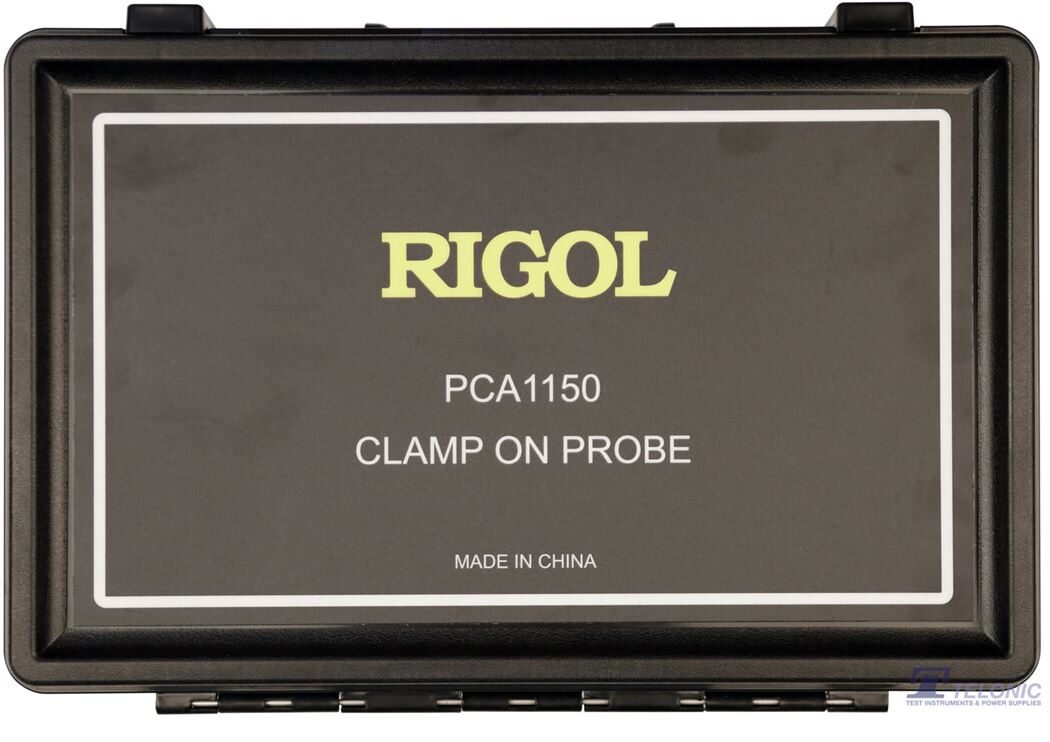

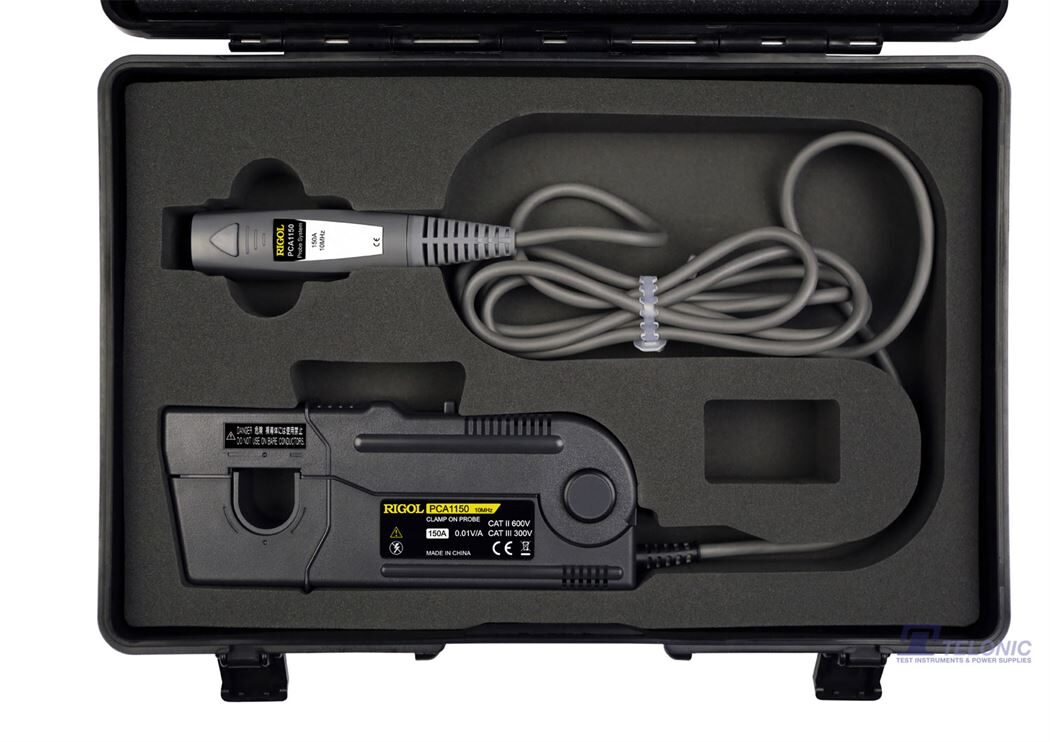

  • Accessories: User Guide, Probe Case
  • Safety: EN61010
  • EMC: EN61326
