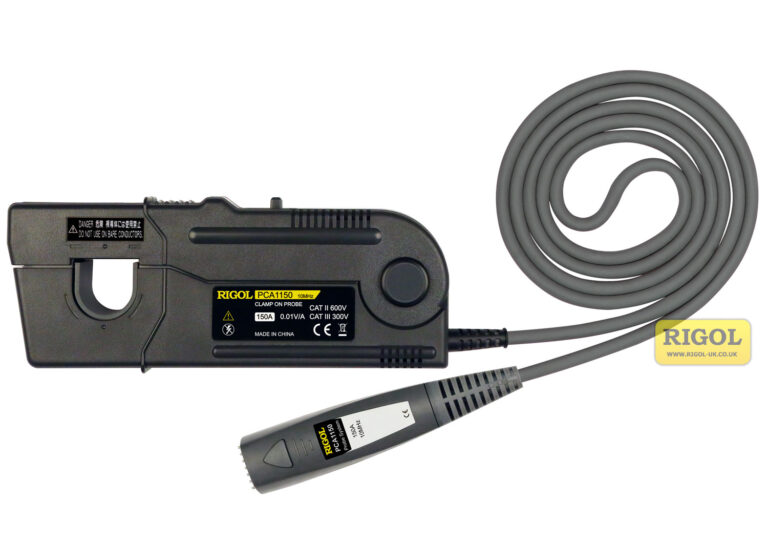

Rigol PCA1150 Current Probe

£4395.00 (£5274.00 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: PCA1150 Categories: ,

Description

Features:

  • Bandwidth: DC to 10MHz (-3 dB)
  • Rise Time: ≤35ns
  • Maximum Continuous Input Range: 150A
  • Maximum Peak Current Value: 300A peak, non-continuous. 500A peak, pulse width ≤30μs
  • Gain: 0.01V/A
  • Amplitude Accuracy: ±1.0%rdg ±1mV, ≤150A. ±2.0%rdg, 150A to 300A peak (DC, and 45Hz to 66Hz)
  • Noise: ≤25 mArms (for 20MHz band waveform measurement instrument)
  • Maximum Rated Power: 8.5VA
  • Location for use: Indoor, altitude up to 2000m, pollution degree 2
  • Effect of External Magnetic Fields: ≤150mA (in a DC or 60Hz, 400A/m magnetic field)
  • Diameter of Conductor Available for Measurement: 20mm
  • Conductor Available for Measurement: Insulated Conductor
  • Guaranteed Accuracy Period: 1 year (opening/closing up to 10,000 times)
  • Cable Length: Approx. 2m
  • External Dimension: Sensor; approx. 176Wx69Hx27D (mm) (excluding protrusions), Terminator; approx. 27Hx55Wx18D (mm)
  • Weight: approx. 500g
  • Accessories: User Guide, Probe Case
  • Safety: EN61010
  • EMC: EN61326
