Rigol DP932A Linear DC Power Supply (32V/3A – 32V/3A – 6V/3A)

£607.00 (£728.40 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

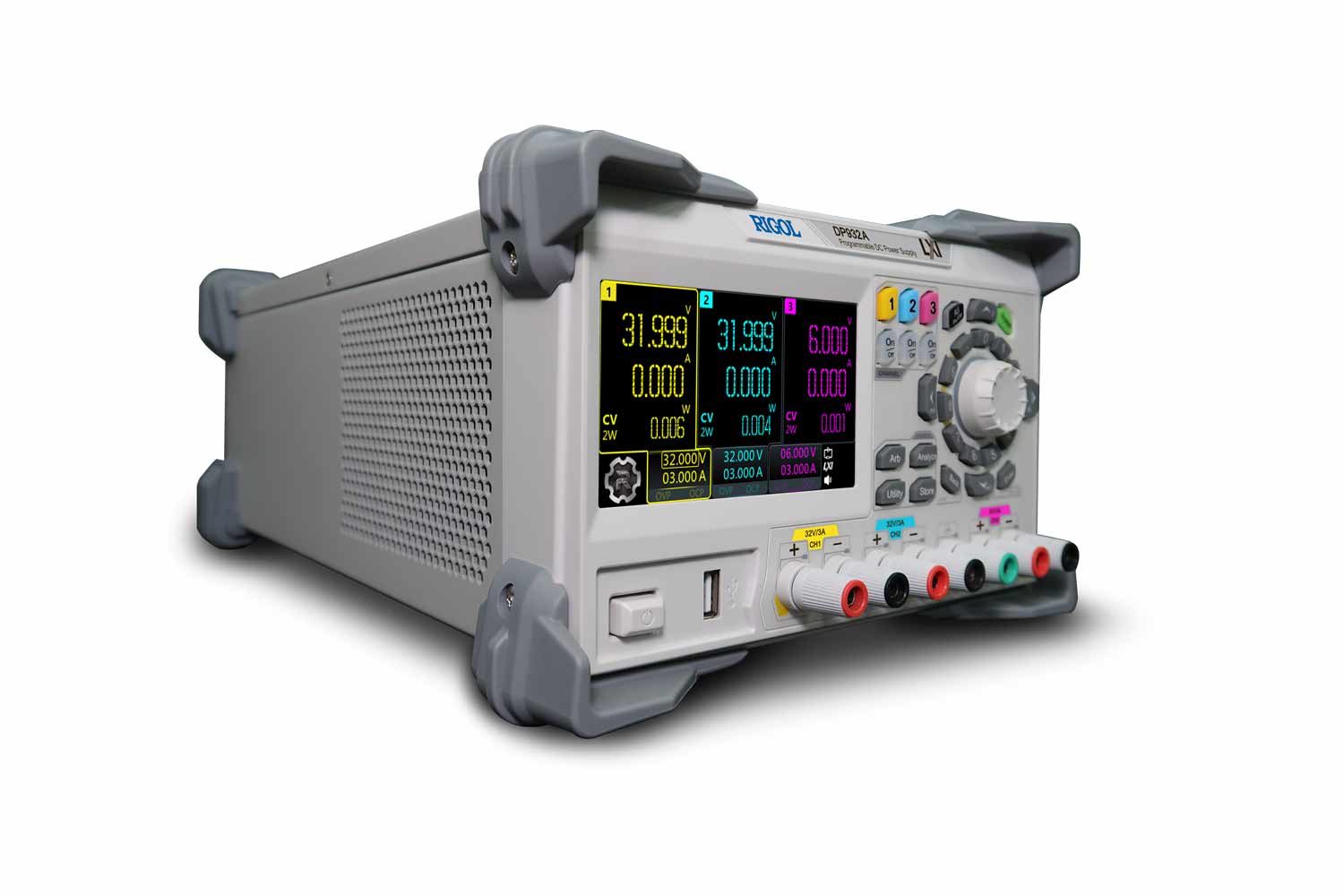

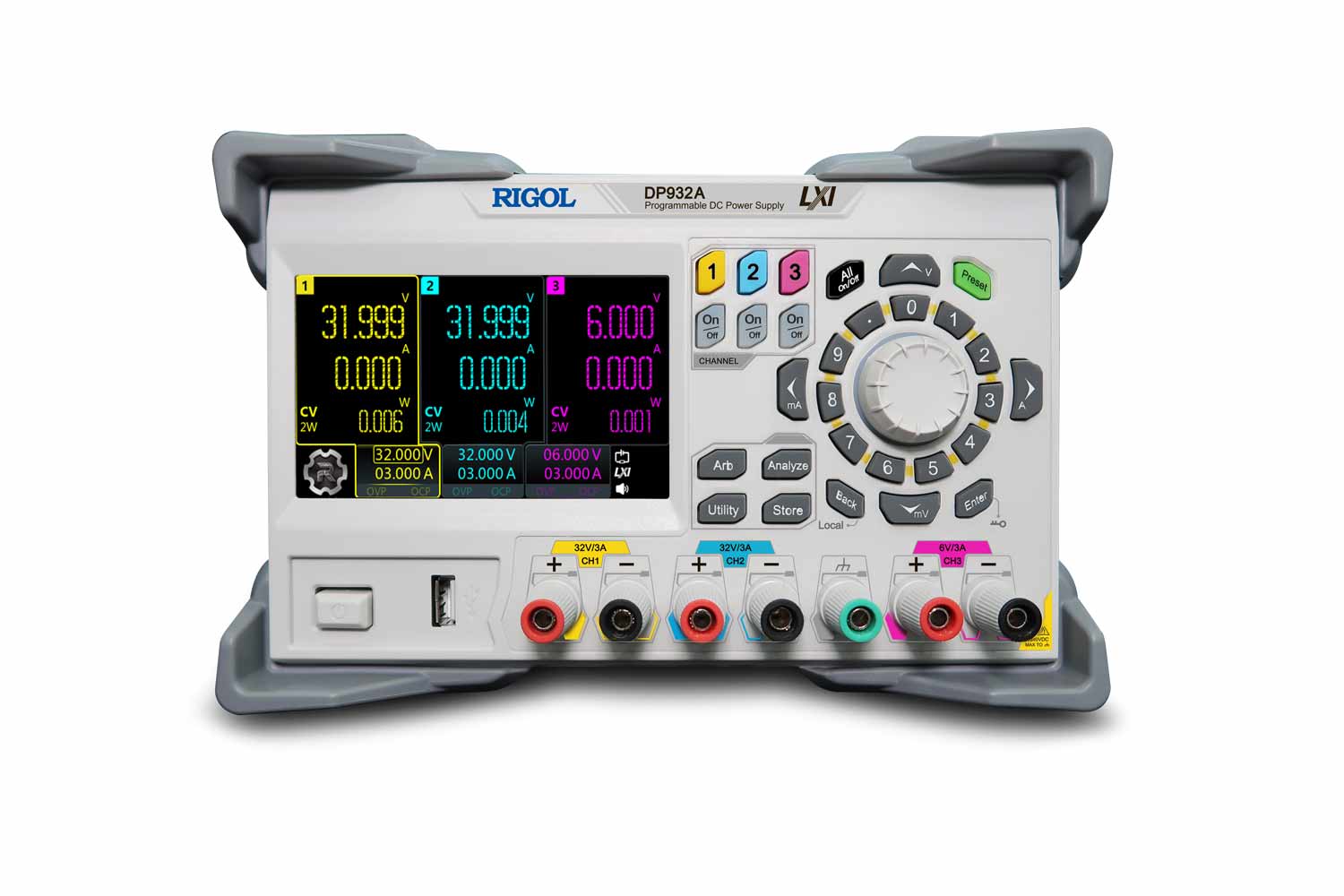

Rigol DP932A Programmable DC Power Supply

The latest DP900 series, in addition to the advantages of low ripple and high accuracy, also adds a variety of new functions such as one-key series-parallel, full-channel isolation, etc. to meet the new needs of various application fields. Provide maximum security, three-way classic, new start.

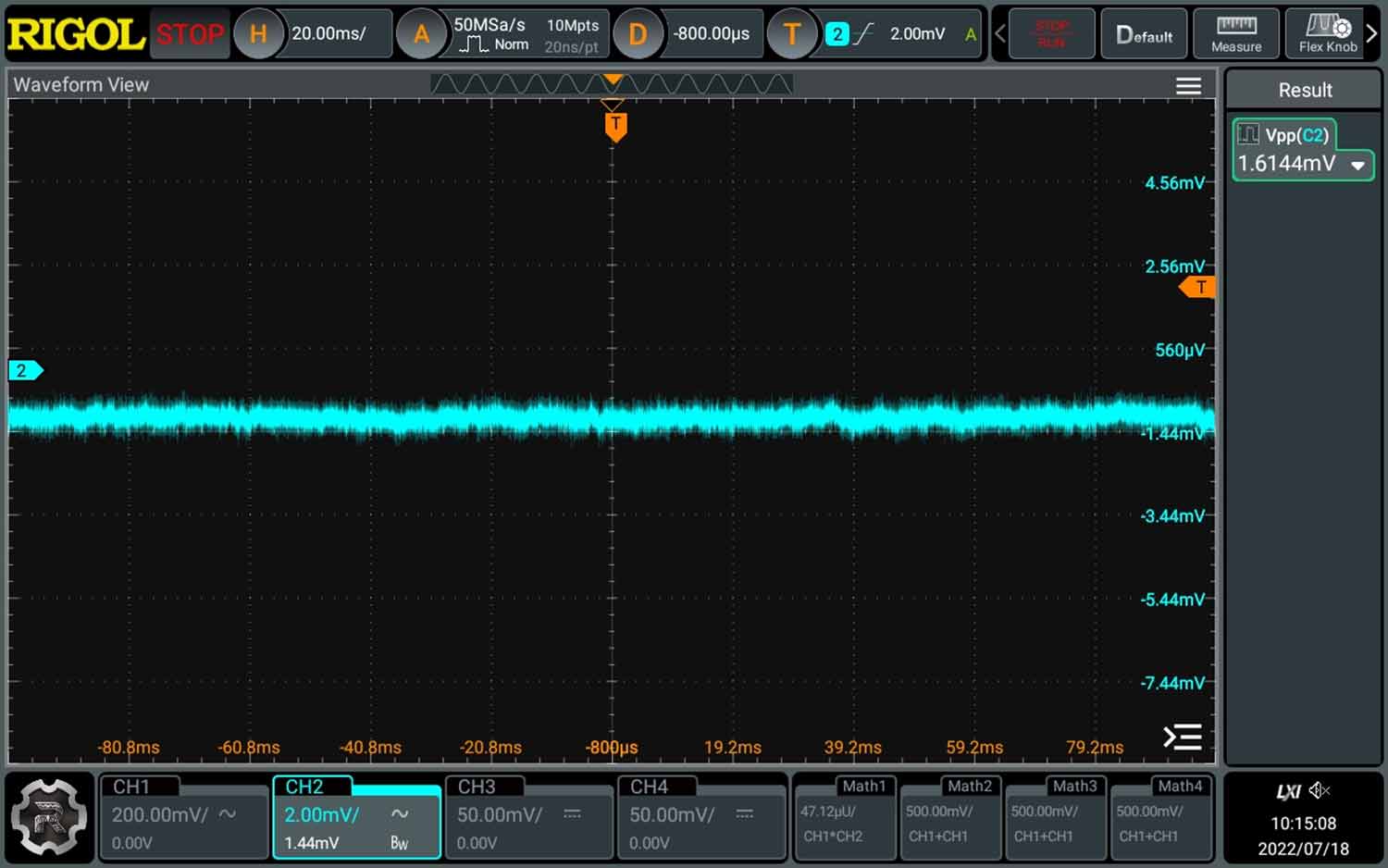

One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Your device provides a high-purity signal.

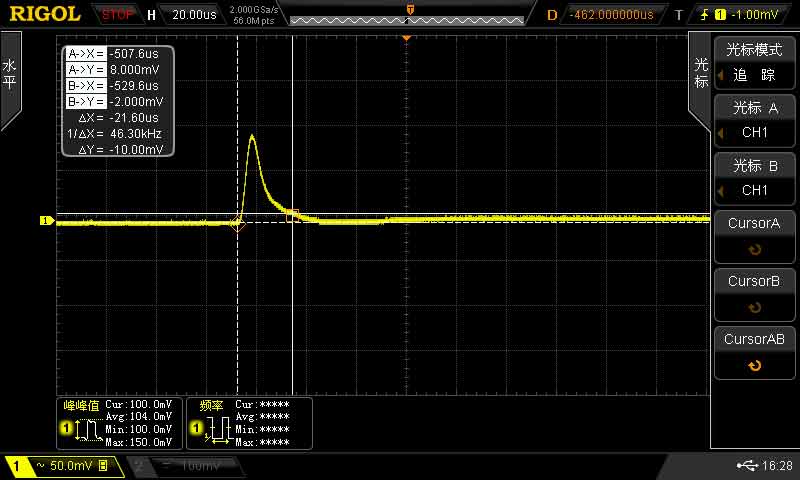

A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user’s needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.

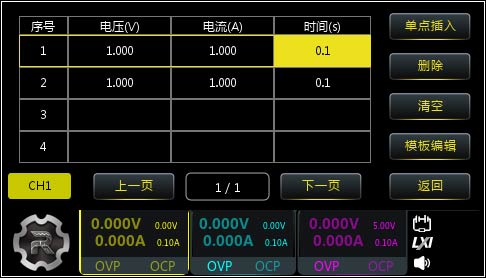

The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.

Features:

  • 3 electrically isolated independent channels with a maximum total power of up to 210 W
  • 4.3-inch LCD color touch screen
  • Front-panel safety sockets available on some models

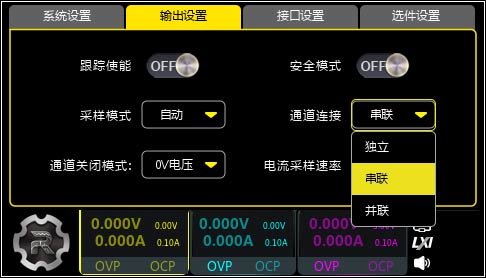

  • Internal series/parallel connections for CH1 and CH2
  • Excellent programming/readback accuracy
  • Transient response time <50 μs
  • Low output ripple and noise <350 μVrms/2 mVpp
  • Command processing time <10 ms
  • Three rack-units (3U), 1/2-rack form factor
  • Software control

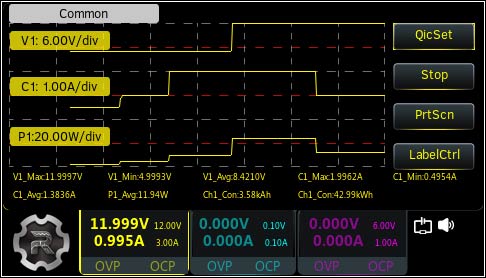

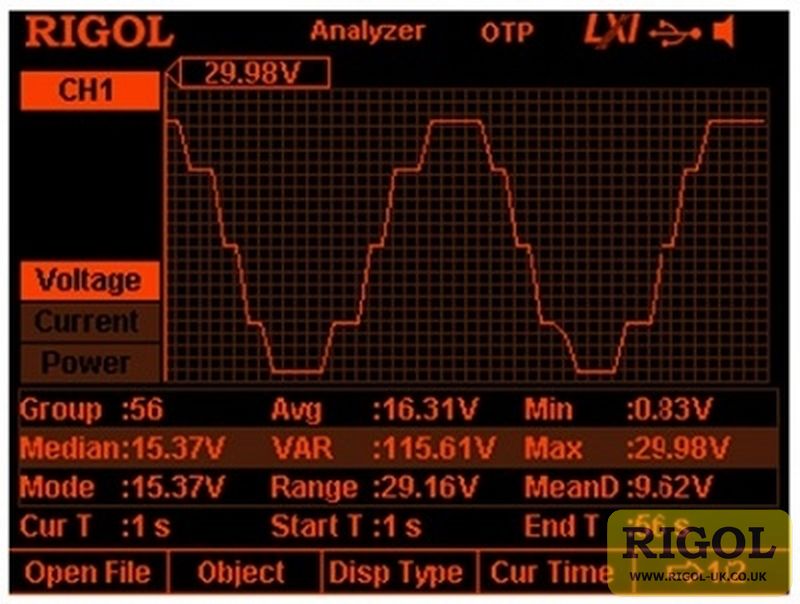

  • Timing output, data logging and analysis
  • A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic
    waveforms
  • Over voltage, over current, and over temperature protection

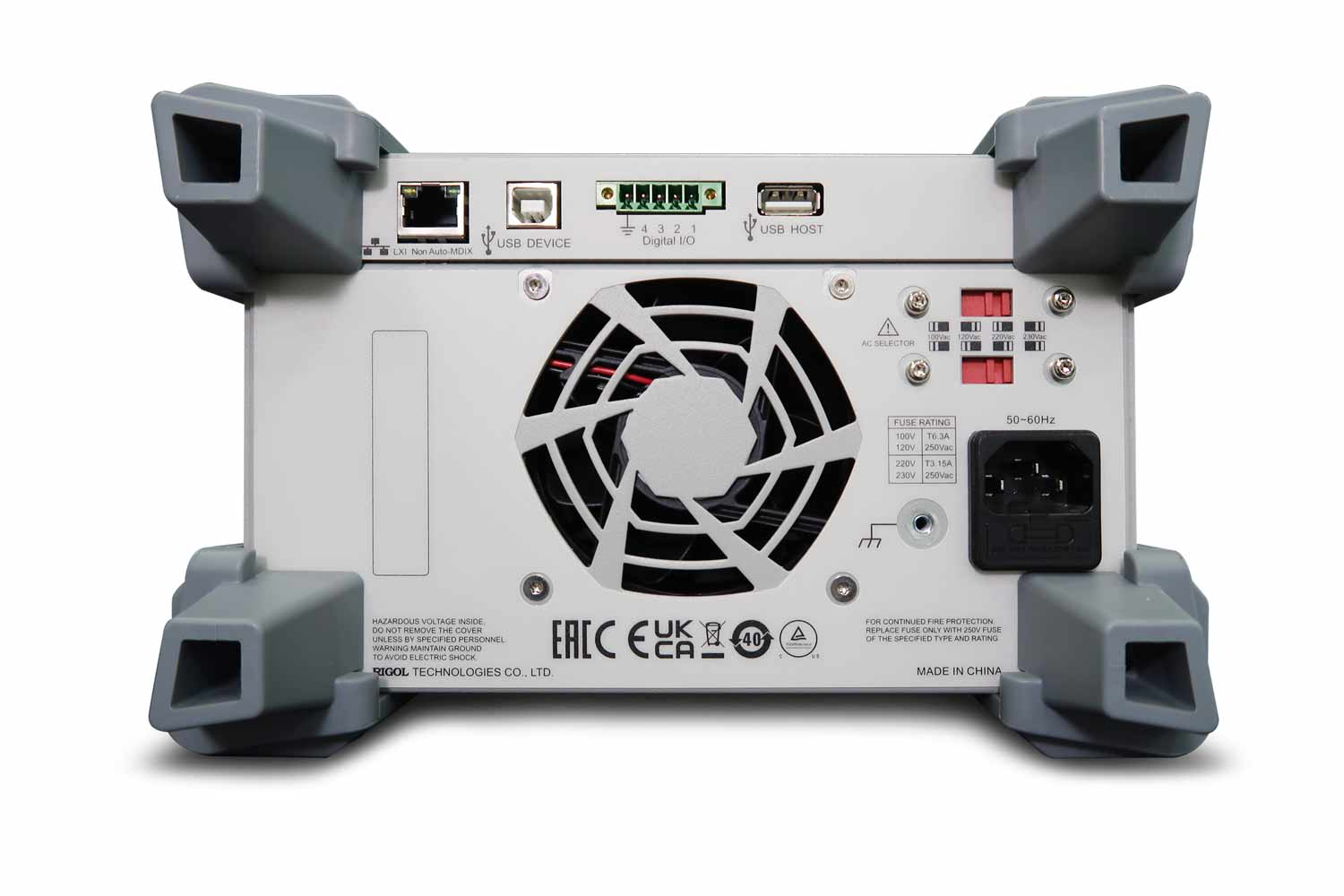

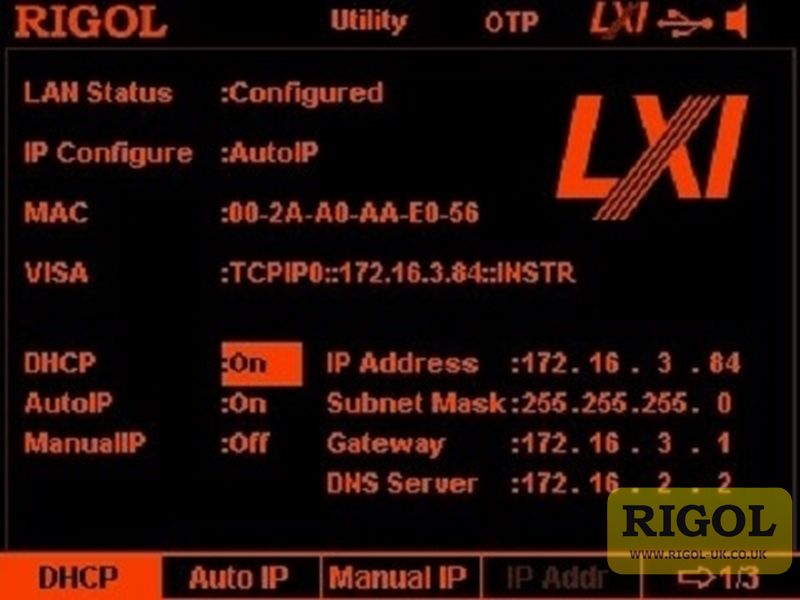

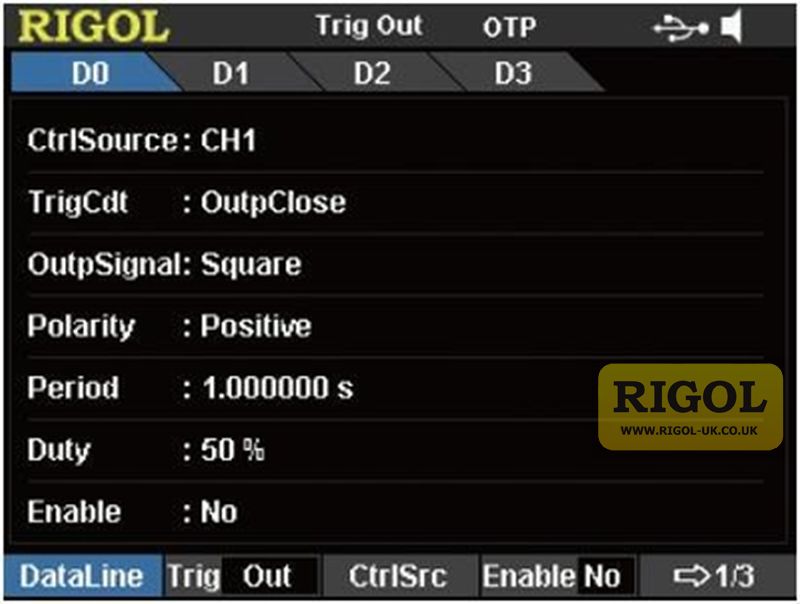

  • Various interfaces available: USB, LAN, and Digital I/O

Rigol DP800 DC Power Supply Comparison Table

ModelOutput VoltageOutput CurrentBench/RackControl
DP811Ch 1: 0V – 20V / 0V – 40V
Ch 2: N/A
Ch 3: N/A
Ch 1: 10A / 5A
Ch 2: N/A
Ch 3: N/A
Bench / Rack (Opt)USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP811ACh 1: 0V – 20V / 0V – 40V
Ch 2: N/A
Ch 3: N/A
Ch 1: 10A / 5A
Ch 2: N/A
Ch 3: N/A
Bench / Rack (Opt)USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP932ACh 1: 0V – 32V
Ch 2 : 0V – 32V
Ch 3 : 0V – 6V
Ch 1: 3A
Ch 2: 3A
Ch 3: 3A
Bench / Rack (Opt)USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP821ACh 1: 0V – 60V
Ch 2 : 0V – 8V
Ch 3 : N/A
Ch 1: 1A
Ch 2: 10A
Ch 3: N/A
Bench / Rack (Opt)USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP831Ch 1: 0V – 8V
Ch 2: 0V – 30V
Ch 3: 0V – (-)30V
Ch 1: 5A
Ch 2: 2A
Ch 3: 2A
Bench / Rack (Opt)USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP831ACh 1: 0V – 8V
Ch 2: 0V – 30V
Ch 3: 0V – (-)30V
Ch 1: 5A
Ch 2: 2A
Ch 3: 2A
Bench / Rack (Opt)USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)
DP832Ch 1: 0V – 30V
Ch 2: 0V – 30V
Ch 3: 0V – 5V
Ch 1: 3A
Ch 2: 3A
Ch 3: 3A
Bench / Rack (Opt)USB Device, USB Host, LAN (Opt), RS232 (Opt), Digital I/O (Opt), USB-GPIB (Opt)
DP832ACh 1: 0V – 30V
Ch 2: 0V – 30V
Ch 3: 0V – 5V
Ch 1: 3A
Ch 2: 3A
Ch 3: 3A
Bench / Rack (Opt)USB Device, USB Host, LAN, RS232, Digital I/O, USB-GPIB (Opt)

Documentation

DC Output (0°C to 40°C)
ModelDP811DP821DP831DP832
Voltage/Current RatingRange 1: 0 to 20V/0 to 10A
Range 2: 0 to 40V/0 to 5A
CH1: 0 to 60V/0 to 1A
CH2: 0 to 8V/0 to 10A
CH1: 0 to 8V/0 to 5A
CH2: 0 to 30V/0 to 2A
CH3: 0 to -30V/0 to 2A
CH1: 0 to 30V/0 to 3A
CH2: 0 to 30V/0 to 3A
CH3: 0 to 5V/0 to 3A
OVP/OCPRange 1: 10mV to 22V/10mA to 11A
Range 2: 10mV to 44V/10mA to 5.5A
CH1: 10mV to 66V/10mA to 1.1A
CH2: 10mV to 8.8V/10mA to 11A
CH1: 10mV to 8.8V/1mA to 5.5A
CH2: 10mV to 33V/1mA to 2.2A
CH3: -10mV to -33V/1mA to 2.2A
CH1: 10mV to 33V/1mA to 3.3A
CH2: 10mV to 33V/1mA to 3.3A
CH3: 10mV to 5.5V/1mA to 3.3A
Load Regulation Rate ± (Output Percentage + Offset)
Voltage<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV
Current<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA
Linear Regulation Rate ± (Output Percentage + Offset)
Voltage<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV
Current<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA
Ripples and Noise (20Hz to 20MHz)
Normal Mode VoltageDP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
Normal Mode Current<2mArms<2mArms<2mArms<2mArms
Transient Response Time
Transient Response TimeLess than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.
Command Processing Time
Command Processing Time<118ms<118ms<118ms<118ms

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
