Rigol DP831 Bench Linear DC Power Supply (8V/5A & 30V/2A & -30V/2A)

(1 customer review)

£364.00 (£436.80 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

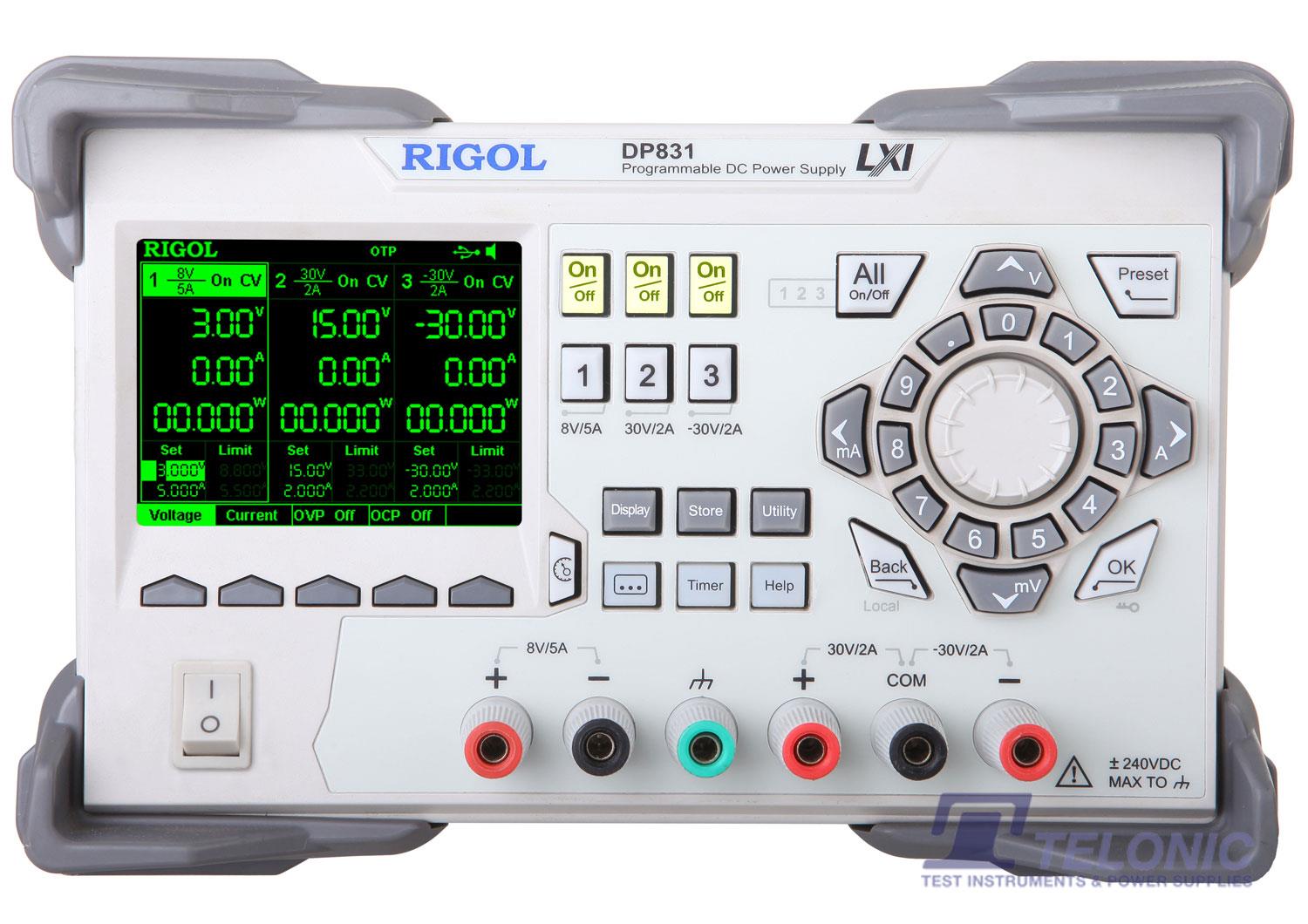

Rigol DP831 Bench Linear DC Power Supply

The DP831 is a Triple Output 8V/5A & 30V/2A & -30V/2A Bench Linear DC Power Supply. Each model in the Rigol DP800 series of high-performance programmable linear DC power supplies is user-friendly, affordable and possesses multiple protection features.

The following features are standard on ‘DP8xxA’ models and optional on ‘DP8xx’ models: High resolution output control, online monitoring and analysis functions, 4-off trigger inputs/outputs, RS232 & LAN interfaces.

Each model has a 3.5″ TFT display, multi-colour on ‘DP8xxA’ models and selectable single colour on ‘DP8xx’ models.

Features:

  • Three outputs – Controlled independently
  • Low ripple and noise
  • Excellent load regulation and line regulation
  • Fast transient response time <50μs
  • Over-voltage and over-current protection
  • Over-temperature protection
  • Fan failure check and alarm
  • 3.5″ TFT display
  • Built-in V/A/W measurements and waveform display
  • Built-in Help system
  • Delay on/off function & toggle on/off function
  • Built-in recorder logs output state
  • Self-test and manual calibration functions
  • Supports SCPI command set for remote control
  • Connectivity… USB Host & Device
  • Supplied with… USB cable, shorted device, spare fuse, UK & European mains leads, quick guide
  • Options include… USB to GPIB module, rack mount kit (single instrument), rack mount kit (two instruments), high resolution option, trigger I/O option, monitoring & analysis functions, RS232 & LAN interface option, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

Product Videos

Documentation

DC Output (0°C to 40°C)
Model DP811 DP821 DP831 DP832
Voltage/Current Rating Range 1: 0 to 20V/0 to 10A
Range 2: 0 to 40V/0 to 5A
CH1: 0 to 60V/0 to 1A
CH2: 0 to 8V/0 to 10A
CH1: 0 to 8V/0 to 5A
CH2: 0 to 30V/0 to 2A
CH3: 0 to -30V/0 to 2A
CH1: 0 to 30V/0 to 3A
CH2: 0 to 30V/0 to 3A
CH3: 0 to 5V/0 to 3A
OVP/OCP Range 1: 10mV to 22V/10mA to 11A
Range 2: 10mV to 44V/10mA to 5.5A
CH1: 10mV to 66V/10mA to 1.1A
CH2: 10mV to 8.8V/10mA to 11A
CH1: 10mV to 8.8V/1mA to 5.5A
CH2: 10mV to 33V/1mA to 2.2A
CH3: -10mV to -33V/1mA to 2.2A
CH1: 10mV to 33V/1mA to 3.3A
CH2: 10mV to 33V/1mA to 3.3A
CH3: 10mV to 5.5V/1mA to 3.3A
Load Regulation Rate ± (Output Percentage + Offset)
Voltage <0.01% + 2mV <0.01% + 2mV <0.01% + 2mV <0.01% + 2mV
Current <0.01% + 250μA <0.01% + 250μA <0.01% + 250μA <0.01% + 250μA
Linear Regulation Rate ± (Output Percentage + Offset)
Voltage <0.01% + 2mV <0.01% + 2mV <0.01% + 2mV <0.01% + 2mV
Current <0.01% + 250μA <0.01% + 250μA <0.01% + 250μA <0.01% + 250μA
Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
Normal Mode Current <2mArms <2mArms <2mArms <2mArms
Transient Response Time
Transient Response Time Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa. Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa. Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa. Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.
Command Processing Time
Command Processing Time <118ms <118ms <118ms <118ms

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

1 review for Rigol DP831 Bench Linear DC Power Supply (8V/5A & 30V/2A & -30V/2A)

  1. Scott

    Great equipment at great prices
    I can’t praise Telonic and Rigol enough.
    When I enquired about this unit, Jim let me know when it would be in stock and then later emailed me to confirm. The unit was delivered next business day as promised by DPD. All very pleasant and professional.

    As for the DP831, it works great. I have no complaints as it meets my needs and then some. The form factor is quite large, but this was not a surprise to me. If you want to see it in action, I recommend Youtube. EEV Blog does a solid review of the (very similar) DP832.
