Rigol DP832 Bench Linear DC Power Supply (30V/3A & 30V/3A & 5V/3A)

(29 customer reviews)

Original price was: £358.00.Current price is: £286.00. (£343.20 inc VAT)

3 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

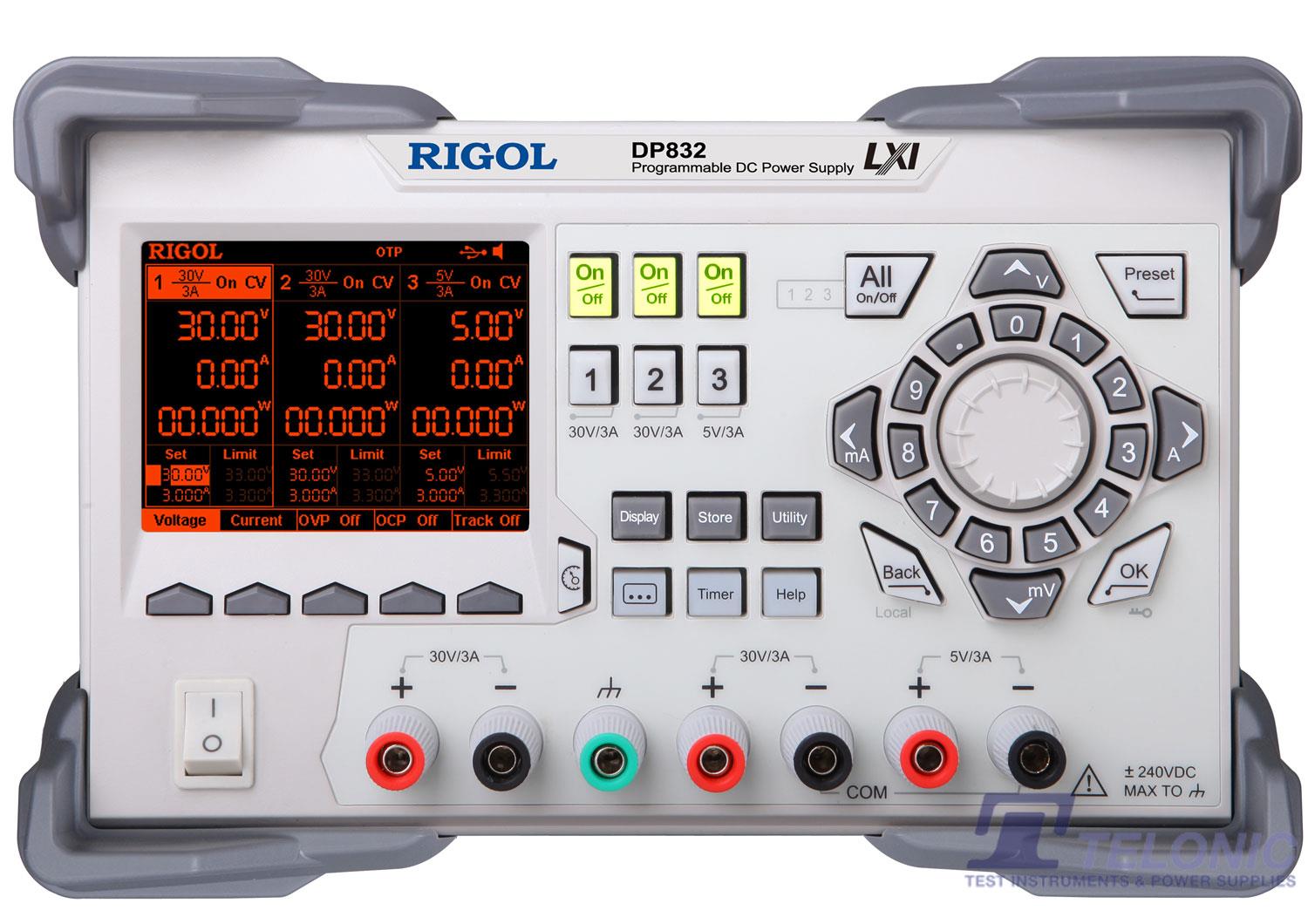

Rigol DP832 Bench Linear DC Power Supply

The DP832 is a Triple Output 30V/3A & 30V/3A & 5V/3A Bench Linear DC Power Supply. Each model in the Rigol DP800 series of high-performance programmable linear DC power supplies is user-friendly, affordable and possesses multiple protection features.

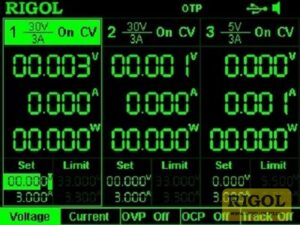

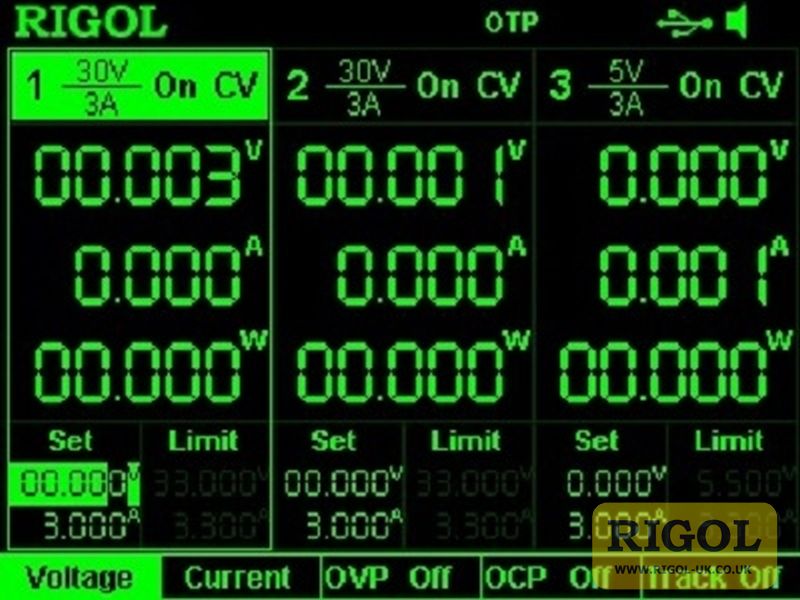

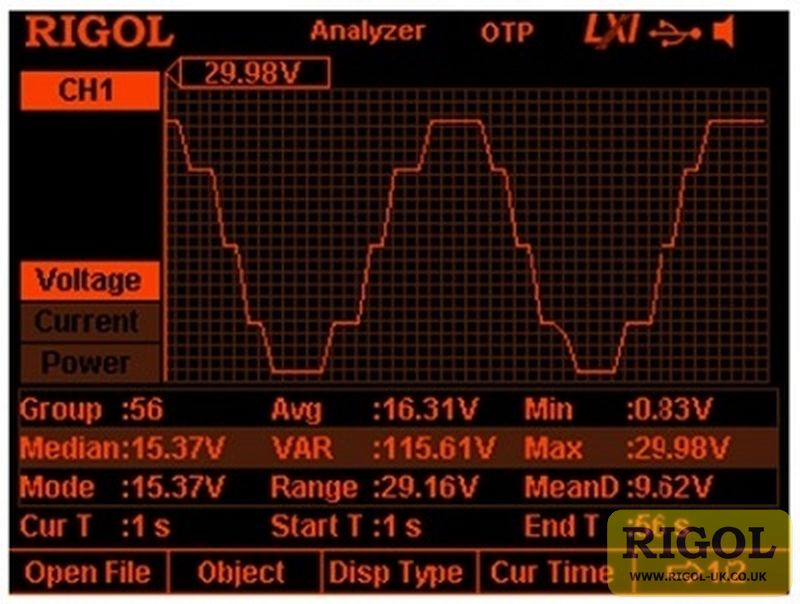

The following features are standard on ‘DP8xxA’ models and optional on ‘DP8xx’ models: High resolution output control, online monitoring and analysis functions, 4-off trigger inputs/outputs, RS232 & LAN interfaces.

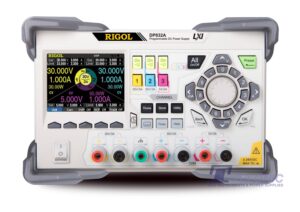

Each model has a 3.5″ TFT display, multi-colour on ‘DP8xxA’ models and selectable single colour on ‘DP8xx’ models.

Features:

  • Three outputs – Controlled independently
  • Low ripple and noise
  • Excellent load regulation and line regulation
  • Fast transient response time <50μs
  • Over-voltage and over-current protection
  • Over-temperature protection
  • Fan failure check and alarm>
  • 3.5″ TFT display

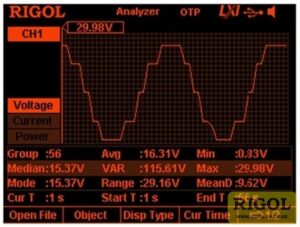

  • Built-in V/A/W measurements and waveform display
  • Built-in Help system
  • Delay on/off function & toggle on/off function
  • Built-in recorder logs output state
  • Self-test and manual calibration functions
  • Supports SCPI command set for remote control

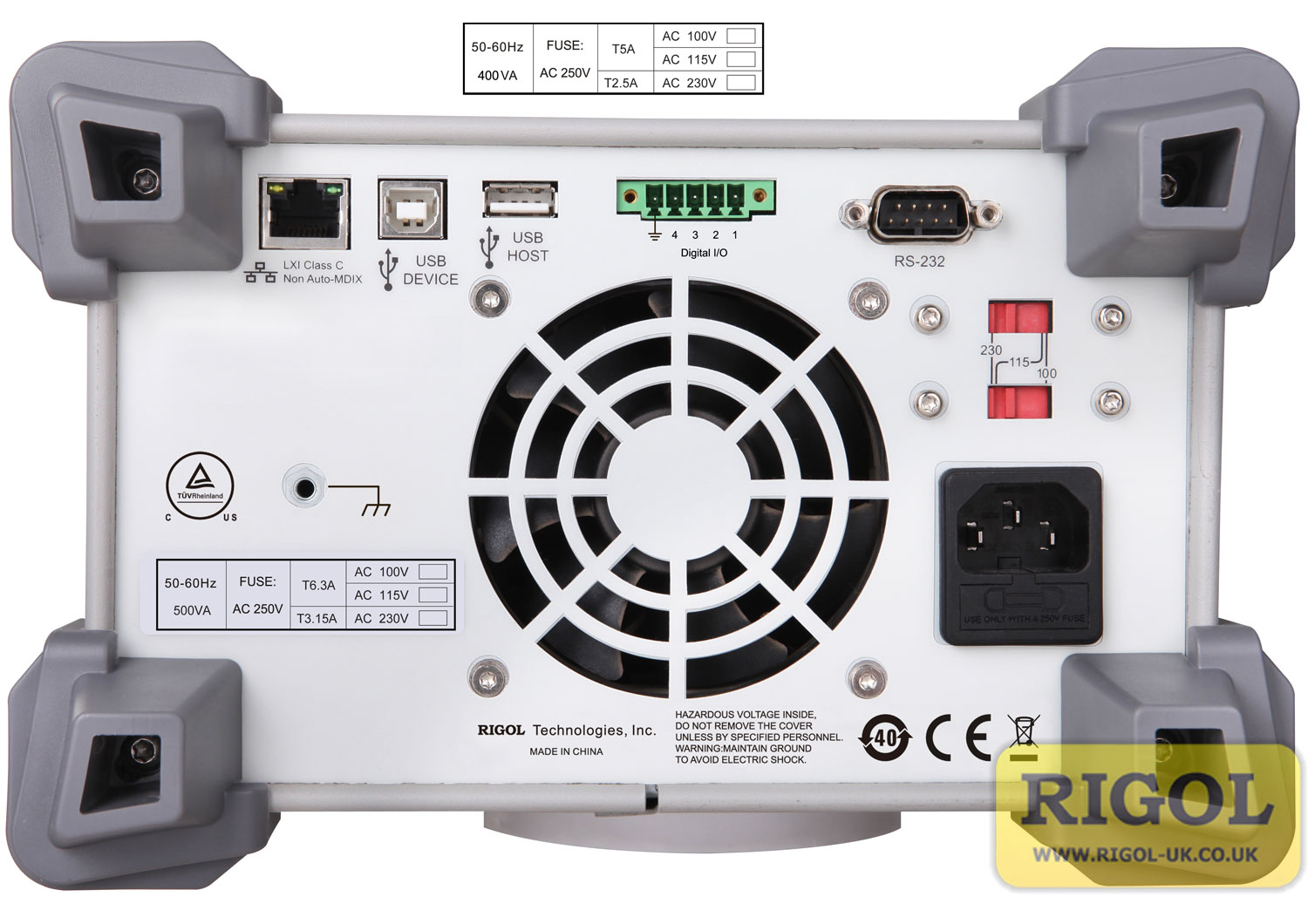

  • Connectivity… USB Host & Device
  • Supplied with… USB cable, shorted device, spare fuse, UK & European mains leads, quick guide

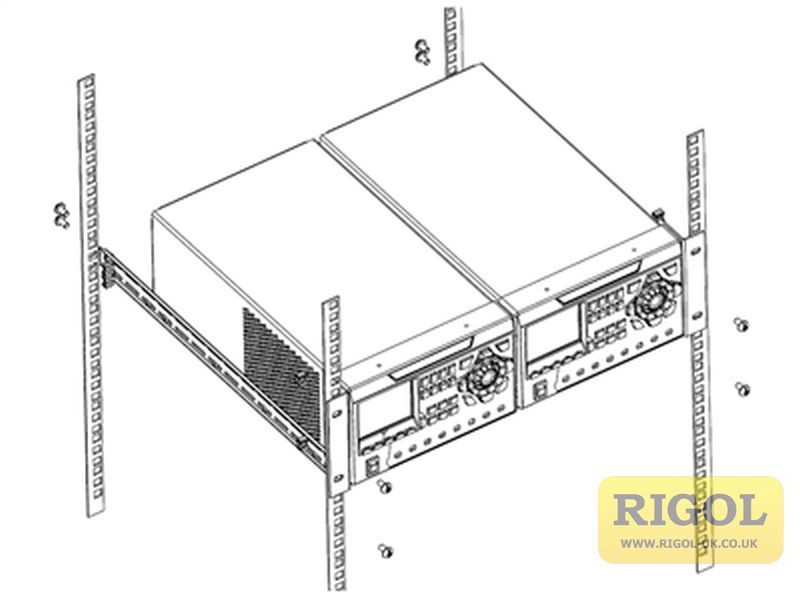

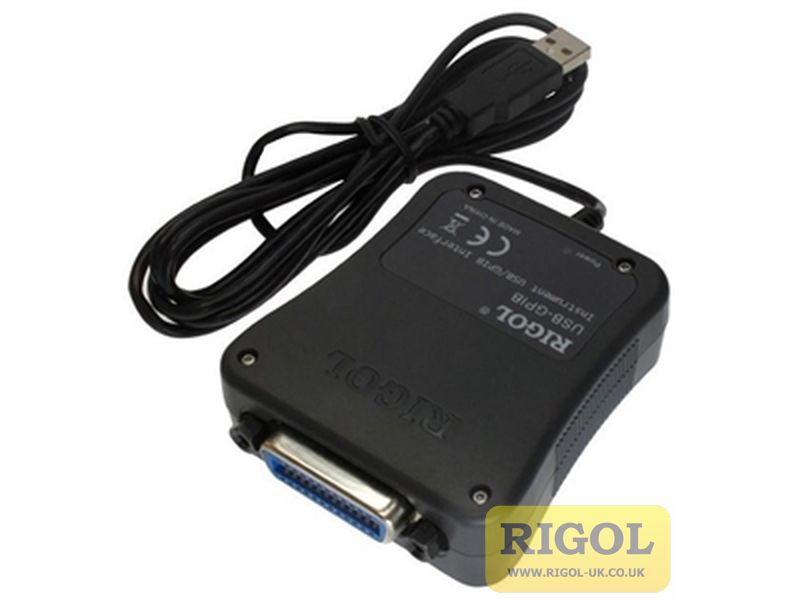

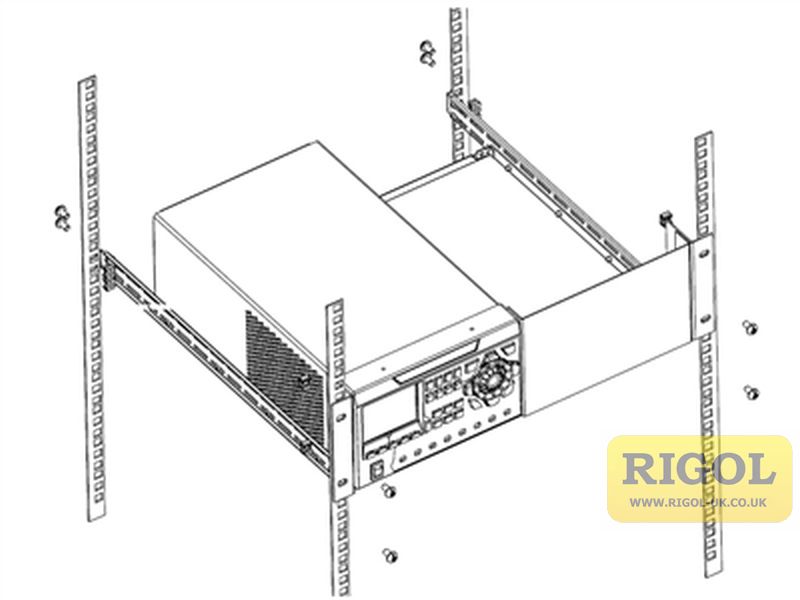

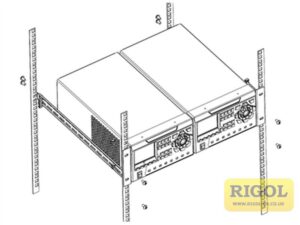

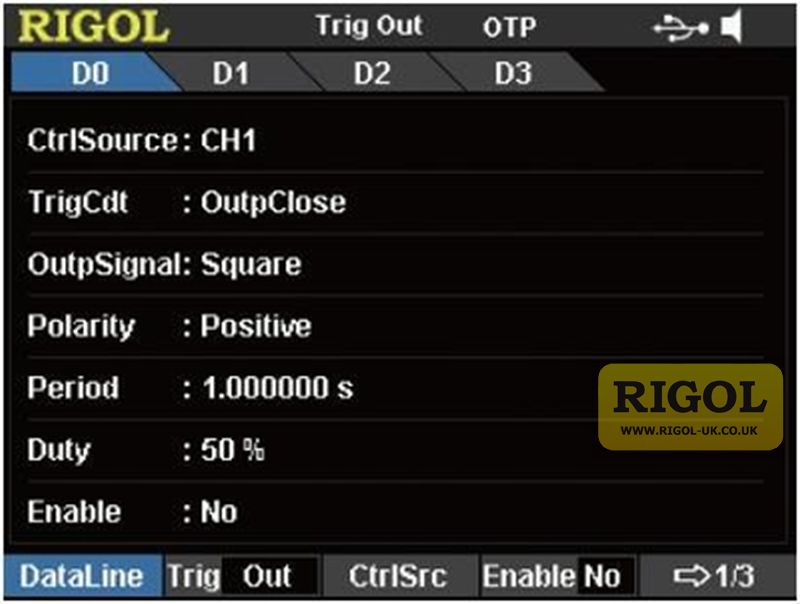

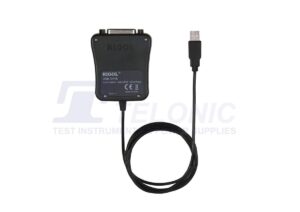

  • Options include… USB to GPIB module, rack mount kit (single instrument), rack mount kit (two instruments), high resolution option, trigger I/O option, monitoring & analysis functions, RS232 & LAN interface option, Telonic Standard Calibration (traceable to UK national standards) and RCL 17025 Calibration.

Product Videos

Documentation

DC Output (0°C to 40°C)

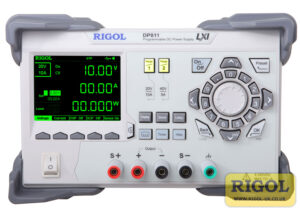

ModelDP811DP821DP831DP832
Voltage/Current RatingRange 1: 0 to 20V/0 to 10A
Range 2: 0 to 40V/0 to 5A
CH1: 0 to 60V/0 to 1A
CH2: 0 to 8V/0 to 10A
CH1: 0 to 8V/0 to 5A
CH2: 0 to 30V/0 to 2A
CH3: 0 to -30V/0 to 2A
CH1: 0 to 30V/0 to 3A
CH2: 0 to 30V/0 to 3A
CH3: 0 to 5V/0 to 3A
OVP/OCPRange 1: 10mV to 22V/10mA to 11A
Range 2: 10mV to 44V/10mA to 5.5A
CH1: 10mV to 66V/10mA to 1.1A
CH2: 10mV to 8.8V/10mA to 11A
CH1: 10mV to 8.8V/1mA to 5.5A
CH2: 10mV to 33V/1mA to 2.2A
CH3: -10mV to -33V/1mA to 2.2A
CH1: 10mV to 33V/1mA to 3.3A
CH2: 10mV to 33V/1mA to 3.3A
CH3: 10mV to 5.5V/1mA to 3.3A
Load Regulation Rate ± (Output Percentage + Offset)
Voltage<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV
Current<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA
Linear Regulation Rate ± (Output Percentage + Offset)
Voltage<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV<0.01% + 2mV
Current<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA<0.01% + 250μA
Ripples and Noise (20Hz to 20MHz)
Normal Mode VoltageDP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
DP832/DP831/DP821: <350μVrms/2mVpp
DP811: <350μVrms/3mVpp
Normal Mode Current<2mArms<2mArms<2mArms<2mArms
Transient Response Time
Transient Response TimeLess than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice versa.
Command Processing Time
Command Processing Time<118ms<118ms<118ms<118ms

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
