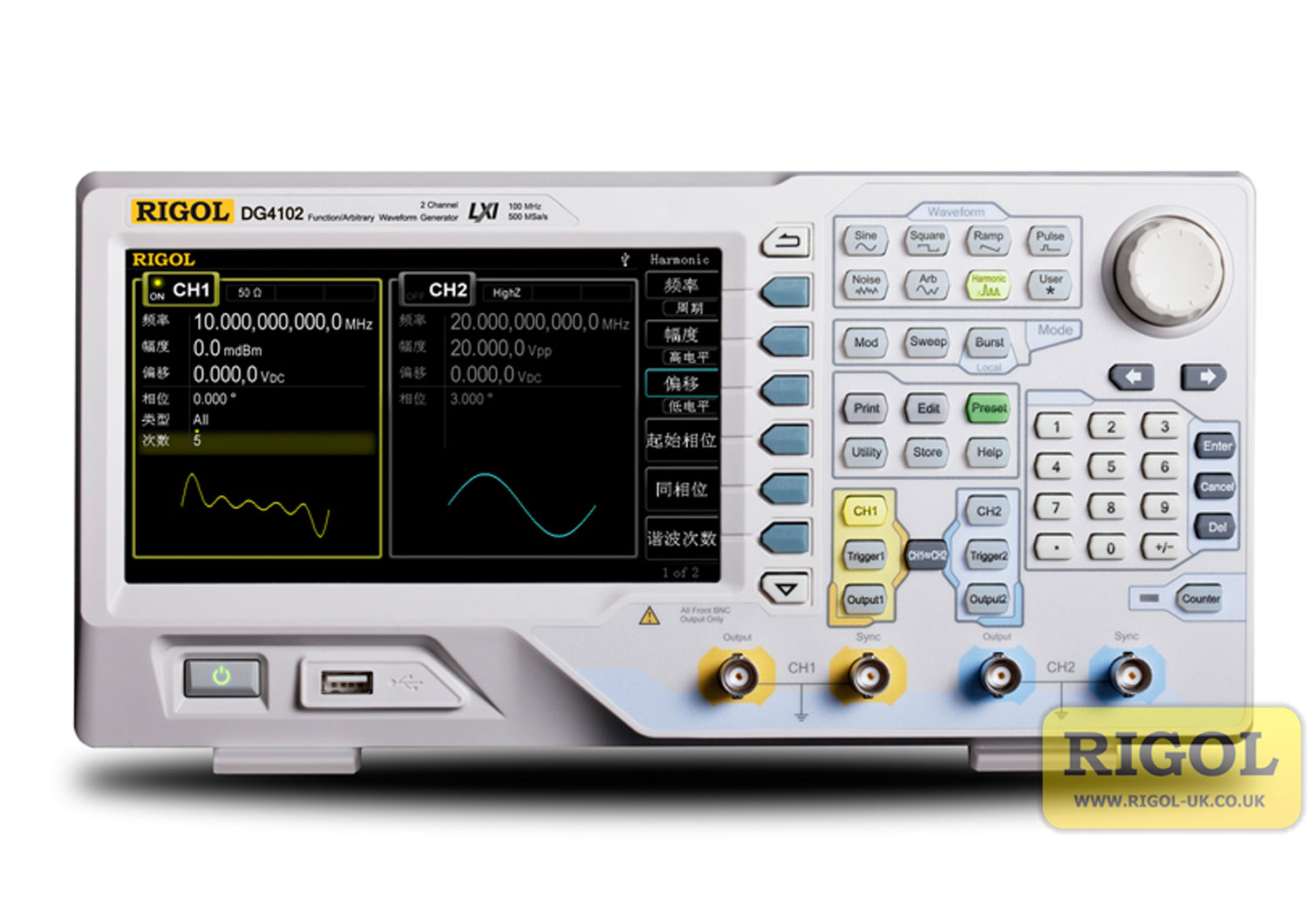

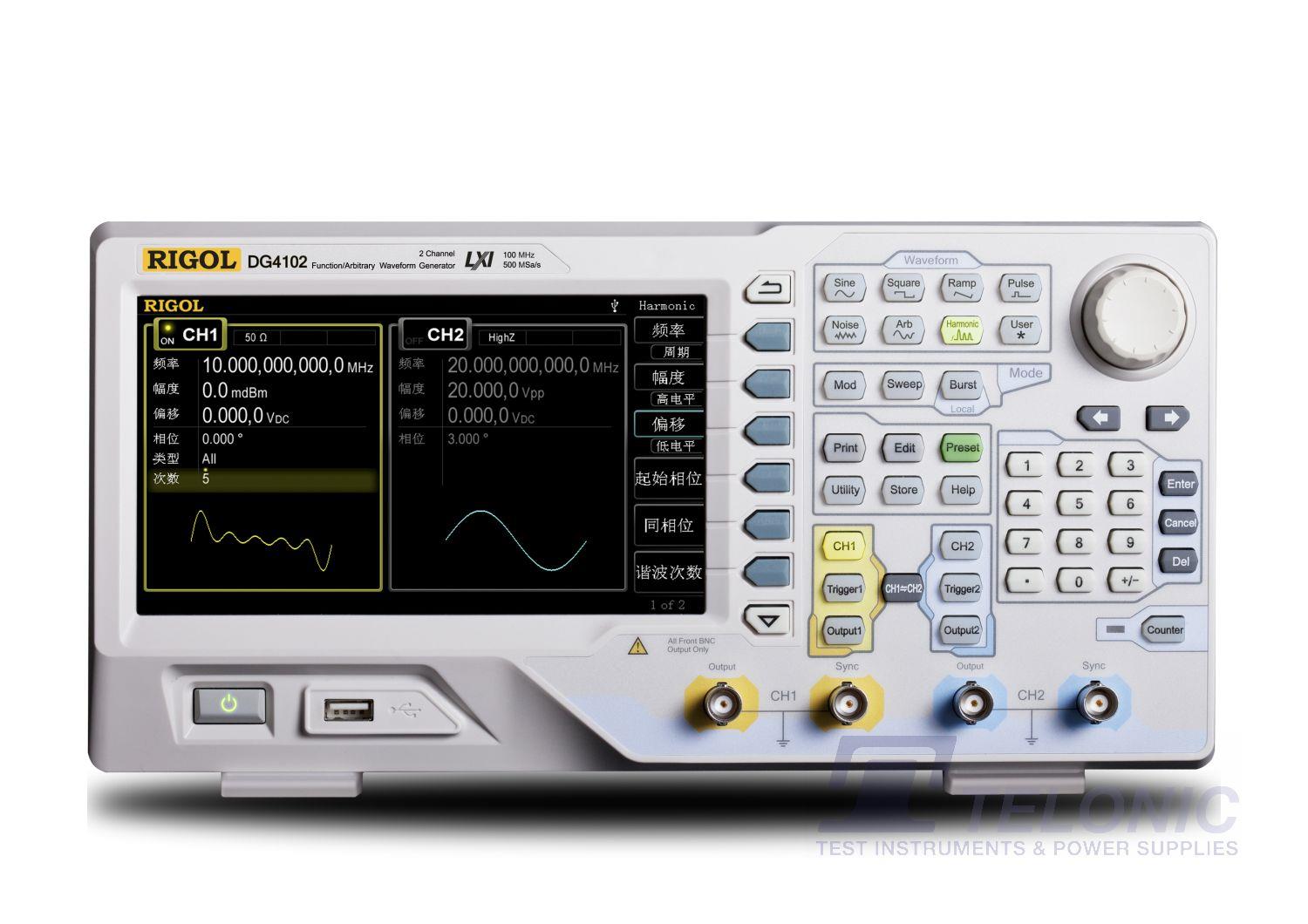

Rigol DG4102 100MHz Function / Arbitrary Waveform Generator

(2 customer reviews)

£722.00 (£866.40 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: DG4102 Category:

Description

Rigol’s award winning waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern test instruments. The DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analogue / Digital Modulation and Counting. The DG4000 utilises Direct Digital Synthesiser (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution display screen, while user-friendly interface design and panel layout improves efficiency.

Features:

  • Maximum frequency 100MHz

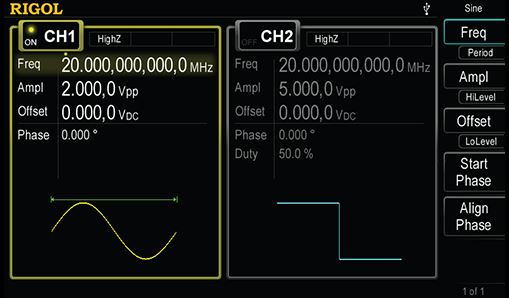

  • Two fully functional and independent channels
  • 500MSa/s sample rate
  • 14-bit vertical resolution
  • ±2ppm frequency stability
  • Phase noise <-115dBc/Hz @ 10kHz (f = 10MHz)

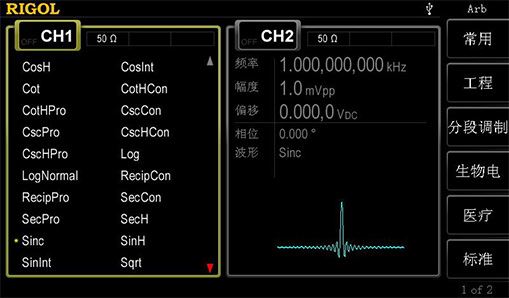

  • 150 built-in arbitrary waveforms
  • Intuitive arbitrary waveform editing software for PC
  • 16kpts arbitrary waveform length per channel
  • Built-in 7 digit counter up to 200MHz

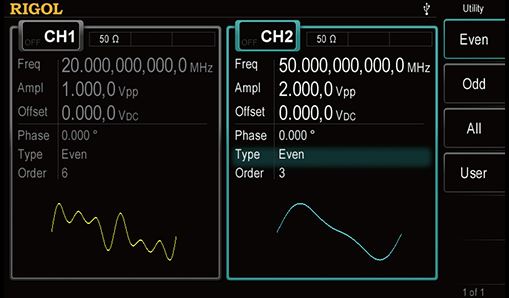

  • Built-in 16th order harmonic generator

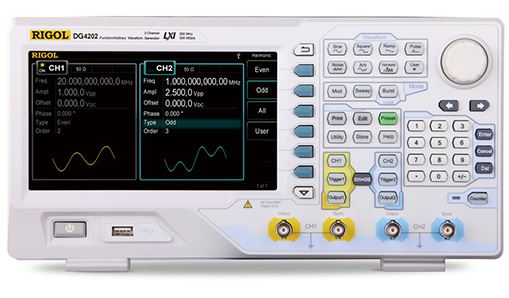

  • 7″ LCD display (800 x 480)
  • Supported modulation… AM, FM, PM, ASK, FSK, PSK,BPSK, QPSK, 3FSK, 4FSK, OSK & PWM
  • Connectivity… LAN(LXI), USB Host & Device
  • Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide
  • Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing
  • Other options include… 10W power amplifier, 40dB attenuator, rack mount kit, soft carry bag, RCL standard calibration, RCL UKAS calibration
Rigol DG4000 Review
Creating a Basic Waveform
DG4000 Harmonic Function

Documentation

Datasheets

Waveform Generator DG4000 Series

Datasheets


Waveform Generator DG4000 Series datasheets



2 reviews for Rigol DG4102 100MHz Function / Arbitrary Waveform Generator

  1. Andrew H

    Rigol DG4102 Waveform Generator
    As usual, first class service, kept informed of delay in delivery. Also use a carrier that keeps you updated as to exact delivery times so you have no excuse at missing delivery. The team there are doing an excellent job.

    Telonic comment: Thanks for your kind review on the Rigol DG4102 Waveform Generator.

  2. darren h

    Use of the DG4102
    Hi All,

    I currently own a DSA815, DS1104Z,DG1022 and I’ve just bought the DG4102 dual oscillator/generator. Wow!, what a machine, it’s typical Rigol, easy to use and it delivers what it is intended to do at relative low cost.

    I’m currently exploring the development of a shortwave communication receiver(synthesized/MCU control) whereby it’s very useful to have the DG4102 at your side, particularly with it’s extensive modulation facilities. The DG4102 output amplitude goes down to 2mV pkpk so that means I can check the sensitivity of my receiver in the 1 uV r.m.s region with a 60dB attenuator with modulation.
    It can also modulate with DSSC, double side band suppressed carrier, very useful for future designs.

    Shopping experience at Rigol.co.uk, was very efficient, my new toy arrived precisely in the middle of its allocated 1 hour time slot, so well done Rigol. I like your stuff.

    Cheers
    Darren

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • BNC Cable (1.0m)

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

Optional Accessories …
