Rigol DG1062Z 60MHz Function / Arbitrary Waveform Generator

£428.00 (£513.60 inc VAT)

Only 2 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description

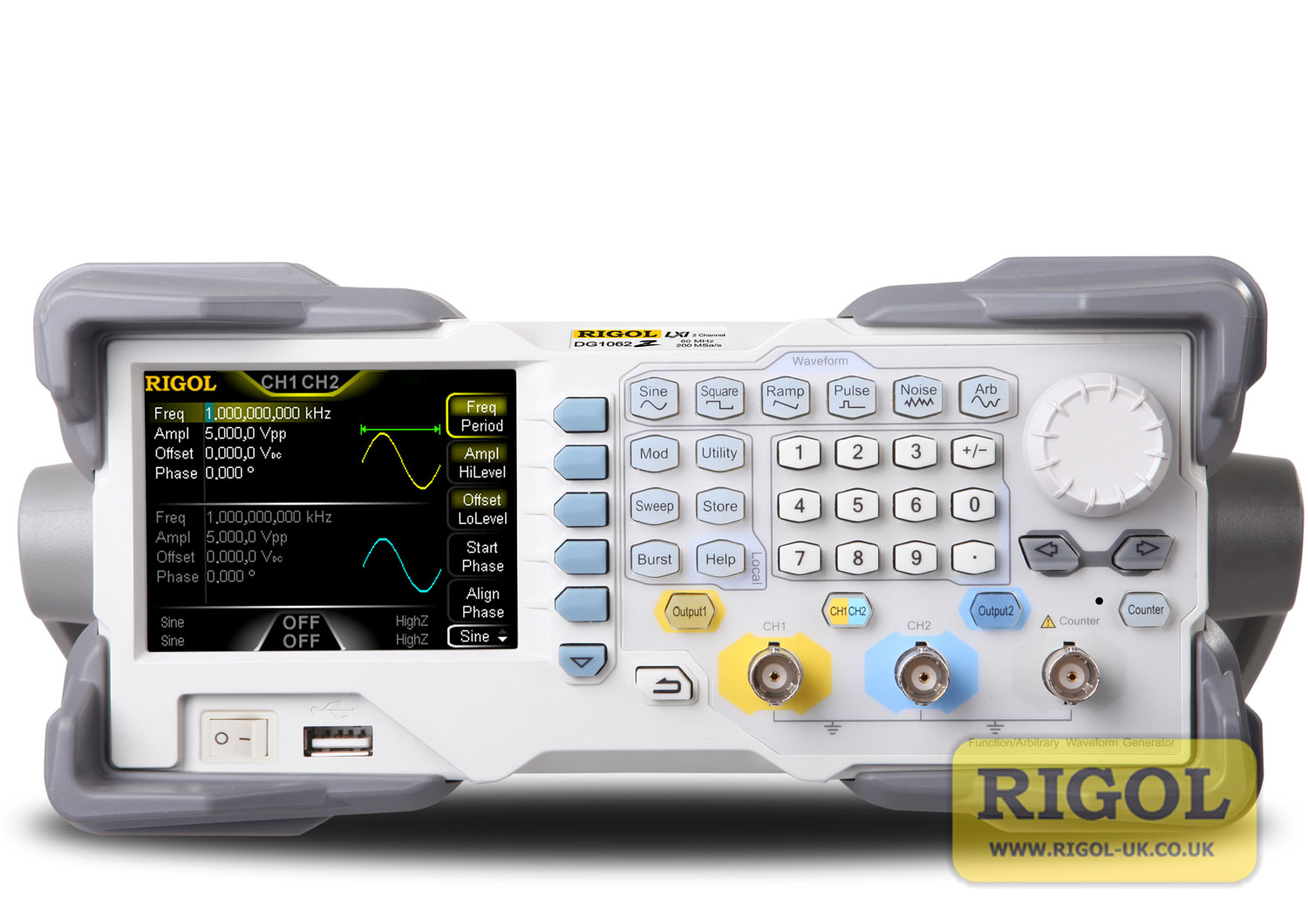

Rigol DG1062Z Function Generator

The DG1062Z function / arbitrary waveform generator is a multi-functional 60MHz generator that combines many functions including; function generator, arbitrary waveform generator, noise source, pulse generator, harmonics generator, analogue / digital modulator and counter. As a multi-function, high performance and portable generator, it will be a valuable asset in education, R&D, production, test and various other environments.

Features:

  • Maximum frequency 60MHz
  • Two fully functional and independent channels
  • 200MSa/s sample rate
  • 14-bit vertical resolution
  • Innovative SiFi (Signal Fidelity) technology
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
  • Up to 16Mpts (optional) arbitrary waveform memory, 8Mpts standard
  • 160 built-in arbitrary waveforms
  • Intuitive arbitrary waveform editing software for PC
  • ±1ppm frequency stability
  • Phase noise <-125dBc/Hz @ 10kHz (f = 10MHz)
  • Built-in 7 digit counter up to 200MHz
  • Built-in 8th order harmonics generator
  • Waveform summing function
  • 3.5″ TFT LCD display (320 x 240), 16M colours
  • Connectivity… LAN(LXI), USB Host & Device, (USB-GPIB Optional)
  • Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide
  • Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing
  • Other options include… 16Mpts memory, 10W power amplifier, 40dB attenuator, rack mount kits (single & dual), USB to GPIB module, RCL Standard Calibration, RCL 17025 Calibration

Product Videos

https://youtube.com/watch?v=itEw14C3NDc%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C DG1022Z Arbitrary Waveform Generator Review
https://youtube.com/watch?v=vsgdYKtoNoE%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Rigol DG1000Z Review
https://youtube.com/watch?v=wPjX7Ahvs9M%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Create Arbitrary Waveforms from an Oscilloscope

Documentation

Datasheets

Waveform Generator DG1000Z Series

Datasheets


Waveform Generator DG1000Z Series datasheets




Datasheet

Rigol DG1000Z Datasheet



User Guide

Rigol DG1000Z User Guide



Application Notes

SiFi Technology in Arb Wave Creation



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • BNC Cable (1.0m)

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • USB Data Cable

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • UK Power Cord

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

Optional Accessories …

  • Rigol USB-GPIB Interface Converter Module

    £110.00
    Add to basket

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • Rigol RA5040K 40dB Attenuator

    £41.00
    Add to basket

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • Rigol Ultra Station Advanced PC Software Licence

    £89.00
    Add to basket

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • BNC Cable (2m)

    £15.75
    Read more

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • BNC Cable (1m)

    £12.60
    Add to basket

    4 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • Rigol RM-1-DG1000Z Rack Mount Kit (Single Instrument)

    £89.00
    Add to basket

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • RCL 17025 Calibration – Rigol DG1000 Series

    £143.85
    Add to basket

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

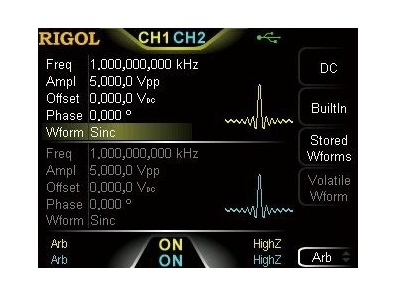

  • Rigol Arb16M-DG1000Z Deep Memory Licence
