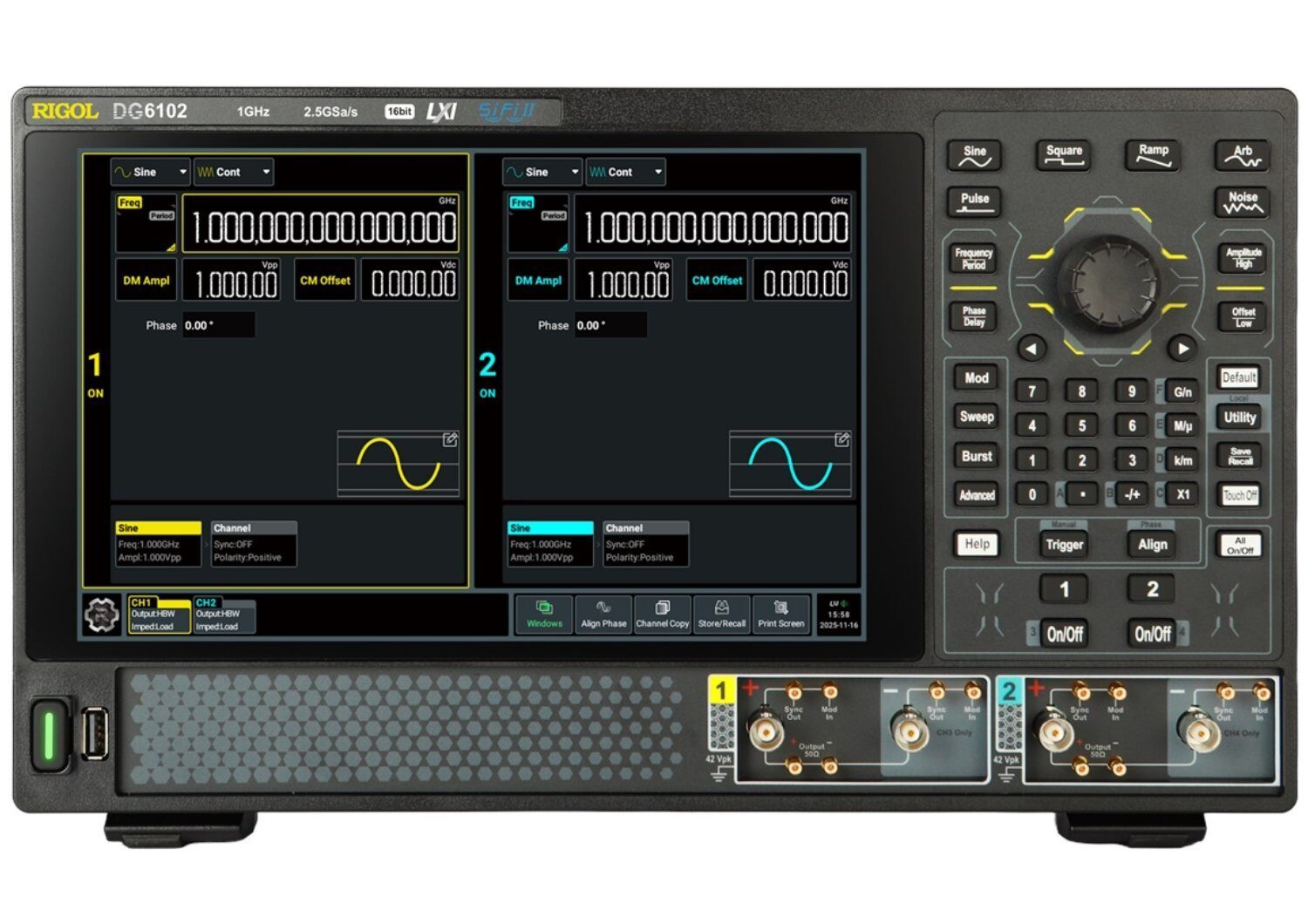

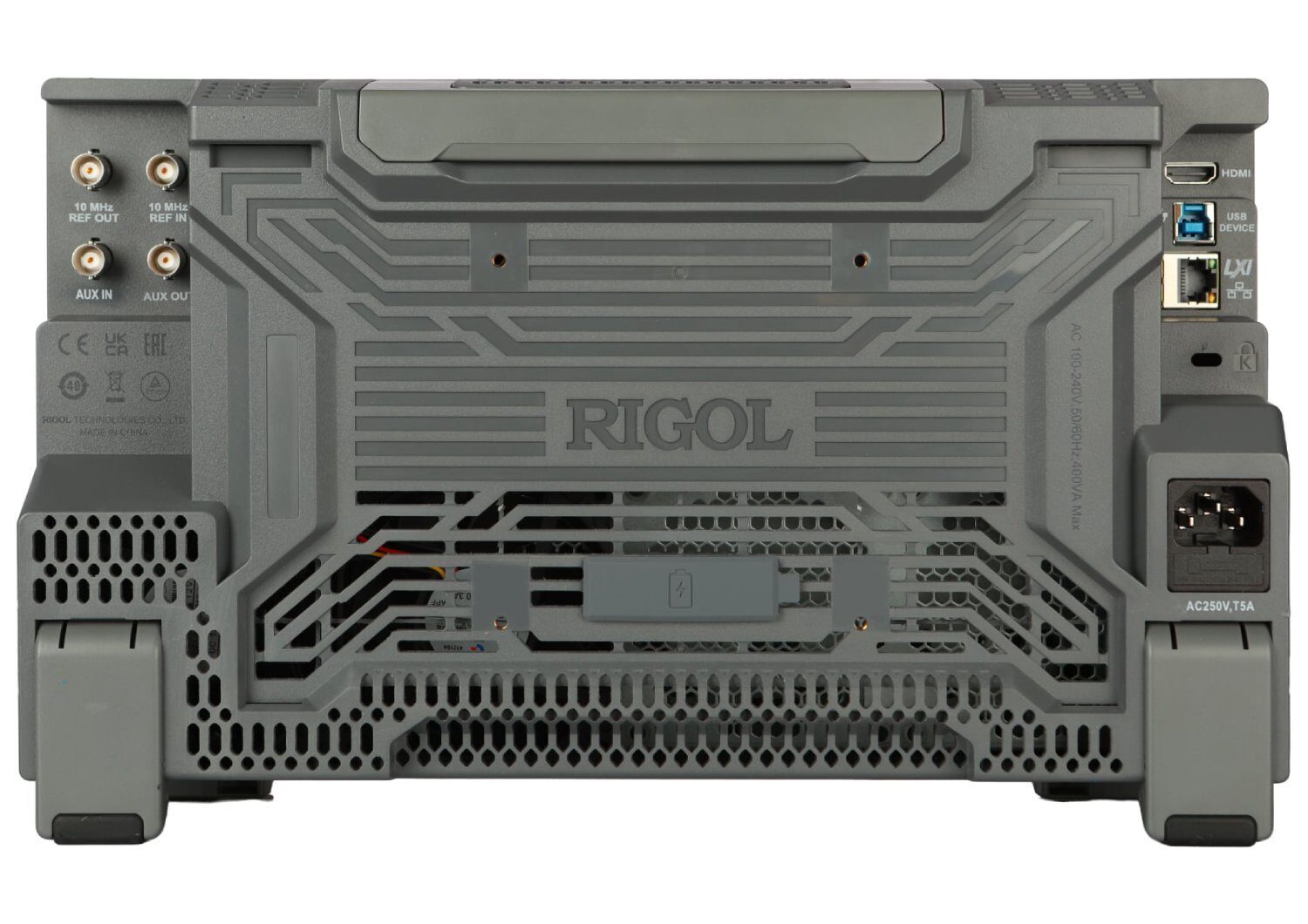

Rigol DG6102 Function / Arbitrary Waveform Generator

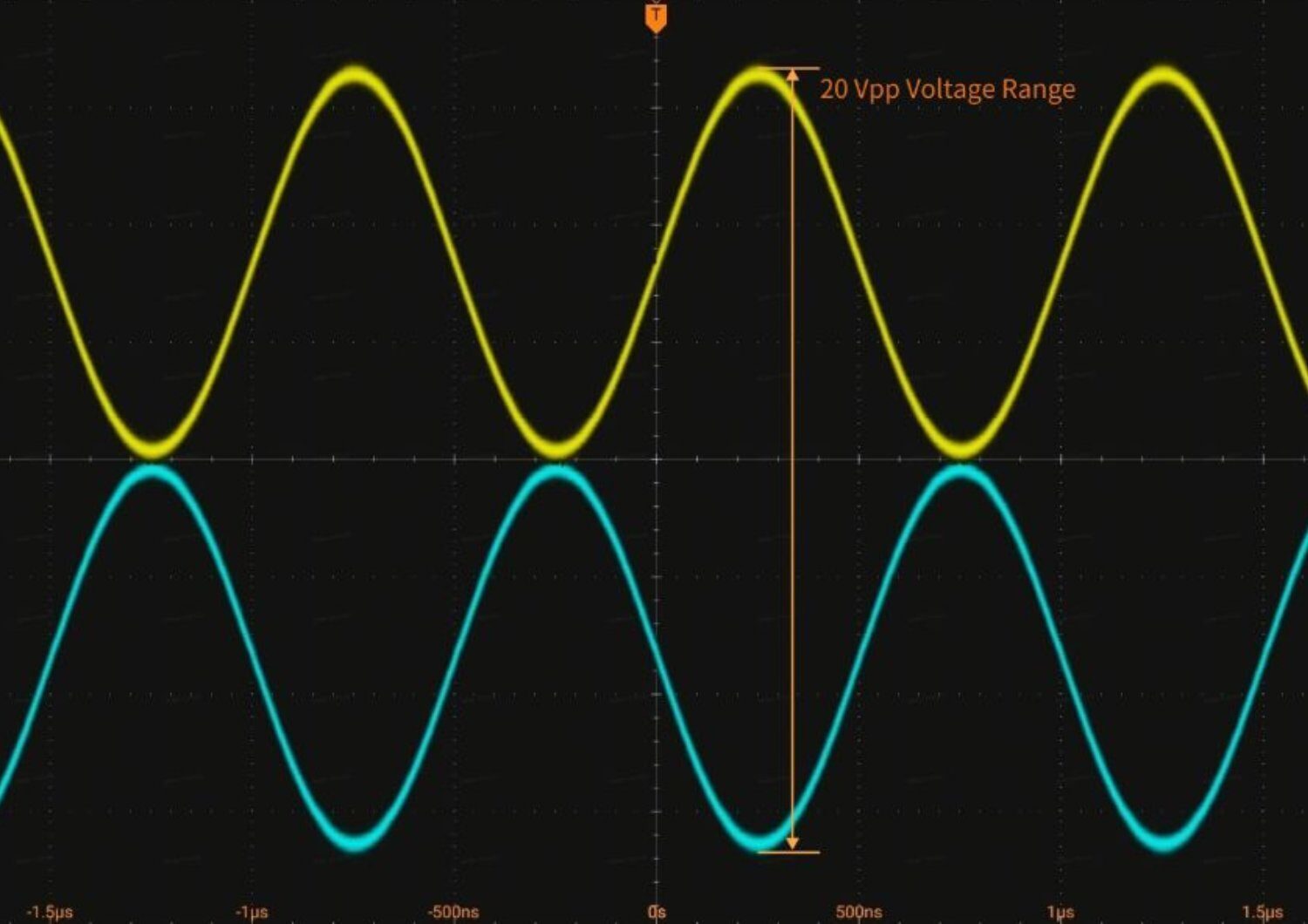

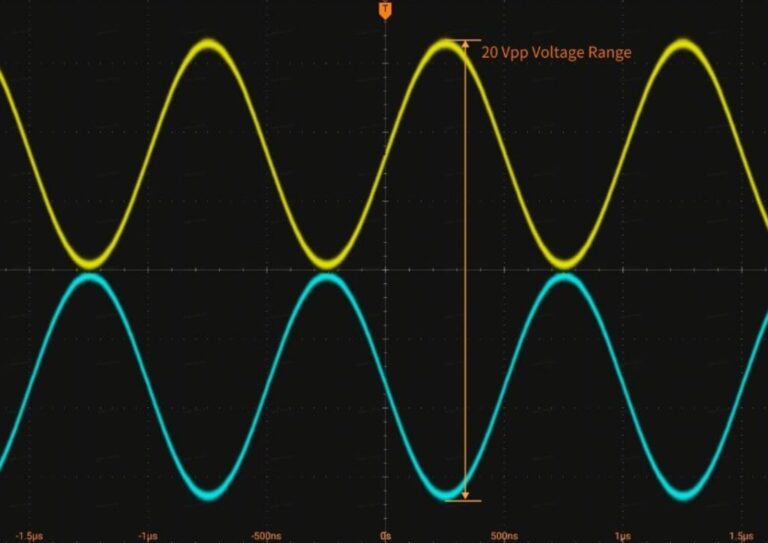

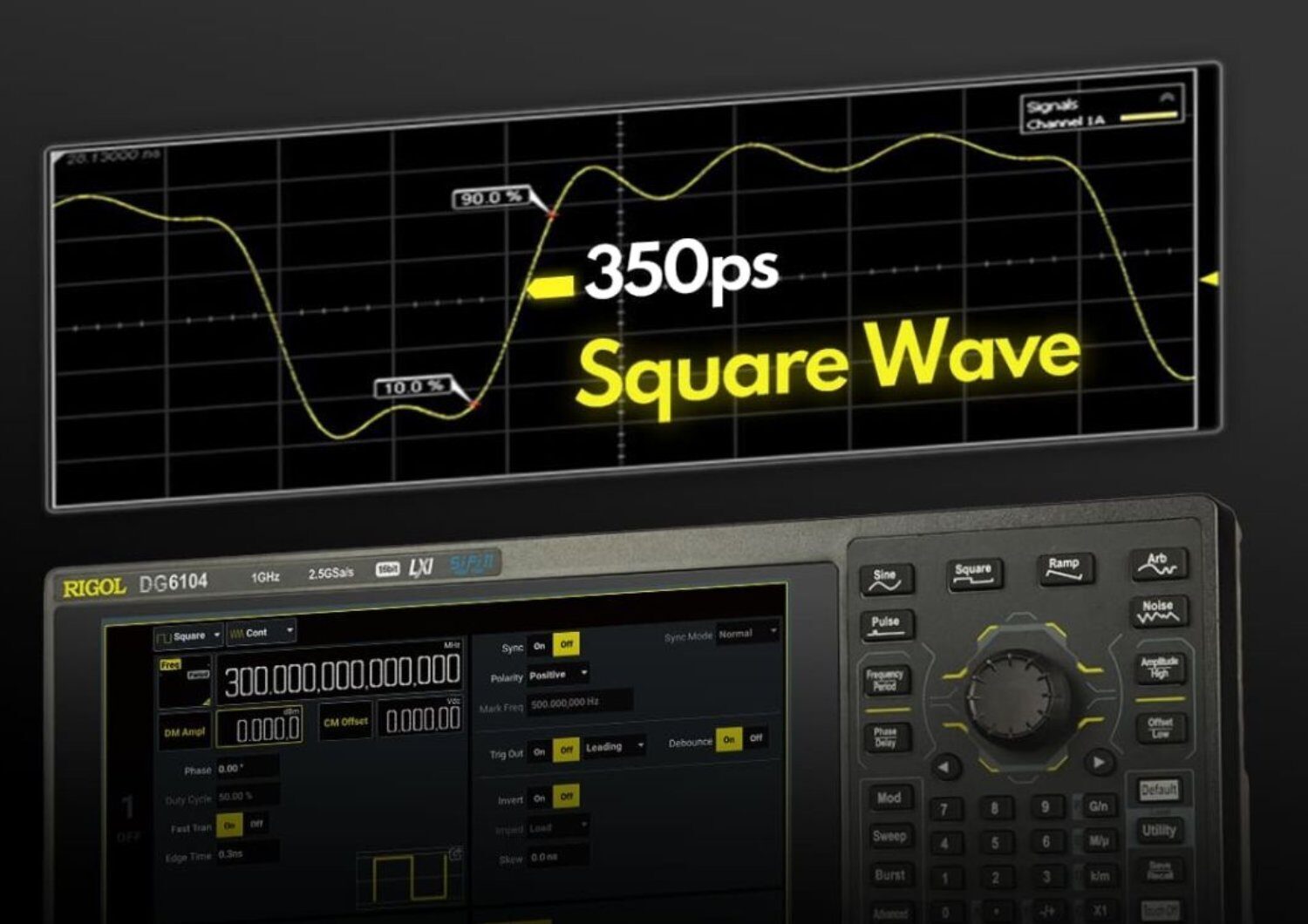

The DG6102 Function / Arbitrary Waveform Generator, part of the RIGOL DG6000 Series, is a high-performance, 2-channel flagship signal source engineered to replace complex test setups with a single, streamlined instrument. By combining a 1 GHz bandwidth and 16-bit vertical resolution with a massive 256 Mpts/CH memory depth, it delivers exceptional signal fidelity for advanced research and semiconductor testing. Its standout feature is the integrated high-voltage differential direct-drive capability, which outputs a powerful 20Vpp signal and an ultra-fast 350ps square wave without the need for external power amplifiers or baluns. Controlled via an intuitive 10.1-inch HD touch display, the DG6000 provides a fully isolated, “all-in-one” excitation source that is as easy to navigate as it is technically formidable.
- Full-channel isolation, clean signal without distortion

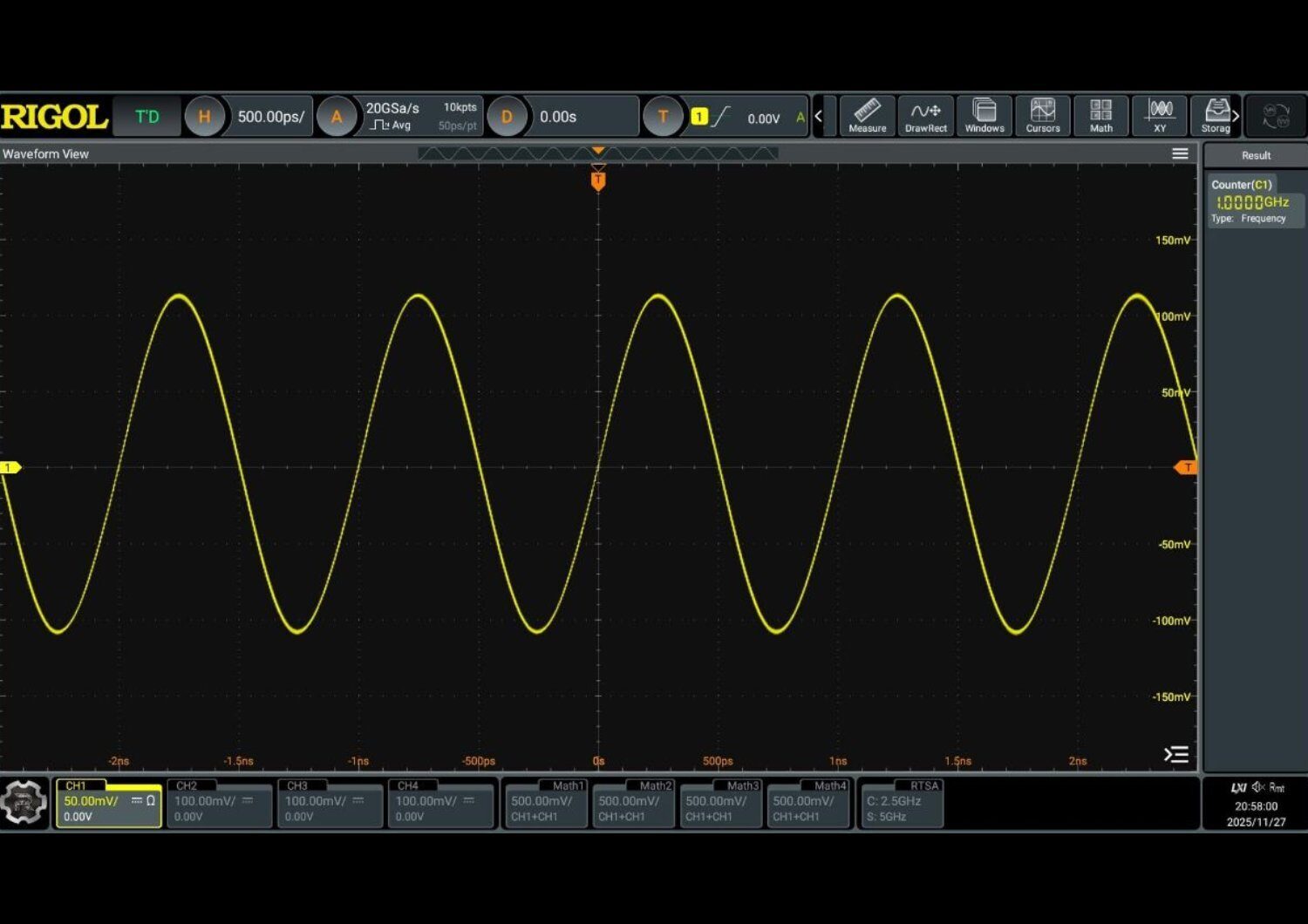

- Max. sample rate: 2.5 GSa/s

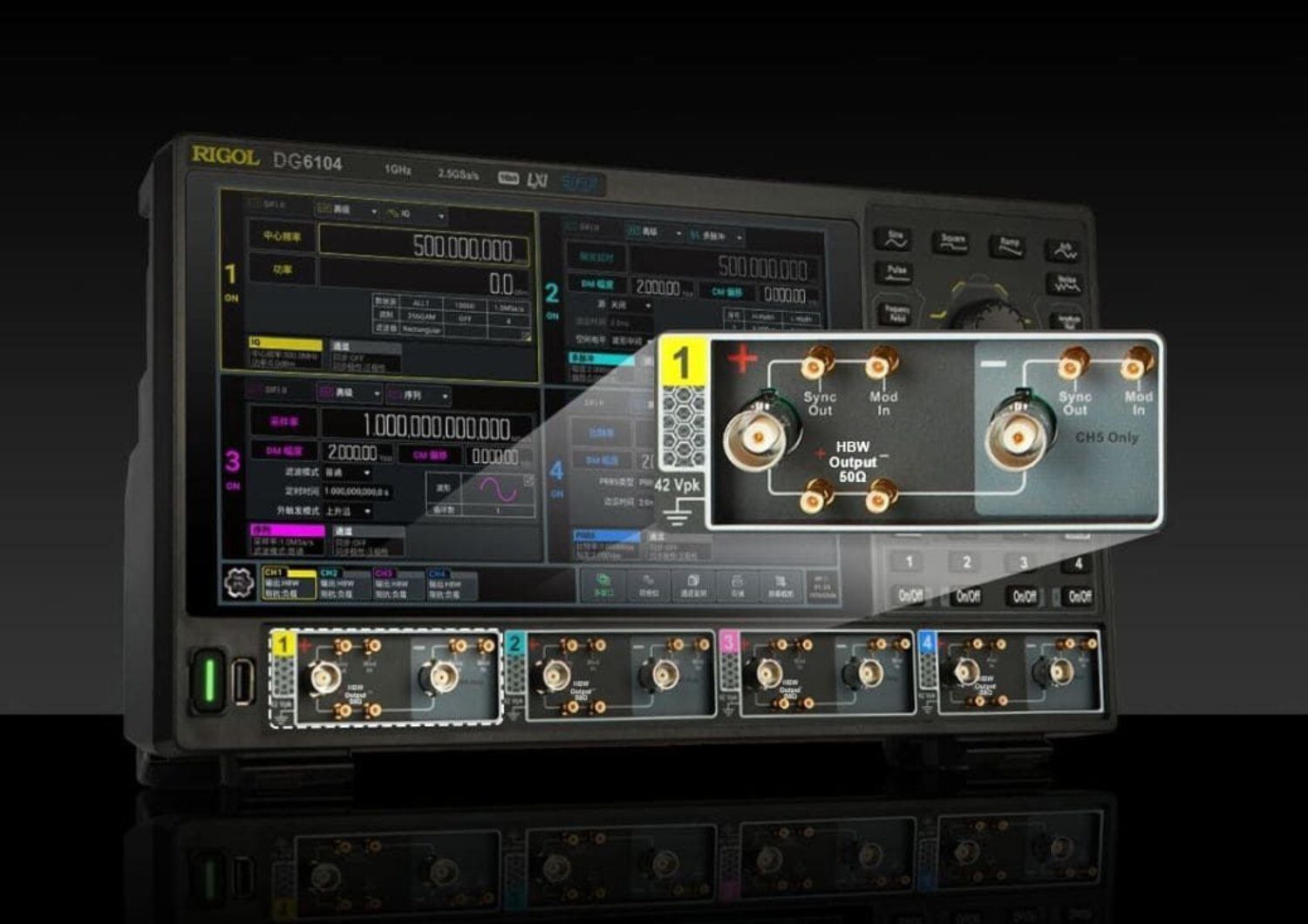

- Support 1 GHz bandwidth differential signal output and ±10 V high-voltage differential signal output
- Vertical resolution: 16 bits
- A maximum Arb waveform length of 256 Mpts/CH (512 Mpts/CH optional)
- Built-in high-order harmonic generator (max. 20th order)

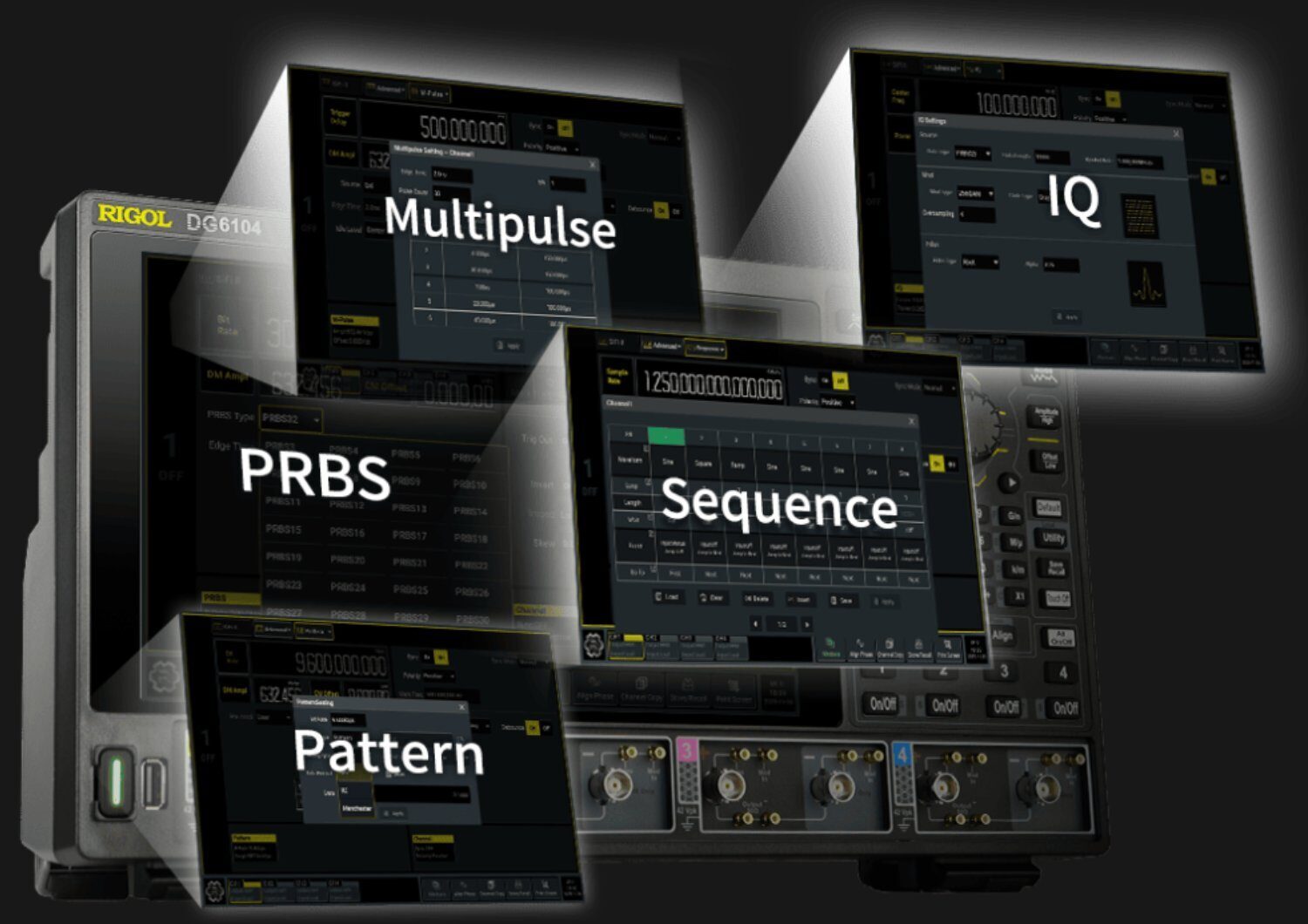

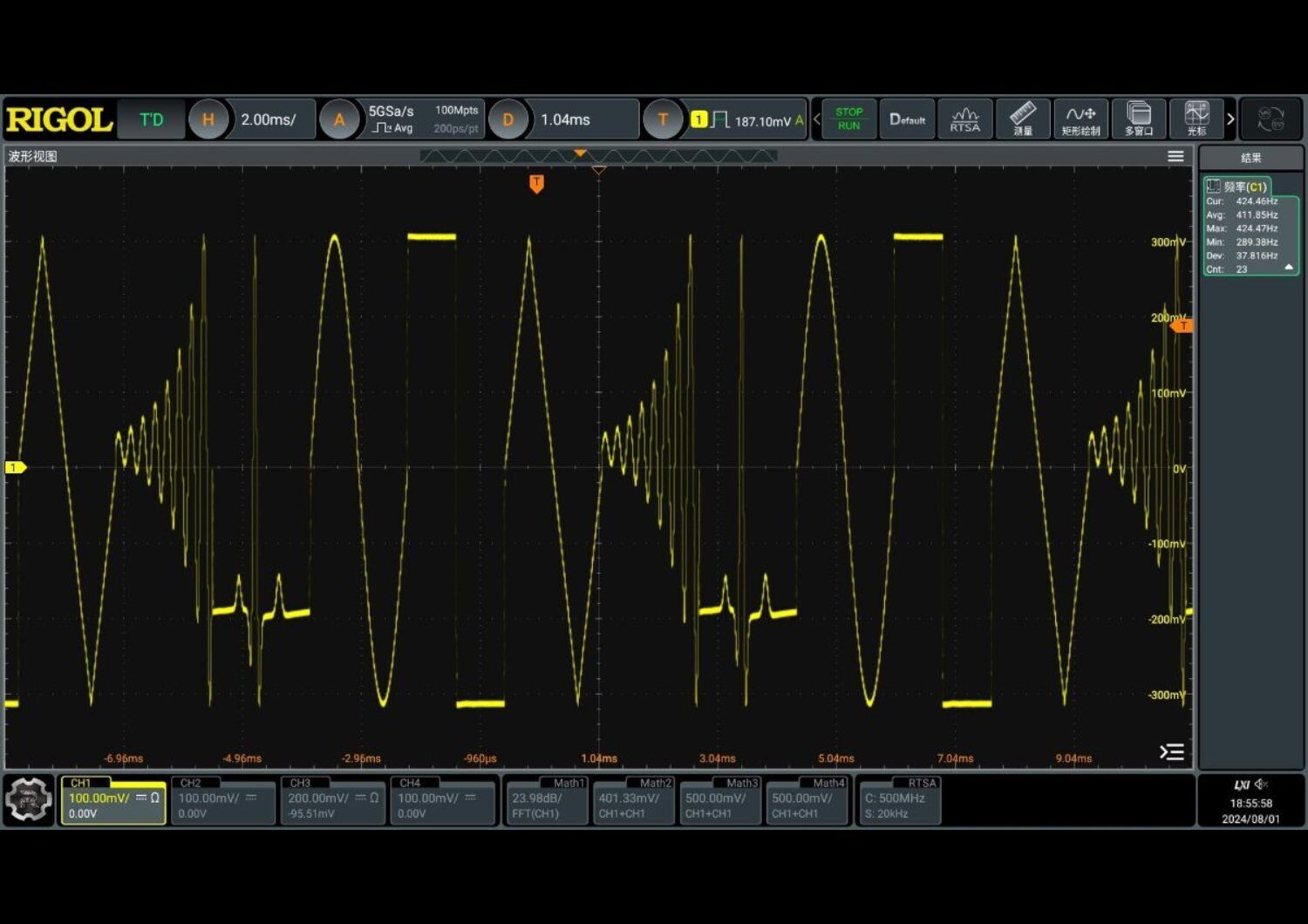

- Standard: Sequence, PRBS, Multi-pulse, Multi-tone, Pattern, IQ, and Advanced Arb
- 10.1'' colour touch screen, allowing you to configure and view the waveform parameters at the same time
- Standard Web Control function for easier remote cooperation
- Built-in Arb waveform editing function or PC software, Ultra Station, to generate Arb waveforms
- SiC/GaN gate drive signal simulation
High-speed Digital Circuit:
- Clock source jitter tolerance test
- Logic level verification & eye diagram analysis
Automotive Electronics and Buses:
- Automotive Ethernet
- CAN-FD differential signal simulation
- Anti-Interference testing
Advanced Scientific Research Experiment:
- Advanced computing bit control pulse generation
- Multi-Channel synchronous physical experiments
