Rigol DG4162 160MHz Function / Arbitrary Waveform Generator

£856.00 (£1027.20 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability

Description

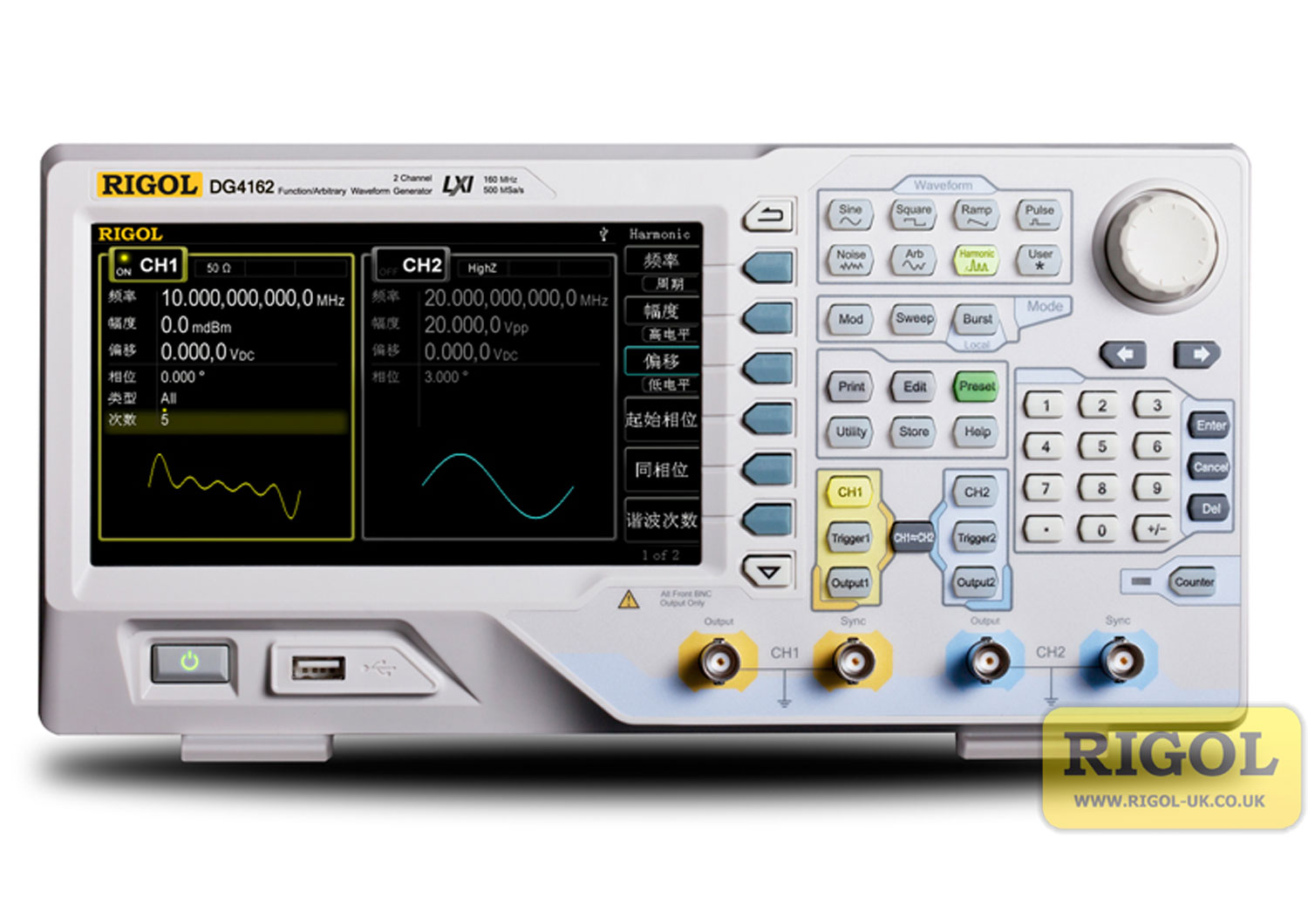

Rigol DG4162 Function Generator

The DG4162 is a 160MHz, 2CH Function Generator with a maximum sampling rate of 500MSa/s. Rigol’s award winning waveform generator, the DG4000 series is part of a new family of fast, easy-to-use, ultra-modern test instruments. The DG4000 is a multifunctional generator that helps accomplish a range of testing by combining many functions into one instrument. Functions include Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, and Analogue / Digital Modulation and Counting. The DG4000 utilises Direct Digital Synthesiser (DDS) technology, which delivers stable, precise, low distortion signals. The sleek new design features a high resolution display screen, while user-friendly interface design and panel layout improves efficiency.

Features:

  • Maximum frequency 160MHz

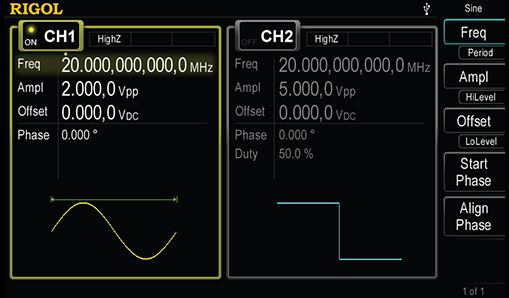

  • Two fully functional and independent channels
  • 500MSa/s sample rate
  • 14-bit vertical resolution
  • ±2ppm frequency stability
  • Phase noise <-115dBc/Hz @ 10kHz (f = 10MHz)

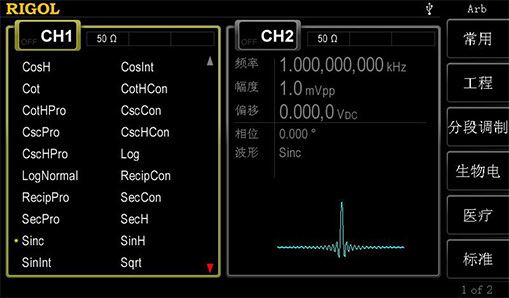

  • 150 built-in arbitrary waveforms
  • Intuitive arbitrary waveform editing software for PC
  • 16kpts arbitrary waveform length per channel
  • Built-in 7 digit counter up to 200MHz

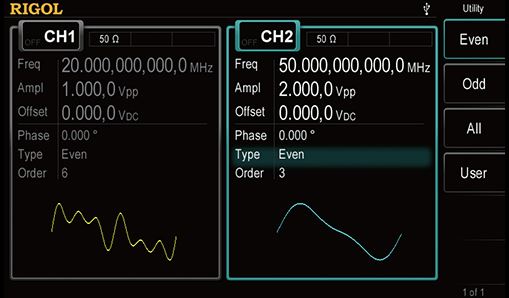

  • Built-in 16th order harmonic generator

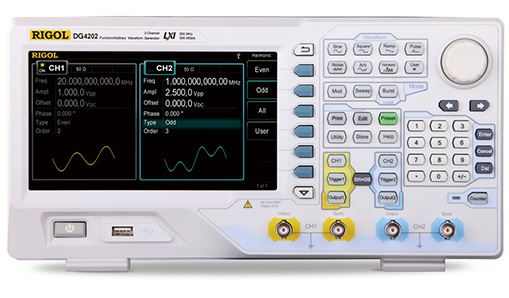

  • 7″ LCD display (800 x 480)
  • Supported modulation… AM, FM, PM, ASK, FSK, PSK,BPSK, QPSK, 3FSK, 4FSK, OSK & PWM

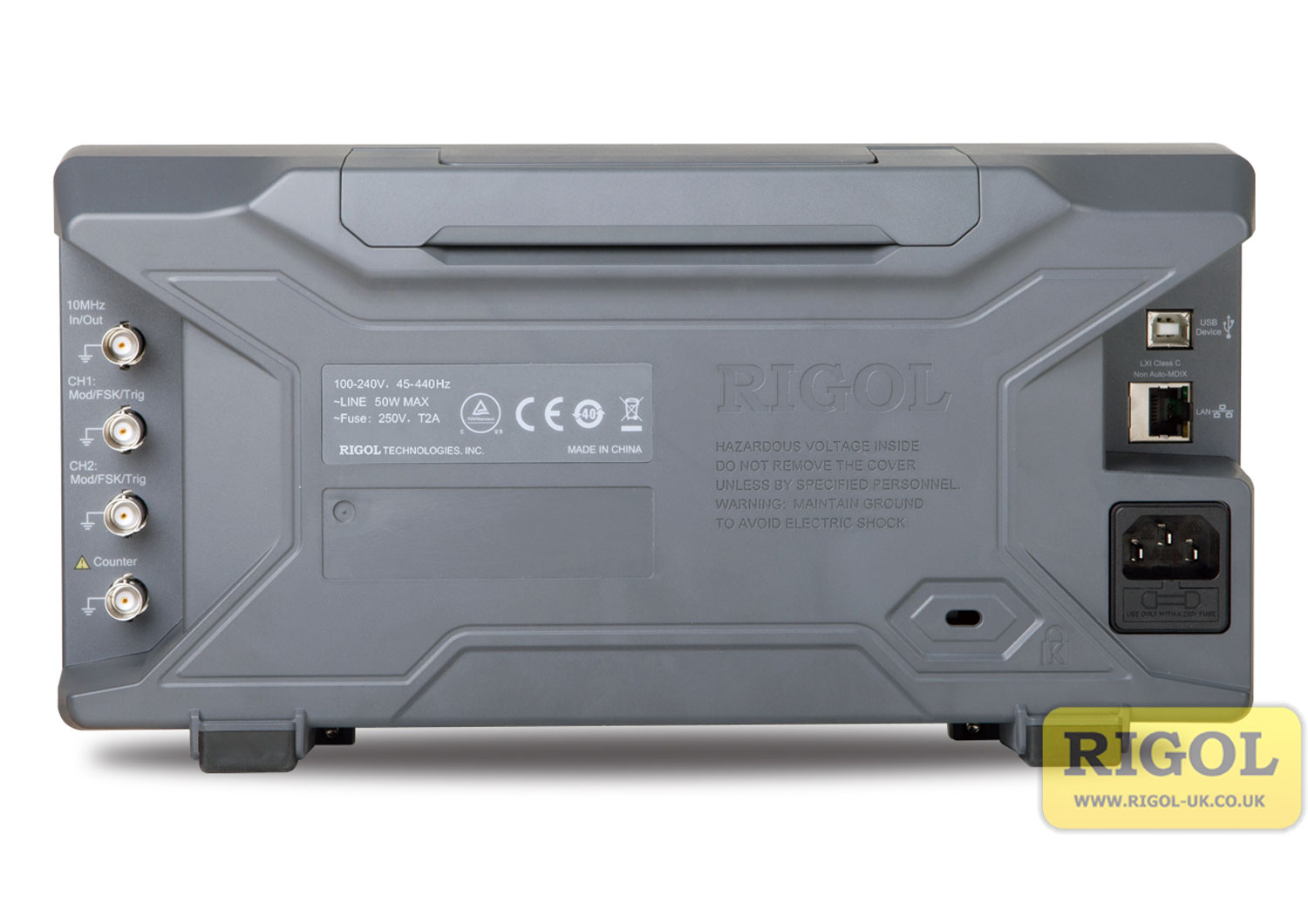

  • Connectivity… LAN(LXI), USB Host & Device
  • Supplied with… BNC cable, USB cable, UK & European mains leads, quick guide
  • Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing
  • Other options include… 10W power amplifier, 40dB attenuator, rack mount kit, soft carry bag, RCL Standard Calibration, RCL 17025 Calibration

Product Videos

https://youtube.com/watch?v=ymNNMudLtj8%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Rigol DG4000 Review
https://youtube.com/watch?v=hL8aQCdYwrw%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C Creating a Basic Waveform
https://youtube.com/watch?v=XO03vGSvr2Y%3Ffeature%3Doembed%22+frameborder%3D%220%22+allow%3D%22accelerometer%3B+autoplay%3B+clipboard-write%3B+encrypted-media%3B+gyroscope%3B+picture-in-picture%22+allowfullscreen%3E%3C DG4000 Harmonic Function

Documentation

Datasheets

Waveform Generator DG4000 Series

Datasheets


Waveform Generator DG4000 Series datasheets




Datasheet

Rigol DG4000 Datasheet



User Guide

Rigol DG4000 User Guide



Specifications

Rigol DG4000 Specifications



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Mandatory Accessories …

  • USB Data Cable

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • UK Power Cord

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • BNC Cable (1.0m)

    £0.00

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

Optional Accessories …

  • BNC Cable (1m)

    £12.60
    Add to basket

    4 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • Rigol BAG-G1 Soft Carry Bag

    £116.00
    Add to basket

    5+ In UK Stock

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability
  • BNC Cable (2m)

    £15.75
    Read more

    Available on back-order, delivery normally 1 week

    Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

    Rigol Availability

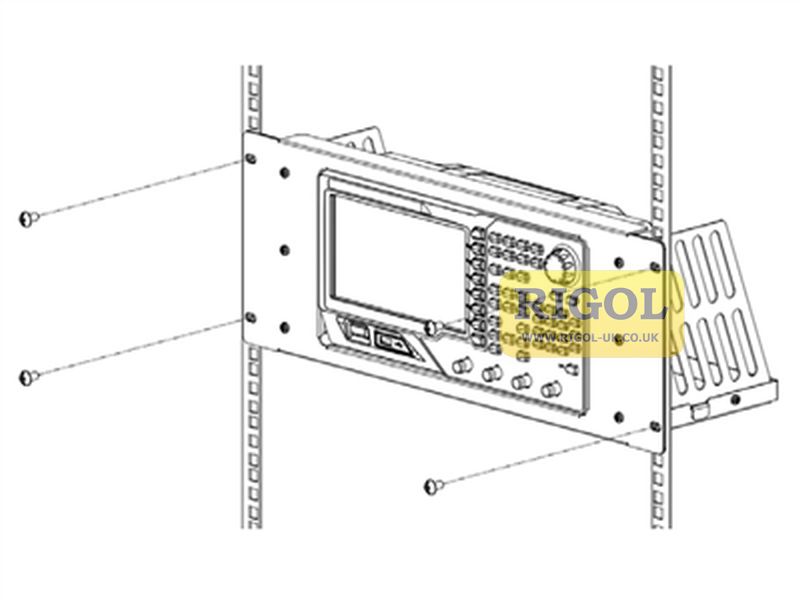

  • Rigol RM-DG4000 Rack Mount Kit
