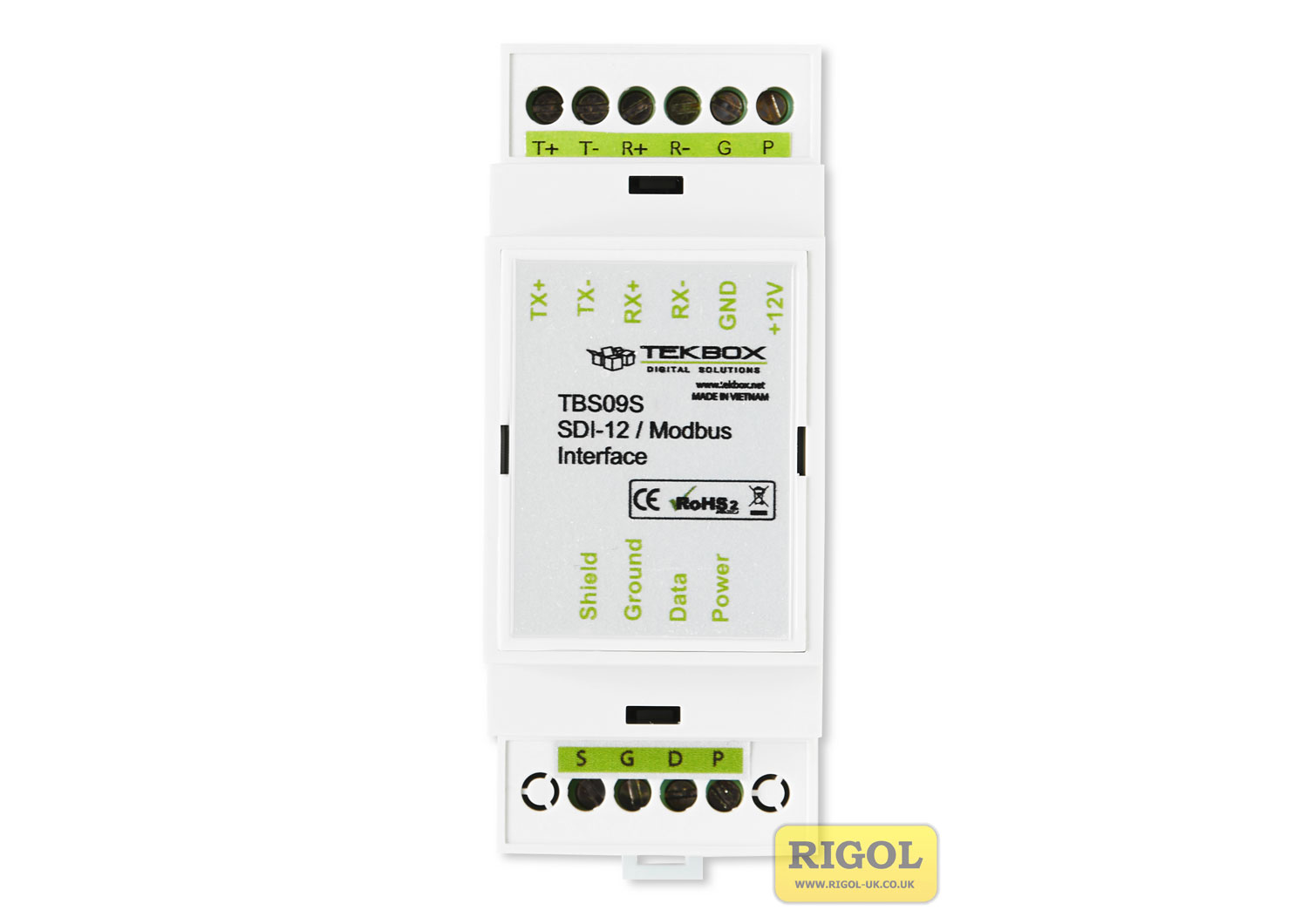

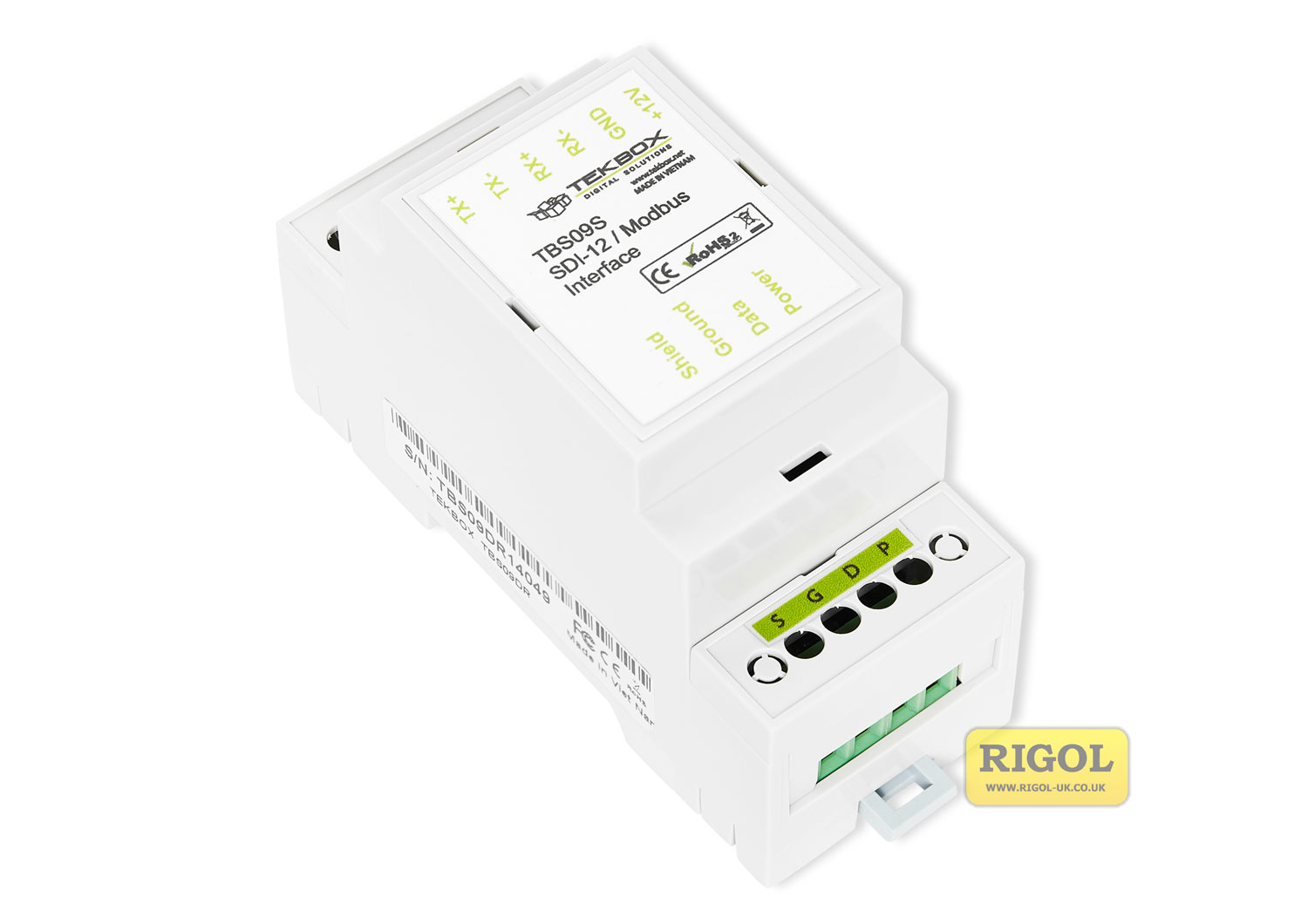

Tekbox TBS09S MODBUS MASTER TO SDI 12 SLAVE CONVERTER

(£0.00 inc VAT)

SKU: TBS09S Category:

Description

The TBS09S is a converter which connects an SDI-12 sensors to Modbus. It can connect multiple SDI-12 sensors in parallel by setting the corresponding address.

Specifications:

  • Modbus Master to SDI 12 Slave Converter
  • Multiple sensors can be connected
  • SDI-12 Standard V1.3
  • Highly configurable
  • Switched sensor supply voltage output
  • 6 – 16V supply voltage
  • 7mA current consumption when active
  • Less than 100µA idle current
  • Operating Temperature Range:  – 40°C … + 80°C

Target Application:

  • SDI-12 sensor networks

Please Call For More Information On Pricing!
