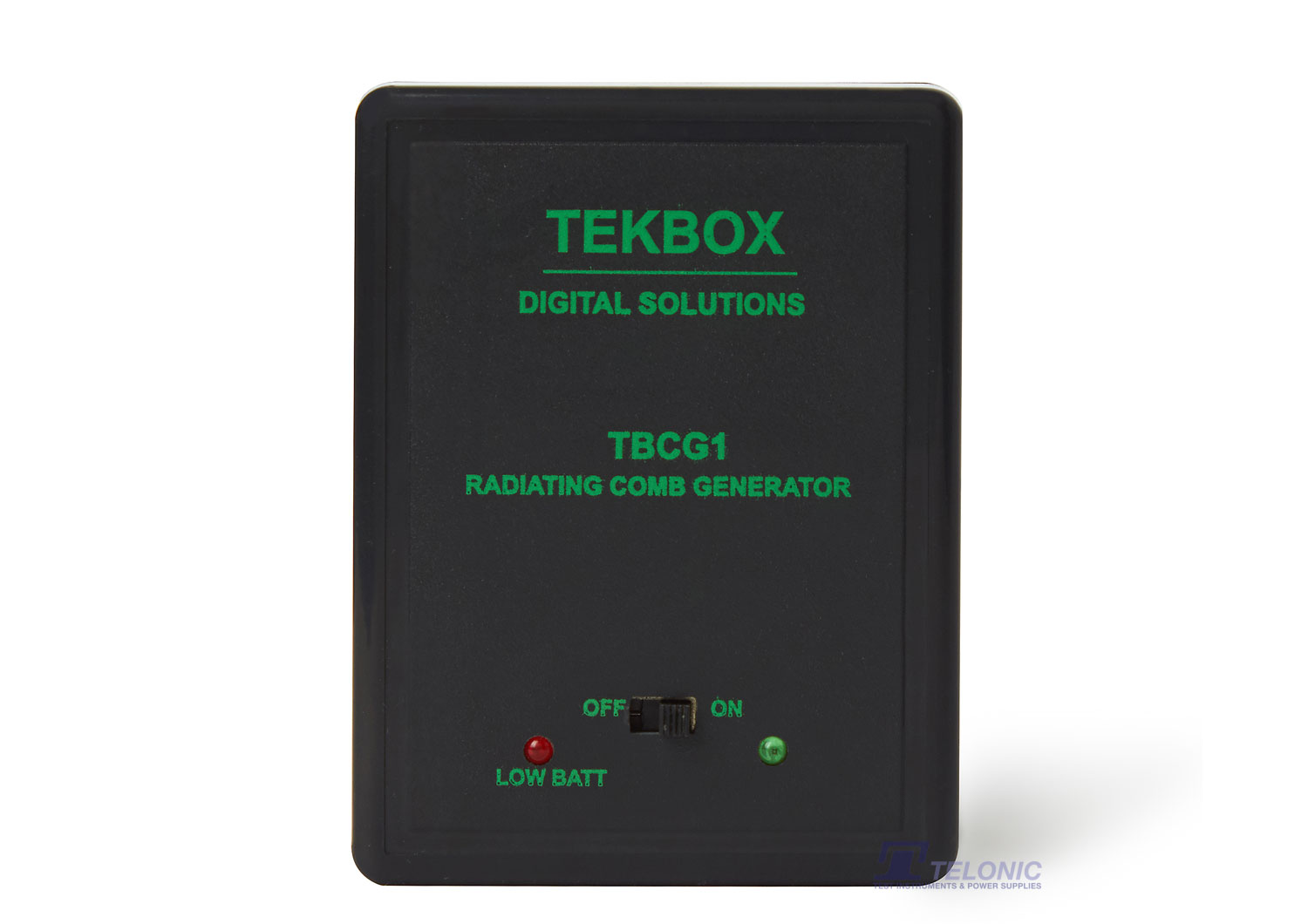

TEKBOX TBCG1 Radiating Comb Generator

£92.90 (£111.48 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBCG1 Categories: , , ,


The TBCG1 is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. The comb generator is built and characterized to serve as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.

It is a portable device, powered by a 9V alkaline cell.


  • Base Frequency: 100MHz
  • Characterised Comb Spectrum: 30MHz – 6GHz
  • Tolerance: +/- 2.5dB
  • Power Supply: 9V PP3 (E-block) alkaline battery
  • Current Consumption: 175mA
  • Dimensions: 80mm x 61mm x 27mm
  • Weight Including Battery: 76g
