TEKBOX TBAS2 RF Attenuation & Termination Set

£139.82 (£167.78 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description

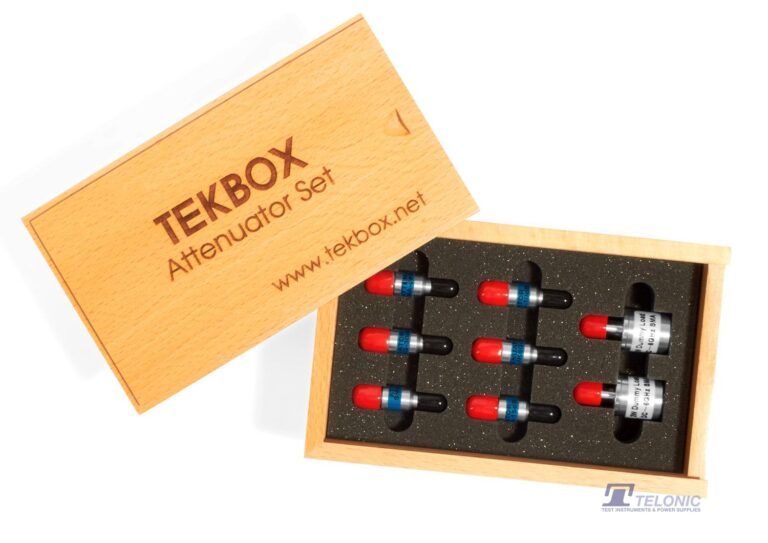

The Tekbox TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.

Specification:

  • Attenuation: 3dB, 6dB, 10dB & 15dB (±0.5dB), 20dB & 30dB (±0.8dB)
  • Frequency Range: DC – 6GHz
  • VSWR: <1.2:1
  • Power Rating: 2W @ -55°C to 70°C, Up to 125°C with 50% power de-rating
  • Connectors: SMA-type male / SMA-type female, bidirectional
  • Impedance: 50Ω
  • Frequency Range: DC – 6GHz
  • VSWR: <1.1:1
  • Power Rating: 2W @ -55°C to 70°C, Up to 125°C with 50% power de-rating
  • Connector: SMA-type male
  • Box: Beech Wooden Box
  • Dimensions: 150 x 95 x 45mm
  • Weight: 490g

Documentation

Specifications
Attenuators3, 6, 10, 15 dB      +/- 0.5 dB
20, 30 dB             +/- 0.8 dB
Frequency RangeDC – 6GHz, VSWR <1.3
Power rating1W @ -40 to 70°C; up to 70°C with 50% power de-rating
ConnectorsSMA-male/SMA-female; bidirectional
Termination50 Ohm
Frequency RangeDC – 6GHz, VSWR <1.2
Power rating1W @ -40 to 70°C; up to 70°C with 50% power de-rating
ConnectorsSMA-male
Dimensions150mm x 95mm x 45mm
Weight490g
