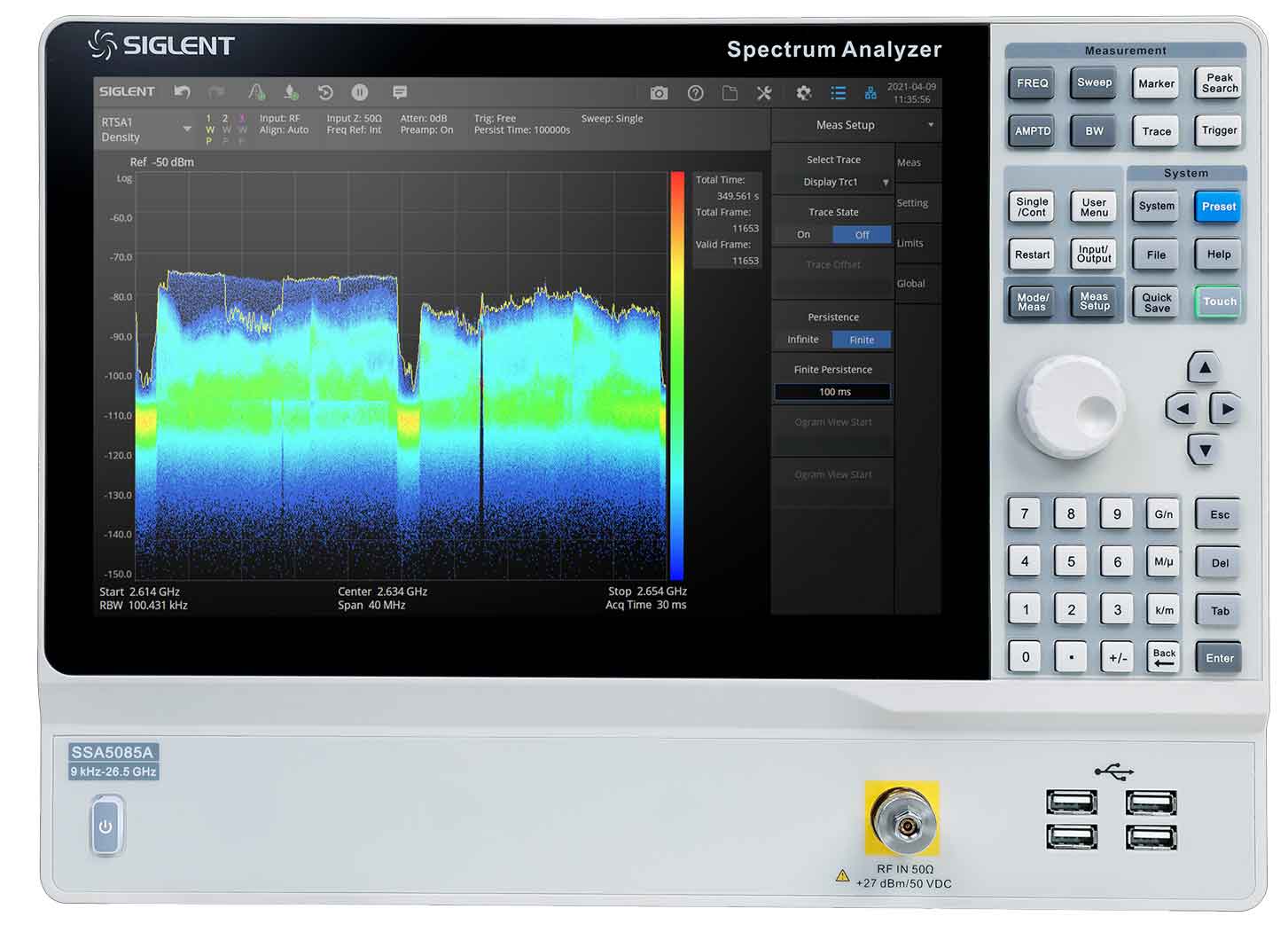

Siglent SSA5083A 13.6GHz Spectrum Analyser

£14267.00 (£17120.40 inc VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free RK Kit Price Match Guarantee


Siglent SSA5083A 13.6GHz Spectrum Analyser

The Siglent SSA5083A has a Minimum Resolution Bandwidth of 1Hz and a Frequency Range of 9kHz to 13.6GHz. SIGLENT’S SSA5000A spectrum analysers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.


  • Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)

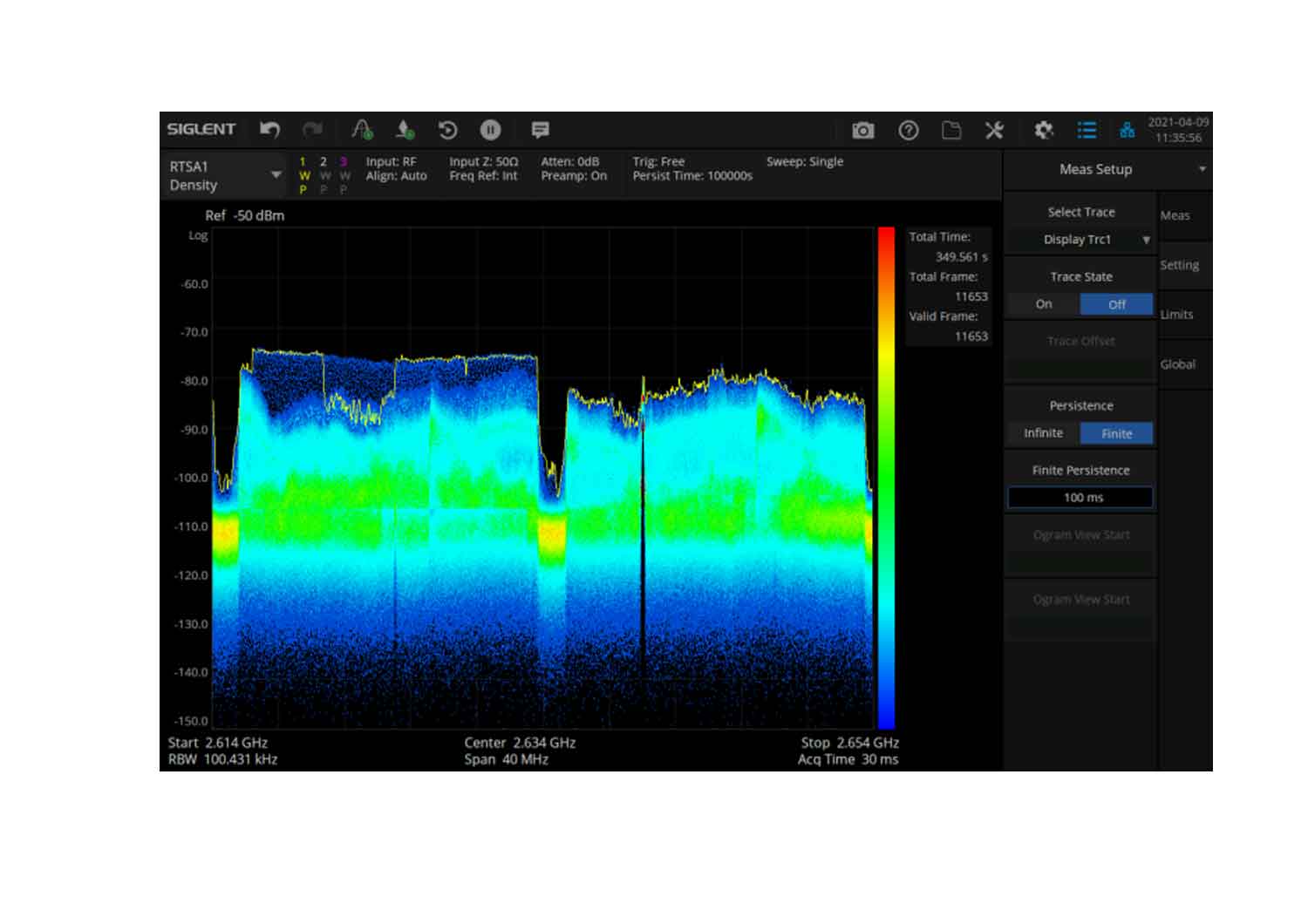

  • 25 MHz/40 MHz Real Time Analysis Bandwidth (opt)
  • 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT

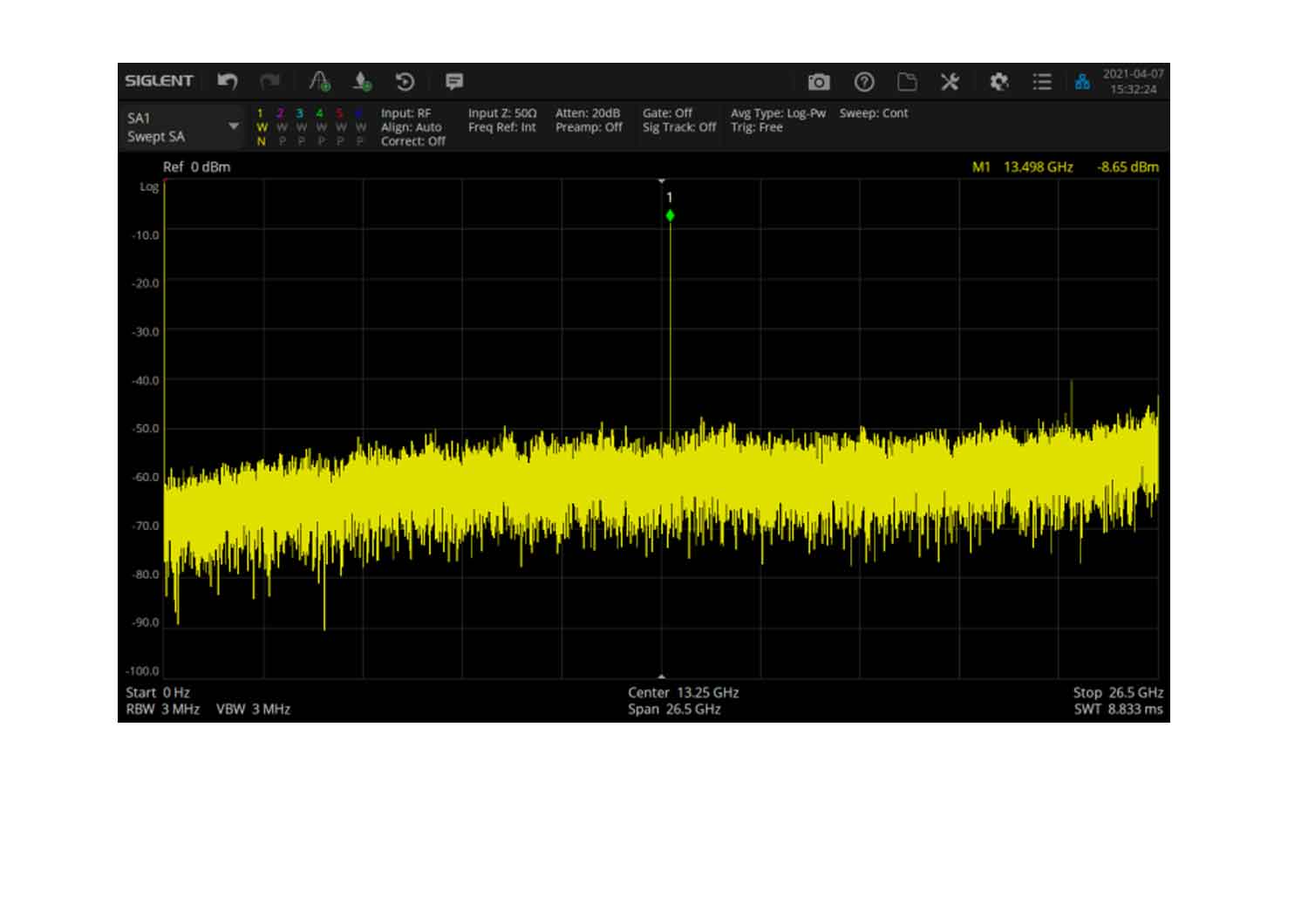

  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc. (opt)

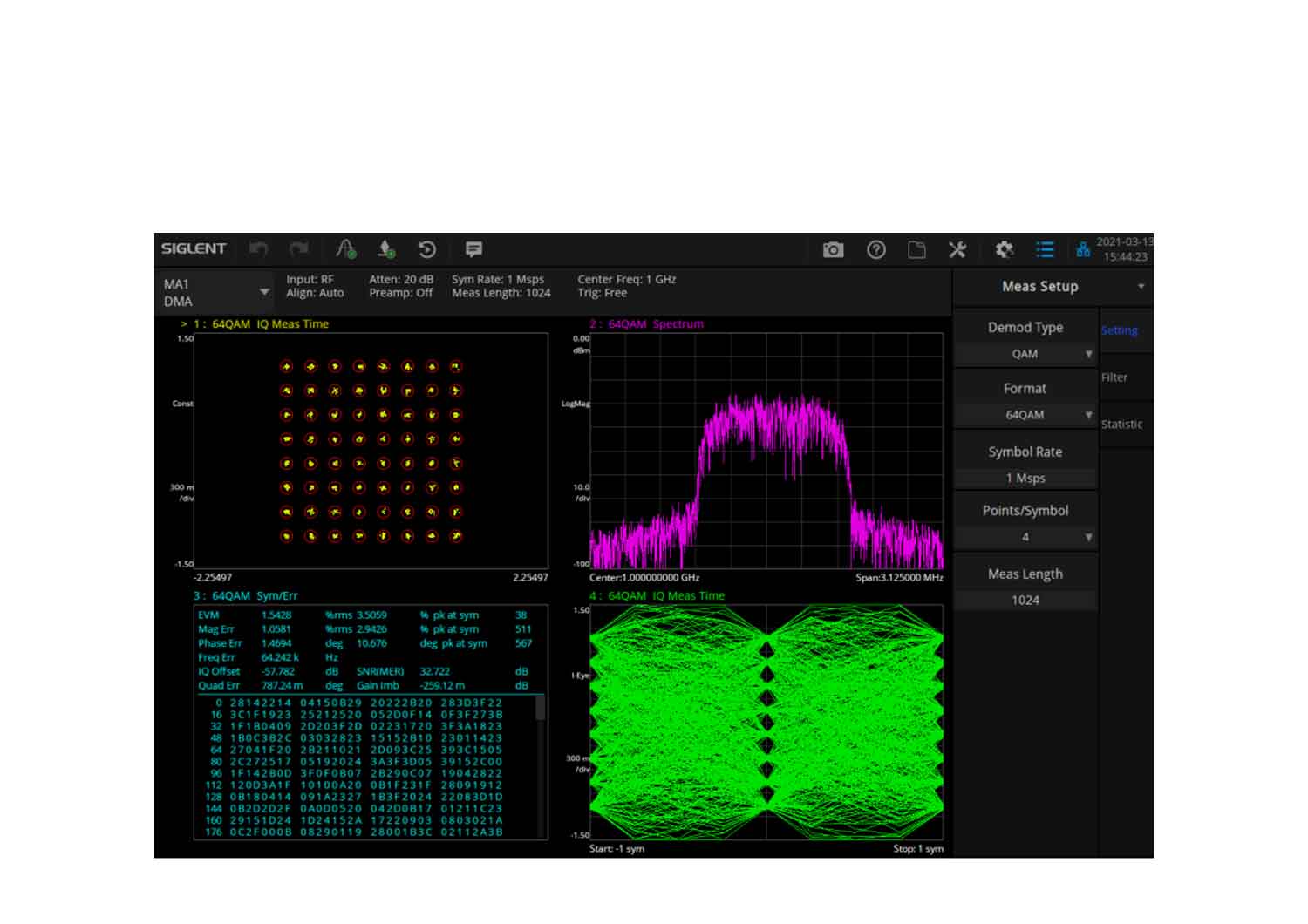

  • Analog Modulation Analysis and Vector Digital Modulation Analysis (opt)
  • 12.1 inch Multi-Touch Screen, HDMI output
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Siglent SSA5000A Series Spectrum Analyser Comparison Table

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL)
SSA5083A 9kHz to 13.6GHz 1Hz to 10MHz <- 105dBc/Hz <0.5dB -165dBm/Hz
SSA5085A 9kHz to 26.5GHz 1Hz to 10MHz <- 105dBc/Hz <0.5dB -165dBm/Hz
