TBCG3-RN6 COMB GENERATOR

£1585.83 (£1903.00 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBCG3-RN6 Category:

Description

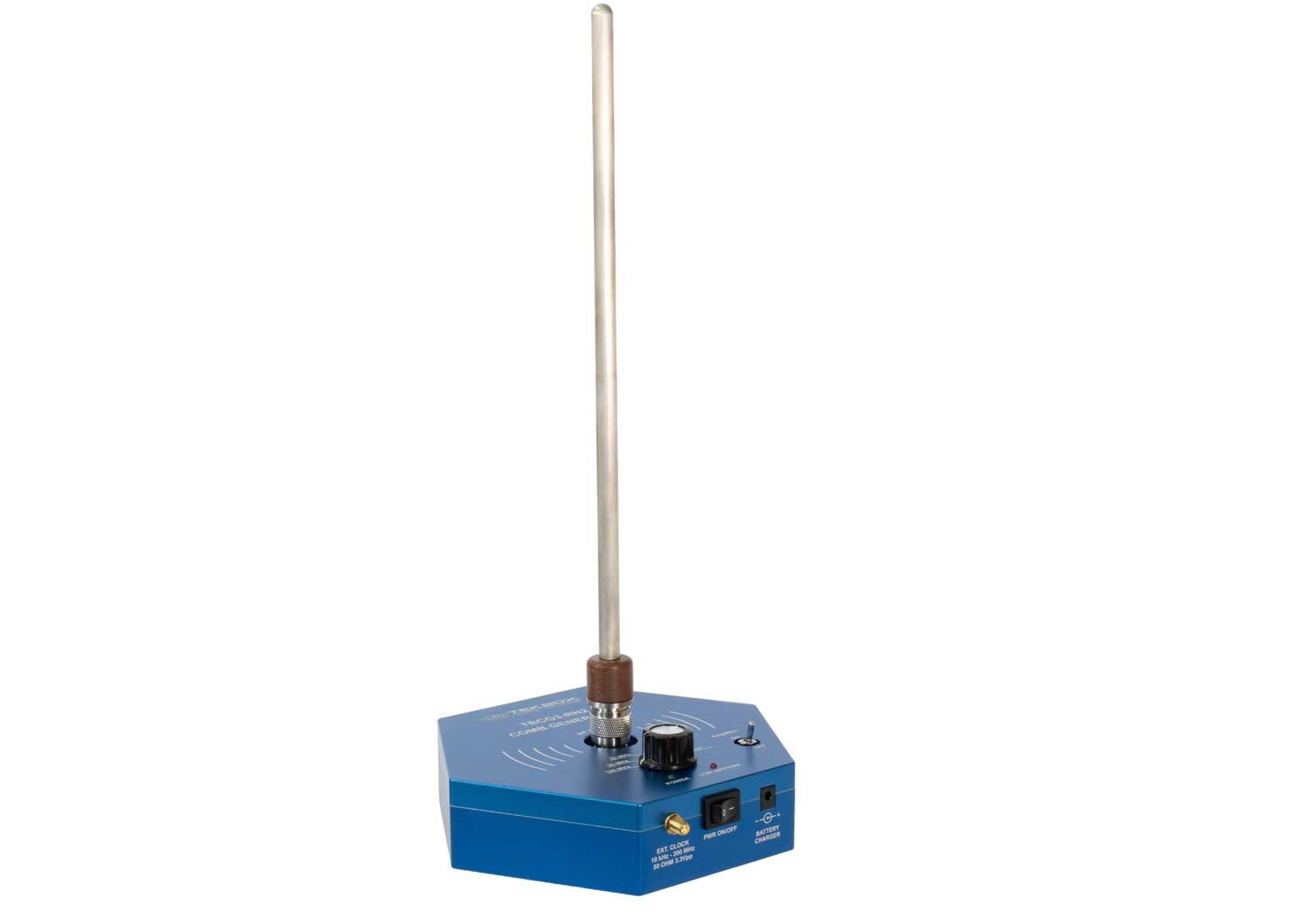

Tek Box TBCG3-RN6 COMB GENERATOR

The TBCG3-RN6 comb generator is primarily intended for testing radiated emission setups. It is a useful tool for validating the proper operation of the antenna and pre-amplifier, as well as the accurate set-up and configuration of the spectrum analyzer. It is well characterized in an anechoic chamber and the radiated emission plots can be used as a reference to compare an EUT in a non-ideal setup against the comb generator in the same location.
You can select between five fixed comb frequencies and an external comb frequency input with a range of 5 kHz to 200 MHz using a rotary switch.
The comb generator comes with two monopole antennas, a 30 cm monopole for frequencies up to 300-500 MHz and a 10 cm monopole for frequencies above that.
The radiated comb spectrum is characterized from 5 MHz – 6 GHz.
The TBCG3-RN6 has a 50 Ohm output with a female N-connector. The device runs on six AA NiMH batteries and comes with an external charger.

The housing is machined of solid aluminium. The bottom panel has a 1/4″ – 20 UNC thread that accepts regular tripod bolts.

Features:

  • Characterized frequency range: 5 MHz – 6 GHz
  • Comb spectrum flatness up to 2 GHz: typically 10 dB at the RF connector
  • Comb spectrum flatness up to 6 GHz: typically 40 dB at the RF connector
  • Output impedance: 50 Ohm
  • Output power: 0 dBm max. @ 100 MHz f comb; decreasing 6 dB with every fcomb/2
  • Amplitude stability: < 0.2 dB; <0.1 dB after 15 minutes
  • Aging: < 0.5 dB over 12 months
  • Output connector: N-female
  • Selectable, fixed comb frequencies: 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz
  • Frequency stability: 50 ppm
  • External excitation input: 5 kHz – 200 MHz @ square input signal; 3.3 Vpp max, 100 kHz – 200 MHz @ sinus input signal; 3.3 Vpp max
  • External input impedance: 50 Ohm
  • Input connector: SMA-female
  • Indicators: Power On LED, Low Battery LED
  • Power supply: 6 x AA NiMH (e.g. Varta Mignon 2700, not supplied)
  • Charger: external; Ansmann ACS310
  • Antennas: 30 cm monopole for f<300 … 500 MHz; 10 cm monopole for f>300…500 MHz
  • Operation time: battery capacity / 91 mA
  • Temperature range: -10°C to +45 °C; lower operating temperature depending on batteries
  • Housing diameter: 180 mm
  • Housing height: 60 mm
  • Weight: 1250 g
