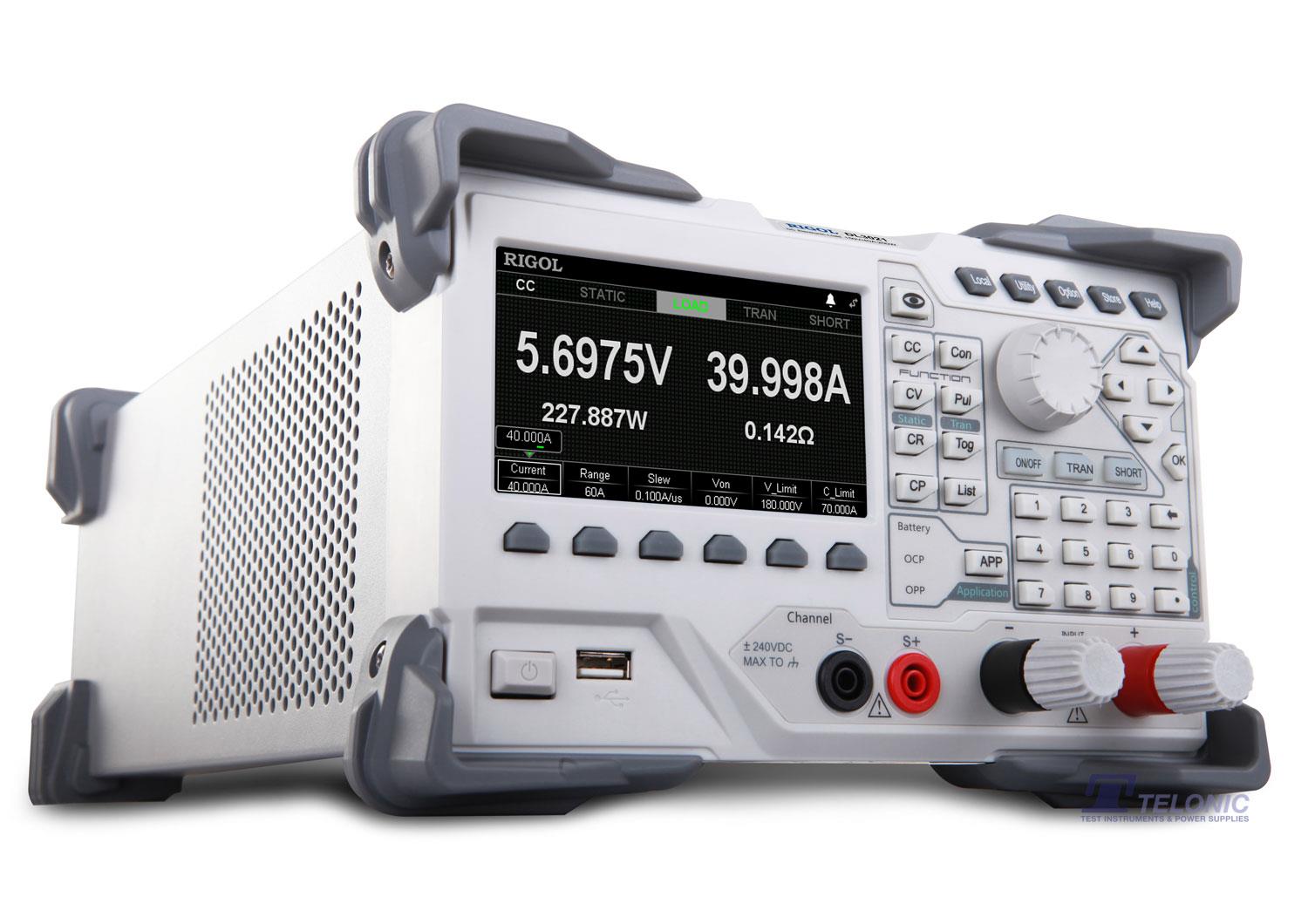

Rigol DL3041 Electronic Load

DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, the DL3000 series offers various interfaces for remote communication, meeting your diverse test requirements. It can be widely used in multiple industries, such as automotive electronics, fuel cells, etc

  • DL3021/DL3021A: single channel, DC150 V/40 A, total power up to 200 W
  • DL3031/DL3031A: single channel, DC150 V/60 A, total power up to 350 W
  • DL3041: single channel, DC 200 V/70 A, total power up to 450 W
  • Dynamic mode: up to 30 kHz
  • Adjustable current rising speed: 0.001 A/Ī¼s to 5 A/Ī¼s
  • Min. readback resolution: 0.1 mVļ¼Œ0.1 mA
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • The list function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Built-in RS232/USB/LAN communication interface
  • USB-GPIB module (optional)

Product Images

Product Videos

YouTube Video
RIGOL's DL3000 series Electronic Loads
YouTube Video
Rigol DL3000 Static Modes
YouTube Video
Rigol DL3000 Transient Modes

Documentation


SpecificationDL3021DL3021ADL3031DL3031ADL3041
DC Input (0Ā°C ā€“ 40Ā°C)
Voltage0ā€“150 V0ā€“150 V0ā€“200 V
Current0ā€“40 A0ā€“60 A0ā€“70 A
Maximum Power200 W350 W450 W
Minimum Operating Voltage (0Ā°Cā€“40Ā°C)1 V@40 A1.3 V@60 A1.5 V@70 A
Stability[9]
Current Stability±(0.01%+10 mA)
Voltage Stability±(0.01%+10 mV)
CC Mode
CC Range0ā€“4 A0ā€“6 A0ā€“7 A
CC Programmable Resolution1 mA
CC Programmable Accuracy[1]±(0.1%+0.1%FS[3])±(0.05%+0.05%FS)±(0.1%+0.1%FS)±(0.05%+0.05%FS)
CC Temperature Coefficient[2]100 ppm/°C
CV Mode[4]
CV Range0ā€“15 V / 0ā€“150 V0ā€“15 V / 0ā€“150 V0ā€“150 V0ā€“150 V0ā€“25 V / 0ā€“200 V
CV Programmable Resolution1 mV / 1 mV5 mV / 5 mV1 mV5 mV1 mV / 5 mV
CV Programmable Accuracy±(0.1%+0.02%FS)±(0.05%+0.02%FS)±(0.05%+0.02%FS)±(0.05%+0.02%FS)±(0.05%+0.025%FS) (Both Ranges)
CV Temperature Coefficient50 ppm/°C
CR Mode[6]
CR Range[6]0.08 Ω–15 kΩ (0.0667 S–12.5 S)
2 Ω–15 kΩ (0.0000667 S–0.5 S)
CR Programmable Resolution2 mA/Vsense
CR Programmable Accuracy[7]Vin/Rset*(0.2%)+0.2%IFS
CP Mode[5] (Max. Power)
CP Range0–200 W0–350 W0–450 W
CP Resolution100 mW
Con Mode
Frequency Range0.001 Hz–15 kHz
0.001 Hz–30 kHz		0.001 Hz–30 kHz
Frequency Resolution0.8%
Frequency Accuracy±0.5%
Duty Cycle Range5%–95%, 1%
Current Slew Rate[8]
Slew Rate Range0.001 μs–1 A/μs0.001 μs–5 A/μs
Slew Rate Resolution0.001 A/μs
Slew Rate Accuracy5%+10 μs
Readback Current
Current Readback Range0–40 A0–60 A0–70 A
Current Readback Resolution1 mA0.1 mA1 mA0.1 mA
Current Readback Accuracy±(0.1%+0.1%FS)±(0.05%+0.05%FS)±(0.1%+0.1%FS)±(0.05%+0.05%FS)
Current Readback Temp. Coeff.[2]50 ppm/°C
Readback Voltage
Voltage Readback Range0–150 V0–200 V
Voltage Readback Resolution0.1 mV
Voltage Readback Accuracy±(0.1%+0.02%FS)±(0.05%+0.02%FS)
Voltage Readback Temp. Coeff.[2]20 ppm/°C
Readback Resistance
Resistance Readback Range0.08 Ω–15 kΩ (0.0000667 S–12.5 S)
Resistance Readback Resolution2 mA/Vsense
Readback Power
Power Readback Range0–200 W0–350 W0–450 W
Power Readback Resolution100 mW
Protection Function
Overcurrent protection (OCP), overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), as well as local/remote reverse voltage (LRV/RRV) protection.
