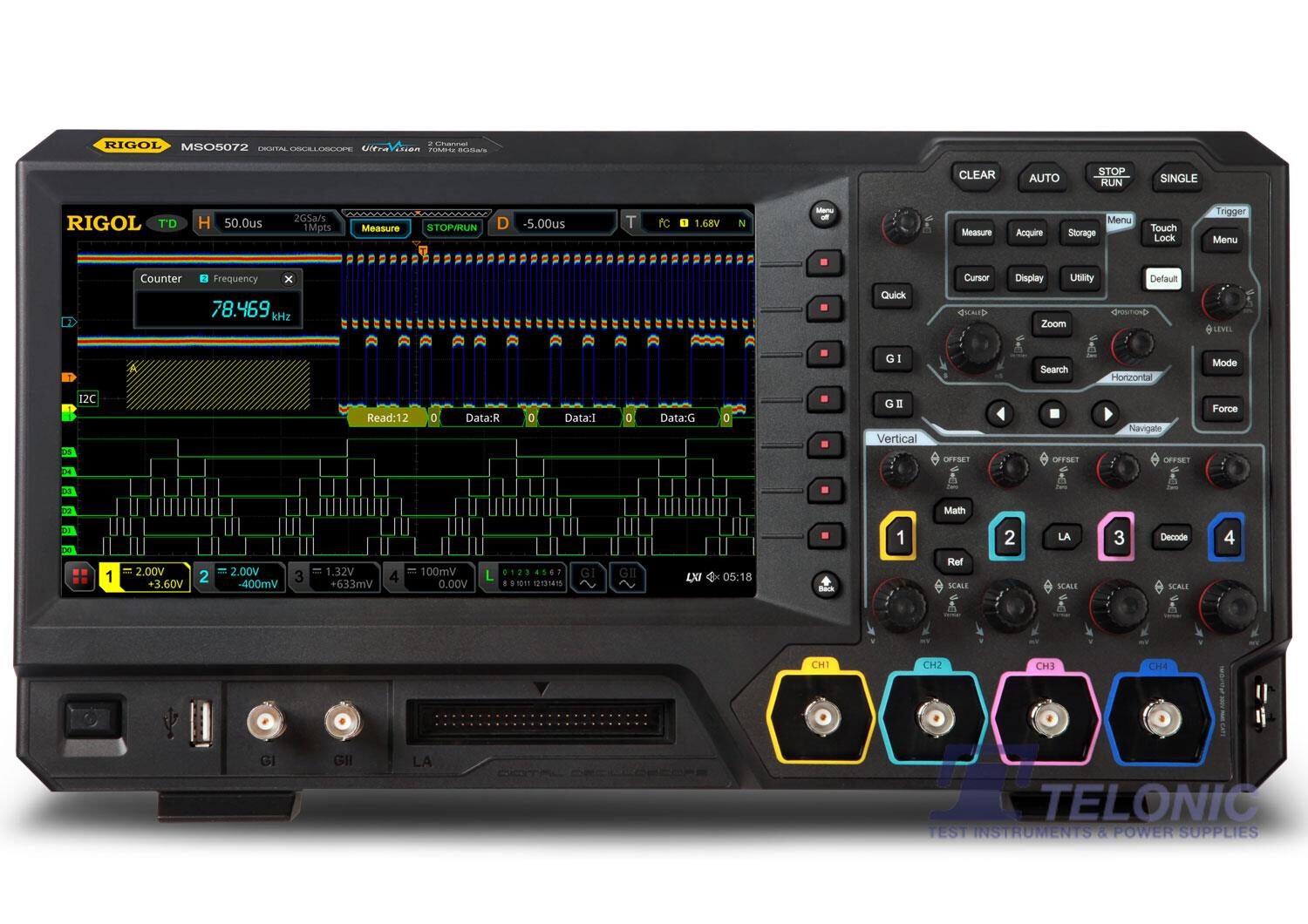

Rigol MSO5072 Digital Oscilloscope
The MSO5072 is a 70MHz, 2CH high-performance Digital Oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.
Features:
- Analogue bandwidth: 70 MHz; bandwidth upgrade option supported
- 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)
- Up to 8 GSa/s real-time sample rate
- Up to 200 Mpts memory depth (option)
- High waveform capture rate (over 500,000 wfms/s)
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of serial protocol triggers and decodes
- NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Independent search, navigation keys, and event table
- Built-in advanced power analysis software (option)
- Integrates 7 independent instruments into 1: Digital oscilloscope, 16-channel logic analyser, a spectrum analyser, arbitrary waveform generator, a digital voltmeter, a 6-digit frequency counter and totaliser, and a protocol analyser
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence
- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
- Supplied with… 2-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide
Rigol MSO5000 Oscilloscope Comparison Table
| Model | Channels | Bandwidth | Max Sample Rate | Memory | Signal Generator | Waveform Refresh Rate |
|---|---|---|---|---|---|---|
| MSO5072 | 2 Analogue, 16 Digital (Opt) | 70MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
| MSO5074 | 4 Analogue, 16 Digital (Opt) | 70MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
| MSO5102 | 2 Analogue, 16 Digital (Opt) | 100MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
| MSO5104 | 4 Analogue, 16 Digital (Opt) | 100MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
| MSO5204 | 4 Analogue, 16 Digital (Opt) | 200MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
| MSO5354 | 4 Analogue, 16 Digital (Opt) | 350MHz | 8GSa/s | 100Mpts – Standard 200Mpts – Optional | X2 (Opt) | 500,000 wfm/s |
Product Images

7 in 1 Product Design

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

Super High Sampling Bandwidth Ratio

Full Memory Hardware Measurement

Convenient Web Control Remote Control







































Rigol MSO5000 Datasheet
