Rigol DSA832-TG 3.2GHz Spectrum Analyser with Tracking Generator

Original price was: £4196.00.Current price is: £1705.00. (£2046.00 inc VAT)

Description

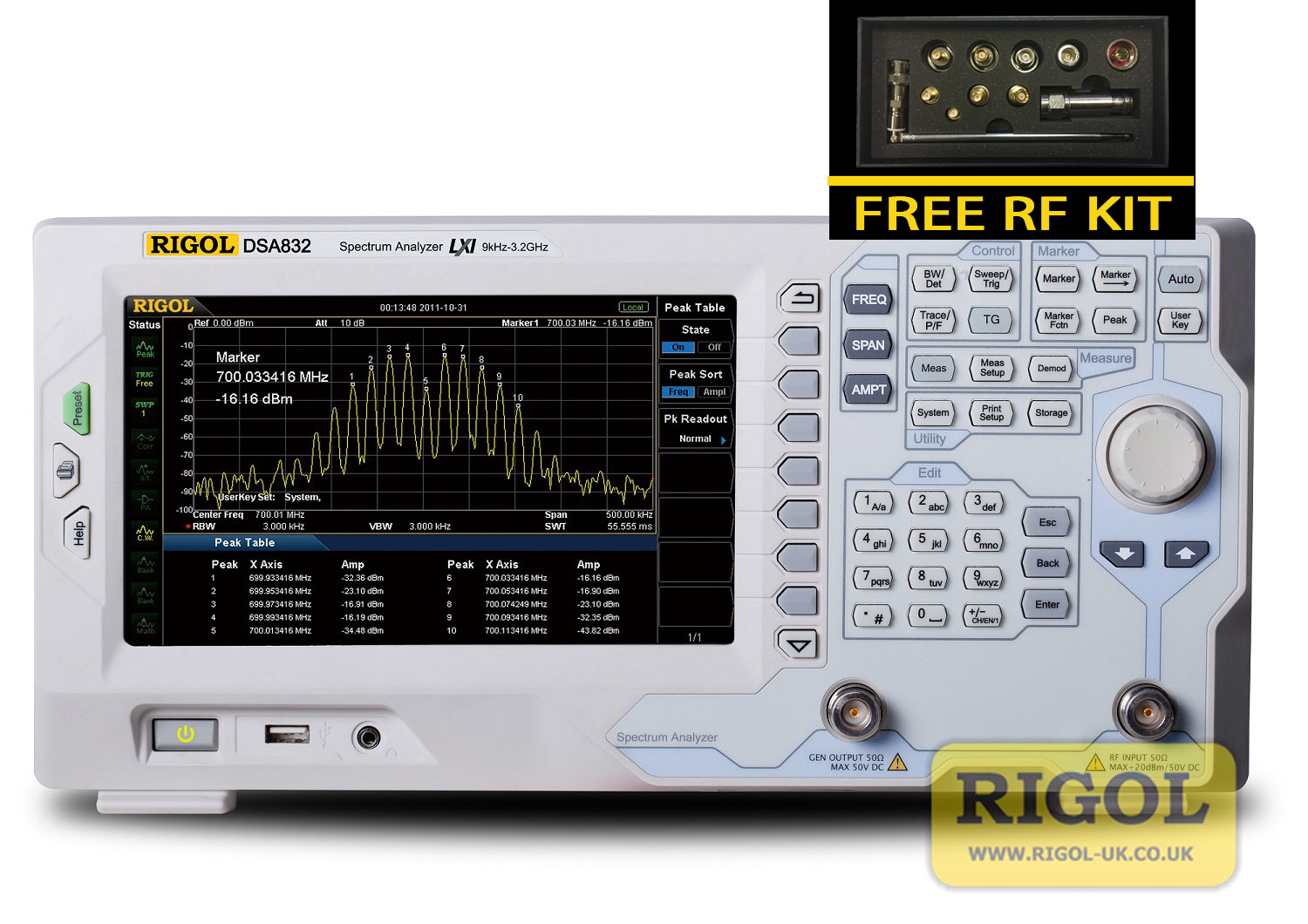

Rigol DSA832-TG Spectrum Analyser

The DSA832-TG has a frequency range of 9kHz to 3.2GHz and a Minimum Resolution Bandwidth of 10Hz. The Rigol DSA800 series of spectrum analysers are small, light weight, easy to use and great value for money. The quality, performance and features of these instruments, including the high definition colour LCD display and various remote communication interfaces, make these spectrum analysers highly versatile – Ideal for various environments such as R&D laboratories, education, manufacturing and the home-lab of the electronics enthusiast.
A Rigol DSA800 series spectrum analyser, Rigol S1210 EMI pre-compliance test PC software and the TEKBOX range of EMC pre-compliance test equipment (near-field probes, LISNs and TEM cells) form a powerful and affordable system for EMC pre-compliance tests – An effective de-risking strategy, potentially saving a small fortune and project delays due to re-tests at an EMC Test House.

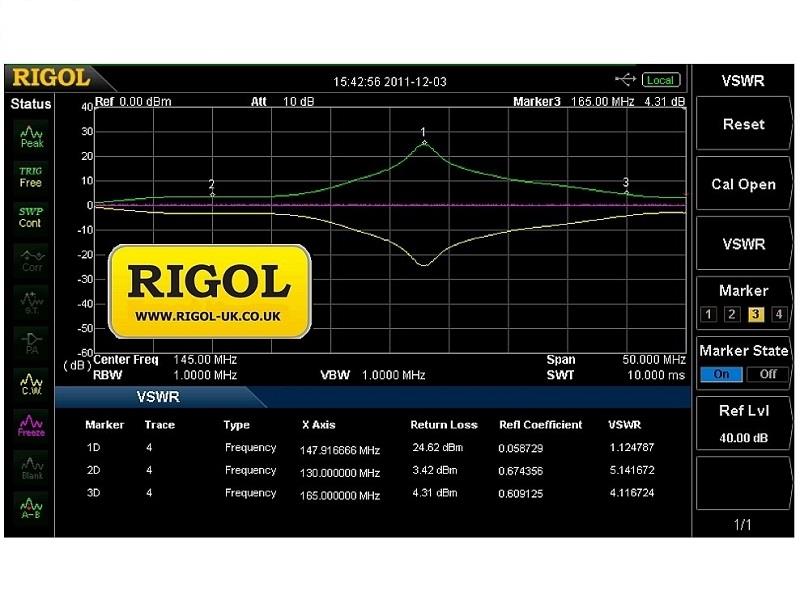

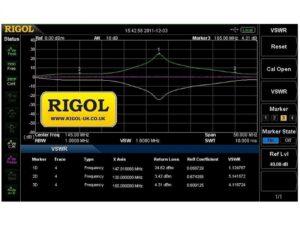

Choose a Rigol DSA800 spectrum analyser with built-in tracking generator and you’ll have the capability of making (forward and reverse) transmission measurements (e.g. Measuring the frequency response of filters or amplifiers). Add a Rigol VSWR Bridge and you’d have the additional capability of measuring input or output return loss (e.g. Impedance matching and antenna tuning). The Rigol DSA800 series spectrum analysers have several other options available to enhance the capability and user experience even further. Whatever configuration you choose, we think that you’ll be impressed by the powerful combination of quality, performance, functionality and value for money.

Features:

  • Frequency range from 9kHz to 3.2GHz
  • Built-in tracking generator
  • Displayed average noise level (DANL) <-161dBm/Hz typ. with preamplifier on
  • Minimum resolution bandwidth (RBW) 10Hz
  • Phase noise <-98dBc/Hz @10kHz offset
  • Level measurement uncertainty <0.8dB nom.
  • AM/FM demodulation function
  • 8″ (800 x 480) high-definition display
  • Connectivity: LAN(LXI), USB Host & Device
  • PictBridge support
  • Compact size and light weight
  • Supplied with… UK & European mains leads, quick guide
  • Optional PC software… Ultra Spectrum, S1210 EMI Pre-Compliance Test, S1220 ASK/FSK Demodulation Analysis

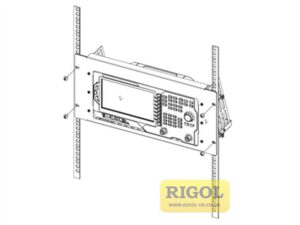

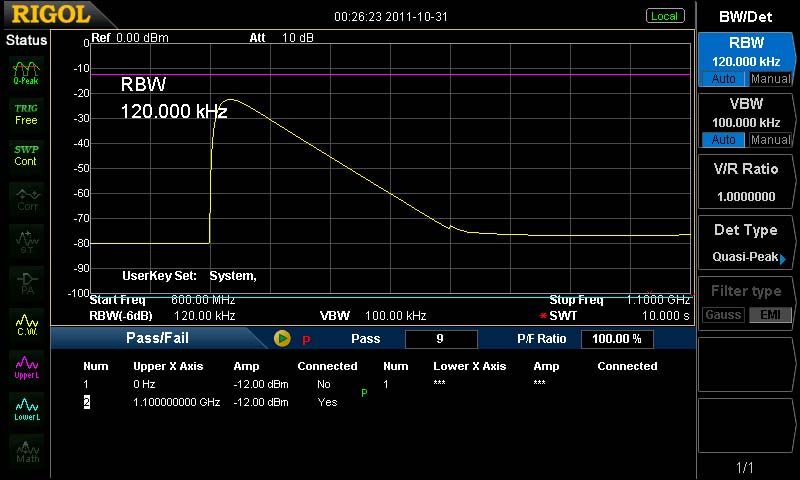

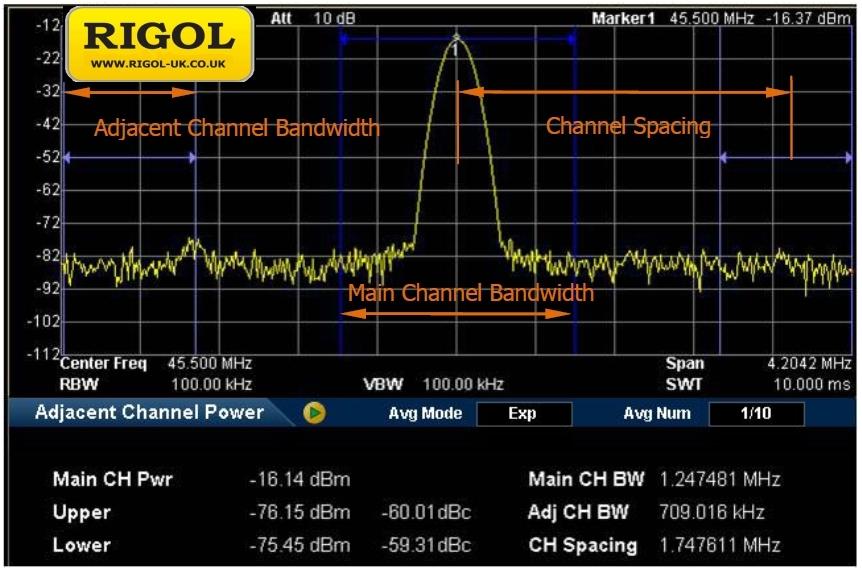

  • Other options include… VSWR bridge (1MHz to 3.2GHz), EMI filter & quasi-peak detector, advanced measurement functions, USB to GPIB module, rack mount kit, soft carry bag, RF transmitter demo kit, RF receiver demo kit, RCL Standard Calibration

Product Videos

Documentation

Frequency
Frequency RangeDSA815: 9kHz to 1.5GHz
DSA832: 9kHz to 3.2GHz
DSA875: 9kHz to 7.5GHz
DSA832E: 9kHz to 3.2GHz
Frequency Resolution1Hz
Internal Reference Frequency
Reference frequency10MHz
Accuracy± [(time since last adjustment × aging rate) + temperature stability +
calibration accuracy]
Initial calibration accuracy<1 ppm
Temperature stability0℃ to 50℃ , reference to 25℃
DSA815: <2 ppm
DSA832: <0.5 ppm
DSA875: <0.5 ppm
DSA832E: <1 ppm
Aging RateDSA815: <2 ppm/year
DSA832: <1 ppm/year
DSA875: <1 ppm/year
DSA832E: <2 ppm/year
Frequency Readout Accuracy
Marker Resolutionspan/ (number of sweep points – 1)
Marker Uncertainty± (frequency indication × frequency reference uncertainty + 1% × span + 10% × resolution
bandwidth + marker resolution)
Frequency Counter
Resolution1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz
Uncertainty± (frequency indication × reference frequency accuracy + counter resolution)
Frequency Span
Range0 Hz, 100 Hz to maximum frequency of instrument
Uncertainty±span/ (number of sweep points – 1)
Amplitude
Measurement Range
Rangefc ≥ 10 MHz
DANL to +20 dBm
Maximum Input Level
DC Voltage50V
CW RF Powerattenuation = 30 dB
+20 dBm (100 mW)
Max. Damage Level+30dBm (1W)
Level Display
Logarithmic level axis1 dB to 200 dB
Linear level axis0 to reference level
Number of display points601
Number of traces3 + math trace
Trace detectorsnormal, positive-peak, negative-peak, sample, RMS, voltage average
quasi-peak (with EMI-DSA800 option)
Trace functionsclear write, max hold, min hold, average, view, blank
Units of level axisdBm,dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
Input / Output
Front Panel Connectors
RF Inputimpedance 50 Ω (nom.)
connector N female
Tracking Generator Outputimpedance 50 Ω (nom.)
connector N female
Internal / External Reference
Internal ReferenceFrequency 10 MHz
Output level +3 dBm to +10 dBm, +8 dBm (typ.)
Impedance 50 Ω (nom.)
Connector BNC female
External ReferenceFrequency 10 MHz ±5 ppm
Input level 0 dBm to +10 dBm
Impedance 50 Ω (nom.)
Connector BNC female
External Trigger Input
External Trigger InputImpedance 1 kΩ (nom.)
Connector BNC female
Communication Interface
USB HostConnector: A plug
Protocol: version2.0
USB DeviceConnector: B plug
Protocol: version2.0
LANLXI core 2011 device: 10/100Base, RJ-45
General Specifications
Display
TypeTFT LCD
Resolution800 x 480 pixels
Size8 inch
Colours64 k
Power Supply
Input voltage range, AC100 V to 240 V (nom.)
AC supply frequency45 Hz to 440 Hz
Power consumption35 W (typ.), max. 50 W with all options
Environmental
TemperatureOperating
temperature range: 0℃ to 50℃
Storage
temperature range: -20℃ to 70℃
Humidity0℃ to 30℃ ≤95% rel. humidity
30℃ to 40℃ ≤75% rel. humidity
AltitudeOperating height up to 3,000m

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
