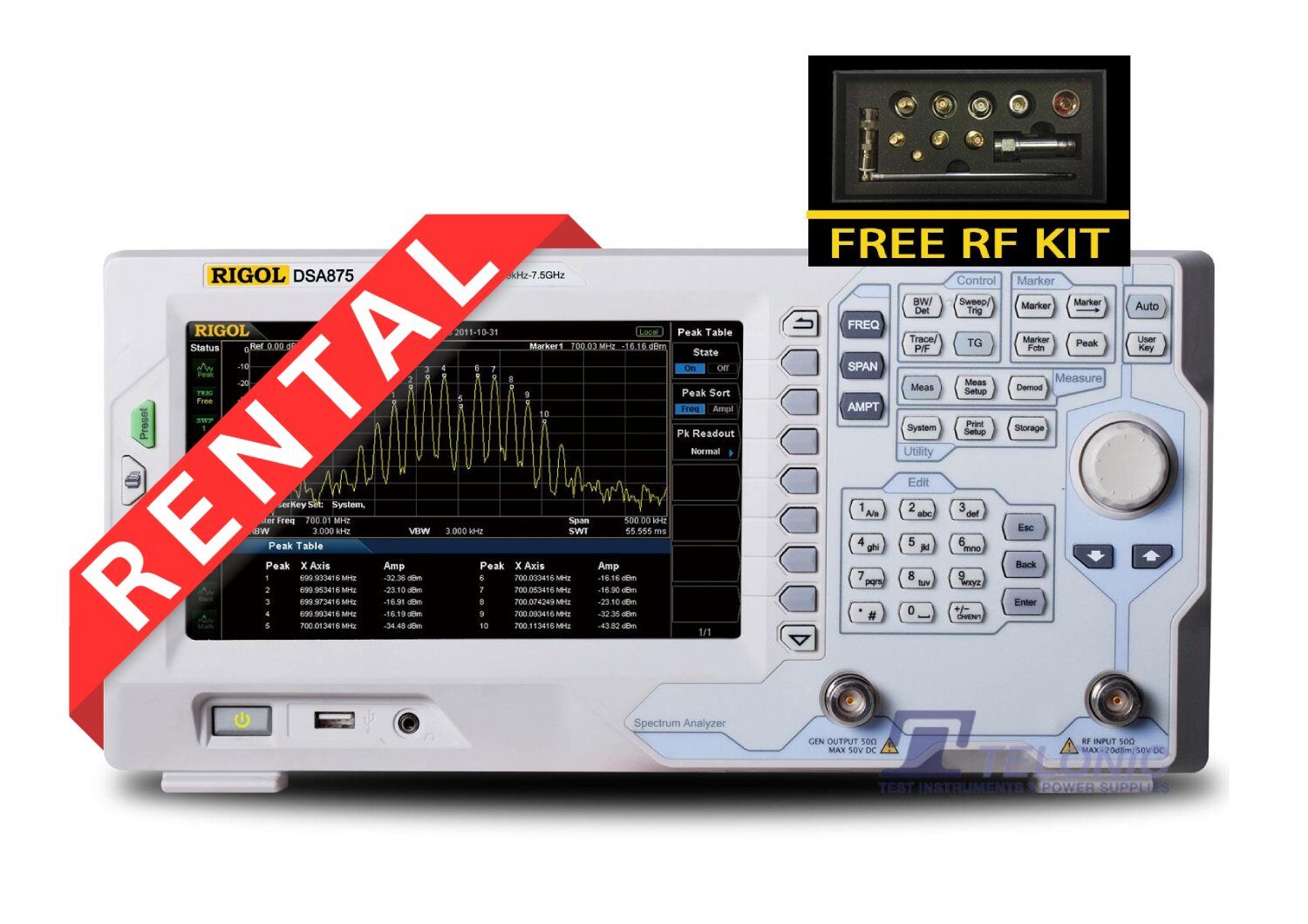

Rental Rigol DSA815-TG 1.5GHz Spectrum Analyser with Tracking Generator
£157.50 (£189.00 inc VAT)
1 in stock//=$newStock?>
Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)
Frequency | |
---|---|
Frequency Range | DSA815: 9kHz to 1.5GHz DSA832: 9kHz to 3.2GHz DSA875: 9kHz to 7.5GHz DSA832E: 9kHz to 3.2GHz |
Frequency Resolution | 1Hz |
Internal Reference Frequency | |
Reference frequency | 10MHz |
Accuracy | ± [(time since last adjustment × aging rate) + temperature stability + calibration accuracy] |
Initial calibration accuracy | <1 ppm |
Temperature stability | 0℃ to 50℃ , reference to 25℃ DSA815: <2 ppm DSA832: <0.5 ppm DSA875: <0.5 ppm DSA832E: <1 ppm |
Aging Rate | DSA815: <2 ppm/year DSA832: <1 ppm/year DSA875: <1 ppm/year DSA832E: <2 ppm/year |
Frequency Readout Accuracy | |
Marker Resolution | span/ (number of sweep points – 1) |
Marker Uncertainty | ± (frequency indication × frequency reference uncertainty + 1% × span + 10% × resolution bandwidth + marker resolution) |
Frequency Counter | |
Resolution | 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz |
Uncertainty | ± (frequency indication × reference frequency accuracy + counter resolution) |
Frequency Span | |
Range | 0 Hz, 100 Hz to maximum frequency of instrument |
Uncertainty | ±span/ (number of sweep points – 1) |
Amplitude | |
Measurement Range | |
Range | fc ≥ 10 MHz DANL to +20 dBm |
Maximum Input Level | |
DC Voltage | 50V |
CW RF Power | attenuation = 30 dB +20 dBm (100 mW) |
Max. Damage Level | +30dBm (1W) |
Level Display | |
Logarithmic level axis | 1 dB to 200 dB |
Linear level axis | 0 to reference level |
Number of display points | 601 |
Number of traces | 3 + math trace |
Trace detectors | normal, positive-peak, negative-peak, sample, RMS, voltage average quasi-peak (with EMI-DSA800 option) |
Trace functions | clear write, max hold, min hold, average, view, blank |
Units of level axis | dBm,dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W |
Input / Output | |
Front Panel Connectors | |
RF Input | impedance 50 Ω (nom.) connector N female |
Tracking Generator Output | impedance 50 Ω (nom.) connector N female |
Internal / External Reference | |
Internal Reference | Frequency 10 MHz Output level +3 dBm to +10 dBm, +8 dBm (typ.) Impedance 50 Ω (nom.) Connector BNC female |
External Reference | Frequency 10 MHz ±5 ppm Input level 0 dBm to +10 dBm Impedance 50 Ω (nom.) Connector BNC female |
External Trigger Input | |
External Trigger Input | Impedance 1 kΩ (nom.) Connector BNC female |
Communication Interface | |
USB Host | Connector: A plug Protocol: version2.0 |
USB Device | Connector: B plug Protocol: version2.0 |
LAN | LXI core 2011 device: 10/100Base, RJ-45 |
General Specifications | |
Display | |
Type | TFT LCD |
Resolution | 800 x 480 pixels |
Size | 8 inch |
Colours | 64 k |
Power Supply | |
Input voltage range, AC | 100 V to 240 V (nom.) |
AC supply frequency | 45 Hz to 440 Hz |
Power consumption | 35 W (typ.), max. 50 W with all options |
Environmental | |
Temperature | Operating temperature range: 0℃ to 50℃ Storage temperature range: -20℃ to 70℃ |
Humidity | 0℃ to 30℃ ≤95% rel. humidity 30℃ to 40℃ ≤75% rel. humidity |
Altitude | Operating height up to 3,000m |
Note*
Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
