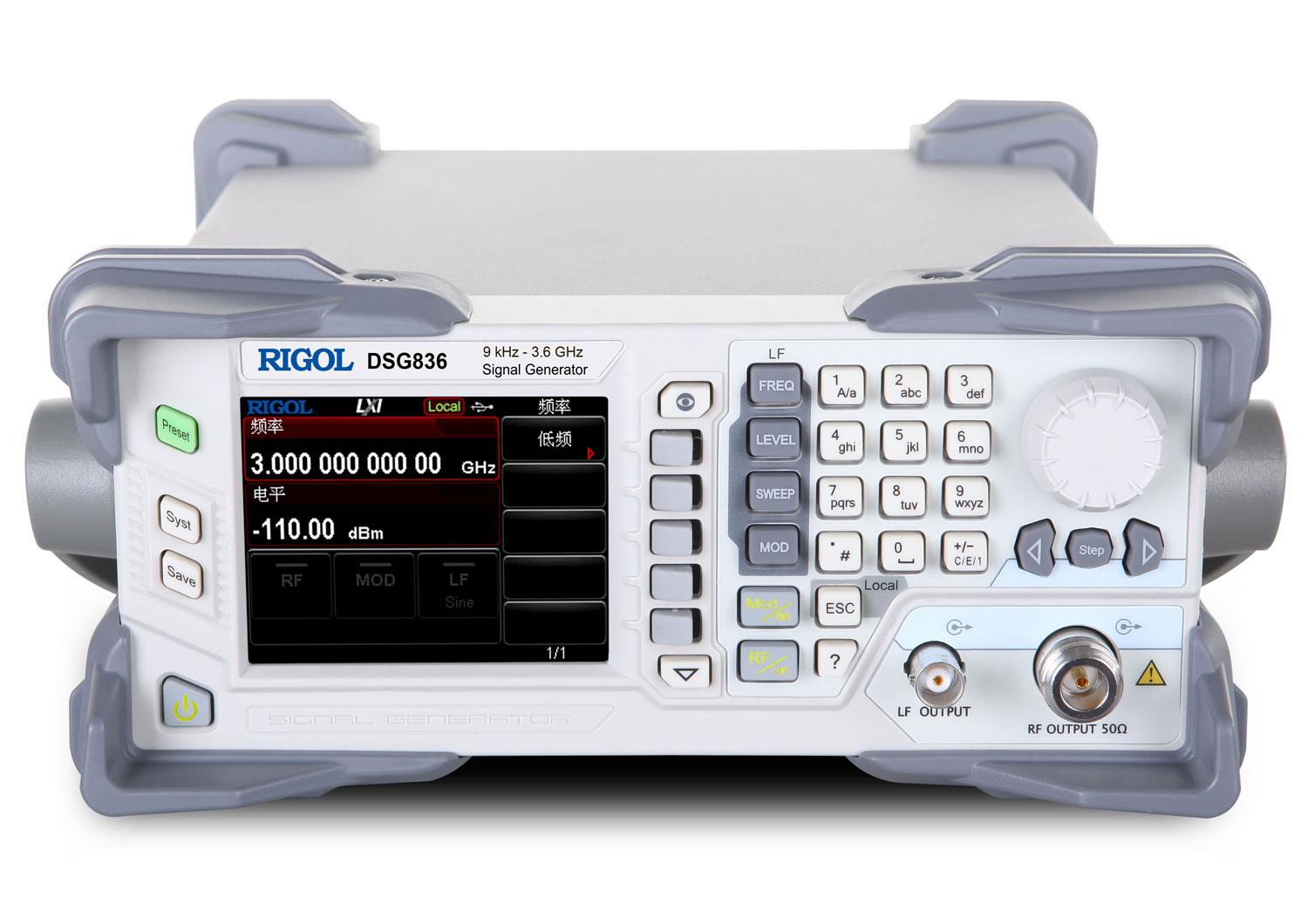

Rigol DSG836A RF Signal Generator

The DSG836A has a maximum output frequency of 3.6GHz whilst maximum output power is +20dBm (typical). The DSG836A also provides frequency and level sweep functions AM/FM/ØM analogue modulations as well as a power pulse modulation function. DSG800A’s come with an IQ modulator. With all of these features, the DSG836A is an excellent source for high quality signals (including RF, LF, sweep pulse and a variety of analogue modulated signals) and for use as a stable reference.

Features:

  • Maximum frequency 3.6GHz
  • Frequency Resolution: 0.01 Hz

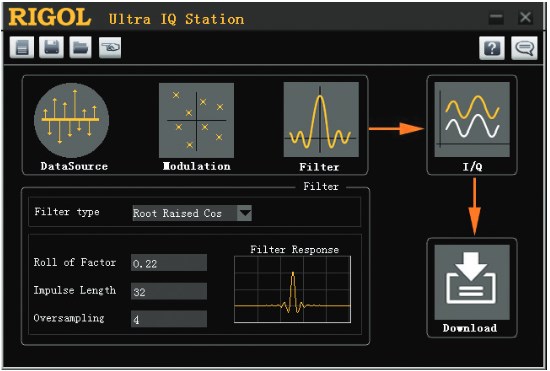

  • A version includes an IQ modulator
  • Up to -112 dBc/Hz (typical) phase noise
  • Up to +20 dBm (typical) maximum output power
  • Uses electronic attenuator to avoid wearing
  • Specially designed protection functions
  • Digital ALC circuit Flexible frequency and amplitude sweep functions
  • Complete AM/FM/ØM analogue modulation functions
  • Light weight, the handle offers comfortable grip
