Rigol RSA3015N 1.5GHz Real-Time Spectrum Analyser with VNA & DTF

£1891.00 (£2269.20 inc VAT)

Description

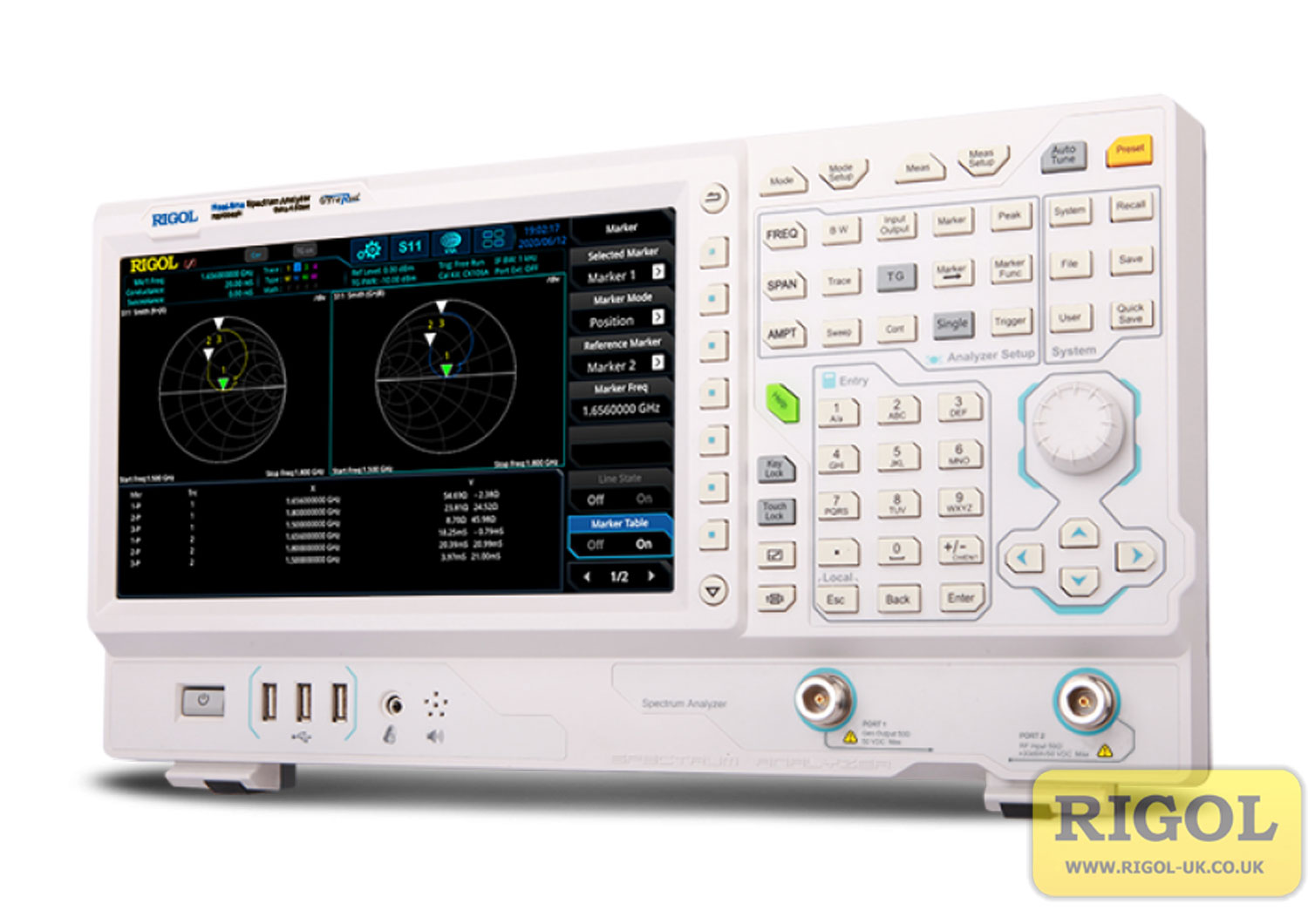

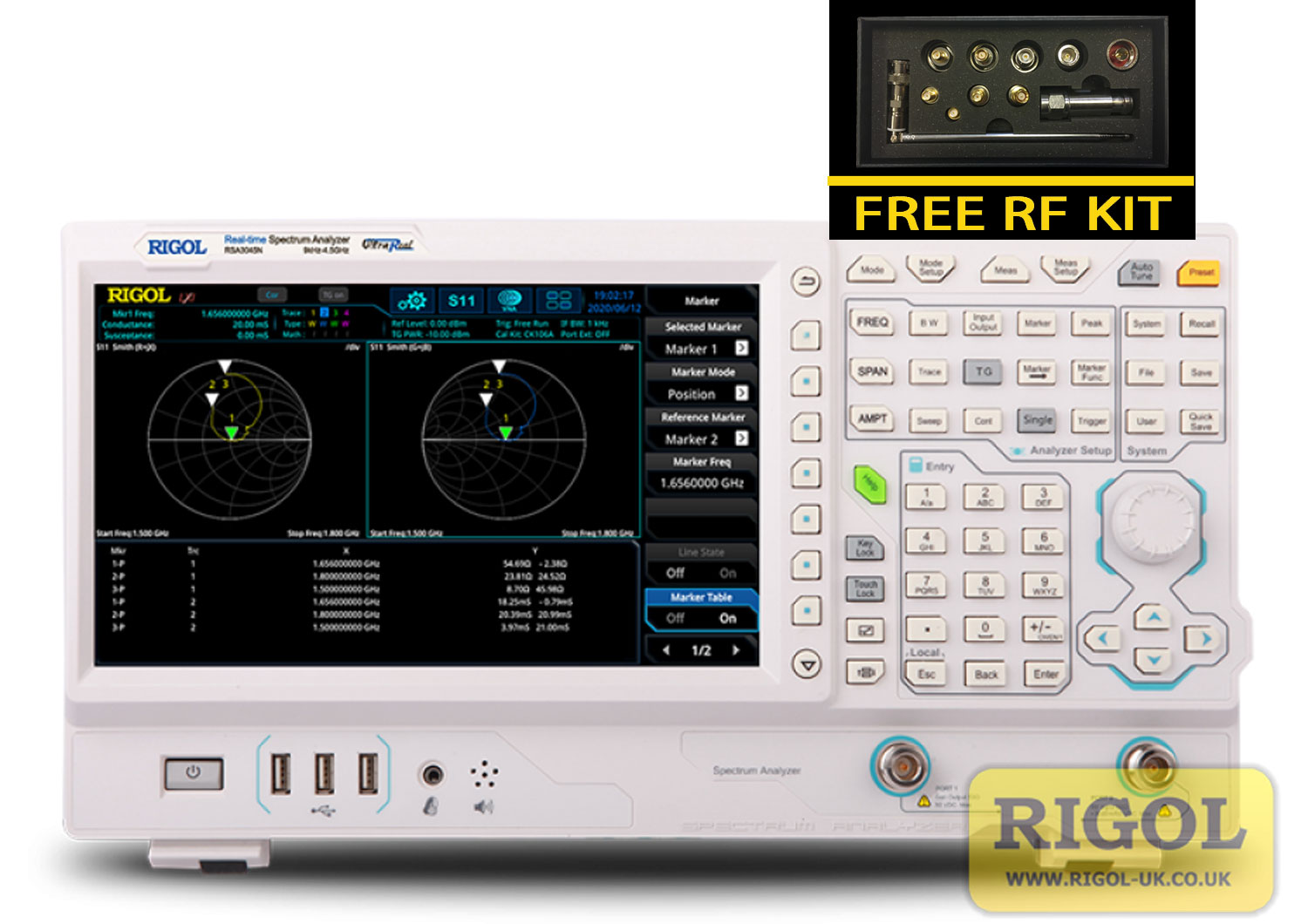

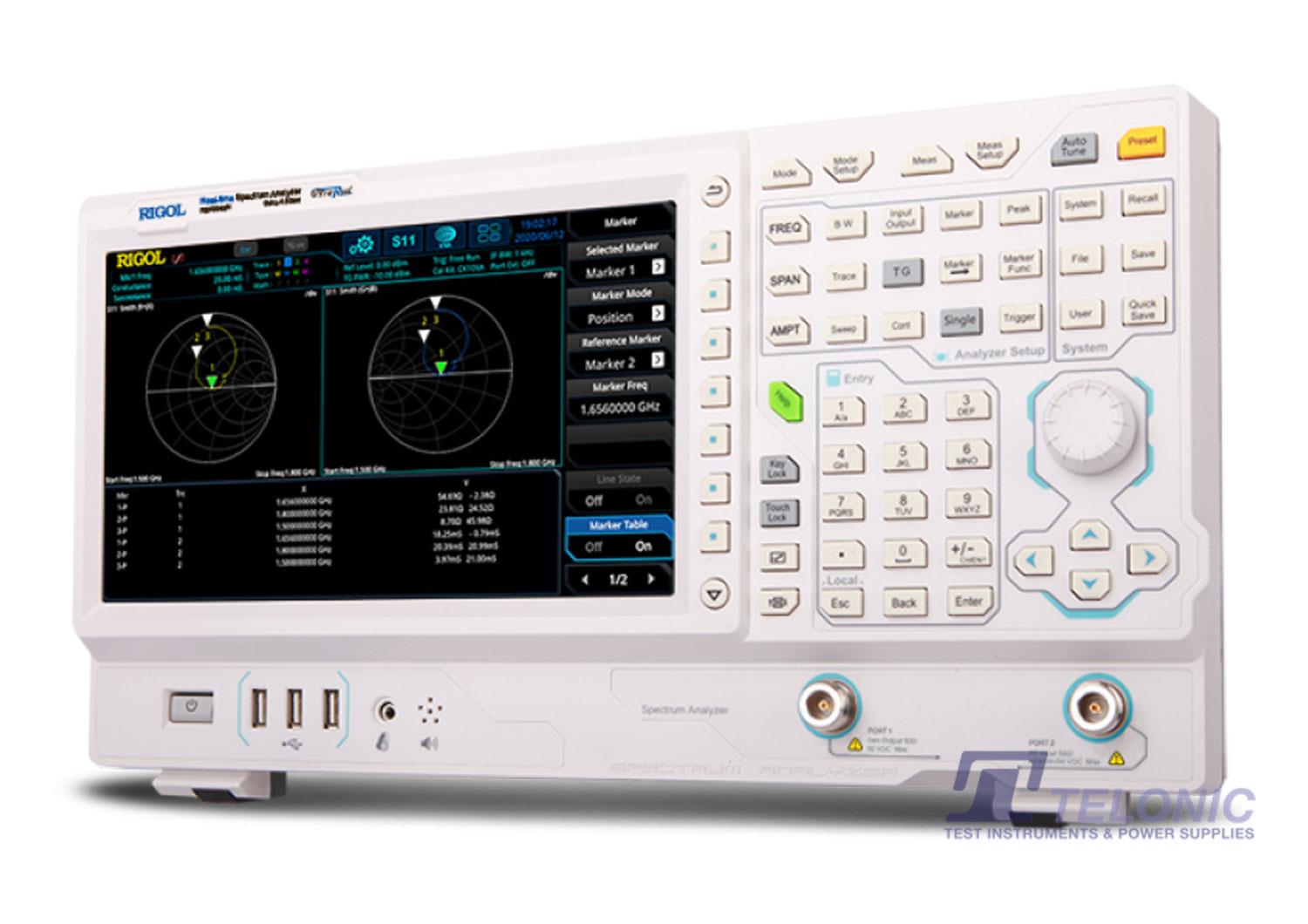

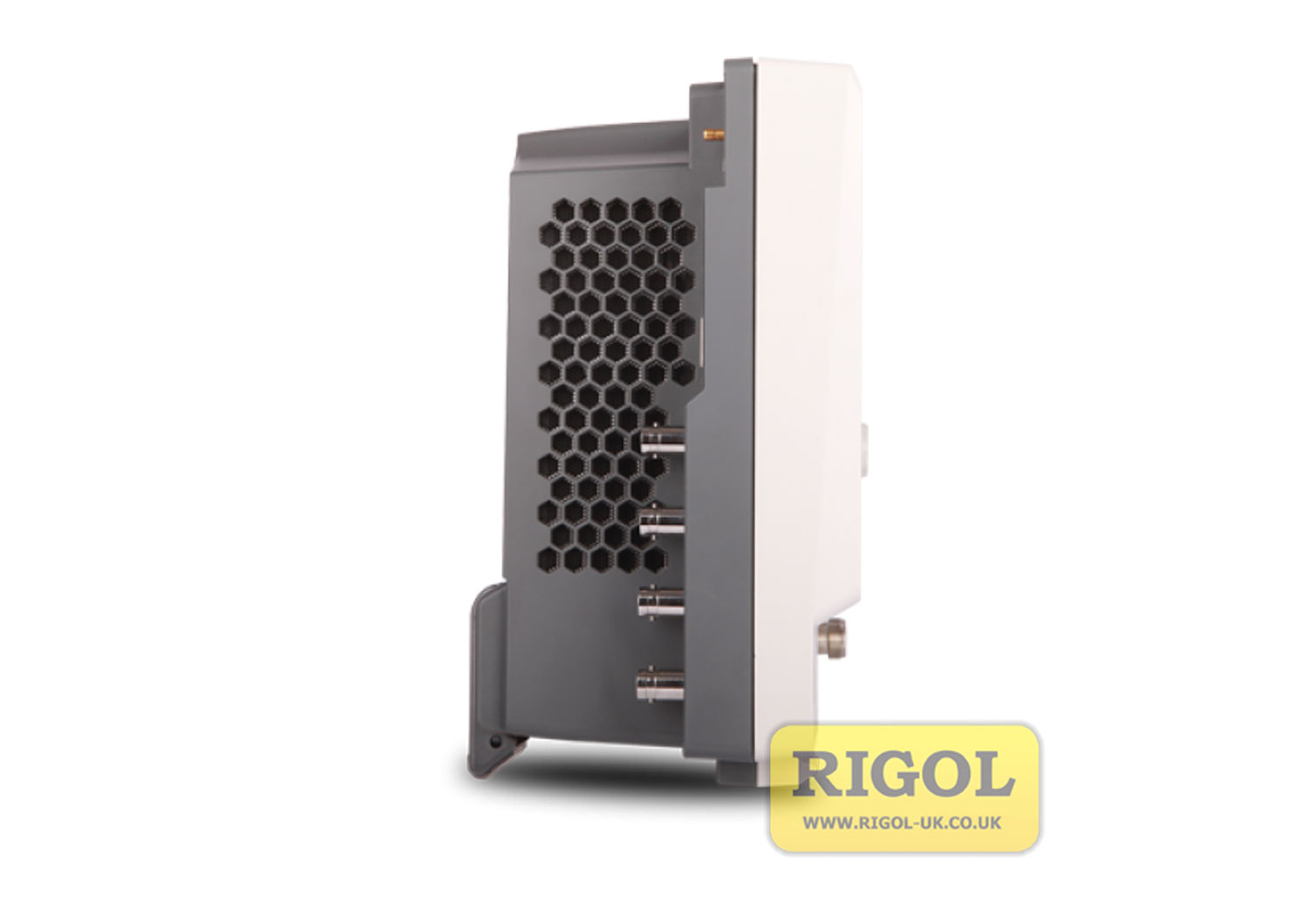

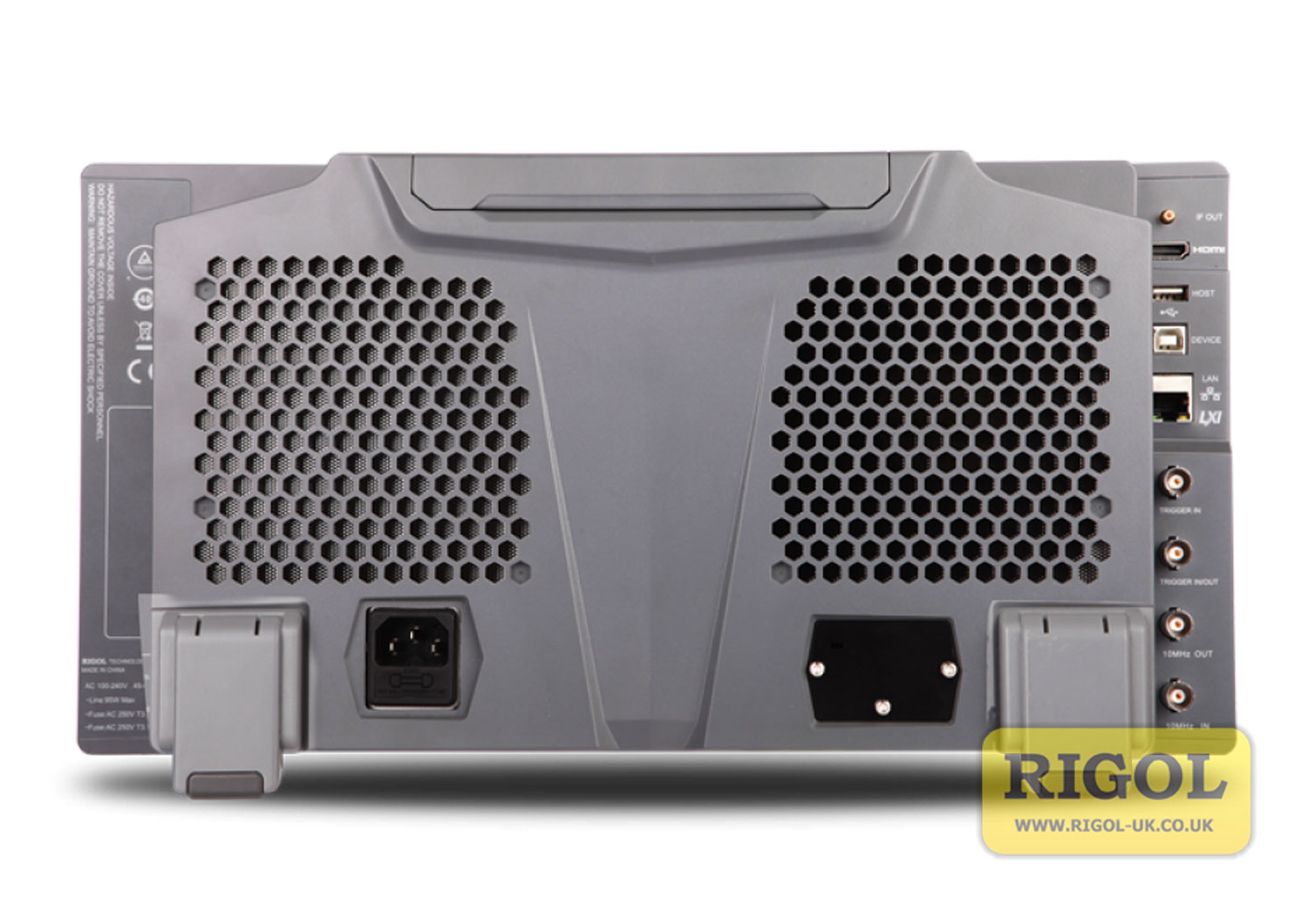

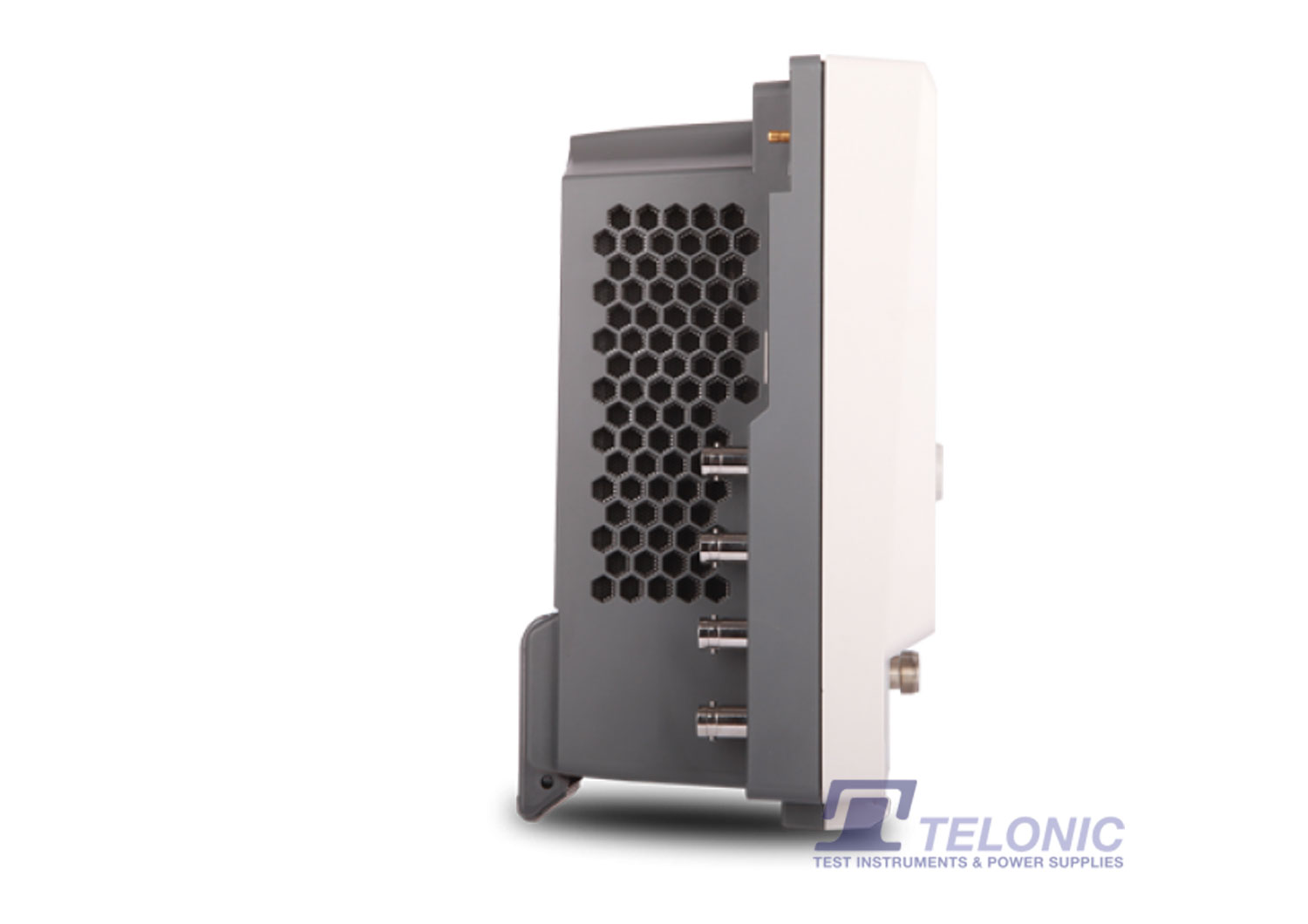

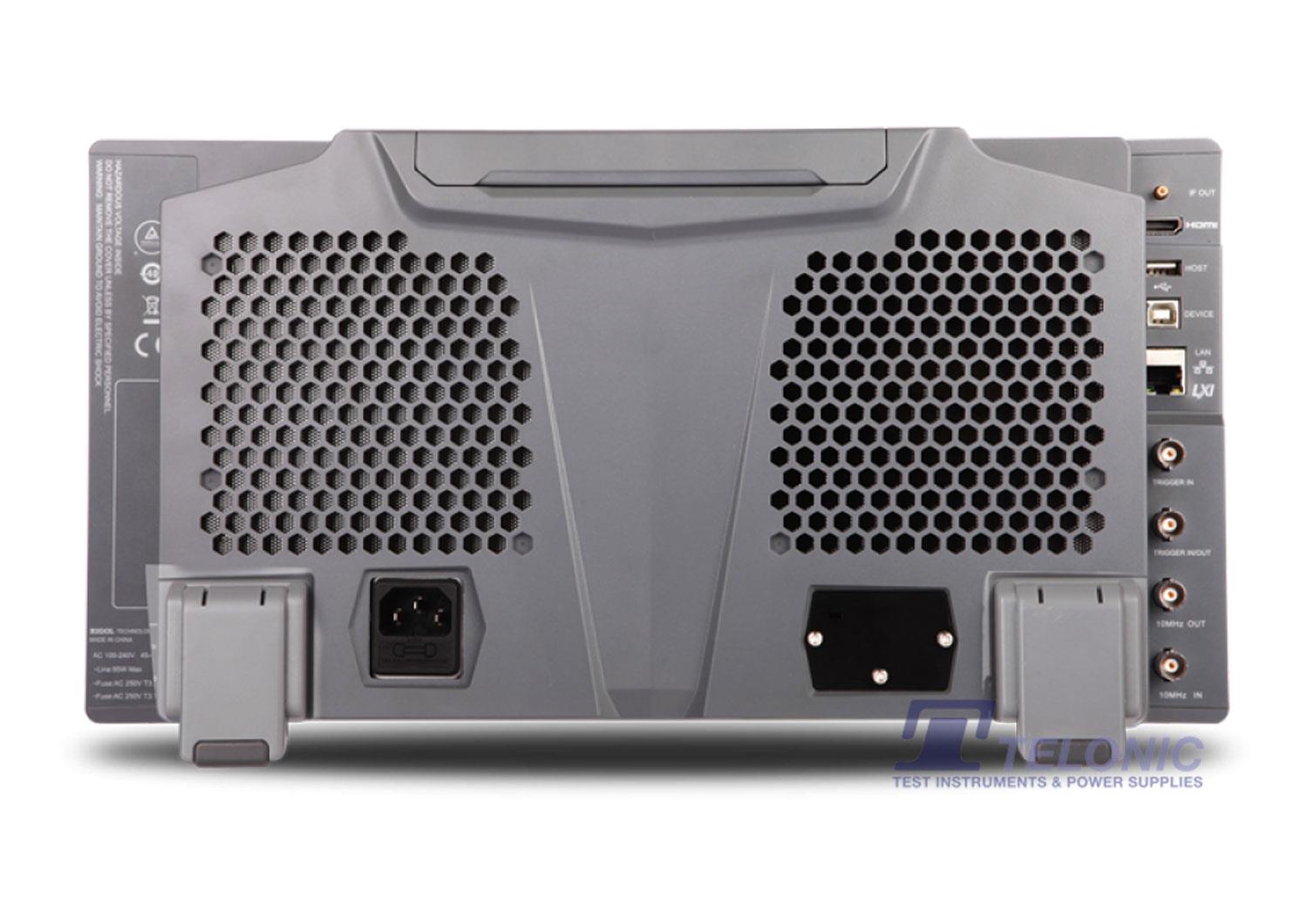

Rigol RSA3015N Real-Time Spectrum Analyser

The RIGOL RSA3015N is a Real-Time spectrum analyser with frequency range from 9kHz to 1.5GHz. It includes the tracking generator and the VNA functionality to perform S11, S21 and Distance to Fault (DTF) measurements.

Features:
  • Spectrum analysis from 9kHz to 1.5GHz
  • DANL: <-161 dBm (typical)
  • Phase noise: <-102 dBc/Hz (typical)
  • Level measurement uncertainty: <1 dB
  • Min. RBW 1 Hz
  • Up to 40 MHz real-time analysis bandwidth
  • 7.45 µsec 100% POI (at 40MHz)
  • Advanced measurement functions
  • VSA measurement application (option)
  • EMI measurement application (option)
  • NEW VNA measurement application (standard)

Product Videos

Documentation

Measurement Mode
Frequency Range RSA3015N: 9 kHz to 1.5 GHz
RSA3030/-TG/N: 9 kHz to 3.0 GHz
RSA3045/-TG/N: 9 kHz to 4.5 GHz
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration
accuracy]
Initial Calibration
Accuracy
Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature
Stability
0℃ to 50℃ , with the reference 25℃
Standard <0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
Frequency
Marker Frequency Resolution span/(number of sweep points – 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% ×
resolution bandwidth + marker frequency resolution)
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Range Standard 0 Hz, 100 Hz to maximum frequency
Option RSA3000-BW1 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points – 1)
Carrier Offset 1 kHz <-90 dBc/Hz (typical)
10 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
100 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
1 MHz <-110 dBc/Hz, <-112 dBc/Hz (typical)
Amplitude
Range fc ≥ 10 MHz
DANL to +30 dBm
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
CW RF Power +33 dBm (2 W)
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and
quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
General Specifications
Display
Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1”
Colour 24-bit colour
Power
Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Environment
Temperature Operating Temperature
Range 0℃ to 50℃
Storage Temperature
Range -20℃ to 70℃
Humidity 0℃ to 30℃ ≤ 95% RH
30℃ to 40℃ ≤ 75% RH
Altitude Operating Height: below 3,048 m (10,000 feet)

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
