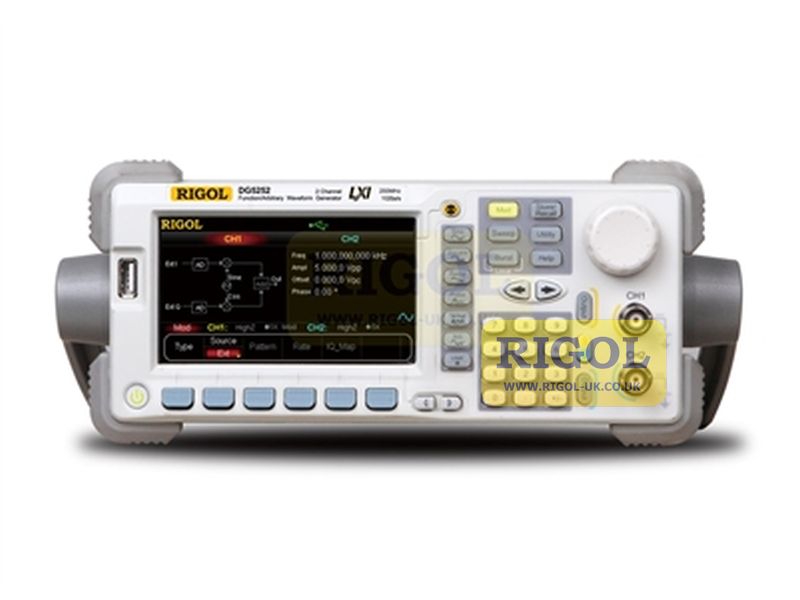

Rigol DG5252 250MHz 2-Channel Function / Arbitrary Waveform Generator

£6255.00 (£7506.00 inc VAT)

Available on back-order, delivery normally 1 week

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Rigol Availability
SKU: DG5252 Category:

Description

The Rigol DG5000 series of Function / Arbitrary Waveform Generators combines many features in one unit; Function Generator, Arbitrary Waveform Generator, IQ Baseband Source / IQ IF Source, Frequency Hopping Source (optional) and Pattern Generator (optional). On dual-channel models, each channel is fully functional and the phase offset between each channel can be precisely controlled. The Rigol DG5000 series uses Direct Digital Synthesis (DDS) technology to provide stable, precise, pure, low distortion signals. It’s user friendly interface is simple and intuitive to use. Each Rigol DG5000 series generator can be controlled remotely through any of its standard communication interfaces.

Features:

  • 250MHz maximum sine-wave output frequency
  • 2 channels
  • 1GSa/s sample rate
  • 14-bit resolution
  • Up to 128Mpts editable arbitrary waveform
  • Supported modulation: AM, FM, PM, ASK, FSK, PSK, PWM & IQ
  • User defined IQ modulation & IQ baseband / IF output
  • Separate adjustment of pulse rise / fall time
  • Dual channel model supports frequency and phase coupling
  • Store and recall waveform data and instrument state
  • 4.3″ (480 x 272) TFT LCD, 16M colours

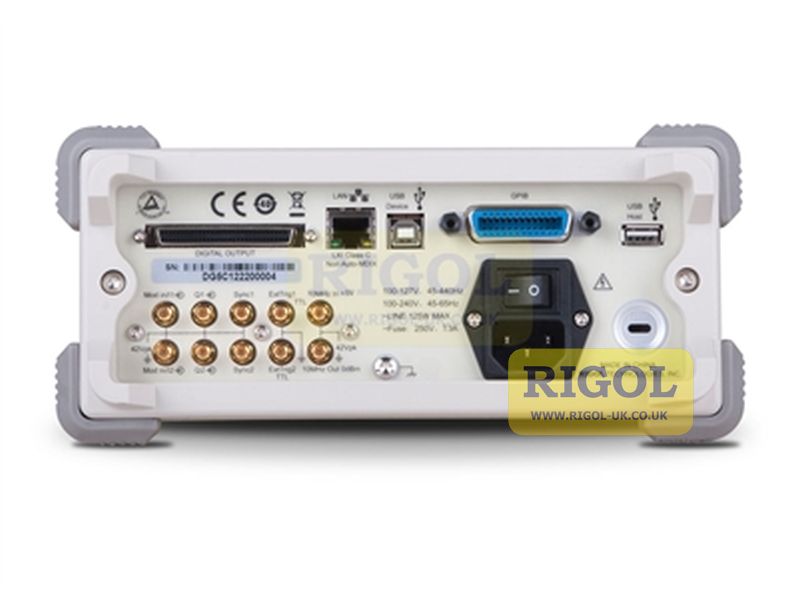

  • Signal Interfaces: Waveform output, synchronous signal output, modulation input, 10MHz reference input /output, trigger input/output
  • Optional 16 channel digital output module
  • Optional frequency hopping module
  • Connectivity: USB Host & Device, LAN(LXI), GPIB
  • PictBridge support
  • Supplied with… BNC cable, SMB(F) to BNC(M) cable, USB cable, UK & European mains leads, quick guide
  • Optional Ultra Station Advanced PC software… Additional functionality for Ultra Station – Maths functions, digital filters & windowing
  • Other options include… Frequency hopping module, logic signal output module, 10W power amplifier, 40dB attenuator, rack mount kit, RCL standard calibration, RCL UKAS calibration
DG5000 Waveform Generator on DSA815-TG

Documentation

Datasheets

Waveform Generator DG5000 Series

Datasheets


Waveform Generator DG5000 Series datasheets
