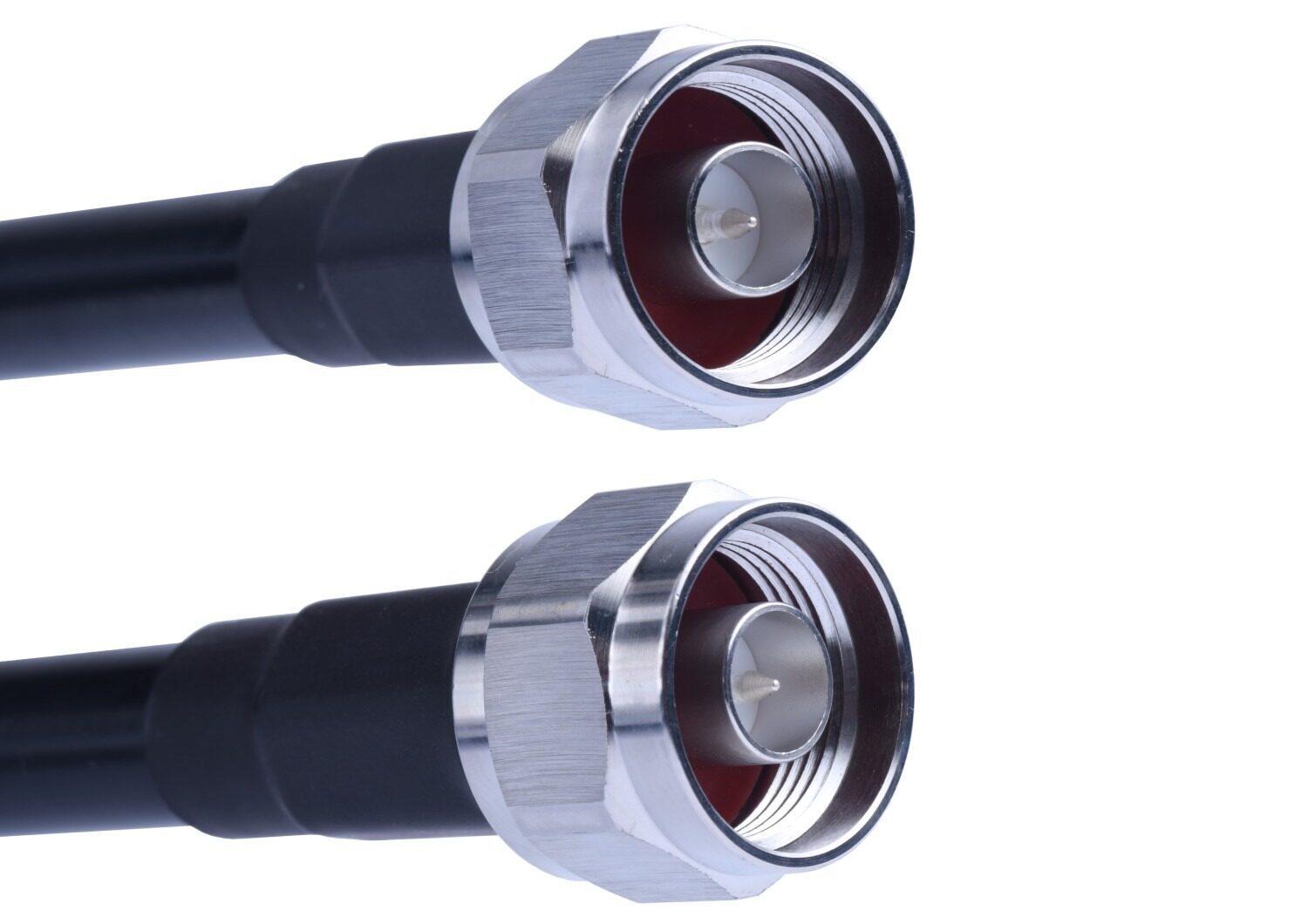

Tekbox NM-NM/312/RG213 N-Male to N-Male, 3.12m, 50 Ω RF Cable

£29.25 (£35.10 inc VAT)

Only 1 left in stock!

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: NM-NM/312/RG213 Categories: , Brand:

Description


Tekbox NM-NM/312/RG213 N-Male to N-Male, 3.12m, 50 Ω RF Cable

TekBox RF Coaxial Cable Assemblies are high-quality, precision-terminated cables designed for RF testing, EMC/EMI measurement, spectrum analysis, and general laboratory use.

Each cable assembly is manufactured using carefully selected coaxial cable types (RG-series or RM141) and fitted with durable RF connectors to ensure stable impedance, low insertion loss, and excellent shielding effectiveness across a wide frequency range.
Depending on configuration, TekBox RF cables support frequencies from DC up to 18 GHz, with robust mechanical construction, controlled VSWR, and consistent electrical performance. Connector options include N, SMA, BNC, and SMB, with a choice of standard or armoured cables for demanding test environments.
All assemblies are supplied with protective end caps and appropriate kink protection (plastic sleeve or glued heat-shrink), ensuring long service life and reliable measurements in both lab and field applications.

Typical applications

  • EMC / EMI testing
  • Spectrum and network analysis
  • RF signal routing
  • Test & measurement laboratories
  • Production and validation environments
Connector TypeFrequency rangeWorking voltageWithstand voltageVSWRDurabilityImpedance
N-TypeDC – 11 GHz1000 V2500 V≤ 1.3 @ 11 GHz≥ 500 mating cycles50 Ω
SMADC – 18 GHz335 V750 V≤ 1.1 + 0.02f (GHz)≥ 500 mating cycles50 Ω
BNCDC – 4 GHz500 V1500 V≤ 1.22≥ 500 mating cycles50 Ω
SMBDC – 4 GHz335 V1000 V≤ 1.25 + 0.4f (GHz)≥ 500 mating cycles50 Ω

(All connectors use PTFE insulation and comply with MIL-C-39012, IEC 60169-8, CECC 22120, RoHS.)

Cable TypeFrequency rangeAttenuation @ 1 GHzVelocity factorTemperature rangeOther Characteristics
RG 58/UDC – 5.8 GHz0.57 dB/m66%–30 °C to +70 °CShielding effectiveness: ~ –56 dB/m
RG 142DC – 6 GHz0.49 dB/m70%–55 °C to +165 °CArmoured option available, Shielding effectiveness: ~ –80 dB/m
RG 213/UDC – 3 GHz0.23 dB/m66%–40 °C to +85 °CHigh power handling
RG 223/UDC – 6 GHz0.53 dB/m66%–30 °C to +80 °CFlexible, double-shielded
RG 316/UDC – 6 GHz0.89 dB/m70%–55 °C to +165 °CSmall diameter, high flexibility
RM141 (Premium / Low-Loss)DC – 18 GHz0.38 dB/m70%–55 °C to +200 °CShielding effectiveness: < –100 dB/m, Excellent phase and amplitude stability
ParametersRG 58/URG 142RG 213/URG 223/URG 316/URM 141
centre conductor Ø0.9 mm0.94 ± 0.02 mm2.26 ± 0.09 mm0.9 ± 0.01 mm0.51 ± 0.03 mm0.93 ± 0.02 mm
centre cond. materialtinned coppersilver-plated copperplain coppersilver-plated coppersilver-plated coppersilver-plated copper
dielectric Ø2.95 ± 0.1 mm3 ± 0.05 mm7.25 ± 0.18 mm2.95 ± 0.1 mm1.52 ± 0.05 mm2.95 ± 0.05 mm
dielectric materiallow-density PTFElow-density PTFElow-density PTFElow-density PTFEPTFEPTFE
braid ØØ 3.13×112Ø 4.15 mm, doubleØ 0.18×192Ø 4.2 mm, double1.95 ± 0.08 mm3.68 ± 0.1 mm
braid materialtinned coppersilver-plated copperplain coppertinned coppersilver-plated coppersilver-plated copper
sheath Ø5 ± 0.1 mm4.95 ± 0.15 mm10.3 ± 0.18 mm5.4 ± 0.1 mm2.9 ± 0.1 mm4.1 ± 0.1 mm
sheath materialPVCFEPPVCPVCFEPFEP
min. bending radiussingle: 25 mm
repeated: 50 mm		single: 30 mm
repeated: 50 mm		single: 50 mm
repeated: 100 mm		single: 26 mm
repeated: 53 mm		single: 15 mm
repeated: 30 mm		single: 12.7 mm
repeated: 40 mm
impedance50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω50 ± 2 Ω
capacitance100 pF / m96 pF / m100 pF / m100 pF / m96 pF / m95 pF / m
inductance0.2µH / m0.22µH / m0.25µH / m0.2µH / m0.27µH / m0.27µH / m
velocity ratio66 %70 %66 %66 %70 %70 %
insulation resistance5 GΩ km35 GΩ km10 GΩ km5 GΩ km1 GΩ km1 GΩ km
center cond. res.38 Ω / km34 Ω / km6 Ω / km29 Ω / km266 Ω / km266 Ω / km
braid resistance14 Ω / km7.3 Ω / km4.4 Ω / km11 Ω / km18 Ω / km18 Ω / km
dielectric strength4 kV5 kV5.5 kV5 kV1 kV2 kV
shielding effectivenesstyp. -56 dB / mtyp. -80 dB / m< -57 dB / m< -83 dB / m< -52 dB / m< -100 dB / m
frequency rangeDC – 5.8 GHzDC – 6 GHzDC – 3 GHzDC – 6 GHzDC – 6 GHzDC – 18 GHz
temperature range-30°C ~ +70°C-55°C ~ +165°C-40°C ~ +85°C-30°C ~ +80°C-55°C ~ +165°C-55°C ~ +200°C
max. power @100MHz230 W1250 W1316 W280 W395 W–
max. power @400MHz110 W650 W658 W121 W209 W950 W
max. power @ 1 GHz65 W380 W416 W80 W135 W620 W
max. power @ 3 GHz–230 W–46 W78 W360 W
max. power @ 6 GHz–150 W–32 W11 W220 W
max. power @ 12 GHz–––––150 W
max. power @ 18 GHz–––––120 W
attenuation @100MHz0.16 dB/m0.15 dB/m0.06 dB/m0.17 dB/m0.26 dB/m0.11 dB/m
attenuation @400MHz0.32 dB/m0.3 dB/m0.13 dB/m0.33 dB/m0.53 dB/m0.23 dB/m
attenuation @ 1 GHz0.57 dB/m0.49 dB/m0.23 dB/m0.53 dB/m0.89 dB/m0.38 dB/m
attenuation @ 3 GHz1.15 dB/m0.9 dB/m0.49 dB/m0.98 dB/m1.63 dB/m1.08 dB/m
attenuation @ 6 GHz1.69 dB/m1.37 dB/m–1.49 dB/m2.34 dB/m1.08 dB/m
attenuation @ 12 GHz–––––1.66 dB/m
attenuation @ 18 GHz–––––2.16 dB/m
ConnectorsLengthCableConn. materialPart #
N-Male to N-Male30 cmRM141stainless steelNM-NM/30/RM141
N-Male to N-Male35 cmRG 223/Ucopper-tin-zinc plated brassNM-NM/35/RG223
N-Male to N-Male50 cmRM141stainless steelNM-NM/50/RM141
N-Male to N-Male75 cmRG 58/Ucopper-tin-zinc plated brassNM-NM/75/RG58
N-Male to N-Male75 cmRG 223/Ucopper-tin-zinc plated brassNM-NM/75/RG223
N-Male to N-Male75 cmRG 142 armouredstainless steelNM-NM/75/RG142/Test
N-Male to N-Male1 mRM141stainless steelNM-NM/100/RM141
N-Male to N-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-NM/125/RG223
N-Male to N-Male3.12 mRG 213/Ucopper-tin-zinc plated brassNM-NM/312/RG213
N-Male to N-Male3 mRG 142copper-tin-zinc plated brassNM-NM/300/RG142
N-Male to N-Male5 mRG 223/Ucopper-tin-zinc plated brassNM-NM/500/RG223
N-Male to N-Male5 mRG 213/Ucopper-tin-zinc plated brassNM-NM/500/RG213
N-Male to N-Male10 mRG 142copper-tin-zinc plated brassNM-NM/1000/RG142
N-Male to SMA-Male30 cmRM141stainless steelNM-SMA/30/RM141
N-Male to SMA-Male35 cmRG 223/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMA/35/RG223
N-Male to SMA-Male50 cmRM141stainless steelNM-SMA/50/RM141
N-Male to SMA-Female50 cmRM141N: stainless steel; SMA: gold-plated brassNM-SMAF/50/RM141
N-Male to SMA-Female75 cmRG 58/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMAF/75/RG58
N-Male to SMA-Male50 cmRG 223/UN: copper-tin-zinc plated brass; SMA: gold plated brassNM-SMA/50/RG223
N-Male to SMA-Male75 cmRG 142 armouredstainless steelNM-SMA/75/RG142/Test
N-Male to SMA-Male1 mRM141stainless steelNM-SMA/100/RM141
N-Male to SMA-Female1 mRM141stainless steelNM-SMAF/100/RM141
N-Male to SMA-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-SMA/125/RG223
N-Male to BNC-Male35 cmRG 223/Ucopper-tin-zinc plated brassNM-BNCM/35/RG223
N-Male to BNC-Male75 cmRG 58/Ucopper-tin-zinc plated brassNM-BNCM/75/RG58
N-Male to BNC-Male1.25 mRG 223/Ucopper-tin-zinc plated brassNM-BNCM/125/RG223
BNC-Male to BNC-Male1.25 mRG 223/Ucopper-tin-zinc plated brassBNCM-BNCM/125/RG223
BNC-Male to BNC-Male1.5 mRG 6, 75 Ohmcopper-tin-zinc plated brassBNCM-BNCM/150/RG6/75Ω
BNC-Male to BNC-Male3 mRG 6, 75 Ohmcopper-tin-zinc plated brassBNCM-BNCM/300/RG6/75Ω
BNC-Male to BNC-Male5 mRG 223/Ucopper-tin-zinc plated brassBNCM-BNCM/500/RG223
BNC-Male to SMA-Male25 cmRG 316/UBNC: copper-tin-zinc plated brass; SMA: gold plated brassBNCM-SMA/25/RG316
BNC-Male to SMA-Male35 cmRG 223/Ucopper-tin-zinc plated brassBNCM-SMA/35/RG223
BNC-Male to SMA-Male10 mRG 142copper-tin-zinc plated brassBNCM-SMA/1000/RG142
SMA-Male to SMA-Male30 cmRM141stainless steelSMAM-SMAM/30/RM141
SMA-Male to SMA-Male35 cmRG 223/URM141SMAM-SMAM/35/RG223
SMA-Male to SMA-Male50 cmRM141stainless steelSMAM-SMAM/50/RM141
SMA-Male to SMA-Female50 cmRM141stainless steel; SMA: gold-plated brassSMAM-SMAF/50/RM141
SMA-Male to SMA-Male75 cmRG 223/URM141SMAM-SMAM/75/RG223
SMA-Male to SMA-Female75 cmRG 142 armouredstainless steelSMAM-SMAF/75/RG142/Test
SMA-Male to SMA-Male1 mRM141stainless steelSMAM-SMAM/100/RM141
SMA-Male to SMA-Female1 mRM141stainless steelSMAM-SMAF/100/RM141
SMA-Male to SMA-Male1.25 mRG 223/Ugold-plated brassSMAM-SMAM/125/RG223
SMA-Male to SMB-Female75 cmRG 316/Ugold-plated brassSMAM-SMBF/75/RG316



ConnectorslengthcableVSWR @ 3 GHzins. loss @ 3 GHzins. loss @ 6 GHz
N-Male to N-Male35 cmRG 223/U≤ 1.2≤ 0.7 dB≤ 1.3 dB
N-Male to N-Male75 cmRG 58/U≤ 1.2≤ 1.1 dB≤ 2 dB
N-Male to N-Male75 cmRG 223/U≤ 1.2≤ 1.1 dB≤ 1.5 dB
N-Male to N-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
N-Male to N-Male3 mRG 142≤ 1.2≤ 3.1 dB≤ 4.8 dB
N-Male to N-Male3,12 mRG 213≤ 1.25≤ 2.6 dB≤ 4.5 dB
N-Male to N-Male5 mRG 223/U≤ 1.3≤ 5.3 dB≤ 7.5 dB
N-Male to N-Male5 mRG 213/U≤ 1.25≤ 4.7 dB≤ 6.8 dB
N-Male to N-Male10 mRG 142≤ 1.2≤ 9.4 dB≤ 14.8 dB
N-Male to SMA-Male35 cmRG 223/U≤ 1.2≤ 0.7 dB≤ 1.2 dB
N-Male to SMA-Male75 cmRG 58≤ 1.2≤ 1.3 dB≤ 2 dB
N-Male to SMA-Male75 cmRG 223/U≤ 1.2≤ 1.1 dB≤ 1.5 dB
N-Male to SMA-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
N-Male to BNC-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
N-Male to BNC-Male75 cmRG 58/U≤ 1.3≤ 1.4 dB
N-Male to BNC-Male75 cmRG 223/U≤ 1.3≤ 1.2 dB
BNC-Male to BNC-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
BNC-Male to SMA-Male35 cmRG 223/U≤ 1.3≤ 0.8 dB
SMA-Male to SMA-Male25 cmRG 316/U≤ 1.2≤ 0.5 dB≤ 0.9 dB
SMA-Male to SMA-Male75 cmRG 142≤ 1.12≤ 0.8 dB≤ 1.2 dB
SMA-Male to SMB-Female75 cmRG 316/U≤ 1.2≤ 2.7 dB



ConnectorslengthcableVSWR @ 8.5 GHzins. loss @ 6 GHzins. loss @ 8.5 GHz
N-Male to N-Male30 cmRM141≤ 1.2≤ 0.8 dB≤ 0.9 dB
N-Male to N-Male50 cmRM141≤ 1.2≤ 0.9 dB≤ 1.3 dB
N-Male to N-Male100 cmRM141≤ 1.2≤ 1.4 dB≤ 1.6 dB
N-Male to SMA-Male30 cmRM141≤ 1.18≤ 0.5 dB≤ 0.6 dB
N-Male to SMA-Male50 cmRM141≤ 1.18≤ 0.7 dB≤ 0.8 dB
N-Male to SMA-Male100 cmRM141≤ 1.18≤ 1.3 dB≤ 1.5 dB
SMA-Male to SMA-Male30 cmRM141≤ 1.15≤ 0.4 dB≤ 0.5 dB
SMA-Male to SMA-Male50 cmRM141≤ 1.15≤ 0.6 dB≤ 0.8 dB
SMA-Male to SMA-Male100 cmRM141≤ 1.15≤ 1.2 dB≤ 1.2 dB
