TEKBOX TBCP1-200 10kHz to 200MHz RF Current Monitoring Probe

(1 customer review)

£279.00 (£334.80 inc. VAT)

5 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBCP1-200 Categories: , , Brand:

Description

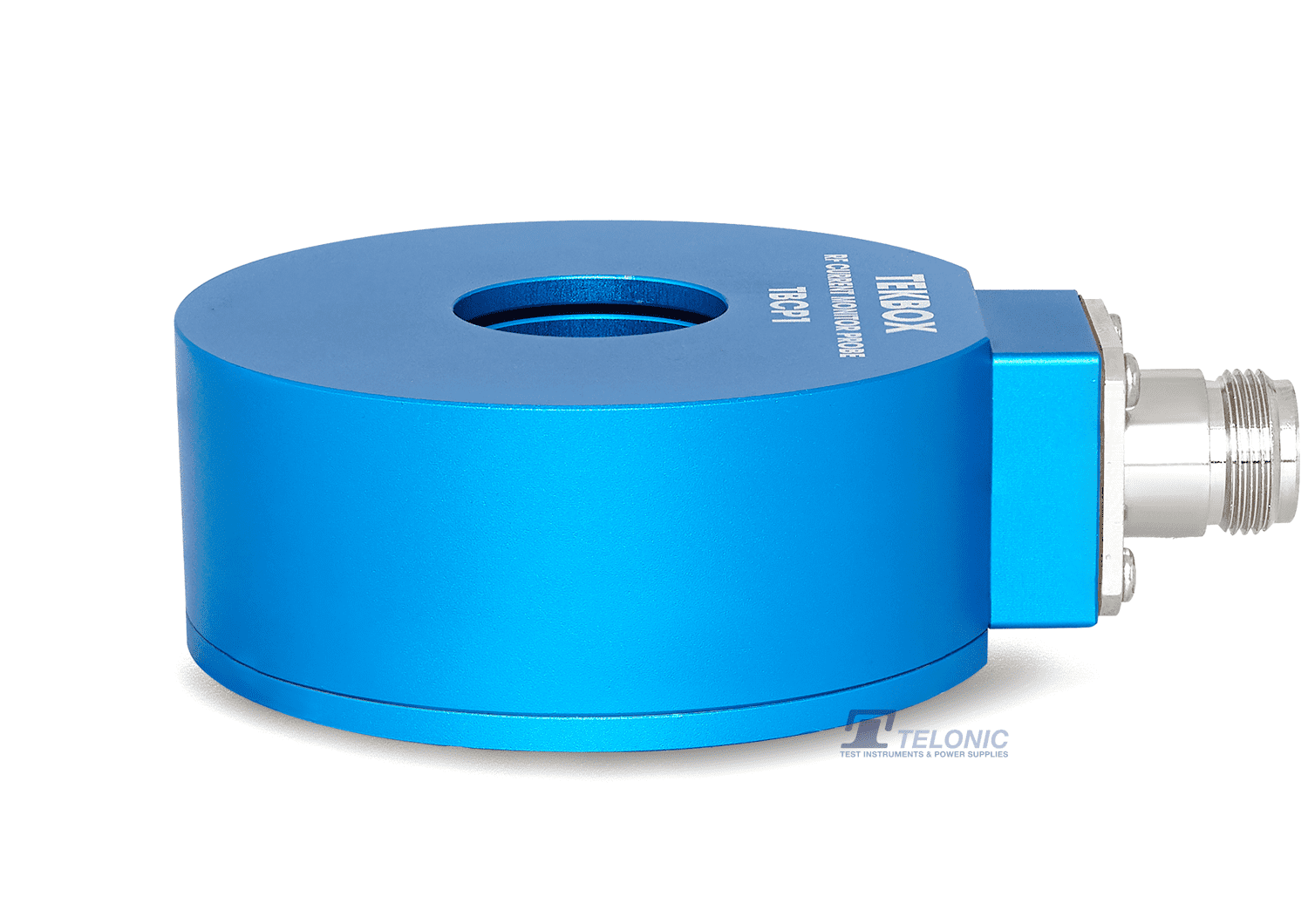

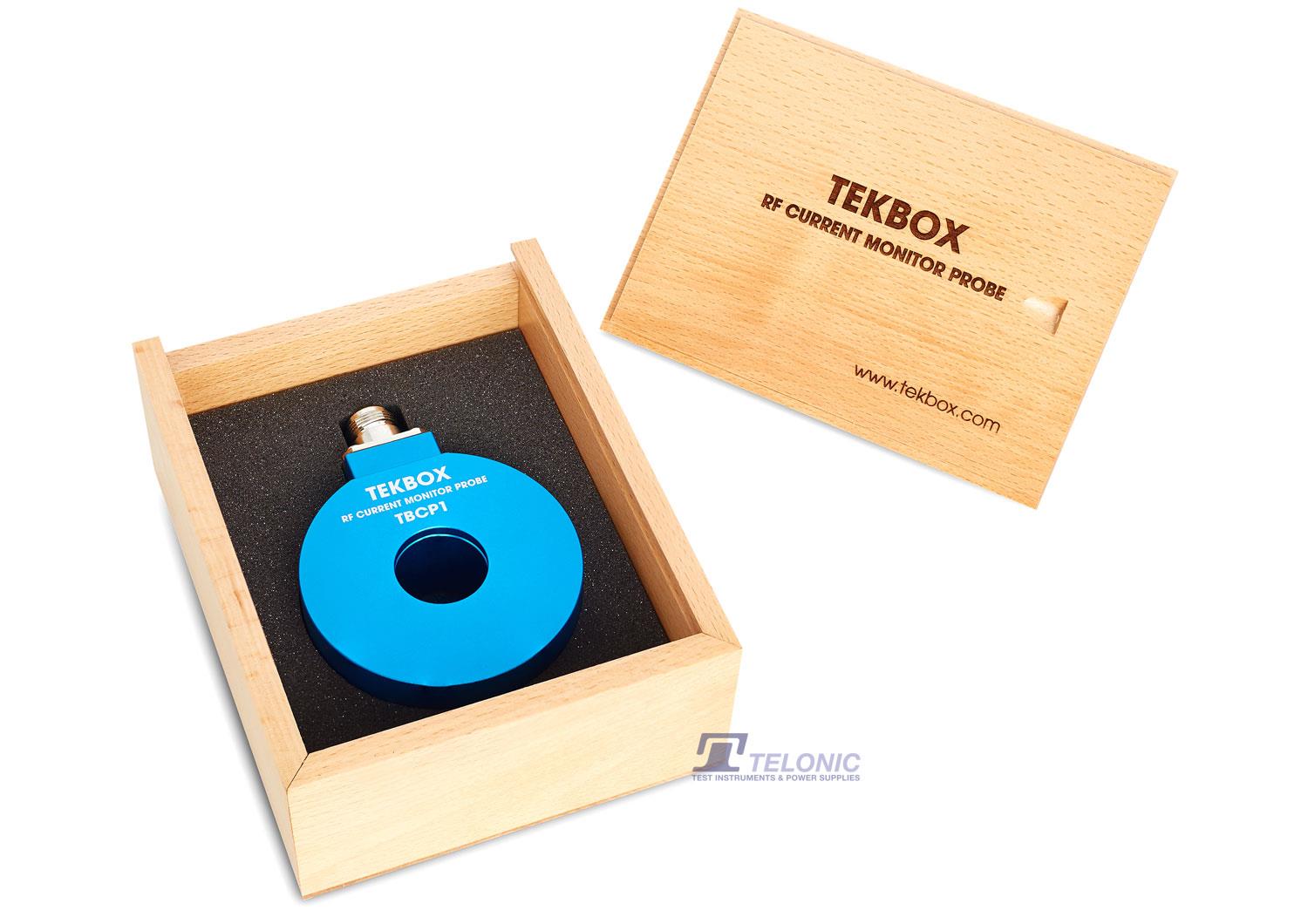

Tekbox TBCP1-200 RF Probe

The TBCP1-200 is a 10kHz to 200MHz fixed aperture RF current monitoring probe. expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a 3dB bandwidth of approximately 200MHz and is characterised and usable over the frequency range from 10kHz to 200MHz.

Documentation

Documents: Bulk Current Injection Probes TBBCI1-200K280 Manual TBBCI1-300K420-HV Manual TBBCI1-800K420 Manual Documents: Coaxial RF Current Monitoring Probes TBCCP1 2K70 Manual TBCCP1 3K100 Manual TBCCP1 400K600 Manual Documents: Current Coupler TBMHA1 Manual Documents: Current Probe calibration fixtures TBBCI1 Calibrator Manual Tbcpx Calibrators Manual TBEMCL1 CAL Manual Documents: High Saturation RF Current Monitoring Probes TBCP2-1M100 Manual TBCP2-1M800 Manual TBCP2-3M900 Manual TBCP2-6M300 Manual TBCP2 20M700 Manual TBCP2 30M1000 Manual TBCP5 150K400 Manual Documents: RF Current Monitoring Probes TBCP1 200 Manual TBCP1 250 Manual TBCP1 500 Manual TBCP2 250 Manual TBCP2 30K400 Manual TBCP2 500 Manual TBCP2 750 Manual TBCP3 1000 Manual TBCP4 250 Manual TBCP4 500 Manual TBCP4 750 Manual Documents: RF pulse Current Monitoring Probes TBPCP1 20100 Manual TBPCP2 3070 Manual TBPCP3 05H30 Manual TBPCP3 100H80 Manual TBPCP3 20H70 Manual TBPCP3 2H40 Manual TBPCP4 100H60 Manual TBPCP4 1H30 Manual TBPCP4 50H50 Manual TBPCP4 5H50 Manual Documents: RF Surface Current Monitoring Probes TBSCP1 10M500 Manual TBSCP1 5M300 Manual
Specifications
Characterised frequency range10 kHz to 500 MHz
Aperture diameter25 mm
Outside diameter76 mm
Height31mm
Weight320g
Connector typeN female
Transfer impedance3 to 17 dBΩ
Max. primary current (DC – 400 Hz)80 A
Max. primary current (RF)3A
Max. core temperature125 °C



Frequency (MHz)Transfer Impedance (dBΩ)Frequency (MHz)Transfer Impedance (dBΩ)
0.012.794017.30
0.029.345017.20
0.0312.866017.06
0.0415.477016.87
0.0516.688016.63
0.0617.289016.49
0.0717.5410016.38
0.0817.7411016.21
0.0917.8212016.08
0.117.8913015.93
0.217.9614015.77
0.317.9615015.61
0.417.9316015.43
0.517.9117015.28
0.617.8718015.08
0.717.8519014.77
0.817.8220014.41
0.917.8121013.93
117.7822013.36
217.6223012.71
317.5524012.01
417.5725011.38
517.5226010.82
617.5128010.19
717.4730010.03
817.463509.47
917.444008.27
1017.434506.88
2017.335005.08
3017.32
